Transistors - FETs, MOSFETs - Arrays
Field-effect transistors (FET) are electronic devices which use an electric field to control the flow of current. Application of a voltage to the gate terminal alters the conductivity between the drain and source terminals. FETs are also known as unipolar transistors since they involve single-carrier-type operation. That is, FETs use electrons or holes as charge carriers in their operation, but not both. Field effect transistors generally display very high input impedance at low frequencies.
Product List
Total Components: 486
Product | Pricing | Datasheet | FET Type | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Mounting Type | Package / Case | Supplier Device Package | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
2N7002DWH6327XTSA1 Infineon Technologies | 1 $0.0196 | Datasheet | 2 N-Channel (Dual) | Logic Level Gate | 60V | 300mA | 3Ohm @ 500mA, 10V | 2.5V @ 250µA | 0.6nC @ 10V | 20pF @ 25V | 500mW | -55°C ~ 150°C (TJ) | Surface Mount | 6-VSSOP, SC-88, SOT-363 | PG-SOT363-PO | 100,000 Cart + RFQ |
BSD840NH6327XTSA1 Infineon Technologies | 1 $0.4300 | Datasheet | 2 N-Channel (Dual) | Logic Level Gate | 20V | 880mA | 400mOhm @ 880mA, 2.5V | 750mV @ 1.6µA | 0.26nC @ 2.5V | 78pF @ 10V | 500mW | -55°C ~ 150°C (TJ) | Surface Mount | 6-VSSOP, SC-88, SOT-363 | PG-SOT363-PO | 6,344 Cart + RFQ |

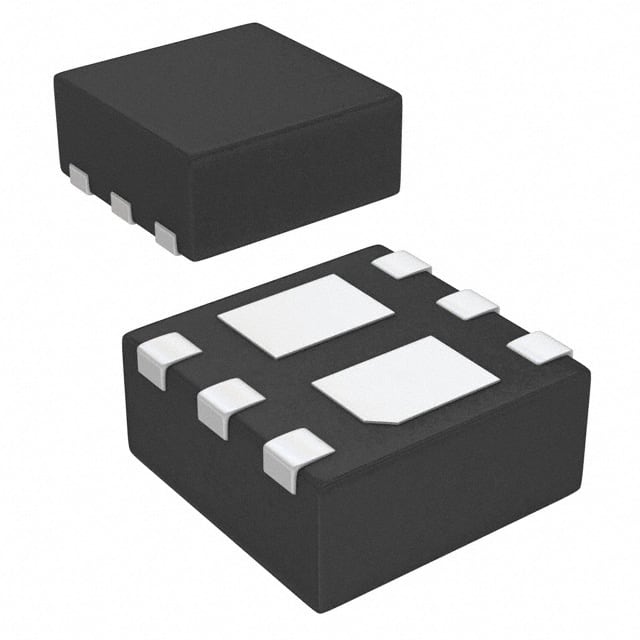

IRLHS6376TRPBF Infineon Technologies | 1 $0.7700 | Datasheet | 2 N-Channel (Dual) | Logic Level Gate | 30V | 3.6A | 63mOhm @ 3.4A, 4.5V | 1.1V @ 10µA | 2.8nC @ 4.5V | 270pF @ 25V | 1.5W | -55°C ~ 150°C (TJ) | Surface Mount | 6-VDFN Exposed Pad | 6-PQFN (2x2) | 4,633 Cart + RFQ |
IRF7503TRPBF Infineon Technologies | 1 $0.6900 100 $0.5520 500 $0.4600 | Datasheet | 2 N-Channel (Dual) | Logic Level Gate | 30V | 2.4A | 135mOhm @ 1.7A, 10V | 1V @ 250µA | 12nC @ 10V | 210pF @ 25V | 1.25W | -55°C ~ 150°C (TJ) | Surface Mount | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Micro8™ | 27 Cart + RFQ |
IRF7509TRPBF Infineon Technologies | 1 $0.9500 | Datasheet | N and P-Channel | Logic Level Gate | 30V | 2.7A, 2A | 110mOhm @ 1.7A, 10V | 1V @ 250µA | 12nC @ 10V | 210pF @ 25V | 1.25W | -55°C ~ 150°C (TJ) | Surface Mount | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Micro8™ | 6,088 Cart + RFQ |
IRF7313TRPBF Infineon Technologies | 1 $0.5850 100 $0.4680 500 $0.3900 | Datasheet | 2 N-Channel (Dual) | Standard | 30V | 6.5A | 29mOhm @ 5.8A, 10V | 1V @ 250µA | 33nC @ 10V | 650pF @ 25V | 2W | -55°C ~ 150°C (TJ) | Surface Mount | 8-SOIC (0.154", 3.90mm Width) | 8-SO | 120 Cart + RFQ |
IRF7103TRPBF Infineon Technologies | 1 $0.3150 100 $0.2520 500 $0.2100 | Datasheet | 2 N-Channel (Dual) | Standard | 50V | 3A | 130mOhm @ 3A, 10V | 3V @ 250µA | 30nC @ 10V | 290pF @ 25V | 2W | -55°C ~ 150°C (TJ) | Surface Mount | 8-SOIC (0.154", 3.90mm Width) | 8-SO | 200 Cart + RFQ |
IRF7530TRPBF Infineon Technologies | 1 $1.0100 | Datasheet | 2 N-Channel (Dual) | Standard | 20V | 5.4A | 30mOhm @ 5.4A, 4.5V | 1.2V @ 250µA | 26nC @ 4.5V | 1310pF @ 15V | 1.3W | -55°C ~ 150°C (TJ) | Surface Mount | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Micro8™ | 7,223 Cart + RFQ |
IRF7314TRPBF Infineon Technologies | 1 $1.0200 | Datasheet | 2 P-Channel (Dual) | Logic Level Gate | 20V | 5.3A | 58mOhm @ 2.9A, 4.5V | 700mV @ 250µA | 29nC @ 4.5V | 780pF @ 15V | 2W | -55°C ~ 150°C (TJ) | Surface Mount | 8-SOIC (0.154", 3.90mm Width) | 8-SO | 5,182 Cart + RFQ |
IRF9362TRPBF Infineon Technologies | 1 $1.0800 | Datasheet | 2 P-Channel (Dual) | Logic Level Gate | 30V | 8A | 21mOhm @ 8A, 10V | 2.4V @ 25µA | 39nC @ 10V | 1300pF @ 25V | 2W | -55°C ~ 150°C (TJ) | Surface Mount | 8-SOIC (0.154", 3.90mm Width) | 8-SO | 1,000 Cart + RFQ |
IRF7316TRPBF Infineon Technologies | 1 $0.6686 100 $0.5348 500 $0.4457 | Datasheet | 2 P-Channel (Dual) | Logic Level Gate | 30V | 4.9A | 58mOhm @ 4.9A, 10V | 1V @ 250µA | 34nC @ 10V | 710pF @ 25V | 2W | -55°C ~ 150°C (TJ) | Surface Mount | 8-SOIC (0.154", 3.90mm Width) | 8-SO | 1,000 Cart + RFQ |
IRF7317TRPBF Infineon Technologies | 1 $1.2900 | Datasheet | N and P-Channel | Logic Level Gate | 20V | 6.6A, 5.3A | 29mOhm @ 6A, 4.5V | 700mV @ 250µA | 27nC @ 4.5V | 900pF @ 15V | 2W | -55°C ~ 150°C (TJ) | Surface Mount | 8-SOIC (0.154", 3.90mm Width) | 8-SO | 4,024 Cart + RFQ |
IRF7319TRPBF Infineon Technologies | 1 $1.3700 | Datasheet | N and P-Channel | Standard | 30V | - | 29mOhm @ 5.8A, 10V | 1V @ 250µA | 33nC @ 10V | 650pF @ 25V | 2W | -55°C ~ 150°C (TJ) | Surface Mount | 8-SOIC (0.154", 3.90mm Width) | 8-SO | 9,364 Cart + RFQ |
BSC0924NDIATMA1 Infineon Technologies | 1 $1.5400 | Datasheet | 2 N-Channel (Dual) Asymmetrical | Logic Level Gate, 4.5V Drive | 30V | 17A, 32A | 5mOhm @ 20A, 10V | 2V @ 250µA | 10nC @ 4.5V | 1160pF @ 15V | 1W | -55°C ~ 150°C (TJ) | Surface Mount | 8-PowerTDFN | PG-TISON-8 | 5,654 Cart + RFQ |
IRF7329TRPBF Infineon Technologies | 1 $1.7000 | Datasheet | 2 P-Channel (Dual) | Logic Level Gate | 12V | 9.2A | 17mOhm @ 9.2A, 4.5V | 900mV @ 250µA | 57nC @ 4.5V | 3450pF @ 10V | 2W | -55°C ~ 150°C (TJ) | Surface Mount | 8-SOIC (0.154", 3.90mm Width) | 8-SO | 8,793 Cart + RFQ |
IRF7328TRPBF Infineon Technologies | 1 $1.9500 | Datasheet | 2 P-Channel (Dual) | Logic Level Gate | 30V | 8A | 21mOhm @ 8A, 10V | 2.5V @ 250µA | 78nC @ 10V | 2675pF @ 25V | 2W | -55°C ~ 150°C (TJ) | Surface Mount | 8-SOIC (0.154", 3.90mm Width) | 8-SO | 2,388 Cart + RFQ |
IRF7324TRPBF Infineon Technologies | 1 $1.8400 | Datasheet | 2 P-Channel (Dual) | Logic Level Gate | 20V | 9A | 18mOhm @ 9A, 4.5V | 1V @ 250µA | 63nC @ 5V | 2940pF @ 15V | 2W | -55°C ~ 150°C (TJ) | Surface Mount | 8-SOIC (0.154", 3.90mm Width) | 8-SO | 4,385 Cart + RFQ |
BSC0921NDIATMA1 Infineon Technologies | 1 $1.9900 | Datasheet | 2 N-Channel (Dual) Asymmetrical | Logic Level Gate, 4.5V Drive | 30V | 17A, 31A | 5mOhm @ 20A, 10V | 2V @ 250µA | 8.9nC @ 4.5V | 1025pF @ 15V | 1W | -55°C ~ 150°C (TJ) | Surface Mount | 8-PowerTDFN | PG-TISON-8 | 9,654 Cart + RFQ |
BSG0811NDATMA1 Infineon Technologies | 1 $3.2600 | Datasheet | 2 N-Channel (Dual) Asymmetrical | Logic Level Gate, 4.5V Drive | 25V | 19A, 41A | 3mOhm @ 20A, 10V | 2V @ 250µA | 8.4nC @ 4.5V | 1100pF @ 12V | 2.5W | -55°C ~ 150°C (TJ) | Surface Mount | 8-PowerTDFN | PG-TISON-8 | 8,171 Cart + RFQ |

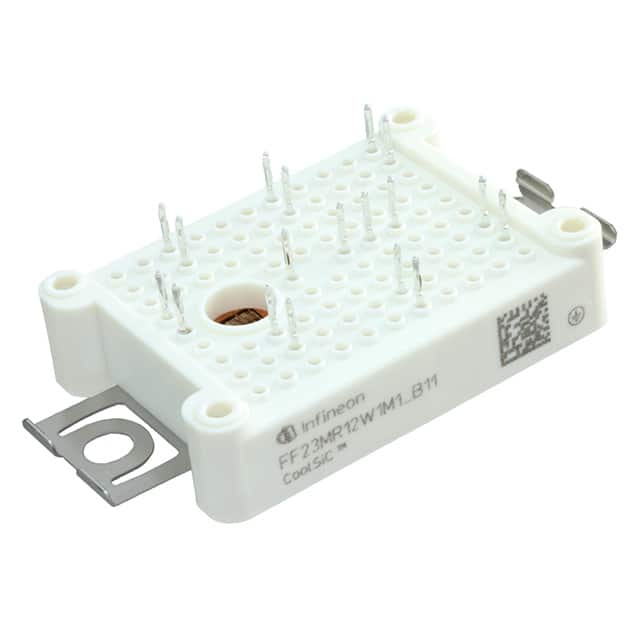

FF23MR12W1M1B11BOMA1 Infineon Technologies | 1 $111.7400 | Datasheet | 2 N-Channel (Dual) | Silicon Carbide (SiC) | 1200V (1.2kV) | 50A | 23mOhm @ 50A, 15V | 5.55V @ 20mA | 125nC @ 15V | 3950pF @ 800V | 20mW | -40°C ~ 150°C (TJ) | Chassis Mount | Module | Module | 7,226 Cart + RFQ |
