Adapter, Breakout Boards
Products in this family provide increased convenience of access to the electrical contacts of a connector, integrated circuit, or similar device by providing interconnection between a component placement area (typically for a fine-pitch, surface mounted integrated circuit) and an interconnect area typically having a much larger distance between pin centers. A common application is accommodating the use of solderless breadboards as a prototyping method for components that are not available in breadboard-compatible packaging.
Product List
Total Components: 32
Product | Pricing | Datasheet | Proto Board Type | Package Accepted | Number of Positions | Pitch | Board Thickness | Material | Size / Dimension | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|
PA0001C Chip Quik, Inc. | 1 $6.4900 | Datasheet | SMD to DIP | SOIC | 8 | 0.050" (1.27mm) | 0.063" (1.60mm) | FR4 Epoxy Glass | 0.400" L x 0.400" W (10.16mm x 10.16mm) | 8,013 Cart + RFQ |
F200T254P10 Chip Quik, Inc. | 1 $1.8900 | Datasheet | Plated Through Hole to Plated Through Hole | - | 10 | 0.079" (2.00mm), 0.100" (2.54mm) | 0.063" (1.60mm) | FR4 Epoxy Glass | - | 5,341 Cart + RFQ |
PCB3007-1 Chip Quik, Inc. | 1 $2.0900 | Datasheet | SMD to DIP | SOT-23 | 6 | 0.037" (0.95mm) | 0.062" (1.57mm) 1/16" | FR4 Epoxy Glass | 0.400" x 0.300" (10.16mm x 7.62mm) | 4,681 Cart + RFQ |
PA0087 Chip Quik, Inc. | 1 $2.6900 | Datasheet | SMD to DIP | SC-70, SC-88, SOT-363 | 6 | 0.026" (0.65mm) | 0.062" (1.57mm) 1/16" | FR4 Epoxy Glass | 0.700" x 0.300" (17.78mm x 7.62mm) | 8,298 Cart + RFQ |
PA0085 Chip Quik, Inc. | 1 $2.6900 | Datasheet | SMD to DIP | SOT-23, SC-59 | 6 | 0.037" (0.95mm) | 0.062" (1.57mm) 1/16" | FR4 Epoxy Glass | 0.700" x 0.300" (17.78mm x 7.62mm) | 9,958 Cart + RFQ |
PA0090 Chip Quik, Inc. | 1 $2.6900 | Datasheet | SMD to DIP | TSOC | 6 | 0.050" (1.27mm) | 0.062" (1.57mm) 1/16" | FR4 Epoxy Glass | 0.700" x 0.300" (17.78mm x 7.62mm) | 5,894 Cart + RFQ |
PCB3001-1 Chip Quik, Inc. | 1 $3.1900 | Datasheet | SMD to DIP | SOIC, SOP | 28 | 0.050" (1.27mm) | 0.062" (1.57mm) 1/16" | FR4 Epoxy Glass | 0.800" x 1.400" (20.32mm x 35.56mm) | 7,923 Cart + RFQ |
PCB3008-1 Chip Quik, Inc. | 1 $3.1900 | Datasheet | SMD to DIP | TSSOP | 14 | 0.026" (0.65mm) | 0.062" (1.57mm) 1/16" | FR4 Epoxy Glass | 0.400" x 0.700" (10.16mm x 17.78mm) | 9,296 Cart + RFQ |
PA0032 Chip Quik, Inc. | 1 $3.1900 | Datasheet | SMD to DIP | TSSOP | 8 | 0.026" (0.65mm) | 0.062" (1.57mm) 1/16" | FR4 Epoxy Glass | 0.700" x 0.400" (17.78mm x 10.16mm) | 3,712 Cart + RFQ |
PA0042 Chip Quik, Inc. | 1 $3.1900 | Datasheet | SMD to DIP | VSSOP | 8 | 0.020" (0.50mm) | 0.062" (1.57mm) 1/16" | FR4 Epoxy Glass | 0.700" x 0.400" (17.78mm x 10.16mm) | 7,673 Cart + RFQ |
PA0003 Chip Quik, Inc. | 1 $3.4900 | Datasheet | SMD to DIP | SOIC | 14 | 0.050" (1.27mm) | 0.062" (1.57mm) 1/16" | FR4 Epoxy Glass | 0.700" x 0.700" (17.78mm x 17.78mm) | 8,229 Cart + RFQ |
PA0002 Chip Quik, Inc. | 1 $3.4900 | Datasheet | SMD to DIP | SOIC | 8 | 0.050" (1.27mm) | 0.062" (1.57mm) 1/16" | FR4 Epoxy Glass | 0.700" x 0.400" (17.78mm x 10.16mm) | 8,127 Cart + RFQ |
FPC100P010 Chip Quik, Inc. | 1 $3.6900 | Datasheet | SMD to DIP | FPC Connector | 10 | 0.039" (1.00mm) | 0.062" (1.57mm) 1/16" | FR4 Epoxy Glass | 0.900" x 0.850" (22.86mm x 21.59mm) | 9,643 Cart + RFQ |
FPC050P010 Chip Quik, Inc. | 1 $3.6900 | Datasheet | SMD to DIP | FPC Connector | 10 | 0.020" (0.50mm) | 0.062" (1.57mm) 1/16" | FR4 Epoxy Glass | 0.900" x 0.550" (22.86mm x 13.97mm) | 2,390 Cart + RFQ |
PA0033 Chip Quik, Inc. | 1 $3.6900 | Datasheet | SMD to DIP | TSSOP | 14 | 0.026" (0.65mm) | 0.062" (1.57mm) 1/16" | FR4 Epoxy Glass | 0.700" x 0.700" (17.78mm x 17.78mm) | 9,018 Cart + RFQ |
PA0006 Chip Quik, Inc. | 1 $4.0900 | Datasheet | SMD to DIP | SOIC | 16 | 0.050" (1.27mm) | 0.062" (1.57mm) 1/16" | FR4 Epoxy Glass | 0.700" x 0.800" (17.78mm x 20.32mm) | 4,340 Cart + RFQ |

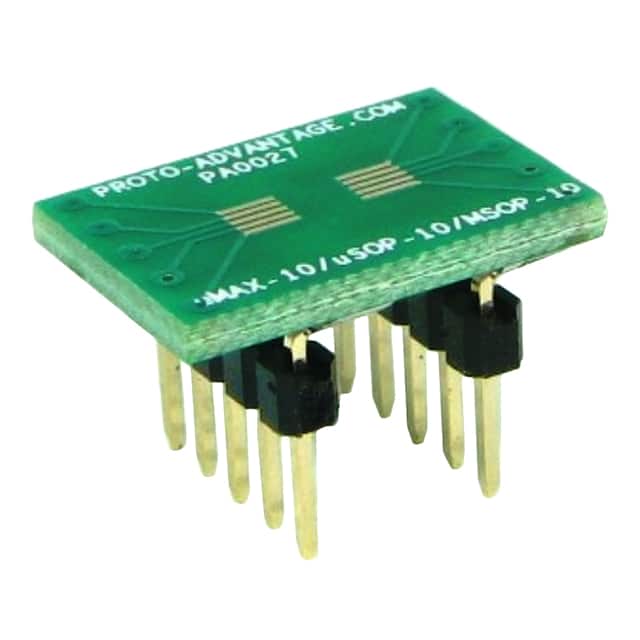

PA0027 Chip Quik, Inc. | 1 $4.0900 | Datasheet | SMD to DIP | MSOP, uMAX, uSOP | 10 | 0.020" (0.50mm) | 0.062" (1.57mm) 1/16" | FR4 Epoxy Glass | 0.700" x 0.500" (17.78mm x 12.70mm) | 5,704 Cart + RFQ |

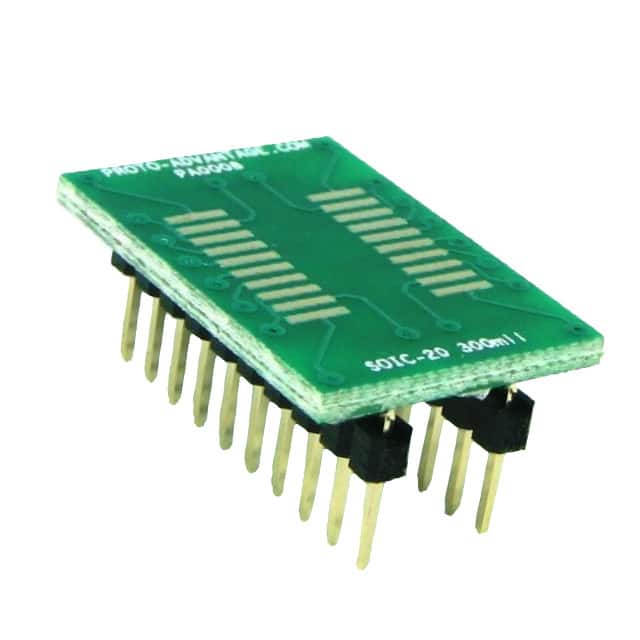

PA0008 Chip Quik, Inc. | 1 $4.6900 | Datasheet | SMD to DIP | SOIC | 20 | 0.050" (1.27mm) | 0.062" (1.57mm) 1/16" | FR4 Epoxy Glass | 0.700" x 1.000" (17.78mm x 25.40mm) | 2,457 Cart + RFQ |

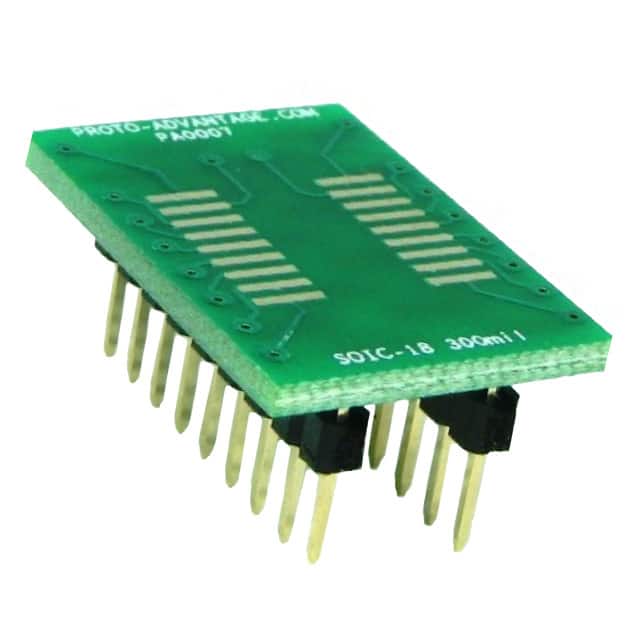

PA0007 Chip Quik, Inc. | 1 $4.6900 | Datasheet | SMD to DIP | SOIC | 18 | 0.050" (1.27mm) | 0.062" (1.57mm) 1/16" | FR4 Epoxy Glass | 0.700" x 1.000" (17.78mm x 25.40mm) | 1,112 Cart + RFQ |

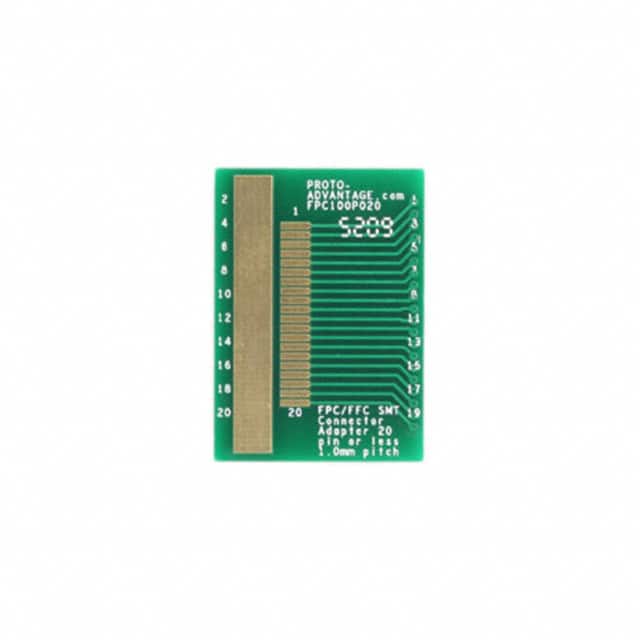

FPC100P020 Chip Quik, Inc. | 1 $4.7900 | Datasheet | SMD to DIP | FPC Connector | 20 | 0.039" (1.00mm) | 0.062" (1.57mm) 1/16" | FR4 Epoxy Glass | 0.900" x 1.250" (22.86mm x 31.75mm) | 6,188 Cart + RFQ |
