D-Sub Cables
D-subminiature connectors are so named in reference to the shape of the outer shroud surrounding the contacts at their mating end, which resembles the letter 'D', and because at the time of their introduction the interconnect density they offered was among the highest available. Products in this family are finished-goods cable assemblies with connectors applied, though products with a single connector applied are included. Due to use precedents established over many decades of service, there are significant variations in the actual connectivity provided by various cables; use care to select a product suitable for the intended purpose.
Product List
Total Components: 94
Product | Pricing | Datasheet | 1st Connector | 2nd Connector | Type | Number of Positions | Length | Shielding | Color | Usage | Contact Finish | Contact Finish Thickness | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|

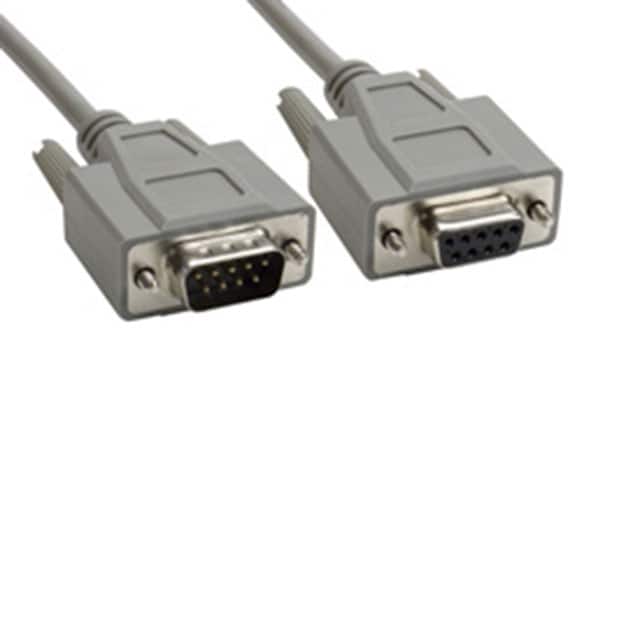

CS-DSSMDB9MF0-005 Amphenol | 1 $12.3800 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB09 | 9 | 5.00' (1.52m) | Shielded | Gray, Individual (Round) | - | - | - | 9,415 Cart + RFQ |

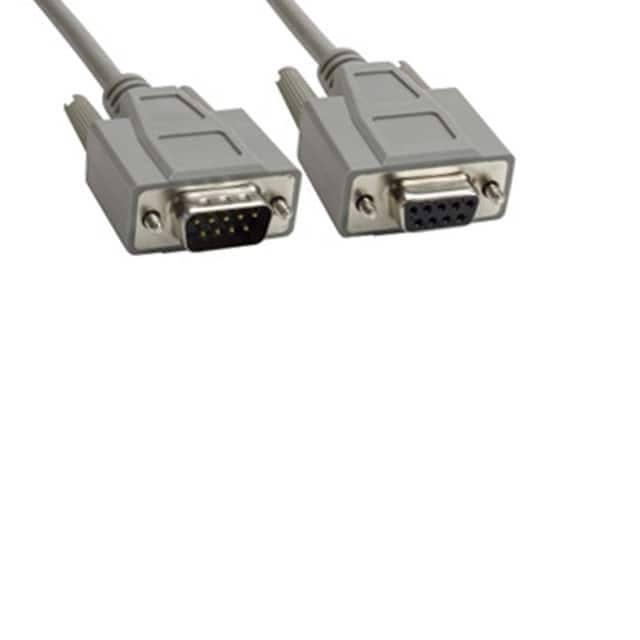

CS-DSDMDB09MF-002.5 Amphenol | 1 $14.5500 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB09 | 9 | 2.50' (762.00mm) | Shielded | Gray, Individual (Round) | - | - | - | 3,510 Cart + RFQ |

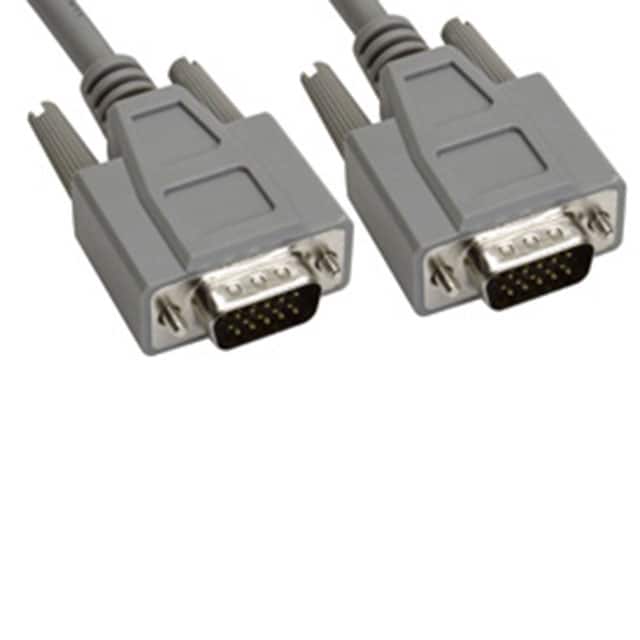

CS-DSDHD15MM0-002.5 Amphenol | 1 $15.0700 | Datasheet | Plug, Male Pins | Plug, Male Pins | HD15 | 15 | 2.50' (762.00mm) | Shielded | Gray, Individual (Round) | - | - | - | 9,950 Cart + RFQ |

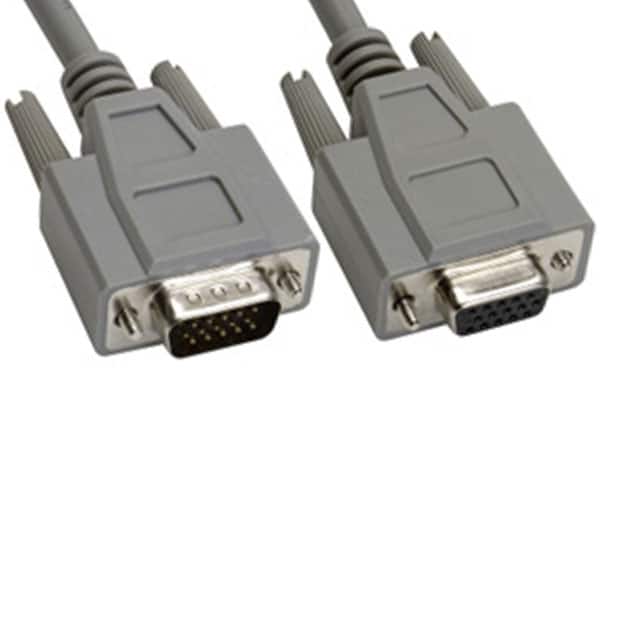

CS-DSDHD15MF0-002.5 Amphenol | 1 $15.0700 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | HD15 | 15 | 2.50' (762.00mm) | Shielded | Gray, Individual (Round) | - | - | - | 3,840 Cart + RFQ |
CS-DSDMDB09MF-005 Amphenol | 1 $16.2000 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB09 | 9 | 5.00' (1.52m) | Shielded | Gray, Individual (Round) | - | - | - | 6,353 Cart + RFQ |
CS-DSDHD15MF0-007.5 Amphenol | 1 $17.7700 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | HD15 | 15 | 7.50' (2.29m) | Shielded | Gray, Individual (Round) | - | - | - | 4,153 Cart + RFQ |

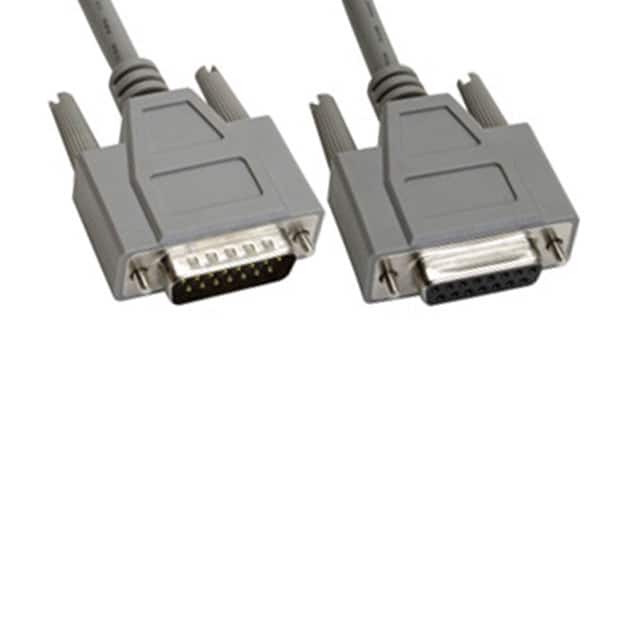

CS-DSDMDB15MF-002.5 Amphenol | 1 $18.4100 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB15 | 15 | 2.50' (762.00mm) | Shielded | Gray, Individual (Round) | - | - | - | 3,730 Cart + RFQ |

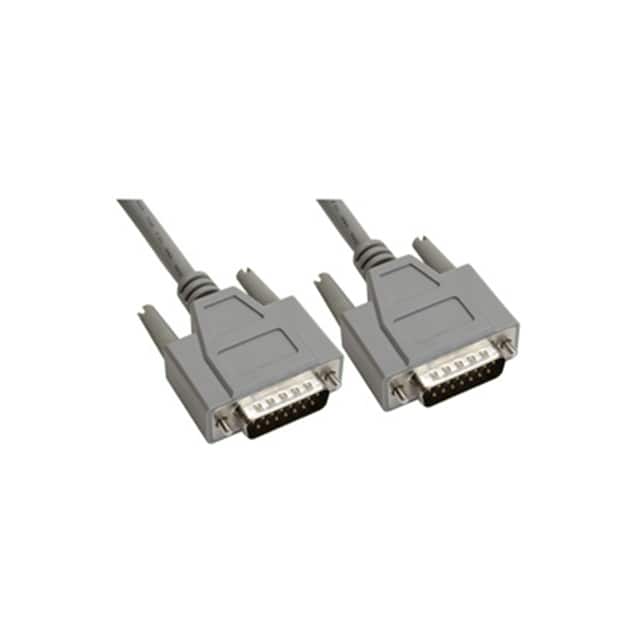

CS-DSDMDB15MM-002.5 Amphenol | 1 $18.4100 | Datasheet | Plug, Male Pins | Plug, Male Pins | DB15 | 15 | 2.50' (762.00mm) | Shielded | Gray, Individual (Round) | - | - | - | 5,540 Cart + RFQ |
CS-DSDMDB15MM-010 Amphenol | 1 $19.7100 | Datasheet | Plug, Male Pins | Plug, Male Pins | DB15 | 15 | 10.00' (3.05m) | Shielded | Gray, Individual (Round) | - | - | - | 6,507 Cart + RFQ |
CS-DSDMDB15MM-005 Amphenol | 1 $20.0400 | Datasheet | Plug, Male Pins | Plug, Male Pins | DB15 | 15 | 5.00' (1.52m) | Shielded | Gray, Individual (Round) | - | - | - | 5,918 Cart + RFQ |
CS-DSDMDB15MF-005 Amphenol | 1 $20.0400 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB15 | 15 | 5.00' (1.52m) | Shielded | Gray, Individual (Round) | - | - | - | 9,070 Cart + RFQ |

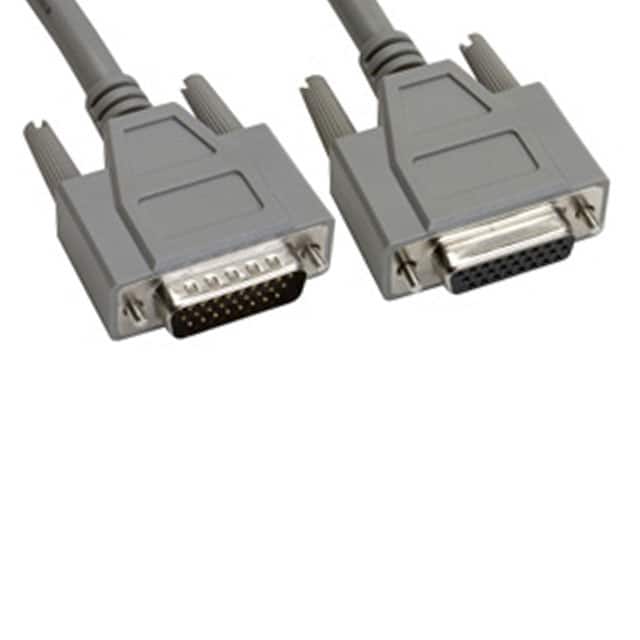

CS-DSDHD26MF0-010 Amphenol | 1 $30.3400 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | HD26 | 26 | 10.00' (3.05m) | Shielded | Gray, Individual (Round) | - | - | - | 9,944 Cart + RFQ |
CS-DSDMDB15MF-025 Amphenol | 1 $30.7600 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB15 | 15 | 25.00' (7.62m) | Shielded | Gray, Individual (Round) | - | - | - | 6,573 Cart + RFQ |
CS-DSDMDB15MF-015 Amphenol | 1 $23.5200 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB15 | 15 | 15.00' (4.57m) | Shielded | Gray, Individual (Round) | - | - | - | 7,458 Cart + RFQ |
CS-DSDMDB09MF-025 Amphenol | 1 $33.5800 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB09 | 9 | 25.00' (7.62m) | Shielded | Gray, Individual (Round) | - | - | - | 1,544 Cart + RFQ |

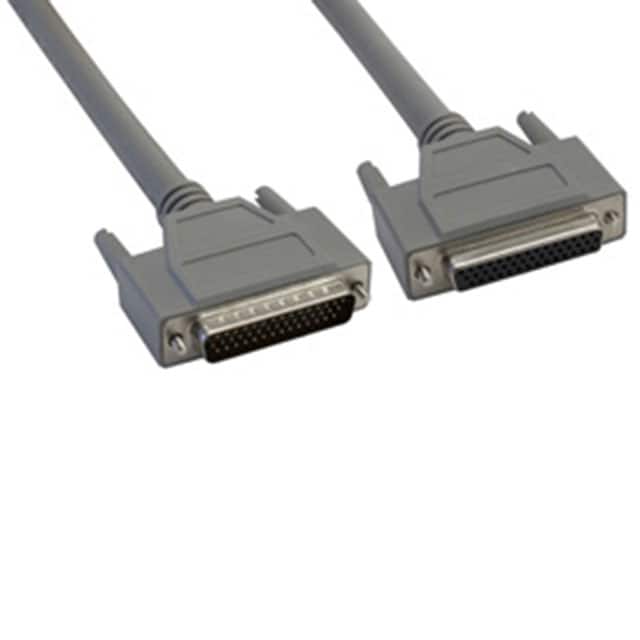

CS-DSDHD44MF0-002.5 Amphenol | 1 $36.2100 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | HD44 | 44 | 2.50' (762.00mm) | Shielded | Gray, Individual (Round) | - | - | - | 6,171 Cart + RFQ |

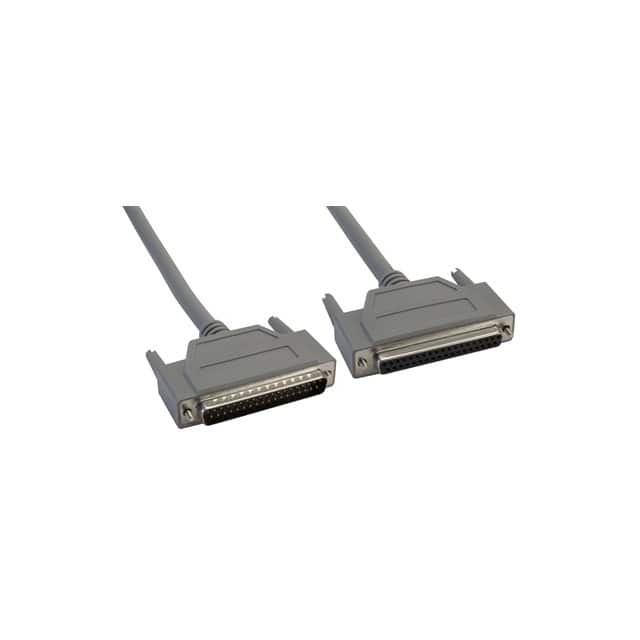

CS-DSDMDB37MF-005 Amphenol | 1 $28.8500 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB37 | 37 | 5.00' (1.52m) | Shielded | Gray, Individual (Round) | - | Gold | - | 7,224 Cart + RFQ |

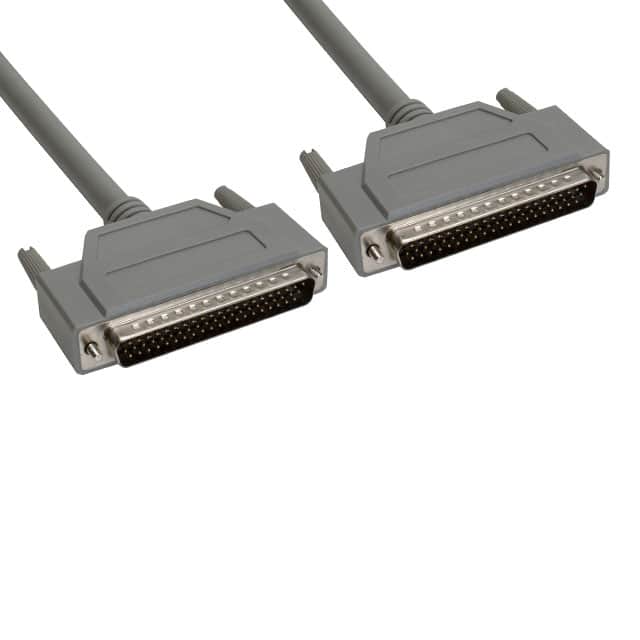

CS-DSDHD62MM0-005 Amphenol | 1 $46.6200 | Datasheet | Plug, Male Pins | Plug, Male Pins | HD62 | 62 | 5.00' (1.52m) | Shielded | Gray, Individual (Round) | - | - | - | 6,370 Cart + RFQ |

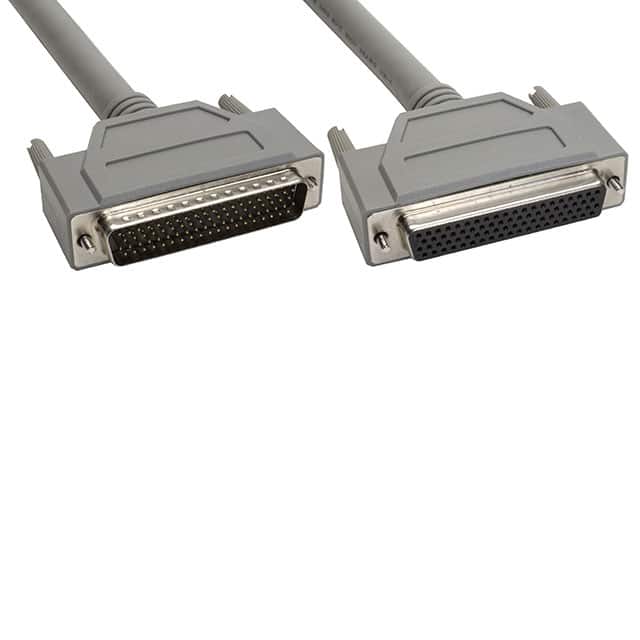

CS-DSDHD78MF0-005 Amphenol | 1 $46.6200 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | HD78 | 78 | 5.00' (1.52m) | Shielded | Gray, Individual (Round) | - | - | - | 8,026 Cart + RFQ |

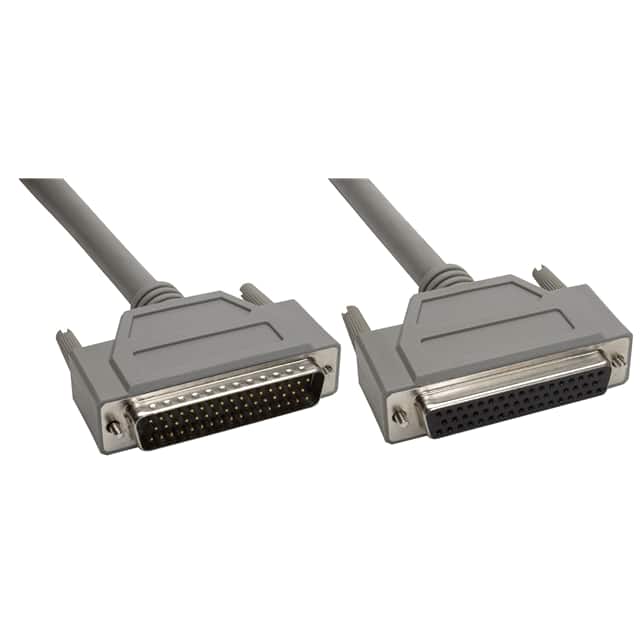

CS-DSDMDB50MF-002.5 Amphenol | 1 $48.2500 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB50 | 50 | 2.50' (762.00mm) | Shielded | Gray, Individual (Round) | - | Gold | - | 3,029 Cart + RFQ |
