Thermal - Heat Sinks
Passive heat exchangers that transfer the heat generated by an electronic component to a fluid medium, often air or a liquid coolant, dissipating it away from the device to maintain an optimal operating temperature. They are designed to maximize the surface area in contact with the medium surrounding it. They are usually made out of copper or aluminum due to their high thermal conductivity.
Product List
Total Components: 6
| Product | Pricing | Datasheet | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

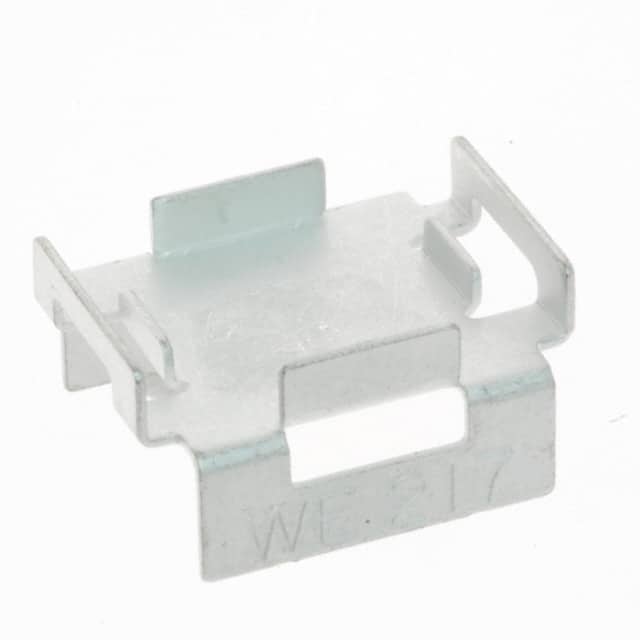

 217-36CTE6 Wakefield Thermal | 1 $0.5300 | Datasheet | Top Mount | D²Pak (TO-263), SOL-20, SOT-223, TO-220 | SMD Pad | Rectangular, Fins | 0.740" (18.80mm) | 0.600" (15.24mm) | - | 0.360" (9.14mm) | 1.0W @ 55°C | 16.00°C/W @ 200 LFM | 55.00°C/W | Copper | Tin | 2,012 Cart + RFQ |

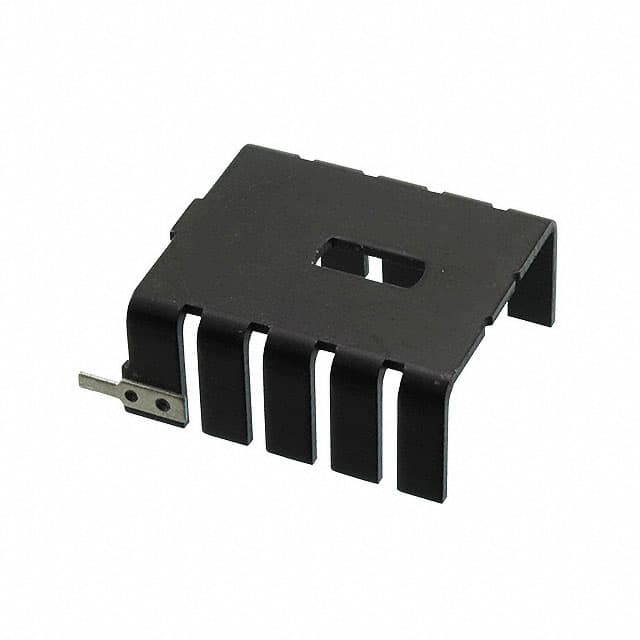

 287-1ABE Wakefield Thermal | 1 $0.7800 | Datasheet | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.180" (29.97mm) | 1.000" (25.40mm) | - | 0.500" (12.70mm) | 4.0W @ 65°C | 7.80°C/W @ 200 LFM | 16.20°C/W | Aluminum | Black Anodized | 7,522 Cart + RFQ |

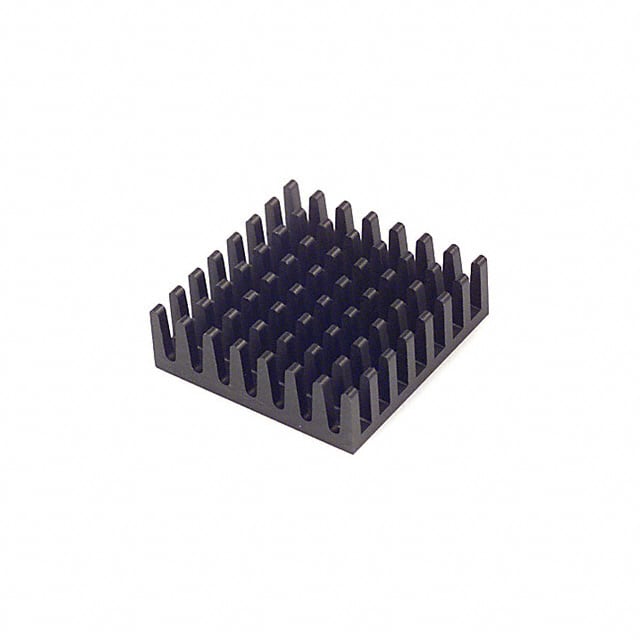

 658-35AB Wakefield Thermal | 1 $1.0900 | Datasheet | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 1.100" (27.94mm) | 1.100" (27.94mm) | - | 0.350" (8.89mm) | - | 3.00°C/W @ 800 LFM | - | Aluminum | Black Anodized | 6,902 Cart + RFQ |

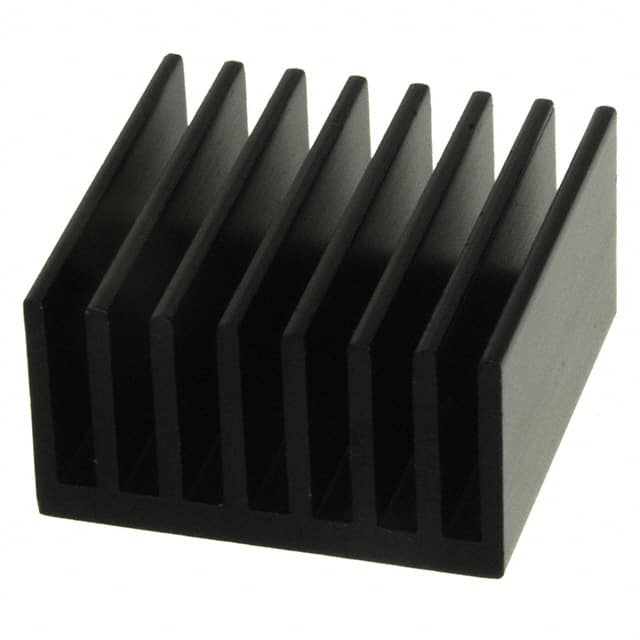

 LTN20069 Wakefield Thermal | 1 $1.4900 | Datasheet | Board Level | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 0.650" (16.51mm) | 0.653" (16.59mm) | - | 0.350" (8.89mm) | - | 8.00°C/W @ 500 LFM | - | Aluminum | Black Anodized | 4,170 Cart + RFQ |

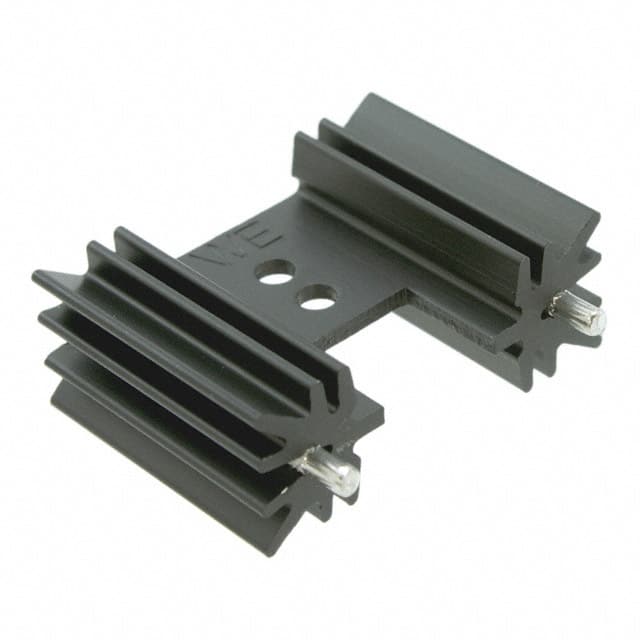

 637-10ABPE Wakefield Thermal | 1 $1.5400 | Datasheet | Board Level, Vertical | TO-220 | Bolt On and Board Mounts | Rectangular, Fins | 1.000" (25.40mm) | 1.375" (34.93mm) | - | 0.500" (12.70mm) | 6.0W @ 76°C | 5.80°C/W @ 200 LFM | - | Aluminum | Black Anodized | 5,623 Cart + RFQ |

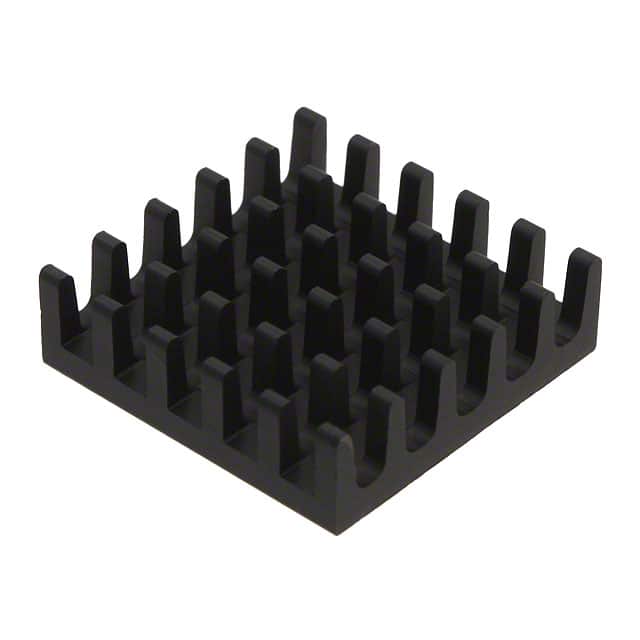

 624-25ABT4E Wakefield Thermal | 1 $1.9800 | Datasheet | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 0.827" (21.00mm) | 0.827" (21.00mm) | - | 0.250" (6.35mm) | - | 25.00°C/W @ 200 LFM | - | Aluminum | Black Anodized | 7,324 Cart + RFQ |
