Transistors - FETs, MOSFETs - Arrays
Field-effect transistors (FET) are electronic devices which use an electric field to control the flow of current. Application of a voltage to the gate terminal alters the conductivity between the drain and source terminals. FETs are also known as unipolar transistors since they involve single-carrier-type operation. That is, FETs use electrons or holes as charge carriers in their operation, but not both. Field effect transistors generally display very high input impedance at low frequencies.
Product List
Total Components: 71
Product | Pricing | Datasheet | FET Type | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Mounting Type | Package / Case | Supplier Device Package | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

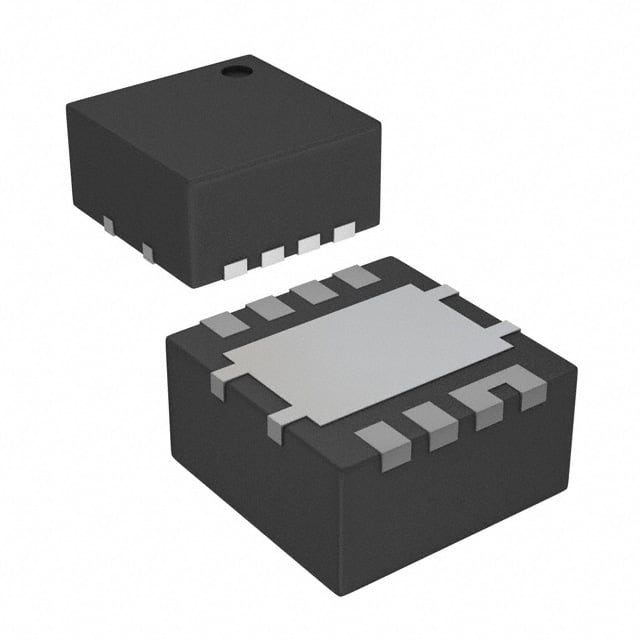

CSD87330Q3D Texas Instruments | 1 $1.6100 | Datasheet | 2 N-Channel (Half Bridge) | Logic Level Gate | 30V | 20A | - | 2.1V @ 250µA | 5.8nC @ 4.5V | 900pF @ 15V | 6W | -55°C ~ 150°C (TJ) | Surface Mount | 8-PowerLDFN | 8-LSON (3.3x3.3) | 8,185 Cart + RFQ |
CSD87351Q5D Texas Instruments | 1 $2.2900 | Datasheet | 2 N-Channel (Dual) | Logic Level Gate | 30V | 32A | 7.6mOhm @ 20A, 8V | 2.1V @ 250µA | 7.7nC @ 4.5V | 1255pF @ 15V | 12W | -55°C ~ 150°C (TJ) | Surface Mount | 8-PowerLDFN | 8-LSON (5x6) | 2,304 Cart + RFQ |
CSD87333Q3DT Texas Instruments | 1 $1.6000 | Datasheet | 2 N-Channel (Dual) Asymmetrical | Logic Level Gate, 5V Drive | 30V | 15A | 14.3mOhm @ 4A, 8V | 1.2V @ 250µA | 4.6nC @ 4.5V | 662pF @ 15V | 6W | 125°C (TJ) | Surface Mount | 8-PowerTDFN | 8-VSON (3.3x3.3) | 6,755 Cart + RFQ |
CSD87384MT Texas Instruments | 1 $2.2000 | Datasheet | 2 N-Channel (Half Bridge) | Logic Level Gate | 30V | 30A | 7.7mOhm @ 25A, 8V | 1.9V @ 250µA | 9.2nC @ 4.5V | 1150pF @ 15V | 8W | -55°C ~ 150°C (TJ) | Surface Mount | 5-LGA | 5-PTAB (5x3.5) | 7,449 Cart + RFQ |
CSD87384M Texas Instruments | 1 $1.8300 | Datasheet | 2 N-Channel (Half Bridge) | Logic Level Gate | 30V | 30A | 7.7mOhm @ 25A, 8V | 1.9V @ 250µA | 9.2nC @ 4.5V | 1150pF @ 15V | 8W | -55°C ~ 150°C (TJ) | Surface Mount | 5-LGA | 5-PTAB (5x3.5) | 9,023 Cart + RFQ |
CSD86350Q5D Texas Instruments | 1 $3.0200 | Datasheet | 2 N-Channel (Half Bridge) | Logic Level Gate | 25V | 40A | 6mOhm @ 20A, 8V | 2.1V @ 250µA | 10.7nC @ 4.5V | 1870pF @ 12.5V | 13W | -55°C ~ 150°C (TJ) | Surface Mount | 8-PowerLDFN | 8-LSON (5x6) | 7,733 Cart + RFQ |
CSD86356Q5DT Texas Instruments | 1 $1.4400 | Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | 9,359 Cart + RFQ |
CSD87588N Texas Instruments | 1 $27.0000 100 $21.6000 500 $18.0000 | Datasheet | 2 N-Channel (Half Bridge) | Logic Level Gate | 30V | 25A | 9.6mOhm @ 15A, 10V | 1.9V @ 250µA | 4.1nC @ 4.5V | 736pF @ 15V | 6W | -55°C ~ 150°C (TJ) | Surface Mount | 5-XFLGA | 5-PTAB (3x2.5) | 1,000 Cart + RFQ |
CSD87588NT Texas Instruments | 1 $27.0000 100 $21.6000 500 $18.0000 | Datasheet | 2 N-Channel (Half Bridge) | Logic Level Gate | 30V | 25A | 9.6mOhm @ 15A, 10V | 1.9V @ 250µA | 4.1nC @ 4.5V | 736pF @ 15V | 6W | -55°C ~ 150°C (TJ) | Surface Mount | 5-LGA | 5-PTAB (5x3.5) | 100 Cart + RFQ |
CSD87350Q5D Texas Instruments | 1 $1.0436 100 $0.8348 500 $0.6957 | Datasheet | 2 N-Channel (Dual) | Logic Level Gate | 30V | 40A | 5.9mOhm @ 20A, 8V | 2.1V @ 250µA | 10.9nC @ 4.5V | 1770pF @ 15V | 12W | -55°C ~ 150°C (TJ) | Surface Mount | 8-PowerLDFN | 8-LSON (5x6) | 45 Cart + RFQ |
CSD86360Q5D Texas Instruments | 1 $3.0300 | Datasheet | 2 N-Channel (Half Bridge) | Logic Level Gate | 25V | 50A | - | 2.1V @ 250µA | 12.6nC @ 4.5V | 2060pF @ 12.5 | 13W | -55°C ~ 150°C (TJ) | Surface Mount | 8-PowerLDFN | 8-LSON (5x6) | 8,911 Cart + RFQ |
CSD88539ND Texas Instruments | 1 $12.1500 100 $9.7200 500 $8.1000 | Datasheet | 2 N-Channel (Dual) | Standard | 60V | 15A | 28mOhm @ 5A, 10V | 3.6V @ 250µA | 9.4nC @ 10V | 741pF @ 30V | 2.1W | -55°C ~ 150°C (TJ) | Surface Mount | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC | 200,000 Cart + RFQ |
CSD85312Q3E Texas Instruments | 1 $1.3400 | Datasheet | 2 N-Channel (Dual) Common Source | Logic Level Gate, 5V Drive | 20V | 39A | 12.4mOhm @ 10A, 8V | 1.4V @ 250µA | 15.2nC @ 4.5V | 2390pF @ 10V | 2.5W | -55°C ~ 150°C (TJ) | Surface Mount | 8-PowerVDFN | 8-VSON (3.3x3.3) | 5,658 Cart + RFQ |
CSD87331Q3D Texas Instruments | 1 $1.4000 | Datasheet | 2 N-Channel (Half Bridge) | Standard | 30V | 15A | - | 2.1V, 1.2V @ 250µA | 3.2nC @ 4.5V | 518pF @ 15V | 6W | -55°C ~ 150°C (TJ) | Surface Mount | 8-PowerLDFN | 8-LSON (5x6) | 5,743 Cart + RFQ |
CSD88537ND Texas Instruments | 1 $24.3000 100 $19.4400 500 $16.2000 | Datasheet | 2 N-Channel (Dual) | Standard | 60V | 15A | 15mOhm @ 8A, 10V | 3.6V @ 250µA | 18nC @ 10V | 1400pF @ 30V | 2.1W | -55°C ~ 150°C (TJ) | Surface Mount | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC | 750 Cart + RFQ |
CSD88539NDT Texas Instruments | 1 $12.1500 100 $9.7200 500 $8.1000 | Datasheet | 2 N-Channel (Dual) | Logic Level Gate | 60V | 15A | 28mOhm @ 5A, 10V | 3.6V @ 250µA | 9.4nC @ 10V | 741pF @ 30V | 2.1W | -55°C ~ 150°C (TJ) | Surface Mount | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC | 323,120 Cart + RFQ |
CSD85302LT Texas Instruments | 1 $1.2200 | Datasheet | 2 N-Channel (Dual) Common Drain | Standard | - | - | - | - | 7.8nC @ 4.5V | - | 1.7W | -55°C ~ 150°C (TJ) | Surface Mount | 4-XFLGA | 4-Picostar (1.31x1.31) | 1,289 Cart + RFQ |
CSD87381P Texas Instruments | 1 $1.0869 100 $0.8695 500 $0.7246 | Datasheet | 2 N-Channel (Half Bridge) | Logic Level Gate | 30V | 15A | 16.3mOhm @ 8A, 8V | 1.9V @ 250µA | 5nC @ 4.5V | 564pF @ 15V | 4W | -55°C ~ 150°C (TJ) | Surface Mount | 5-LGA | 5-PTAB (3x2.5) | 11 Cart + RFQ |
CSD87381PT Texas Instruments | 1 $1.7307 100 $1.3846 500 $1.1538 | Datasheet | 2 N-Channel (Half Bridge) | Logic Level Gate | 30V | 15A | 16.3mOhm @ 8A, 8V | 1.9V @ 250µA | 5nC @ 4.5V | 564pF @ 15V | 4W | -55°C ~ 150°C (TJ) | Surface Mount | 5-LGA | 5-PTAB (3x2.5) | 125 Cart + RFQ |
CSD87502Q2T Texas Instruments | 1 $1.2500 | Datasheet | 2 N-Channel (Dual) | Logic Level Gate, 5V Drive | 30V | 5A | 32.4mOhm @ 4A, 10V | 2V @ 250µA | 6nC @ 10V | 353pF @ 15V | 2.3W | -55°C ~ 150°C (TJ) | Surface Mount | 6-WDFN Exposed Pad | 6-WSON (2x2) | 3,650 Cart + RFQ |
