Transistors - FETs, MOSFETs - Arrays
Field-effect transistors (FET) are electronic devices which use an electric field to control the flow of current. Application of a voltage to the gate terminal alters the conductivity between the drain and source terminals. FETs are also known as unipolar transistors since they involve single-carrier-type operation. That is, FETs use electrons or holes as charge carriers in their operation, but not both. Field effect transistors generally display very high input impedance at low frequencies.
Product List
Total Components: 34
Product | Pricing | Datasheet | FET Type | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Mounting Type | Package / Case | Supplier Device Package | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TSM250N02DCQ RFG Taiwan Semiconductor | 1 $1.0600 | Datasheet | 2 N-Channel (Dual) | Standard | 20V | 5.8A (Tc) | 25mOhm @ 4A, 4.5V | 800mV @ 250µA | 7.7nC @ 4.5V | 775pF @ 10V | 620mW | -55°C ~ 150°C (TJ) | Surface Mount | 6-VDFN Exposed Pad | 6-TDFN (2x2) | 1,970 Cart + RFQ |
TSM2537CQ RFG Taiwan Semiconductor | 1 $1.5000 | Datasheet | N and P-Channel | Logic Level Gate, 1.8V Drive | 20V | 11.6A (Tc), 9A (Tc) | 30mOhm @ 6.4A, 4.5V, 55mOhm @ 5A, 4.5V | 1V @ 250µA | 9.1nC @ 4.5V, 9.8nC @ 4.5V | 677pF @ 10V, 744pF @ 10V | 6.25W | -55°C ~ 150°C (TJ) | Surface Mount | 6-VDFN Exposed Pad | 6-TDFN (2x2) | 8,960 Cart + RFQ |

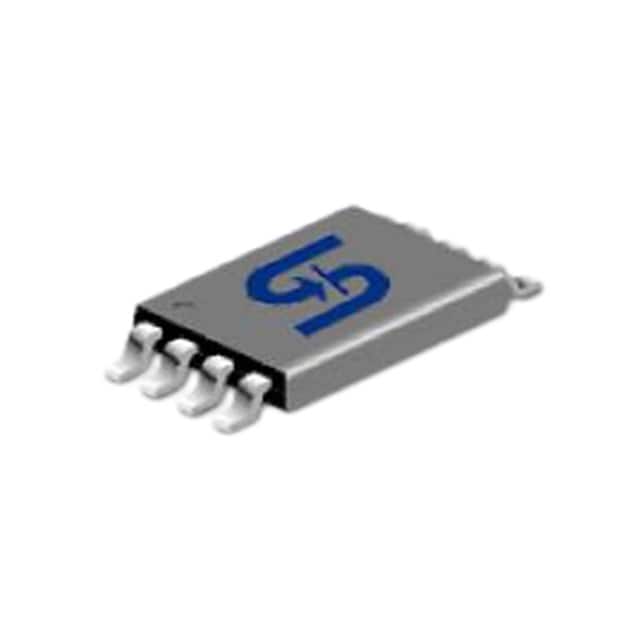

TSM6963SDCA RVG Taiwan Semiconductor | 1 $2.0200 | Datasheet | 2 P-Channel (Dual) | Standard | 20V | 4.5A (Tc) | 30mOhm @ 4.5A, 4.5V | 1V @ 250µA | 20nC @ 4.5V | 1500pF @ 10V | 1.14W | -55°C ~ 150°C (TJ) | Surface Mount | 8-TSSOP (0.173", 4.40mm Width) | 8-TSSOP | 4,762 Cart + RFQ |
TSM6502CR RLG Taiwan Semiconductor | 1 $2.4800 | Datasheet | N and P-Channel | Standard | 60V | 24A (Tc), 18A (Tc) | 34mOhm @ 5.4A, 10V, 68mOhm @ 4A, 10V | 2.5V @ 250µA | 10.3nC @ 4.5V, 9.5nC @ 4.5V | 1159pF @ 30V, 930pF @ 30V | 40W | -55°C ~ 150°C (TJ) | Surface Mount | 8-PowerTDFN | 8-PDFN (5x6) | 7,835 Cart + RFQ |
TSM3911DCX6 RFG Taiwan Semiconductor | 1 $1.6900 | Datasheet | 2 P-Channel (Dual) | Standard | 20V | 2.2A (Ta) | 140mOhm @ 2.2A, 4.5V | 950mV @ 250µA | 15.23nC @ 4.5V | 882.51pF @ 6V | 1.15W | -55°C ~ 150°C (TJ) | Surface Mount | SOT-23-6 | SOT-26 | 3,169 Cart + RFQ |
TSM150NB04DCR RLG Taiwan Semiconductor | 1 $2.3400 | Datasheet | 2 N-Channel (Dual) | Standard | 40V | 8A (Ta), 38A (Tc) | 15mOhm @ 8A, 10V | 4V @ 250µA | 18nC @ 10V | 1132pF @ 20V | 2W (Ta), 40W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | 8-PowerTDFN | 8-PDFN (5x6) | 8,394 Cart + RFQ |
TSM110NB04DCR RLG Taiwan Semiconductor | 1 $2.7200 | Datasheet | 2 N-Channel (Dual) | Standard | 40V | 10A (Ta), 48A (Tc) | 11mOhm @ 10A, 10V | 4V @ 250µA | 25nC @ 10V | 1506pF @ 20V | 2W (Ta), 48W (Tc) | -55°C ~ 155°C (TJ) | Surface Mount | 8-PowerTDFN | 8-PDFN (5x6) | 4,711 Cart + RFQ |
TQM110NB04DCR RLG Taiwan Semiconductor | 1 $3.8800 | Datasheet | 2 N-Channel (Dual) | Standard | 40V | 10A (Ta), 50A (Tc) | 11mOhm @ 10A, 10V | 3.8V @ 250µA | 26nC @ 10V | 1354pF @ 20V | 2.5W (Ta), 58W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount, Wettable Flank | 8-PowerTDFN | 8-PDFNU (5x6) | 8,621 Cart + RFQ |
TSM4953DCS RLG Taiwan Semiconductor | 1 $1.7400 | Datasheet | 2 P-Channel (Dual) | Standard | 30V | 4.9A (Ta) | 60mOhm @ 4.9A, 10V | 3V @ 250µA | 28nC @ 10V | 745pF @ 15V | 2.5W | -55°C ~ 150°C (TJ) | Surface Mount | 8-SOIC (0.154", 3.90mm Width) | 8-SOP | 9,879 Cart + RFQ |
TSM300NB06DCR RLG Taiwan Semiconductor | 1 $2.3400 | Datasheet | 2 N-Channel (Dual) | Standard | 60V | 6A (Ta), 25A (Tc) | 30mOhm @ 6A, 10V | 4.5V @ 250µA | 17nC @ 10V | 1079pF @ 30V | 2W (Ta), 40W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | 8-PowerTDFN | 8-PDFN (5x6) | 5,682 Cart + RFQ |
TSM500P02DCQ RFG Taiwan Semiconductor | 1 $1.2500 | Datasheet | 2 P-Channel (Dual) | Standard | 20V | 4.7A (Tc) | 50mOhm @ 3A, 4.5V | 800mV @ 250µA | 9.6nC @ 4.5V | 1230pF @ 10V | 620mW | -50°C ~ 150°C (TJ) | Surface Mount | 6-VDFN Exposed Pad | 6-TDFN (2x2) | 8,982 Cart + RFQ |
TSM2N7002AKDCU6 RFG Taiwan Semiconductor | 1 $0.3900 | Datasheet | 2 N-Channel (Dual) | Logic Level Gate | 60V | 220mA (Ta) | 2.5Ohm @ 220mA, 10V | 2.5V @ 250µA | 0.91nC @ 4.5V | 30pF @ 30V | 240mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount | 6-TSSOP, SC-88, SOT-363 | SOT-363 | 2,643 Cart + RFQ |
TSM4946DCS RLG Taiwan Semiconductor | 1 $0.3330 100 $0.2664 500 $0.2220 | Datasheet | 2 N-Channel (Dual) | Standard | 60V | 4.5A (Ta) | 55mOhm @ 4.5A, 10V | 3V @ 250µA | 18nC @ 10V | 910pF @ 24V | 2.4W | -55°C ~ 150°C (TJ) | Surface Mount | 8-SOIC (0.154", 3.90mm Width) | 8-SOP | 300,000 Cart + RFQ |
TQM300NB06DCR RLG Taiwan Semiconductor | 1 $3.2400 | Datasheet | 2 N-Channel (Dual) | Standard | 60V | 6A (Ta), 25A (Tc) | 30mOhm @ 6A, 10V | 3.8V @ 250µA | 20nC @ 10V | 1020pF @ 30V | 2.5W (Ta), 48W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount, Wettable Flank | 8-PowerTDFN | 8-PDFNU (5x6) | 5,660 Cart + RFQ |
TSM8588CS RLG Taiwan Semiconductor | 1 $1.6900 | Datasheet | N and P-Channel Complementary | Standard | 60V | 2.5A (Ta), 5A (Tc), 2A (Ta), 4A (Tc) | 103mOhm @ 2.5A, 10V, 180mOhm @ 2A, 10V | 2.5V @ 250µA | 9.4nC @ 10V, 9nC @ 10V | 527pF @ 30V, 436pF @ 30V | 1.4W (Ta), 5.7W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | 8-SOIC (0.154", 3.90mm Width) | 8-SOP | 6,364 Cart + RFQ |
TSM300NB06LDCR RLG Taiwan Semiconductor | 1 $2.3400 | Datasheet | 2 N-Channel (Dual) | Logic Level Gate | 60V | 5A (Ta), 24A (Tc) | 30mOhm @ 5A, 10V | 2.5V @ 250µA | 17nC @ 10V | 966pF @ 30V | 2W (Ta), 40W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | 8-PowerTDFN | 8-PDFNU (5x6) | 4,277 Cart + RFQ |
TSM076NH04DCR RLG Taiwan Semiconductor | 1 $2.6400 | Datasheet | 2 N-Channel (Dual) | Standard | 40V | 14A (Ta), 34A (Tc) | 7.6mOhm @ 17A, 10V | 3.6V @ 250µA | 19nC @ 10V | 1217pF @ 25V | 55.6W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount | 8-PowerTDFN | 8-PDFNU (5x6) | 2,148 Cart + RFQ |
TSM076NH04LDCR RLG Taiwan Semiconductor | 1 $2.6400 | Datasheet | 2 N-Channel (Dual) | Standard | 40V | 14A (Ta), 34A (Tc) | 7.6mOhm @ 17A, 10V | 2.2V @ 250µA | 22.4nC @ 10V | 1344pF @ 25V | 55.6W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount | 8-PowerTDFN | 8-PDFNU (5x6) | 5,294 Cart + RFQ |
TSM6968DCA RVG Taiwan Semiconductor | 1 $1.8800 | Datasheet | 2 N-Channel (Dual) | Standard | 20V | 6.5A (Tc) | 22mOhm @ 6A, 4.5V | 1V @ 250µA | 15nC @ 4.5V | 950pF @ 10V | 1.04W | -55°C ~ 150°C (TJ) | Surface Mount | 8-TSSOP (0.173", 4.40mm Width) | 8-TSSOP | 2,710 Cart + RFQ |
TSM8568CS RLG Taiwan Semiconductor | 1 $2.5900 | Datasheet | N and P-Channel | Standard | 30V | 15A (Tc), 13A (Tc) | 16mOhm @ 8A, 10V, 24mOhm @ 7A, 10V | 2.5V @ 250µA | 7nC @ 4.5V, 11nC @ 4.5V | 646pF @ 15V, 1089pF @ 15V | 6W | -55°C ~ 150°C (TJ) | Surface Mount | 8-SOIC (0.154", 3.90mm Width) | 8-SOP | 8,825 Cart + RFQ |
