Connectors, Interconnects
Connector and interconnect products facilitate the joining of electrical or fiber optic conductors & cables. An enormous variety of styles are available, to accommodate most any application; banana plugs for lab equipment, coaxial connectors for RF, modular plugs for network and phone systems, spade and ring terminals for connecting discrete wires to terminal blocks, terminal blocks, sockets for transistors and integrated circuits, standard AC power connectors, headphone plugs and jacks, high-voltage connectors, USB connectors, and many, many more.
Product List
Total Components: 100
Product | Pricing | Datasheet | Terminal Type | Terminal Style | Pin Size - Above Flange | Pin Size - Below Flange | Length - Above Flange | Length - Below Flange | Length - Overall | Flange Diameter | Mounting Hole Diameter | Mounting Type | Termination | Insulation | Board Thickness | Contact Material | Contact Finish | Contact Finish Thickness | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

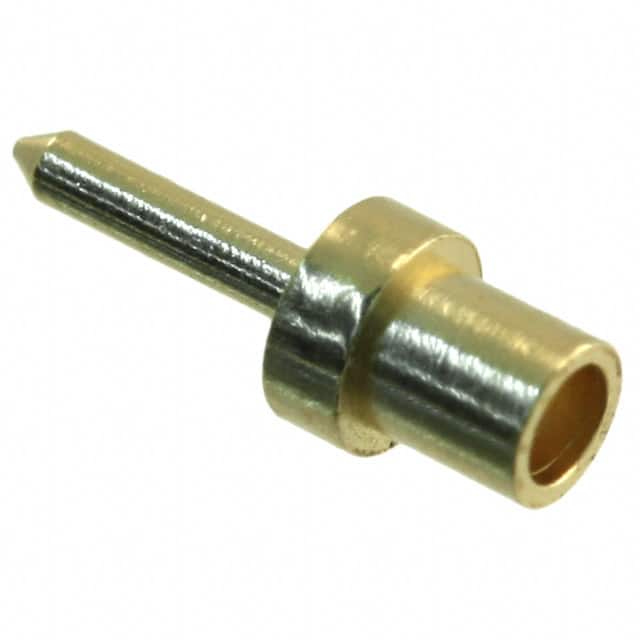

3113-1-00-15-00-00-08-0 Mill-Max | 1 $0.1900 | Datasheet | PC Pin | Single End | 0.025" (0.64mm) Dia | - | 0.125" (3.18mm) | 0.062" (1.57mm) | 0.217" (5.51mm) | 0.078" (1.98mm) | 0.062" (1.57mm) | Through Hole | Swage | Non-Insulated | 0.031" (0.79mm) | Brass Alloy | Gold | 10.0µin (0.25µm) | 2,368 Cart + RFQ |

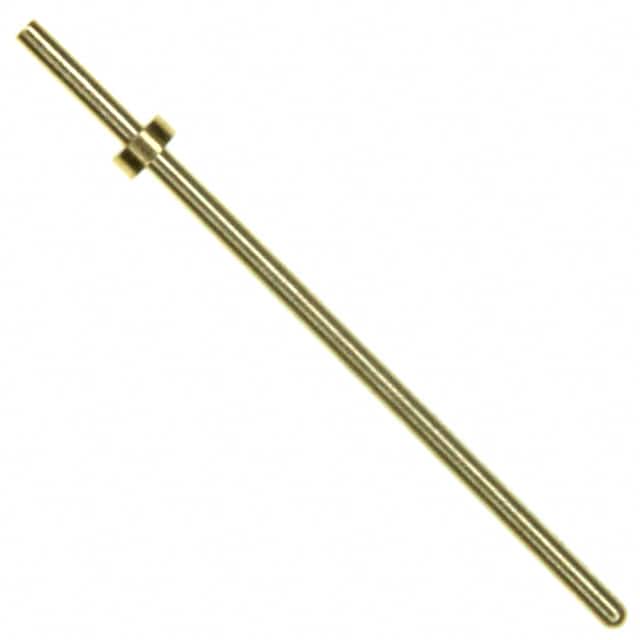

3128-2-00-15-00-00-08-0 Mill-Max | 1 $0.2300 | Datasheet | PC Pin | Single End | 0.020" (0.51mm) Dia | 0.020" (0.51mm) Dia | 0.425" (10.80mm) | 0.100" (2.54mm) | 0.545" (13.84mm) | 0.046" (1.17mm) | 0.024" (0.61mm) | Through Hole | Solder | Non-Insulated | - | Brass Alloy | Gold | 10.0µin (0.25µm) | 3,448 Cart + RFQ |

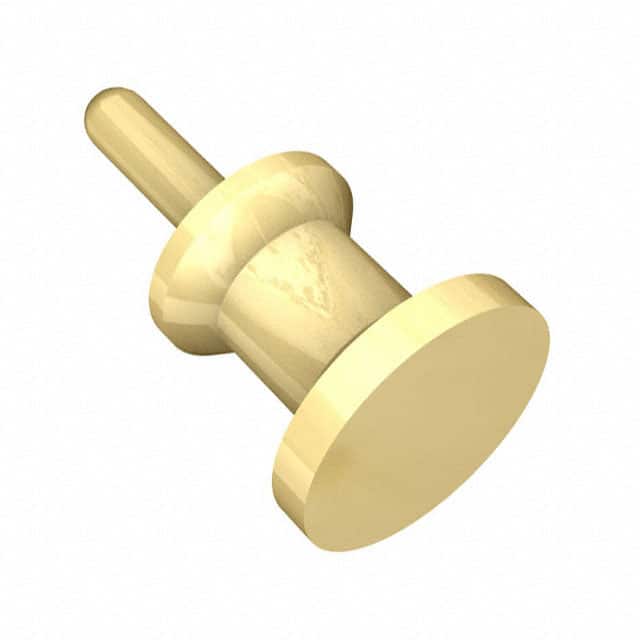

1946-0-00-15-00-00-03-0 Mill-Max | 1 $0.2600 | Datasheet | PC Pin | Single End | 0.030" (0.76mm) Dia | - | 0.110" (2.79mm) | - | 0.230" (5.84mm) | 0.125" (3.18mm) | - | Through Hole | Solder | Non-Insulated | - | Brass Alloy | Gold | 10.0µin (0.25µm) | 9,134 Cart + RFQ |

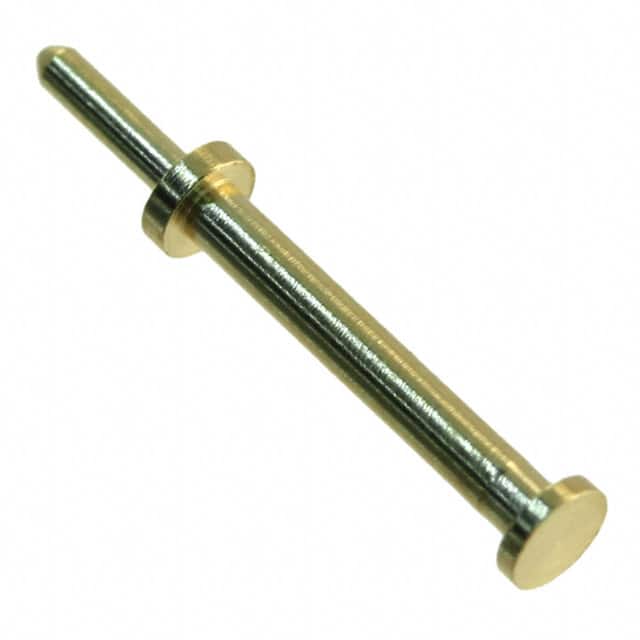

6821-0-00-15-00-00-08-0 Mill-Max | 1 $0.2700 | Datasheet | PC Pin | Single End, Turret | 0.030" (0.76mm) Dia | 0.040" (1.02mm) Dia | 0.125" (3.18mm) | 0.300" (7.62mm) | 0.445" (11.30mm) | 0.070" (1.77mm) | - | Free Hanging (In-Line) | Solder | Non-Insulated | - | Brass Alloy | Gold | 10.0µin (0.25µm) | 7,328 Cart + RFQ |

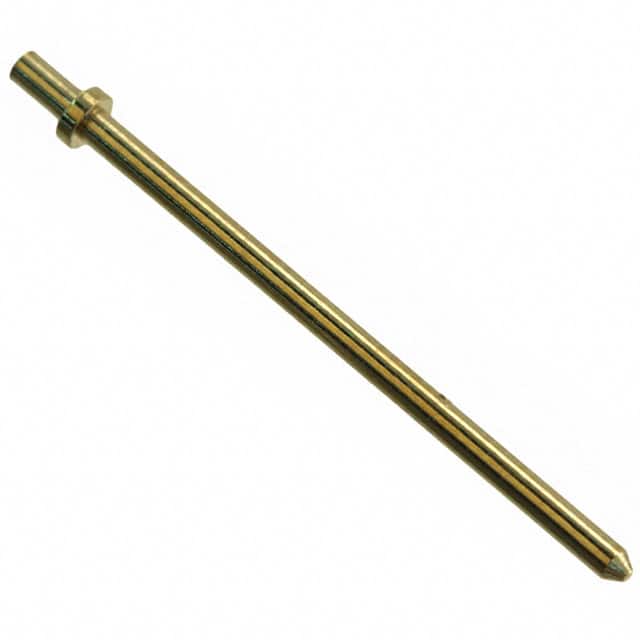

3105-2-00-15-00-00-08-0 Mill-Max | 1 $0.4300 | Datasheet | PC Pin | Single End | 0.040" (1.02mm) Dia | - | 0.750" (19.05mm) | 0.082" (2.08mm) | 0.852" (21.64mm) | 0.070" (1.77mm) | 0.043" (1.09mm) | Through Hole | Swage | Non-Insulated | 0.062" (1.57mm) | Brass Alloy | Gold | 10.0µin (0.25µm) | 8,236 Cart + RFQ |

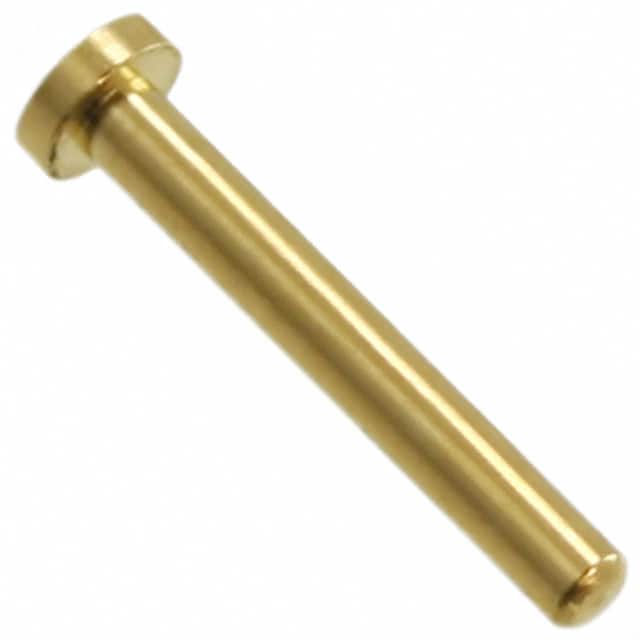

4477-0-00-15-00-00-33-0 Mill-Max | 1 $0.4400 | Datasheet | PC Pin | Single End, Nail Head | 0.030" (0.76mm) Dia | - | 0.215" (5.46mm) | - | 0.230" (5.84mm) | 0.055" (1.40mm) | 0.034" (0.86mm) | Through Hole | Solder | Non-Insulated | - | Brass Alloy | Gold | 10.0µin (0.25µm) | 9,198 Cart + RFQ |

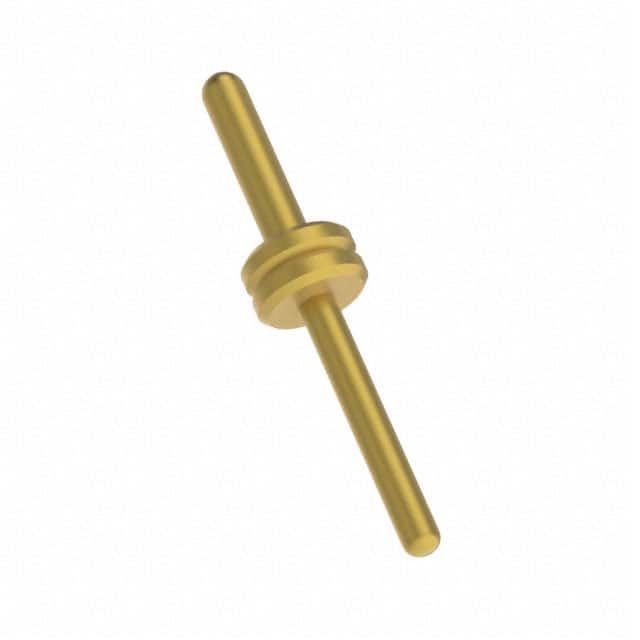

3169-0-61-15-00-00-03-0 Mill-Max | 1 $0.8100 | Datasheet | PC Pin | Double End | 0.022" (0.56mm) Dia | 0.018" (0.46mm) Dia | 0.100" (2.54mm) | 0.132" (3.35mm) | 0.262" (6.65mm) | 0.056" (1.42mm) | - | Through Hole | Solder | Non-Insulated | - | Brass Alloy | Gold | 10.0µin (0.25µm) | 2,284 Cart + RFQ |

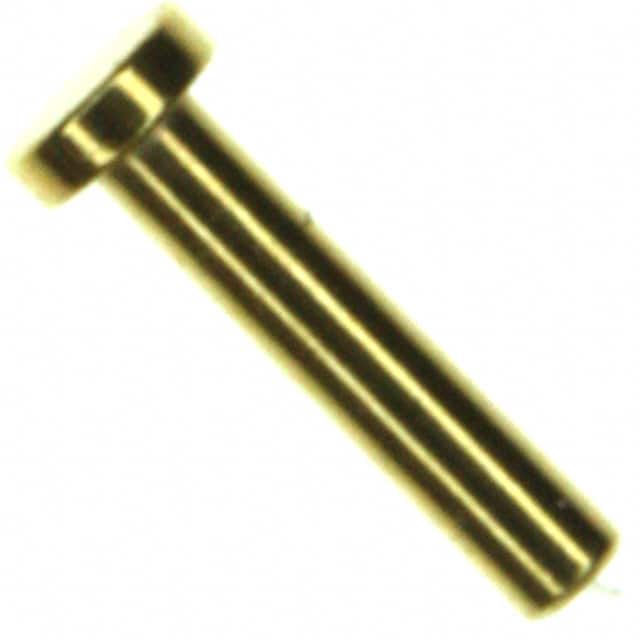

6477-0-00-15-00-00-38-0 Mill-Max | 1 $0.6300 | Datasheet | PC Pin | Single End, Nail Head | 0.030" (0.76mm) Dia | - | 0.150" (3.81mm) | - | 0.165" (4.19mm) | 0.055" (1.40mm) | 0.034" (0.86mm) | Through Hole | Solder | Non-Insulated | - | Brass Alloy | Gold | 10.0µin (0.25µm) | 9,824 Cart + RFQ |

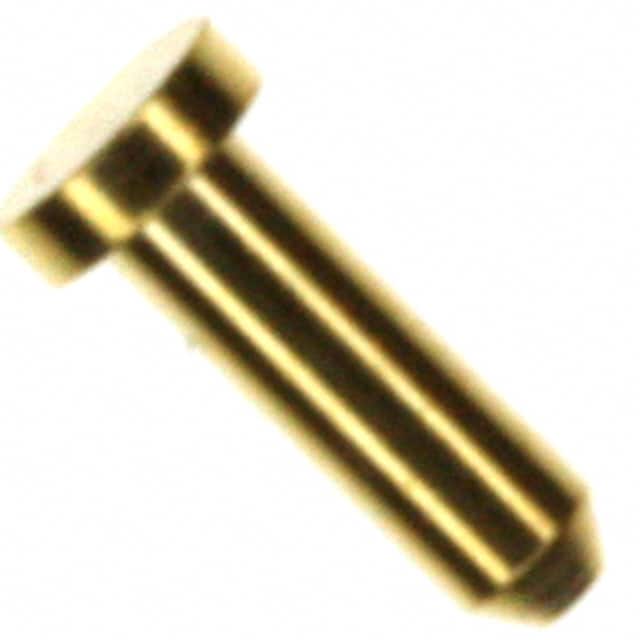

4268-0-00-15-00-00-33-0 Mill-Max | 1 $0.6300 | Datasheet | PC Pin | Single End, Nail Head | 0.035" (0.89mm) Dia | - | 0.115" (2.92mm) | - | 0.130" (3.30mm) | 0.060" (1.52mm) | 0.039" (0.99mm) | Through Hole | Solder | Non-Insulated | - | Brass Alloy | Gold | 10.0µin (0.25µm) | 5,267 Cart + RFQ |

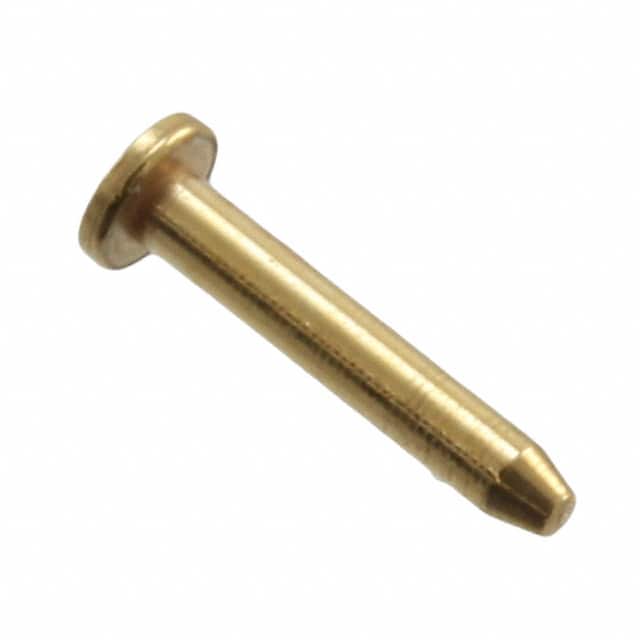

5035-0-00-15-00-00-33-0 Mill-Max | 1 $0.6300 | Datasheet | PC Pin | Single End, Nail Head | 0.025" (0.64mm) Dia | - | 0.150" (3.81mm) | - | 0.160" (4.06mm) | 0.050" (1.27mm) | 0.029" (0.74mm) | Through Hole | Solder | Non-Insulated | - | Brass Alloy | Gold | 10.0µin (0.25µm) | 4,867 Cart + RFQ |

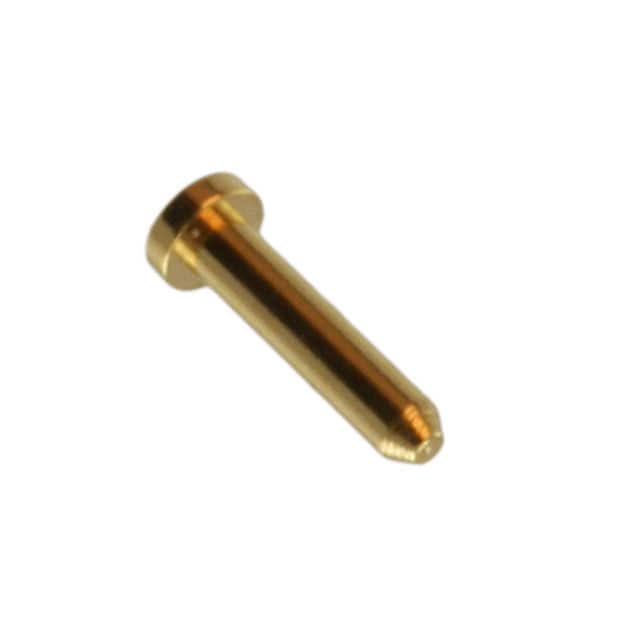

9086-0-00-15-00-00-33-0 Mill-Max | 1 $0.6400 | Datasheet | PC Pin | Single End, Nail Head | 0.036" (0.91mm) Dia | - | 0.160" (4.06mm) | - | 0.175" (4.45mm) | 0.060" (1.52mm) | 0.040" (1.02mm) | Through Hole | Solder | Non-Insulated | - | Brass Alloy | Gold | 10.0µin (0.25µm) | 7,534 Cart + RFQ |

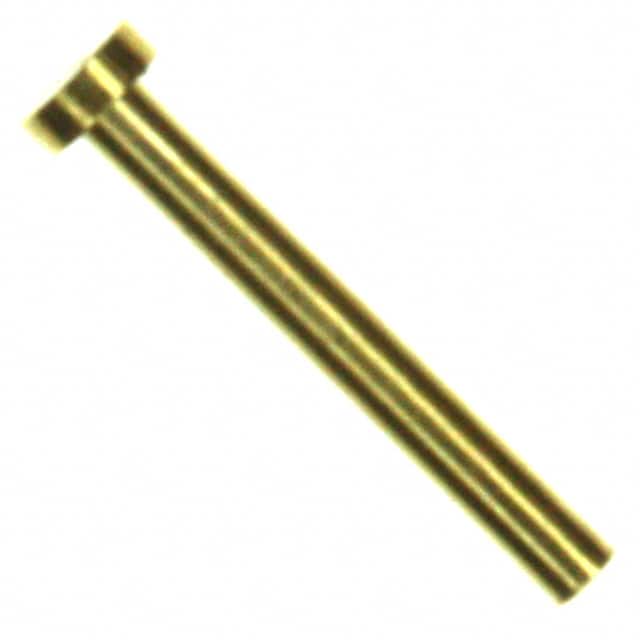

5063-0-00-15-00-00-33-0 Mill-Max | 1 $0.6800 | Datasheet | PC Pin | Single End, Nail Head | 0.020" (0.51mm) Dia | - | 0.160" (4.06mm) | - | 0.172" (4.37mm) | 0.036" (0.91mm) | 0.024" (0.61mm) | Through Hole | Solder | Non-Insulated | - | Brass Alloy | Gold | 10.0µin (0.25µm) | 4,071 Cart + RFQ |
1363-2 Keystone Electronics Corp. | 1 $0.7400 | Datasheet | PC Pin | Single End | 0.063" (1.60mm) Dia | - | 0.400" (10.16mm) | 0.138" (3.51mm) | 0.594" (15.09mm) | 0.093" (2.36mm) | 0.067" (1.70mm) | Through Hole | Swage | Non-Insulated | 0.062" (1.57mm) | Brass | Tin | 200.0µin (5.08µm) | 5,753 Cart + RFQ |

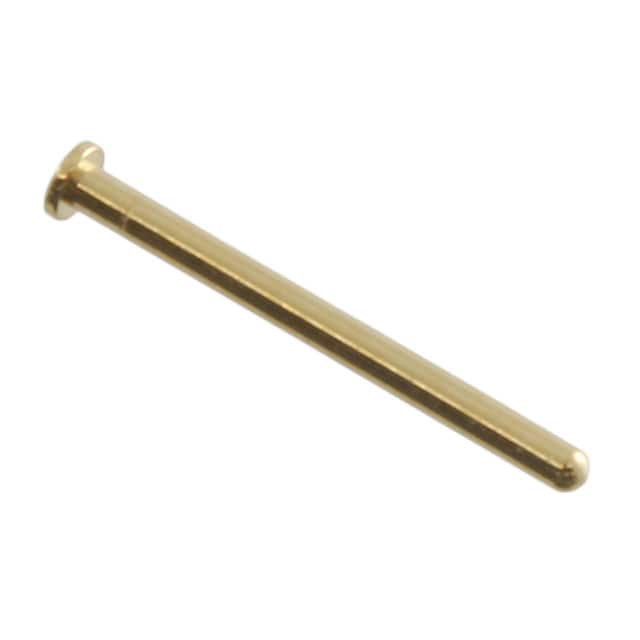

6547-0-00-21-00-00-33-0 Mill-Max | 1 $0.8000 | Datasheet | PC Pin | Single End, Nail Head | 0.020" (0.51mm) Dia | - | 0.248" (6.30mm) | - | 0.253" (6.43mm) | 0.036" (0.91mm) | 0.024" (0.61mm) | Through Hole | Solder | Non-Insulated | - | Brass Alloy | Gold | 20.0µin (0.51µm) | 6,550 Cart + RFQ |

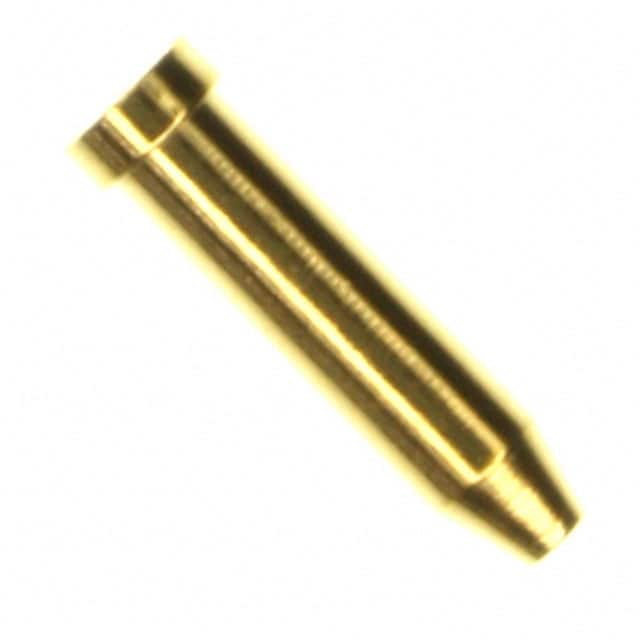

9265-0-00-15-00-00-38-0 Mill-Max | 1 $0.8000 | Datasheet | PC Pin | Single End, Nail Head | 0.059" (1.50mm) Dia | - | 0.240" (6.10mm) | - | 0.265" (6.73mm) | 0.072" (1.83mm) | 0.063" (1.60mm) | Through Hole | Solder | Non-Insulated | - | Brass Alloy | Gold | 10.0µin (0.25µm) | 5,493 Cart + RFQ |

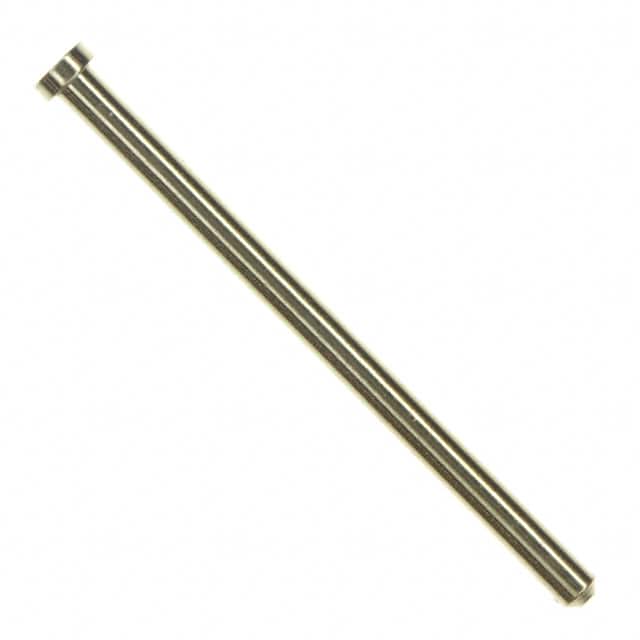

1179-0-00-15-00-00-33-0 Mill-Max | 1 $0.8900 | Datasheet | PC Pin | Single End, Nail Head | 0.040" (1.02mm) Dia | - | 0.644" (16.36mm) | - | 0.664" (16.87mm) | 0.060" (1.52mm) | 0.044" (1.12mm) | Through Hole | Solder | Non-Insulated | - | Brass Alloy | Gold | 10.0µin (0.25µm) | 6,816 Cart + RFQ |

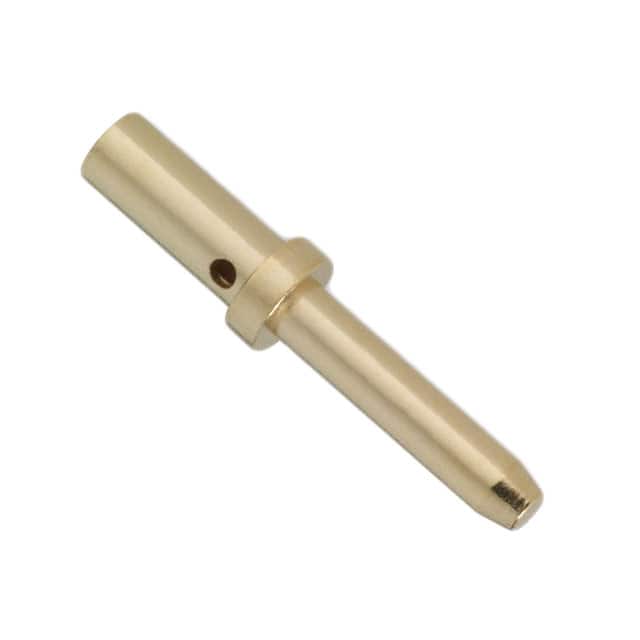

3609-2-07-15-00-00-08-0 Mill-Max | 1 $0.8900 | Datasheet | PC Pin | Wire | 0.080" (2.03mm) Dia | 0.103" (2.62mm) Dia | 0.375" (9.53mm) | 0.250" (6.35mm) | 0.671" (17.04mm) | 0.142" (3.61mm) | - | Free Hanging (In-Line) | Crimp | Non-Insulated | - | Brass Alloy | Gold | 10.0µin (0.25µm) | 7,602 Cart + RFQ |

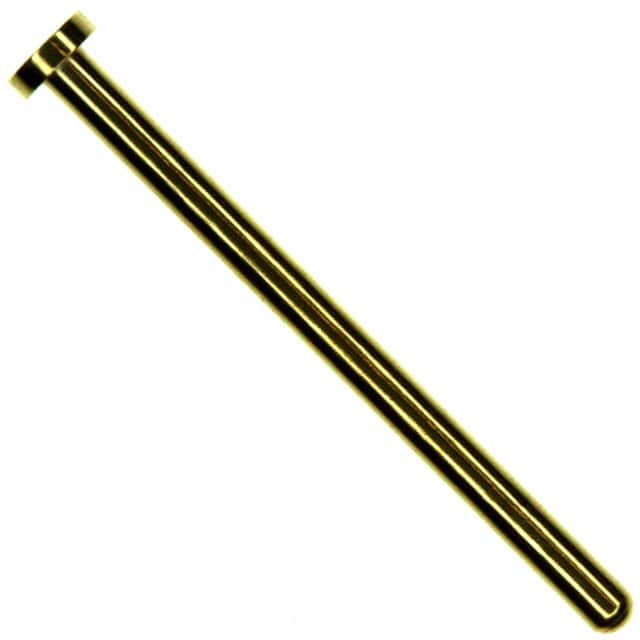

6092-0-00-15-00-00-33-0 Mill-Max | 1 $0.9000 | Datasheet | PC Pin | Single End, Nail Head | 0.040" (1.02mm) Dia | - | 0.590" (14.99mm) | - | 0.610" (15.50mm) | 0.078" (1.98mm) | 0.044" (1.12mm) | Through Hole | Solder | Non-Insulated | - | Brass Alloy | Gold | 10.0µin (0.25µm) | 7,562 Cart + RFQ |

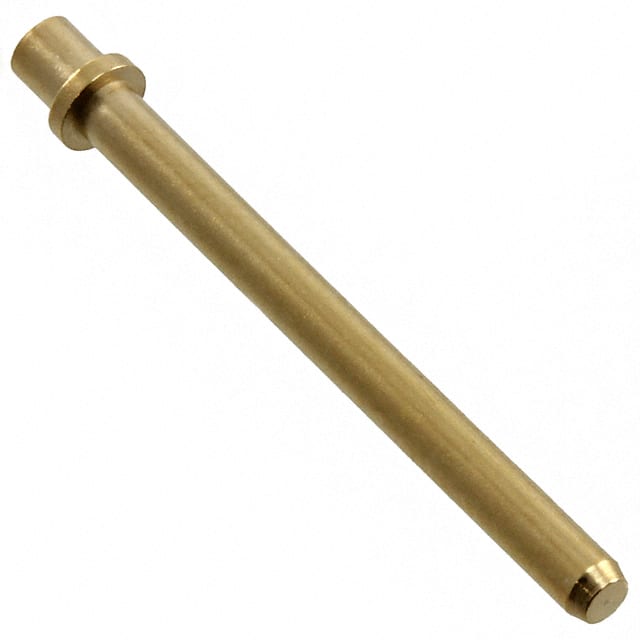

3233-2-00-15-00-00-08-0 Mill-Max | 1 $0.9700 | Datasheet | PC Pin | Single End | 0.080" (2.03mm) Dia | - | 0.900" (22.86mm) | 0.094" (2.39mm) | 1.019" (25.88mm) | 0.125" (3.18mm) | 0.094" (2.39mm) | Through Hole | Swage | Non-Insulated | 0.062" (1.57mm) | Brass Alloy | Gold | 10.0µin (0.25µm) | 5,004 Cart + RFQ |

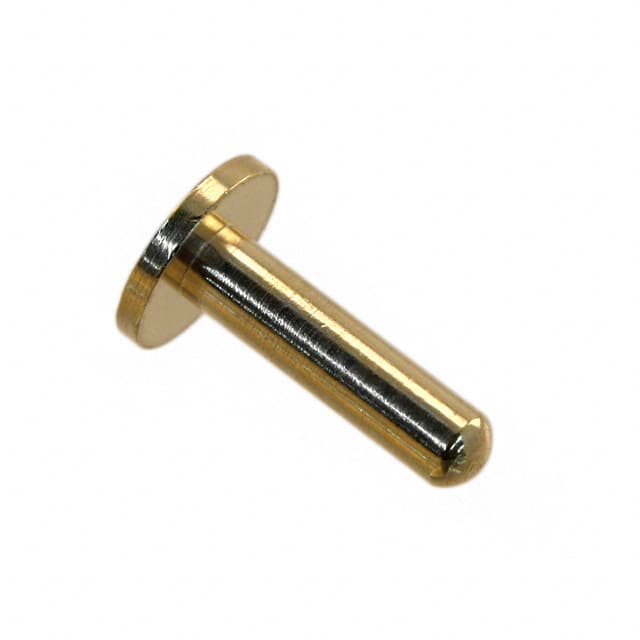

8086-0-00-21-00-00-33-0 Mill-Max | 1 $1.0000 | Datasheet | PC Pin | Single End, Nail Head | 0.075" (1.91mm) Dia | - | 0.300" (7.62mm) | - | 0.325" (8.26mm) | 0.187" (4.75mm) | 0.079" (2.01mm) | Through Hole | Solder | Non-Insulated | - | Brass Alloy | Gold | 20.0µin (0.51µm) | 1,336 Cart + RFQ |
