Connectors, Interconnects
Connector and interconnect products facilitate the joining of electrical or fiber optic conductors & cables. An enormous variety of styles are available, to accommodate most any application; banana plugs for lab equipment, coaxial connectors for RF, modular plugs for network and phone systems, spade and ring terminals for connecting discrete wires to terminal blocks, terminal blocks, sockets for transistors and integrated circuits, standard AC power connectors, headphone plugs and jacks, high-voltage connectors, USB connectors, and many, many more.
Product List
Total Components: 100
Product | Pricing | Datasheet | Type | Mounting Type | Number of Positions | Number of Levels | Terminal - Width | Termination Style | Current - IEC | Voltage - IEC | Current - UL | Voltage - UL | Wire Gauge or Range - AWG | Wire Gauge or Range - mm² | Features | Housing Color | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3057432 Phoenix Contact | 1 $7.8600 | Datasheet | Plug Connection | DIN Rail | 2 | 1 | 6.2mm | Plug Receptacles, Screw | 28 A | 500 V | 25 A | 300 V | 10-26 AWG | 0.14-6mm² | Disconnect Switch | Gray | 7,630 Cart + RFQ |

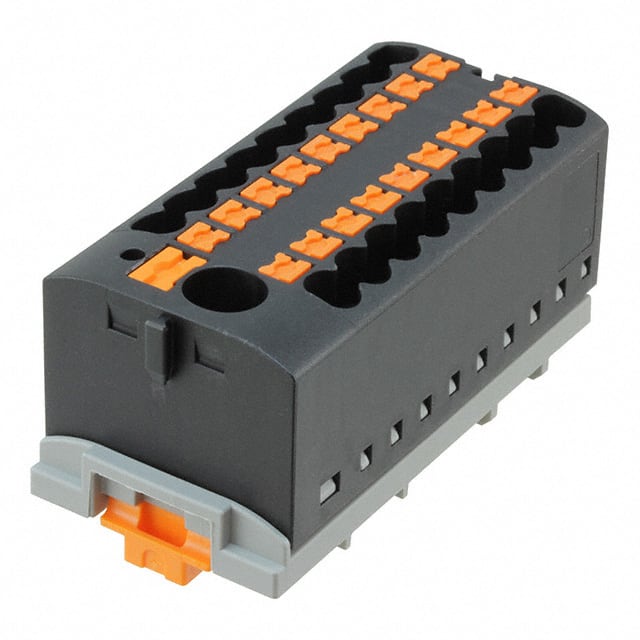

3273124 Phoenix Contact | 1 $9.7100 | Datasheet | Middle | DIN Rail | 19 | 1 | 28.6mm | Push In, Spring | 24 A | 500 V | 5 A | 600 V | 8-20 AWG | - | Block of 9 | Black | 6,252 Cart + RFQ |
284-621 WAGO | 1 $25.3000 | Datasheet | Potential Distributor | DIN Rail | 4 | 1 | 17.5mm | Push In Spring; Screw | 125 A | - | - | - | 2-10 AWG, 8-24 AWG | 0.2-10mm², 6-35mm² | - | Gray | 7,369 Cart + RFQ |
3270160 Phoenix Contact | 1 $54.0600 | Datasheet | Marshalling Connector | DIN Rail | 29 | 8 | 8.3mm | Push In, Spring | 32 A | 250 V | - | - | 14-26 AWG | 0.14-2.5mm² | - | Gray | 8,088 Cart + RFQ |
3274060 Phoenix Contact | 1 $0.9600 | Datasheet | Middle | Direct Mount | 2 | 1 | 8.6mm | Push In, Spring | - | - | - | - | - | - | - | Gray | 8,337 Cart + RFQ |
1028067 Phoenix Contact | 1 $0.9600 | Datasheet | Middle | Direct Mount | 2 | 1 | 5.2mm | Push In, Spring | 24 A | 450 V | 5 A | 600 V | 12-26 AWG | 0.14-4mm² | - | Gray | 7,419 Cart + RFQ |
1028069 Phoenix Contact | 1 $0.9600 | Datasheet | Middle | Direct Mount | 2 | 1 | 5.2mm | Push In, Spring | 24 A | 450 V | 5 A | 600 V | 12-26 AWG | 0.14-4mm² | - | Red | 2,083 Cart + RFQ |

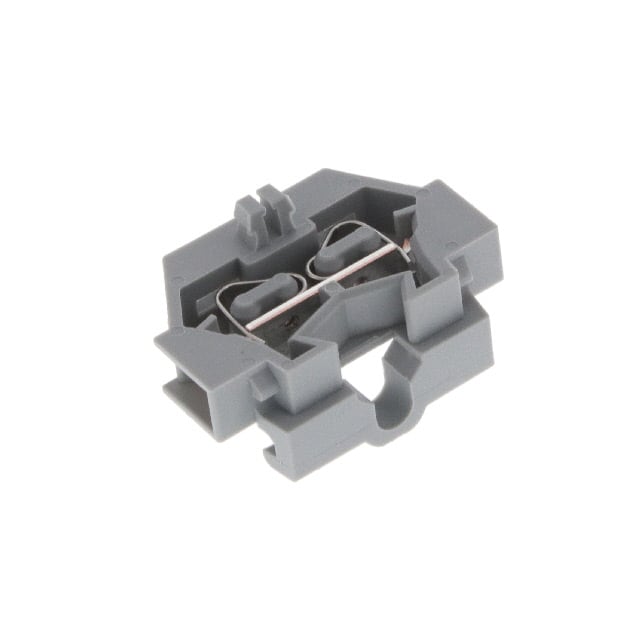

260-301 WAGO | 1 $1.4900 | Datasheet | Middle | Direct Mount | 2 | 1 | 5.0mm | Push In, Spring | 18 A | 400 V | - | - | 16-28 AWG | 0.08-1.5mm² | Flange | Gray | 5,161 Cart + RFQ |

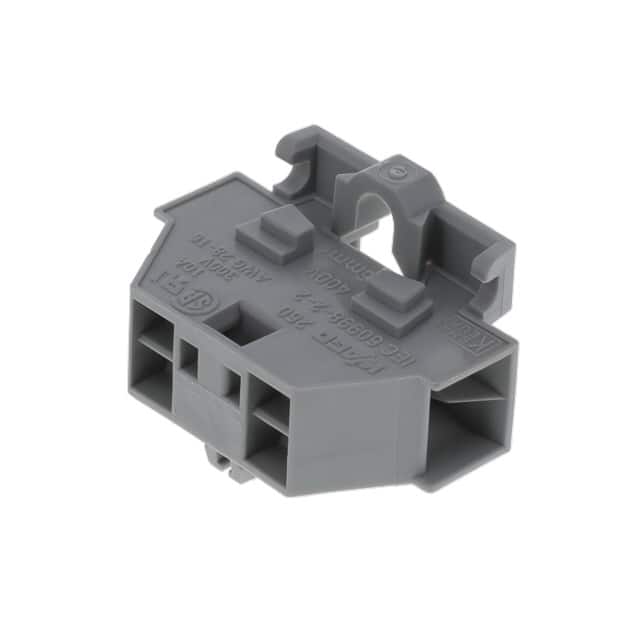

260-331 WAGO | 1 $1.8300 | Datasheet | Middle | Direct Mount | 4 | 1 | 8.0mm | Push In, Spring | 18 A | 400 V | - | - | 16-28 AWG | 0.08-1.5mm² | Flange | Gray | 9,557 Cart + RFQ |

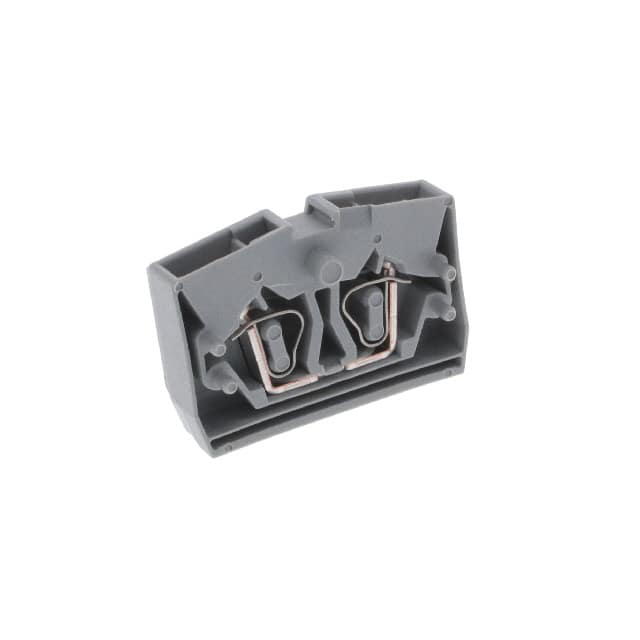

264-321 WAGO | 1 $2.4200 | Datasheet | Middle | Direct Mount | 2 | 1 | 6.0mm | Push In, Spring | 24 A | 800 V | - | - | 12-28 AWG | 0.08-2.5mm² | - | Gray | 4,303 Cart + RFQ |

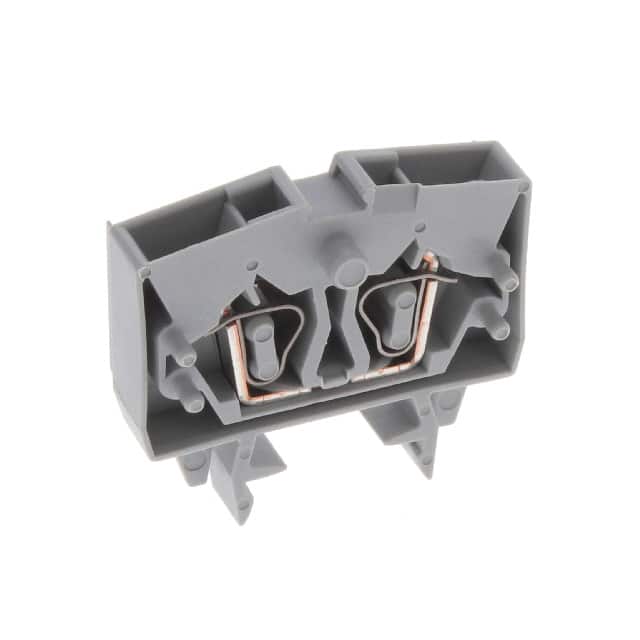

264-701 WAGO | 1 $2.4600 | Datasheet | Middle | DIN Rail | 2 | 1 | 6.0mm | Push In, Spring | 24 A | 800 V | - | - | 12-28 AWG | 0.08-2.5mm² | - | Gray | 9,844 Cart + RFQ |

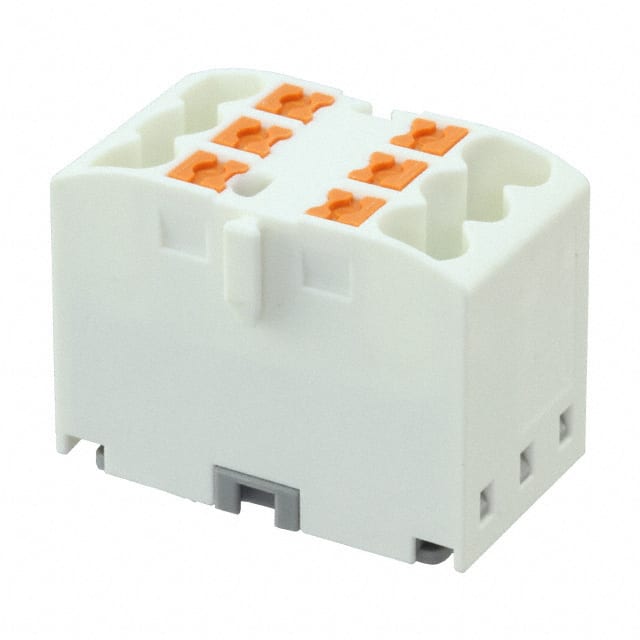

3273276 Phoenix Contact | 1 $2.8600 | Datasheet | Middle | Direct Mount | 6 | 1 | 15.6mm | Push In, Spring | 24 A | 500 V | 5 A | 600 V | 12-26 AWG | 0.14-4mm² | Block of 3 | White | 8,313 Cart + RFQ |
3273272 Phoenix Contact | 1 $2.8600 | Datasheet | Middle | Direct Mount | 6 | 1 | 15.6mm | Push In, Spring | 24 A | 500 V | 5 A | 600 V | 12-26 AWG | 0.14-4mm² | Block of 3 | Green | 2,033 Cart + RFQ |

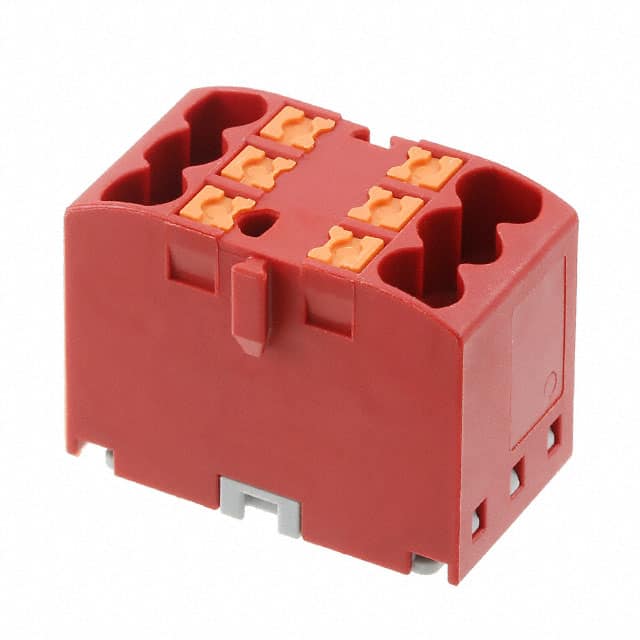

3273268 Phoenix Contact | 1 $2.8600 | Datasheet | Middle | Direct Mount | 6 | 1 | 15.6mm | Push In, Spring | 24 A | 500 V | 5 A | 600 V | 12-26 AWG | 0.14-4mm² | Block of 3 | Red | 2,227 Cart + RFQ |
3273266 Phoenix Contact | 1 $2.8600 | Datasheet | Middle | Direct Mount | 6 | 1 | 15.6mm | Push In, Spring | 24 A | 500 V | 5 A | 600 V | 12-26 AWG | 0.14-4mm² | Block of 3 | Blue | 4,037 Cart + RFQ |
3273264 Phoenix Contact | 1 $2.8600 | Datasheet | Middle | Direct Mount | 6 | 1 | 15.6mm | Push In, Spring | 24 A | 500 V | 5 A | 600 V | 12-26 AWG | 0.14-4mm² | Block of 3 | Gray | 3,504 Cart + RFQ |
3273136 Phoenix Contact | 1 $2.9600 | Datasheet | Middle | DIN Rail | 6 | 1 | 15.6mm | Push In, Spring | 24 A | 500 V | 5 A | 600 V | 12-26 AWG | 0.14-4mm² | Block of 3 | Red | 4,408 Cart + RFQ |
3273408 Phoenix Contact | 1 $2.9600 | Datasheet | Middle | Direct Mount | 6 | 1 | 15.6mm | Push In, Spring | 24 A | 500 V | 5 A | 600 V | 12-26 AWG | 0.14-4mm² | Block of 3 | Black | 1,531 Cart + RFQ |
3273132 Phoenix Contact | 1 $2.9600 | Datasheet | Middle | DIN Rail | 6 | 1 | 15.6mm | Push In, Spring | 24 A | 500 V | 5 A | 600 V | 12-26 AWG | 0.14-4mm² | Block of 3 | Gray | 2,430 Cart + RFQ |
3273134 Phoenix Contact | 1 $2.9600 | Datasheet | Middle | DIN Rail | 6 | 1 | 15.6mm | Push In, Spring | 24 A | 500 V | 5 A | 600 V | 12-26 AWG | 0.14-4mm² | Block of 3 | Blue | 6,556 Cart + RFQ |
