Solder Stencils, Templates
Solder Stencils and Templates are a mask that is used to apply solder paste in a specific area on a PCB board. The stencil types are BGA, CSP, DFN, DFN/SON, FPC/FFC, HSOP, HTQFP, HTSSOP, LED, LED/DFN, LED/PLCC, LGA, LLP, LQFP, LSOP, mini SOIC, MLP/DFN, MLP/MLF, MQFP, MSOP, PLCC, PLCC/JLCC, POS, PowerQSOP, PowerSOIC, PowerSSO, PowerSSOP, PQFP, PSOP, QFN, QFN/LFCSP, QSOP, RN, RQFP, SOIC, SON, SOP, SOT/SC, SSOP, TO/DDPAK, TO/DPAK, TQFP, TSOC, TSOP, TSSOP, TVSOP, uMAX, VSOP, and VSSOP.
Product List
Total Components: 100
| Product | Pricing | Datasheet | Type | Number of Positions | Pitch | Outer Dimension | Inner Dimension | Thermal Center Pad | Material | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|

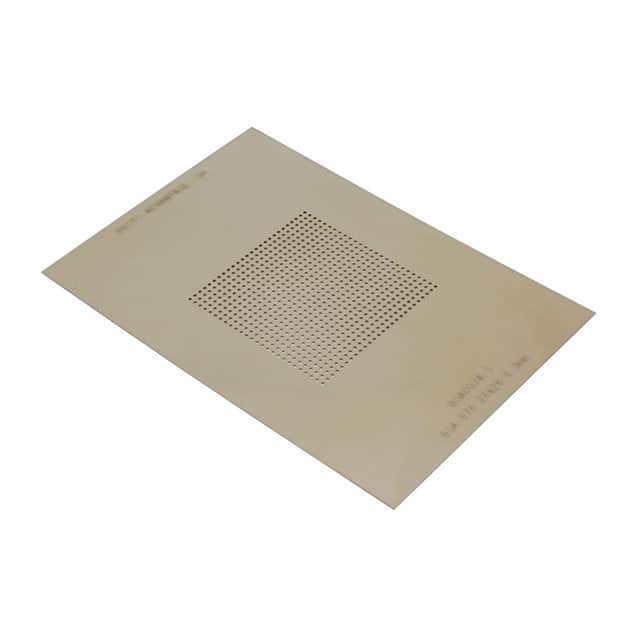

 BGA0034-S Chip Quik, Inc. | 1 $20.9900 | Datasheet | BGA | 676 | 0.039" (1.00mm) | 2.600" L x 1.800" W (66.04mm x 45.72mm) | 1.024" L x 1.024" W (26.00mm x 26.00mm) | - | Stainless Steel | 4,920 Cart + RFQ |

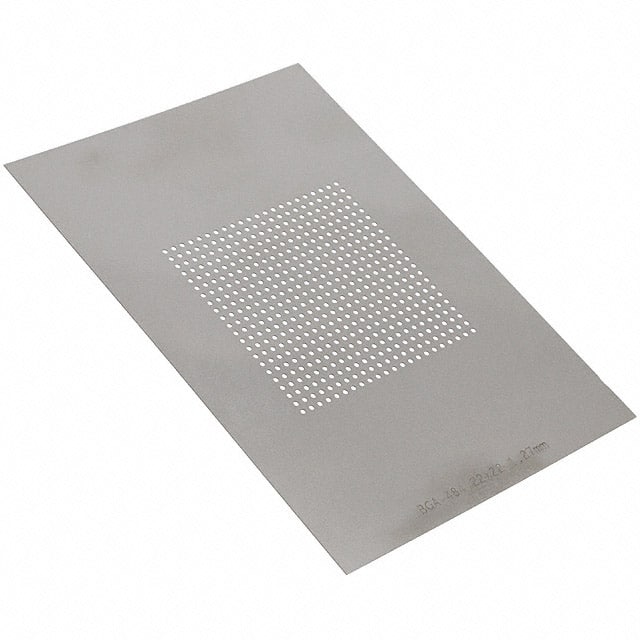

 BGA0009-S Chip Quik, Inc. | 1 $20.9900 | Datasheet | BGA | 484 | 0.050" (1.27mm) | 2.600" L x 1.800" W (66.04mm x 45.72mm) | - | - | Stainless Steel | 3,502 Cart + RFQ |

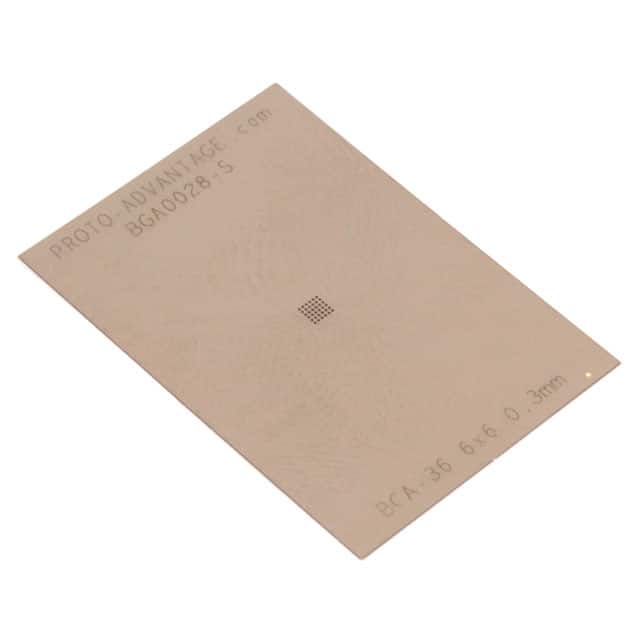

 BGA0028-S Chip Quik, Inc. | 1 $22.8900 | Datasheet | BGA | 36 | 0.012" (0.30mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel | 1,751 Cart + RFQ |

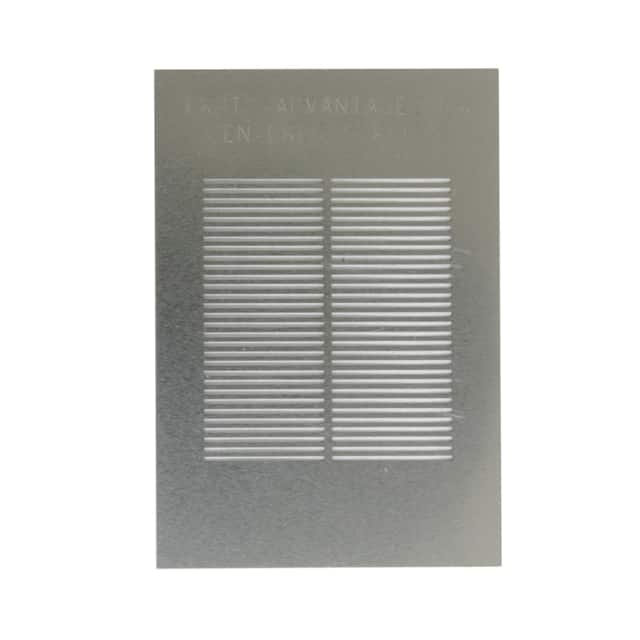

 GEN-DR0635-P60-S Chip Quik, Inc. | 1 $20.9900 | Datasheet | - | 60 | 0.025" (0.64mm) | - | - | - | Stainless Steel | 6,250 Cart + RFQ |

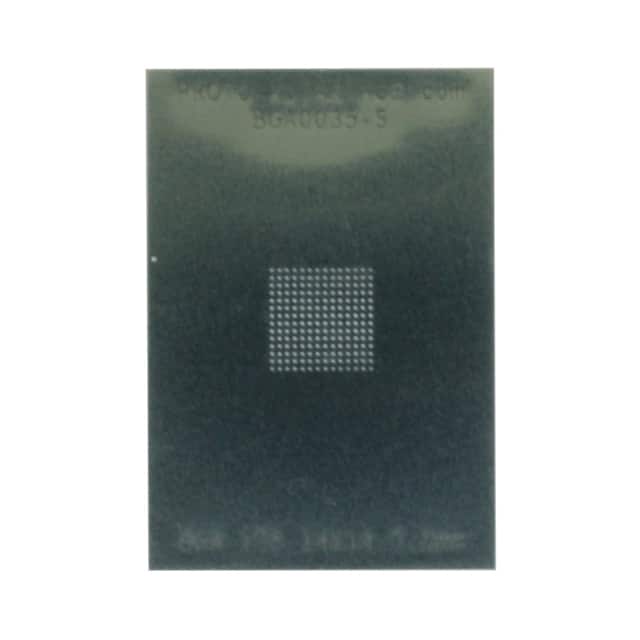

 BGA0035-S Chip Quik, Inc. | 1 $20.9900 | Datasheet | BGA | 196 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.551" L x 0.551" W (14.00mm x 14.00mm) | - | Stainless Steel | 6,995 Cart + RFQ |

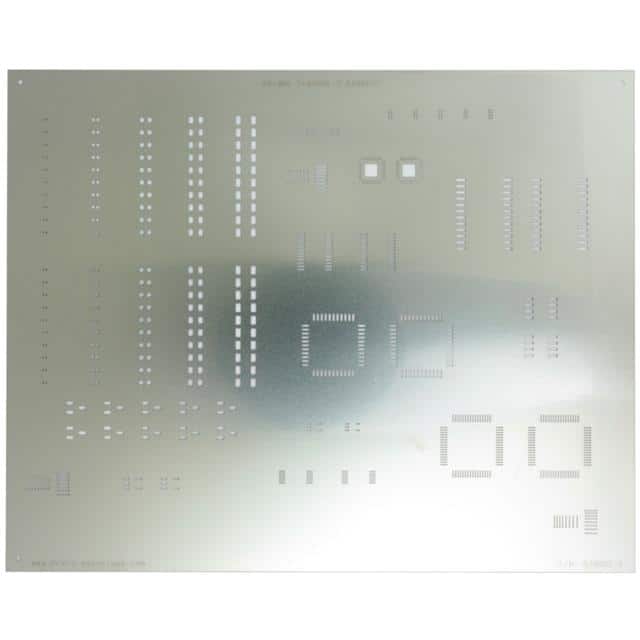

 ST0002-S Chip Quik, Inc. | 1 $49.9500 | Datasheet | - | - | - | 5.000" L x 4.000" W (127.00mm x 101.60mm) | - | - | Stainless Steel | 6,229 Cart + RFQ |

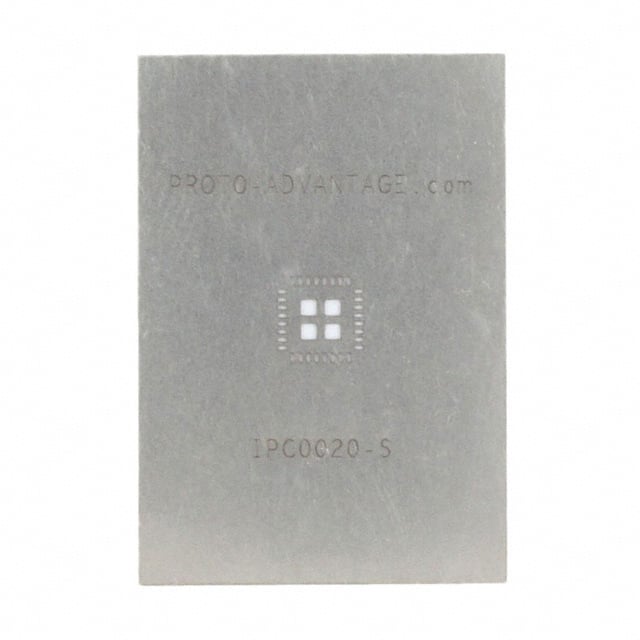

 IPC0020-S Chip Quik, Inc. | 1 $11.5900 | Datasheet | QFN/LFCSP | 32 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.122" L x 0.122" W (3.10mm x 3.10mm) | Stainless Steel | 9,157 Cart + RFQ |

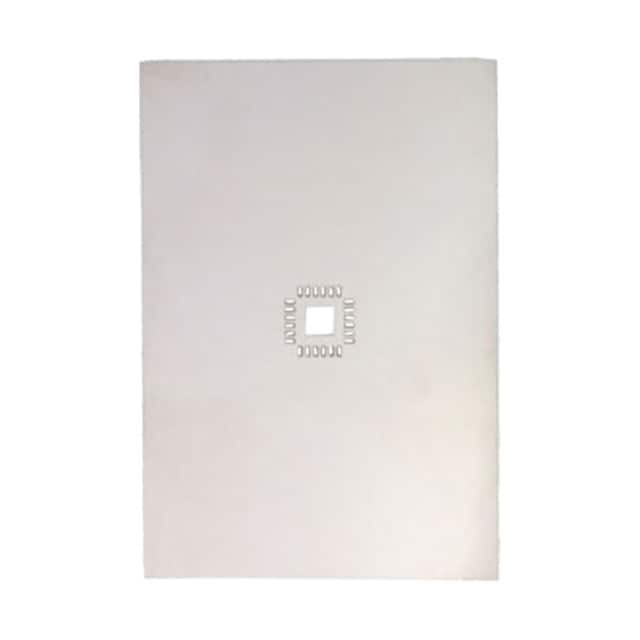

 IPC0014-S Chip Quik, Inc. | 1 $11.5900 | Datasheet | QFN/LFCSP | 24 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.083" L x 0.083" W (2.10mm x 2.10mm) | Stainless Steel | 8,102 Cart + RFQ |

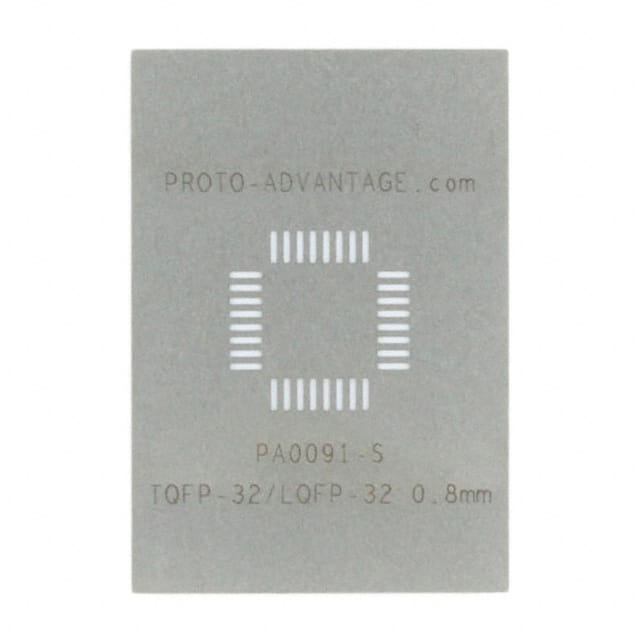

 PA0091-S Chip Quik, Inc. | 1 $11.5900 | Datasheet | TQFP | 32 | 0.031" (0.80mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | Stainless Steel | 3,037 Cart + RFQ |

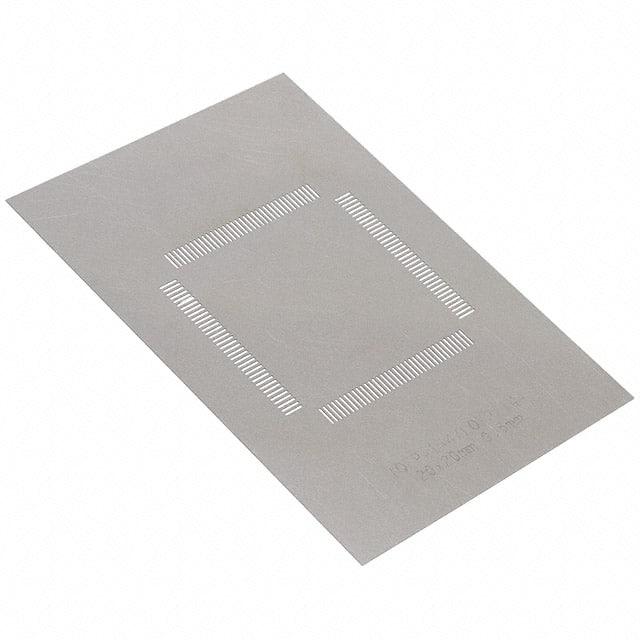

 PA0188-S Chip Quik, Inc. | 1 $11.5900 | Datasheet | TQFP | 144 | 0.020" (0.50mm) | 1.950" L x 1.350" W (49.53mm x 34.29mm) | 0.787" L x 0.787" W (20.00mm x 20.00mm) | - | Stainless Steel | 7,880 Cart + RFQ |

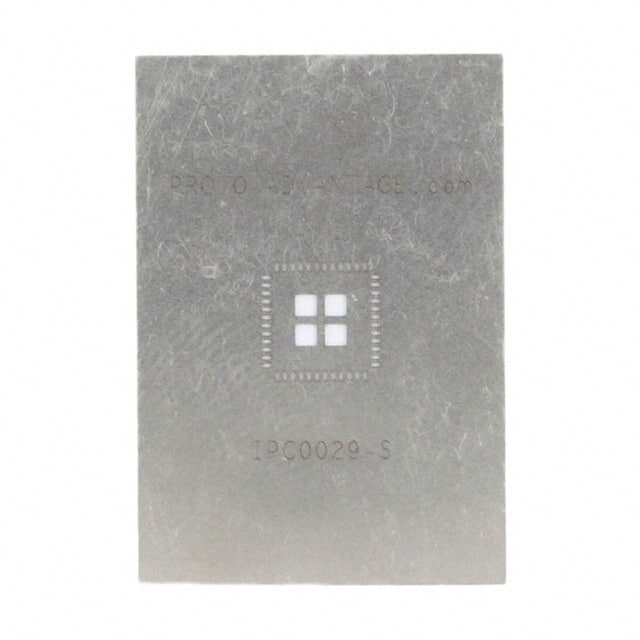

 IPC0029-S Chip Quik, Inc. | 1 $11.5900 | Datasheet | QFN/LFCSP | 48 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | Stainless Steel | 2,290 Cart + RFQ |

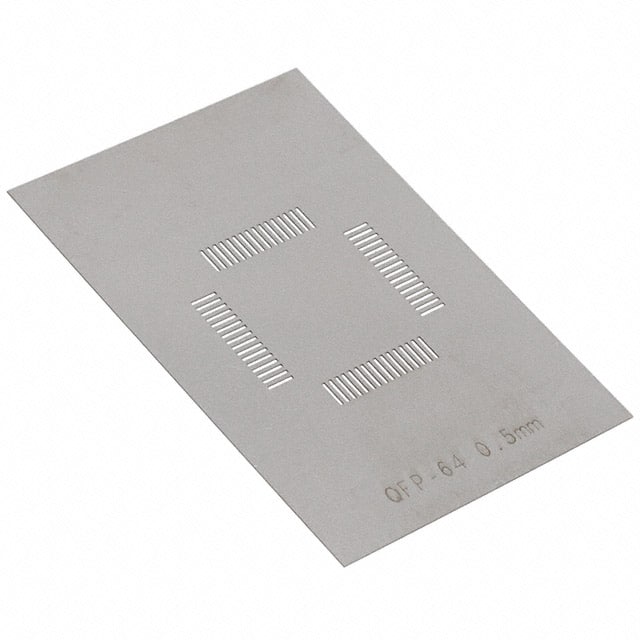

 PA0096-S Chip Quik, Inc. | 1 $11.5900 | Datasheet | TQFP | 64 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) | - | Stainless Steel | 4,811 Cart + RFQ |

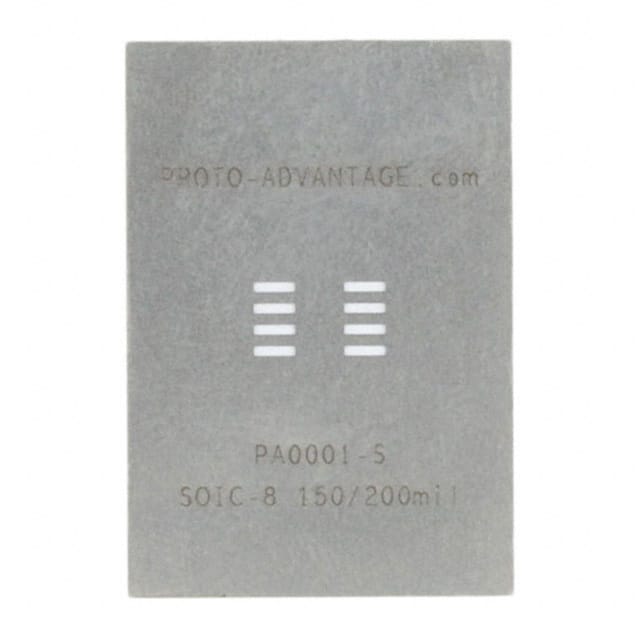

 PA0001-S Chip Quik, Inc. | 1 $11.5900 | Datasheet | SOIC | 8 | 0.050" (1.27mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel | 7,185 Cart + RFQ |

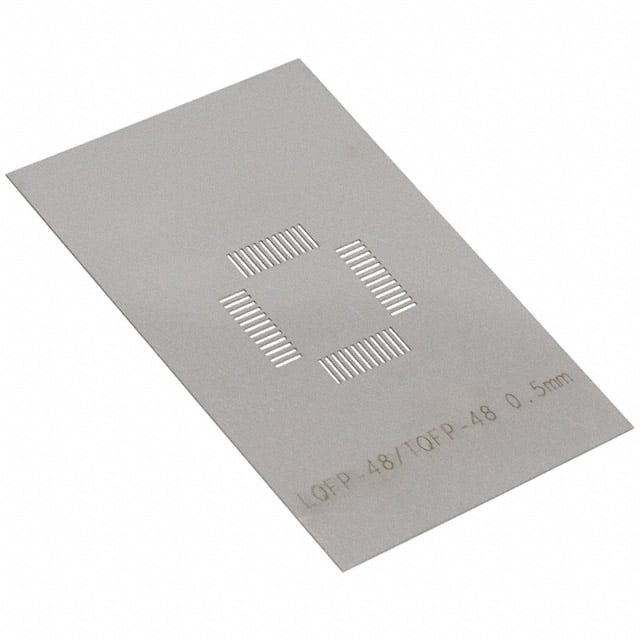

 PA0094-S Chip Quik, Inc. | 1 $11.5900 | Datasheet | TQFP | 48 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | Stainless Steel | 2,492 Cart + RFQ |
 IPC0006-S Chip Quik, Inc. | 1 $11.5900 | Datasheet | QFN/LFCSP | 16 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" L x 0.059" W (1.50mm x 1.50mm) | Stainless Steel | 7,907 Cart + RFQ |

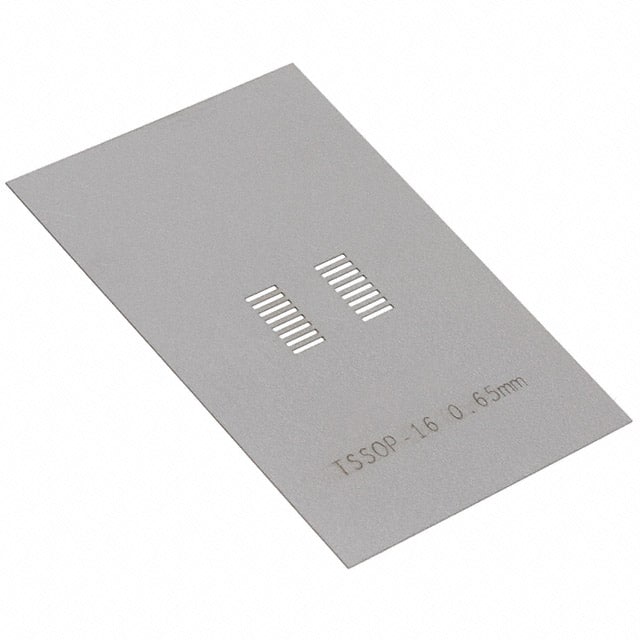

 PA0034-S Chip Quik, Inc. | 1 $11.5900 | Datasheet | TSSOP | 16 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel | 4,057 Cart + RFQ |

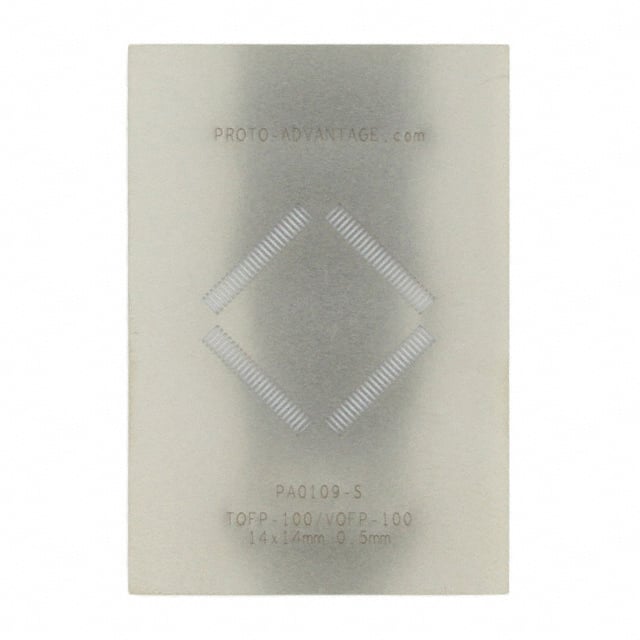

 PA0109-S Chip Quik, Inc. | 1 $11.5900 | Datasheet | TQFP | 100 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.551" L x 0.551" W (14.00mm x 14.00mm) | - | Stainless Steel | 4,566 Cart + RFQ |
 BGA0002-S Chip Quik, Inc. | 1 $20.9900 | Datasheet | BGA | 324 | 0.031" (0.80mm) | 1.950" L x 1.350" W (49.53mm x 34.29mm) | - | - | Stainless Steel | 9,660 Cart + RFQ |

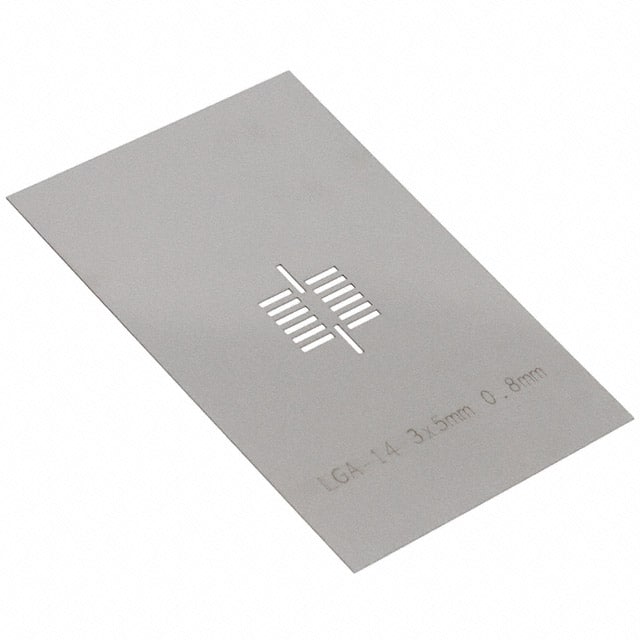

 PA0101-S Chip Quik, Inc. | 1 $11.5900 | Datasheet | LGA | 14 | 0.031" (0.80mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.197" L x 0.118" W (5.00mm x 3.00mm) | - | Stainless Steel | 6,603 Cart + RFQ |
 PA0027-S Chip Quik, Inc. | 1 $11.5900 | Datasheet | uMAX | 10 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel | 3,034 Cart + RFQ |
