Strain Gauges
Strain gauges are devices used to measure strain forces on materials. The most common consists of an insulating flexible backing with a metallic foil pattern. The gauge is attached to an object with a suitable adhesive. As the object is deformed, the flexible backing and foil are deformed, causing a change in electrical resistance. This resistance change is usually measured with a Wheatstone bridge.
Product List
Total Components: 9
| Product | Pricing | Datasheet | Pattern Type | Strain Range | Resistance | Resistance Tolerance | Length - Active | Length - Overall Pattern | Length - Overall | Width - Active | Width - Overall Pattern | Width - Overall | Operating Temperature | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 DT 3617-4 Columbia Research Laboratories Inc. | 1 $328.9000 | Datasheet | Shear/Torque | - | 1 kOhms | ±2% | - | - | 0.56" (14.2mm) | - | - | 0.56" (14.2mm) | -55°C ~ 125°C | 5,627 Cart + RFQ |
DT 3617-1 Columbia Research Laboratories Inc. | 1 $328.9000 | Datasheet | Shear/Torque | - | 1 kOhms | ±2% | - | - | 0.56" (14.2mm) | - | - | 0.56" (14.2mm) | -55°C ~ 125°C | 7,564 Cart + RFQ |
DT 3617-2 Columbia Research Laboratories Inc. | 1 $328.9000 | Datasheet | Shear/Torque | - | 1 kOhms | ±2% | - | - | 0.56" (14.2mm) | - | - | 0.56" (14.2mm) | -55°C ~ 125°C | 1,939 Cart + RFQ |
DT 3617-3 Columbia Research Laboratories Inc. | 1 $328.9000 | Datasheet | Shear/Torque | - | 1 kOhms | ±2% | - | - | 0.56" (14.2mm) | - | - | 0.56" (14.2mm) | -55°C ~ 125°C | 4,004 Cart + RFQ |
 DT 3625-3 Columbia Research Laboratories Inc. | 1 $414.0000 | Datasheet | Rectangular Rosette | - | 1 kOhms | ±2% | - | - | 0.45" (11.4mm) | - | - | 0.25" (6.35mm) | -55°C ~ 125°C | 4,203 Cart + RFQ |

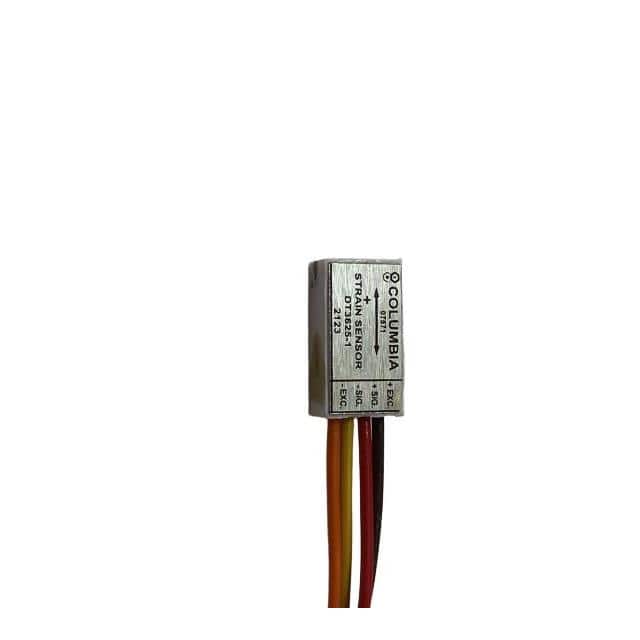

 DT 3625-1 Columbia Research Laboratories Inc. | 1 $414.0000 | Datasheet | Rectangular Rosette | - | 1 kOhms | ±2% | - | - | 0.45" (11.4mm) | - | - | 0.25" (6.35mm) | -55°C ~ 125°C | 8,003 Cart + RFQ |

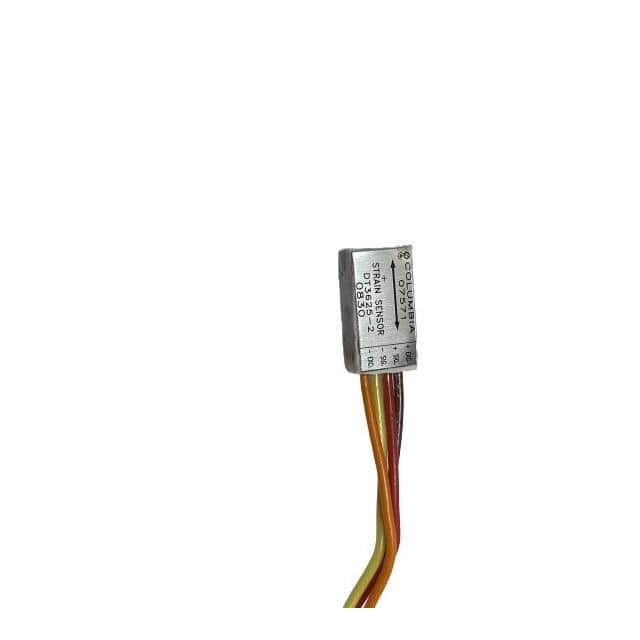

 DT 3625-2 Columbia Research Laboratories Inc. | 1 $414.0000 | Datasheet | Rectangular Rosette | - | 1 kOhms | ±2% | - | - | 0.45" (11.4mm) | - | - | 0.25" (6.35mm) | -55°C ~ 125°C | 8,406 Cart + RFQ |
DT 3625 5 Columbia Research Laboratories Inc. | 1 $414.0000 | Datasheet | Rectangular Rosette | - | 1 kOhms | ±2% | - | - | 0.45" (11.4mm) | - | - | 0.25" (6.35mm) | -55°C ~ 125°C | 8,023 Cart + RFQ |
DT 3625 4 Columbia Research Laboratories Inc. | 1 $414.0000 | Datasheet | Rectangular Rosette | - | 1 kOhms | ±2% | - | - | 0.45" (11.4mm) | - | - | 0.25" (6.35mm) | -55°C ~ 125°C | 4,896 Cart + RFQ |
