Strain Gauges
Strain gauges are devices used to measure strain forces on materials. The most common consists of an insulating flexible backing with a metallic foil pattern. The gauge is attached to an object with a suitable adhesive. As the object is deformed, the flexible backing and foil are deformed, causing a change in electrical resistance. This resistance change is usually measured with a Wheatstone bridge.
Product List
Total Components: 76
| Product | Pricing | Datasheet | Pattern Type | Strain Range | Resistance | Resistance Tolerance | Length - Active | Length - Overall Pattern | Length - Overall | Width - Active | Width - Overall Pattern | Width - Overall | Operating Temperature | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MMF402183 Micro-Measurements / Vishay Precision Group | 1 $28.6900 | Datasheet | Linear | ±1.5% | 350 Ohms | ±0.3% | 0.030" (0.76mm) | 0.095" (2.41mm) | 0.12" (3.1mm) | 0.063" (1.60mm) | 0.063" (1.60mm) | 0.10" (2.6mm) | -100 ~ 400°F (-75 ~ 205°C) | 6,161 Cart + RFQ |
 CEA-05-250UWA-350 Micro-Measurements / Vishay Precision Group | 1 $116.7400 | Datasheet | Linear | ±5% | 350 Ohms | ±0.3% | 0.250" (6.35mm) | 0.450" (11.43mm) | 0.55" (14.0mm) | 0.180" (4.57mm) | 0.180" (4.57mm) | 0.27" (6.9mm) | -103 ~ 347°F (-75 ~ 175°C) | 4,343 Cart + RFQ |
 MMF404140 Micro-Measurements / Vishay Precision Group | 1 $176.9800 | Datasheet | Linear | ±3% | 350 Ohms | ±0.3% | 0.126" (3.20mm) | 0.205" (5.20mm) | 0.28" (7.1mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.16" (4.1mm) | -60 ~ 180°F (-51 ~ 80°C) | 2,233 Cart + RFQ |
MMF403994 Micro-Measurements / Vishay Precision Group | 1 $176.9800 | Datasheet | Linear | ±3% | 120 Ohms | ±0.3% | 0.126" (3.20mm) | 0.205" (5.20mm) | 0.28" (7.1mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.16" (4.1mm) | -60 ~ 180°F (-51 ~ 80°C) | 6,136 Cart + RFQ |
MMF404144 Micro-Measurements / Vishay Precision Group | 1 $176.9800 | Datasheet | Linear | ±3% | 350 Ohms | ±0.3% | 0.126" (3.20mm) | 0.205" (5.20mm) | 0.28" (7.1mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.16" (4.1mm) | -60 ~ 180°F (-51 ~ 80°C) | 4,983 Cart + RFQ |
 MMF404146 Micro-Measurements / Vishay Precision Group | 1 $186.3000 | Datasheet | Linear | ±3% | 350 Ohms | ±0.3% | 0.235" (5.97mm) | 0.301" (7.64mm) | 0.37" (9.4mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.18" (4.6mm) | -60 ~ 180°F (-51 ~ 80°C) | 5,507 Cart + RFQ |
 MMF404956 Micro-Measurements / Vishay Precision Group | 1 $230.9600 | Datasheet | Shear/Torque | ±5% | 350 Ohms | ±0.4% | 0.187" (4.75mm) per section | 0.560" (14.22mm) | 0.63" (15.9mm) | 0.150" (3.81mm) per section | 0.320" (8.13mm) | 0.39" (9.8mm) | -100 ~ 350°F (-75 ~ 175°C) | 2,586 Cart + RFQ |
 MMF404946 Micro-Measurements / Vishay Precision Group | 1 $453.8300 | Datasheet | Shear/Torque | ±5% | 350 Ohms | ±0.4% | 0.250" (6.35mm) per section | 0.820" (20.83mm) | 0.96" (24.4mm) | 0.120" (3.05mm) per section | 0.700" (17.78mm) | 0.80" (20.3mm) | -100 ~ 350°F (-75 ~ 175°C) | 4,412 Cart + RFQ |
 MMF403472 Micro-Measurements / Vishay Precision Group | 1 $145.5200 | Datasheet | Linear | ±3% | 120 Ohms | ±0.3% | 0.126" (3.20mm) | 0.205" (5.20mm) | 0.28" (7.1mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.16" (4.1mm) | -60 ~ 180°F (-51 ~ 80°C) | 4,300 Cart + RFQ |
 MMF403743 Micro-Measurements / Vishay Precision Group | 1 $145.5200 | Datasheet | Linear | ±3% | 350 Ohms | ±0.3% | 0.126" (3.20mm) | 0.205" (5.20mm) | 0.28" (7.1mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.16" (4.1mm) | -60 ~ 180°F (-51 ~ 80°C) | 7,263 Cart + RFQ |
MMF403817 Micro-Measurements / Vishay Precision Group | 1 $186.3000 | Datasheet | Linear | ±3% | 350 Ohms | ±0.3% | 0.060" (1.52mm) | 0.144" (3.66mm) | 0.22" (5.6mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.16" (4.1mm) | -60 ~ 180°F (-51 ~ 80°C) | 4,418 Cart + RFQ |
 MMF402103 Micro-Measurements / Vishay Precision Group | 1 $67.3900 | Datasheet | Rectangular Rosette | ±1.5% | 350 Ohms | ±0.5% | 0.014" (0.36mm) per section | 0.071" (1.81mm) | 0.09" (2.2mm) | 0.012" (0.30mm) per section | 0.143" (3.63mm) | 0.15" (3.9mm) | -100 ~ 400°F (-75 ~ 205°C) | 8,410 Cart + RFQ |
 MMF404326 Micro-Measurements / Vishay Precision Group | 1 $90.9900 | Datasheet | Linear | ±5% | 350 Ohms | ±0.3% | 0.125" (3.18mm) | 0.275" (6.99mm) | 0.38" (9.7mm) | 0.100" (2.54mm) | 0.120" (3.05mm) | 0.19" (4.8mm) | -100 ~ 350°F (-75 ~ 175°C) | 8,366 Cart + RFQ |
 MMF402062 Micro-Measurements / Vishay Precision Group | 1 $97.8200 | Datasheet | Rectangular Rosette | ±1.5% | 350 Ohms | ±0.5% | 0.014" (0.36mm) per section | 0.071" (1.81mm) | 0.09" (2.2mm) | 0.012" (0.30mm) per section | 0.143" (3.63mm) | 0.15" (3.9mm) | -100 ~ 400°F (-75 ~ 205°C) | 6,597 Cart + RFQ |
 MMF404864 Micro-Measurements / Vishay Precision Group | 1 $112.1000 | Datasheet | Linear | - | 350 Ohms | - | - | - | - | - | - | - | - | 6,890 Cart + RFQ |
MMF403924 Micro-Measurements / Vishay Precision Group | 1 $226.8400 | Datasheet | - | - | - | - | - | - | - | - | - | - | - | 4,658 Cart + RFQ |
 MMF500995 Micro-Measurements / Vishay Precision Group | 1 $370.8700 | Datasheet | - | - | - | - | - | - | - | - | - | - | - | 1,619 Cart + RFQ |
MMF402184 Micro-Measurements / Vishay Precision Group | 1 $43.0400 | Datasheet | Linear | ±1.5% | 350 Ohms | ±0.3% | 0.030" (0.76mm) | 0.095" (2.41mm) | 0.12" (3.1mm) | 0.063" (1.60mm) | 0.063" (1.60mm) | 0.10" (2.6mm) | -100 ~ 400°F (-75 ~ 205°C) | 4,760 Cart + RFQ |
MMF403735 Micro-Measurements / Vishay Precision Group | 1 $43.0400 | Datasheet | Linear | ±1.5% | 350 Ohms | ±0.3% | 0.030" (0.76mm) | 0.095" (2.41mm) | 0.12" (3.1mm) | 0.063" (1.60mm) | 0.063" (1.60mm) | 0.10" (2.6mm) | -100 ~ 400°F (-75 ~ 205°C) | 7,429 Cart + RFQ |

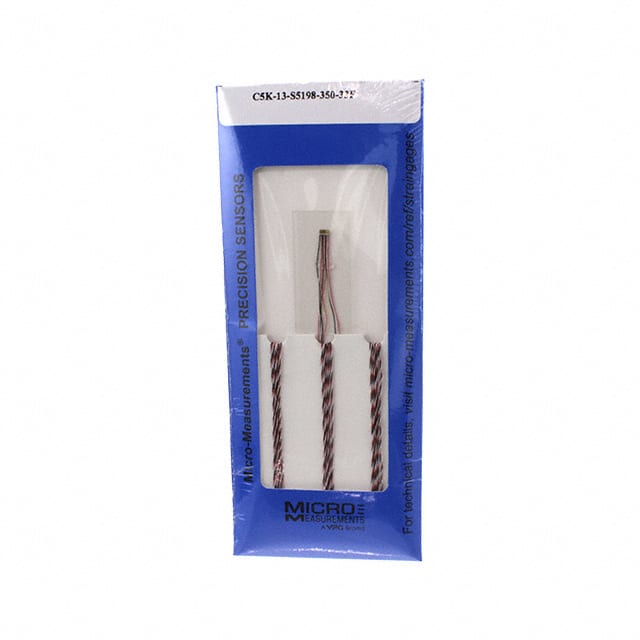

 MMF403112 Micro-Measurements / Vishay Precision Group | 1 $67.3900 | Datasheet | Rectangular Rosette | ±1.5% | 350 Ohms | ±0.5% | 0.014" (0.36mm) per section | 0.071" (1.81mm) | 0.09" (2.2mm) | 0.012" (0.30mm) per section | 0.143" (3.63mm) | 0.15" (3.9mm) | -100 ~ 400°F (-75 ~ 205°C) | 3,865 Cart + RFQ |
