Motion Sensors - Tilt Switches
Products in the tilt switch family are designed to provide a binary (two-state) indication of whether or not their orientation with respect to gravity is in excess of some specified angular value. Commonly, though not exclusively, based on a passive mechanism of action such as the motion of a conductive element under the influence of gravity, such sensors can operate without need of an external power source in applications where inclination threshold detection is sufficient, as contrasted with inclination magnitude measurement.
Product List
Total Components: 6
Product | Pricing | Datasheet | Operating Angle | Output Type | Mounting Type | Operating Temperature | Voltage - Supply | Current - Output | Package / Case | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|

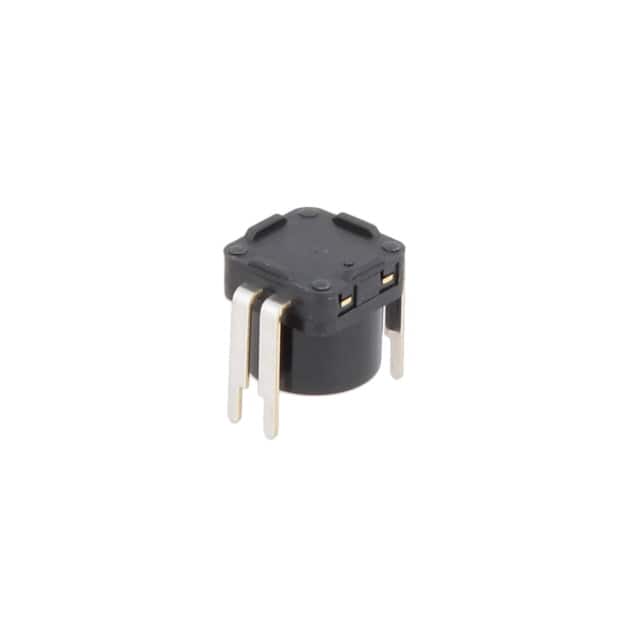

AHF23 Panasonic | 1 $9.7400 | Datasheet | 25° ~ 60° | NPN | Through Hole | -20°C ~ 80°C | 5V | - | 4-DIP Module | 2,326 Cart + RFQ |
AHF22 Panasonic | 1 $8.7300 | Datasheet | 25° ~ 60° | - | Through Hole, Horizontal | -20°C ~ 80°C | - | - | PCB Mount | 5,076 Cart + RFQ |
AHF21 Panasonic | 1 $6.0262 | Datasheet | 25° ~ 60° | - | Through Hole, Vertical | -20°C ~ 80°C | - | - | PCB Mount | 6,874 Cart + RFQ |
AHF11 Panasonic | Datasheet | 25° ~ 60° | - | Through Hole, Vertical | -25°C ~ 85°C | 5V ~ 30V | 100mA | PCB Mount | 2,023 Cart + RFQ | |
AHF12 Panasonic | Datasheet | 25° ~ 60° | - | Through Hole, Horizontal | -25°C ~ 85°C | 5V ~ 30V | 100mA | PCB Mount | 5,987 Cart + RFQ | |
AHF71 Panasonic | Datasheet | - | - | - | - | - | - | - | 4,868 Cart + RFQ |
