Motion Sensors - Tilt Switches
Products in the tilt switch family are designed to provide a binary (two-state) indication of whether or not their orientation with respect to gravity is in excess of some specified angular value. Commonly, though not exclusively, based on a passive mechanism of action such as the motion of a conductive element under the influence of gravity, such sensors can operate without need of an external power source in applications where inclination threshold detection is sufficient, as contrasted with inclination magnitude measurement.
Product List
Total Components: 3
ProductPricingDatasheetOperating AngleOutput TypeMounting TypeOperating TemperatureVoltage - SupplyCurrent - OutputPackage / CaseStock & Quantity
DSBA1H
NKK Switches
1
$7.4400
Datasheet
±30° ~ ±60°NPNThrough Hole, Right Angle-25°C ~ 80°C5V20mAPCB Mount
3,913
Cart +
RFQ

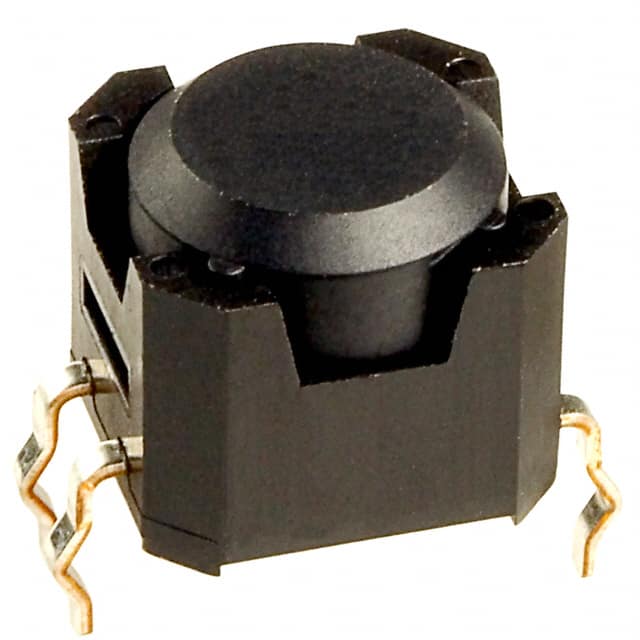

DSBA1P
NKK Switches
1
$7.4400
Datasheet
±30° ~ ±60°NPNThrough Hole, Straight-25°C ~ 80°C5V20mAPCB Mount
7,637
Cart +
RFQ

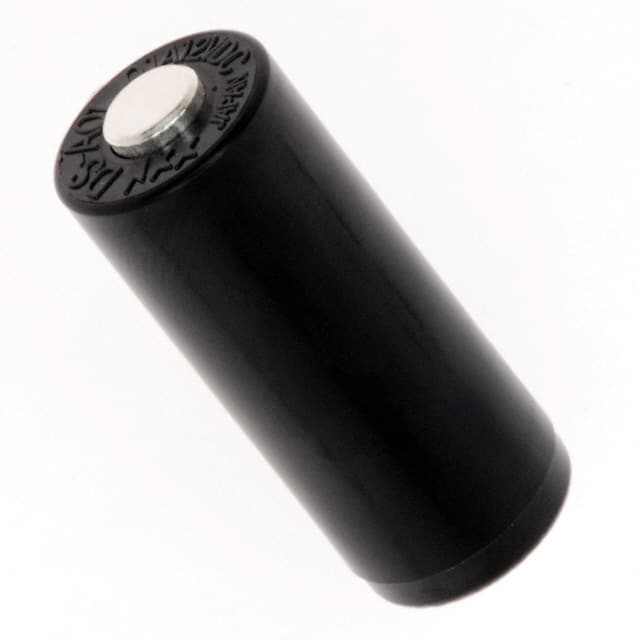

DSA01
NKK Switches
1
$9.2900
Datasheet
ON: 10° ~ 170°, OFF: 190° ~ 350°-PCB Adapter-10°C ~ 70°C--Cylinder
8,759
Cart +
RFQ
