Magnets - Sensor Matched
Sensor-matched magnet products are magnets that are specifically indicated for use with one or more magnetic sensor products, and which often incorporate some sort of overmolding or packaging to facilitate mechanical mounting in an end application. Though most magnet-based sensor systems can be used with any magnet having suitable characteristics, availability of matched magnets allows sensor manufacturers to describe the behavior of their products in terms of a magnet of known characteristics.
Product List
Total Components: 18
Product | Pricing | Datasheet | For Use With/Related Products | Housing Material | Material - Magnet | Package / Case | Size | Operating Temperature | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|
57135-000 Hamlin / Littelfuse | 1 $2.7600 | Datasheet | 59135 | Plastic | Alnico 5 (AlNiCo) | Flange Mount | 1.125" L x 0.259" W x 0.750" H (28.6mm x 6.40mm x 19.0mm) | 105°C (TA) | 8,302 Cart + RFQ |
57140-000 Hamlin / Littelfuse | 1 $2.9800 | Datasheet | 59140 | Plastic | Alnico 5 (AlNiCo) | Flange Mount | 0.906" L x 0.236" W x 0.551" H (23.0mm x 6.00mm x 14.0mm) | 105°C (TA) | 2,805 Cart + RFQ |
57150-000 Hamlin / Littelfuse | 1 $3.0600 | Datasheet | 59150 | Plastic | Alnico 5 (AlNiCo) | Flange Mount | 1.125" L x 0.259" W x 0.750" H (28.6mm x 6.40mm x 19.0mm) | 105°C (TA) | 6,120 Cart + RFQ |
57145-000 Hamlin / Littelfuse | 1 $3.0600 | Datasheet | 59145 | Plastic | Alnico 5 (AlNiCo) | Flange Mount | 1.125" L x 0.259" W x 0.750" H (28.6mm x 6.40mm x 19.0mm) | 105°C (TA) | 3,187 Cart + RFQ |
57025-000 Hamlin / Littelfuse | 1 $5.3700 | Datasheet | 59025 | Plastic | Alnico 5 (AlNiCo) | Cylinder | 0.245" Dia x 1.00" L (6.22mm x 25.4mm) | 105°C (TA) | 8,321 Cart + RFQ |
57060-000 Hamlin / Littelfuse | 1 $18.1200 | Datasheet | 59060 | Plastic | Alnico 5 (AlNiCo) | Cylinder, Threaded | 0.315" Dia x 1.42" L (8.00mm x 36.0mm) | 105°C (TA) | 5,874 Cart + RFQ |
57045-000 Hamlin / Littelfuse | 1 $3.8500 | Datasheet | 59045 | Plastic | Alnico 5 (AlNiCo) | PCB Module | 0.700" L x 0.130" W x 0.170" H (17.8mm x 3.30mm x 4.32mm) | 105°C (TA) | 7,427 Cart + RFQ |
57065-000 Hamlin / Littelfuse | 1 $3.9200 | Datasheet | 59065 | Plastic | Alnico 5 (AlNiCo) | Cylinder, Threaded | 0.219" Dia x 1.50" L (5.56mm x 38.0mm) | 105°C (TA) | 7,905 Cart + RFQ |
57040-000 Hamlin / Littelfuse | 1 $2.5900 | Datasheet | 59040 | Plastic | - | Press Fit | 0.420" Dia x 1.22" L (10.7mm x 31.0mm) | 105°C (TA) | 7,245 Cart + RFQ |
57020-000 Hamlin / Littelfuse | 1 $7.9500 | Datasheet | 59020 | Plastic | Alnico 5 (AlNiCo) | Cylinder | 0.201" Dia x 0.60" L (5.10mm x 15.2mm) | 105°C (TA) | 2,511 Cart + RFQ |
57022-000 Hamlin / Littelfuse | 1 $5.3700 | Datasheet | 59022 | Plastic | Alnico 5 (AlNiCo) | Cylinder | 0.228" Dia x 1.00" L (5.79mm x 25.4mm) | 105°C (TA) | 9,041 Cart + RFQ |
57050-000 Hamlin / Littelfuse | 1 $2.2570 | Datasheet | 59050 | Plastic | Alnico 5 (AlNiCo) | PCB Module | 0.900" L x 0.180" W x 0.265" H (22.9mm x 4.57mm x 6.73mm) | 105°C (TA) | 4,750 Cart + RFQ |
57142-000 Hamlin / Littelfuse | 1 $4.9500 | Datasheet | 59142 | Plastic | Nd-Fe-B | Flange Mount | 0.906" L x 0.236" W x 0.551" H (23.0mm x 6.00mm x 14.0mm) | 105°C (TA) | 2,501 Cart + RFQ |
57125-000 Hamlin / Littelfuse | 1 $3.1900 | Datasheet | 59125 | Plastic | Alnico 5 (AlNiCo) | Flange Mount | 1.125" L x 0.259" W x 0.750" H (28.6mm x 6.40mm x 19.0mm) | 105°C (TA) | 1,928 Cart + RFQ |
57105-000 Hamlin / Littelfuse | 1 $3.3600 | Datasheet | 59105 | Plastic | Alnico 5 (AlNiCo) | Flange Mount | 1.125" L x 0.259" W x 0.750" H (28.6mm x 6.40mm x 19.0mm) | 105°C (TA) | 9,879 Cart + RFQ |
57070-000 Hamlin / Littelfuse | 1 $3.9200 | Datasheet | 59070 | Plastic | Alnico 5 (AlNiCo) | Cylinder, Threaded | 0.219" Dia x 1.50" L (5.56mm x 38.0mm) | 105°C (TA) | 5,296 Cart + RFQ |
57141-000 Hamlin / Littelfuse | 1 $1.9995 | Datasheet | - | - | - | - | - | - | 8,930 Cart + RFQ |

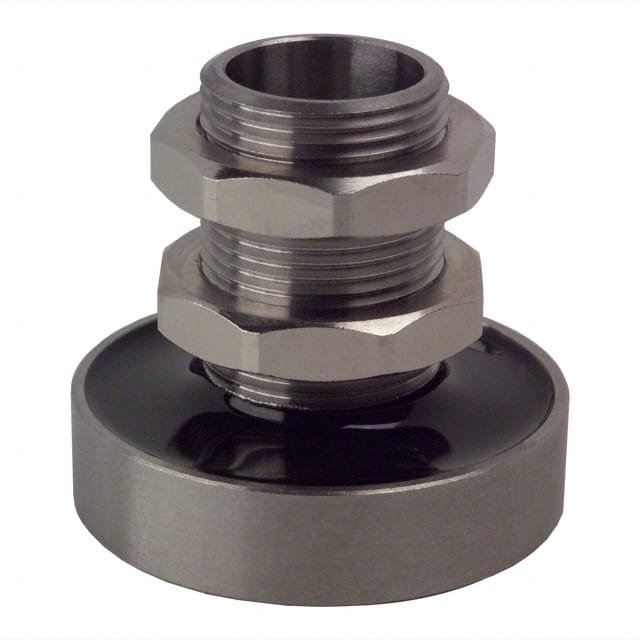

57075-000 Hamlin / Littelfuse | Datasheet | 59075 | - | Ceramic-2 | Cylinder, Threaded - M12 | - | 105°C (TA) | 6,151 Cart + RFQ |
