Magnets - Sensor Matched
Sensor-matched magnet products are magnets that are specifically indicated for use with one or more magnetic sensor products, and which often incorporate some sort of overmolding or packaging to facilitate mechanical mounting in an end application. Though most magnet-based sensor systems can be used with any magnet having suitable characteristics, availability of matched magnets allows sensor manufacturers to describe the behavior of their products in terms of a magnet of known characteristics.
Product List
Total Components: 12
Product | Pricing | Datasheet | For Use With/Related Products | Housing Material | Material - Magnet | Package / Case | Size | Operating Temperature | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|
M04 Standex Electronics | 1 $3.7800 | Datasheet | MK04 | Polybutylene Terephthalate (PBT), Glass Filled | Alnico 5 (AlNiCo) | Flange Mount | 0.910" L x 0.550" W x 0.230" H (23.0mm x 13.9mm x 5.90mm) | 70°C (TA) | 5,577 Cart + RFQ |
M21P/1 Standex Electronics | 1 $8.2100 | Datasheet | MK21 | Polybutylene Terephthalate (PBT), Glass Filled | Alnico (AlNiCo) | Flange Mount | 1.122" L x 0.246" W x 0.750" H (28.5mm x 6.25mm x 19.0mm) | 150°C (TA) | 7,818 Cart + RFQ |
M11/M8 Standex Electronics | 1 $4.7400 | Datasheet | MK11/M8 | Plastic | Alnico 5 (AlNiCo) | Cylinder, Threaded | 0.315" Dia x 1.50" L (8.00mm x 38.0mm) | 70°C (TA) | 1,227 Cart + RFQ |

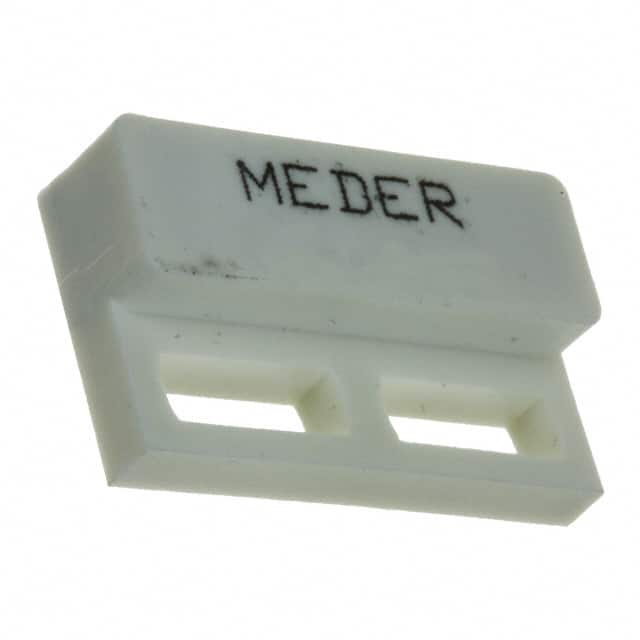

M13 Standex Electronics | 1 $3.7800 | Datasheet | MK13 | Polybutylene Terephthalate (PBT), Glass Filled | Alnico 5 (AlNiCo) | Flange Mount | 0.906" L x 0.547" W x 0.232" H (23.0mm x 13.9mm x 5.90mm) | 70°C (TA) | 4,843 Cart + RFQ |

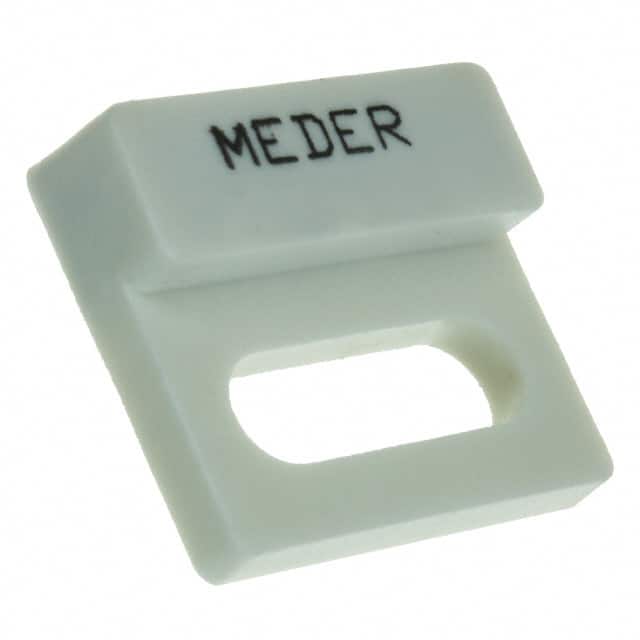

M05 Standex Electronics | 1 $2.0553 | Datasheet | MK05 | Polybutylene Terephthalate (PBT), Glass Filled | Alnico 5 (AlNiCo) | Flange Mount | 0.910" L x 0.550" W x 0.230" H (23.0mm x 13.9mm x 5.90mm) | 70°C (TA) | 1,317 Cart + RFQ |

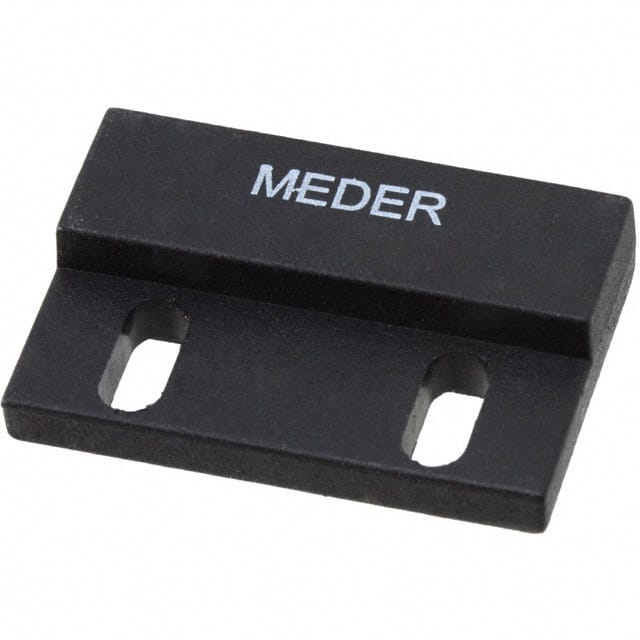

M21P/2 Standex Electronics | 1 $4.4658 | Datasheet | MK21 | Polybutylene Terephthalate (PBT), Glass Filled | Alnico (AlNiCo) | Flange Mount | 1.122" L x 0.246" W x 0.750" H (28.5mm x 6.25mm x 19.0mm) | 150°C (TA) | 5,797 Cart + RFQ |

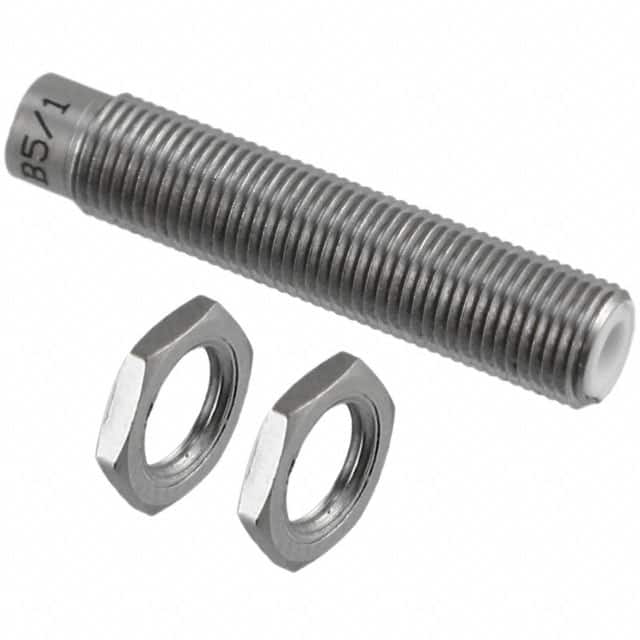

M11/M5 Standex Electronics | 1 $8.5204 | Datasheet | MK11 | Stainless Steel | Alnico (AlNiCo) | Cylinder, Threaded | 0.980" Dia x 0.20" L (25.0mm x 5.00mm) | 70°C (TA) | 9,580 Cart + RFQ |

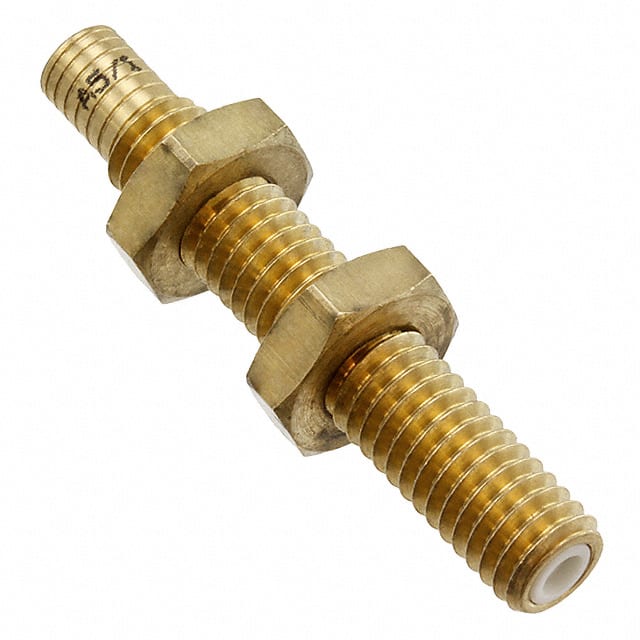

M11/B6 Standex Electronics | 1 $12.7078 | Datasheet | MK11/B6 | Brass | - | Cylinder, Threaded | 0.236" Dia x 1.50" L (6.00mm x 38.0mm) | 70°C (TA) | 8,643 Cart + RFQ |

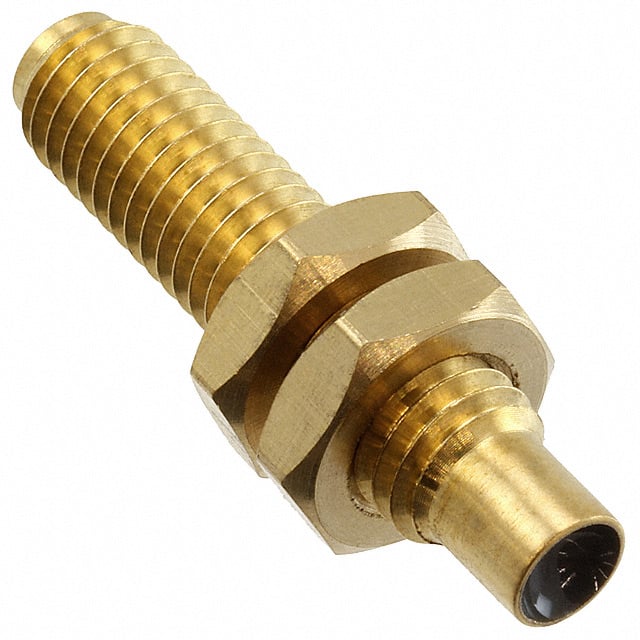

M11/B8 Standex Electronics | 1 $14.9076 | Datasheet | MK11/B8 | Brass | Alnico 5 (AlNiCo) | Cylinder, Threaded | 0.315" Dia x 1.50" L (8.00mm x 38.0mm) | 70°C (TA) | 1,819 Cart + RFQ |

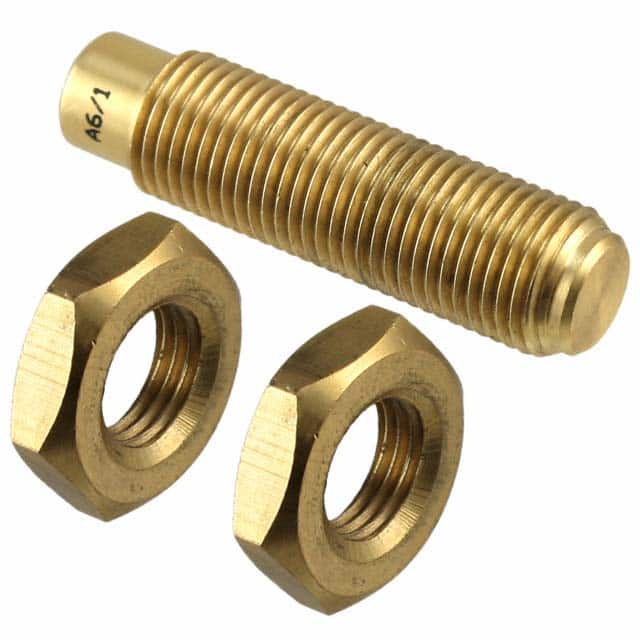

M11/B10 Standex Electronics | 1 $16.5316 | Datasheet | MK11/B10 | Brass | Alnico 5 (AlNiCo) | Cylinder, Threaded | 0.394" Dia x 1.50" L (10.0mm x 38.0mm) | 70°C (TA) | 3,445 Cart + RFQ |

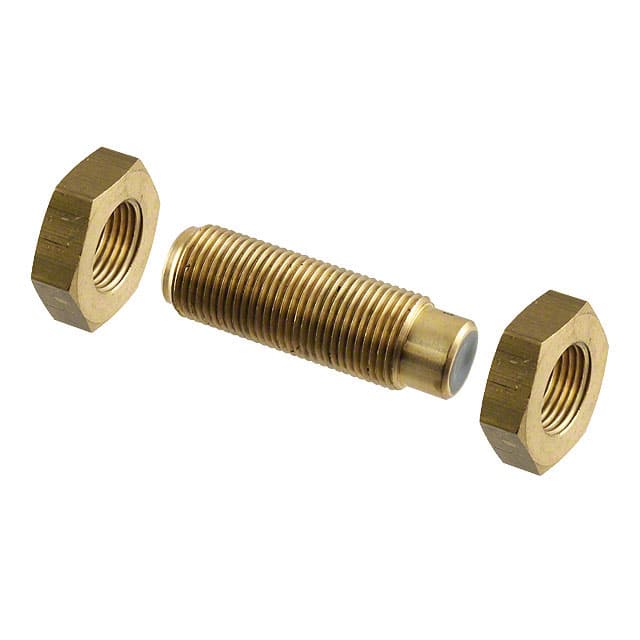

M11/B12 Standex Electronics | 1 $17.1110 | Datasheet | MK11/B12 | Brass | Alnico 5 (AlNiCo) | Cylinder, Threaded | 0.472" Dia x 1.50" L (12.0mm x 38.0mm) | 70°C (TA) | 1,768 Cart + RFQ |
M03 Standex Electronics | Datasheet | MK03 | Polybutylene Terephthalate (PBT), Glass Filled | Alnico (AlNiCo) | Cylinder, Threaded | 0.197" Dia x 1.004" L (5.00mm x 25.5mm) | 70°C (TA) | 5,305 Cart + RFQ |
