Magnetic Sensors - Switches (Solid State)
Products in this family use solid-state technology for detecting the presence of a magnetic field in excess of some specific magnitude and/or sign, and provide a two-state output indicating the presence or absence of such a field. They are distinct from reed switches, which provide a similar function through the use of moving mechanical parts, as well as from linear or compass-type solid-state devices which provide a variable output indicative of the strength and/or orientation of an applied magnetic field.
Product List
Total Components: 9
| Product | Pricing | Datasheet | Function | Technology | Polarization | Sensing Range | Test Condition | Voltage - Supply | Current - Supply (Max) | Current - Output (Max) | Output Type | Features | Operating Temperature | Mounting Type | Supplier Device Package | Package / Case | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TLE49631MXTMA1 Infineon Technologies | 1 $0.7500 | Datasheet | Latch | Hall Effect | South Pole | 3.5mT Trip, -3.5mT Release | 25°C | 3V ~ 5.5V | 2.5mA | 5mA | Open Drain | Temperature Compensated | -40°C ~ 170°C (TJ) | Surface Mount | PG-SOT23-3-15 | TO-236-3, SC-59, SOT-23-3 | 9,545 Cart + RFQ |
TLV4906KFTSA1 Infineon Technologies | 1 $0.7700 | Datasheet | Unipolar Switch | Hall Effect | South Pole | 13.9mT Trip, 4.7mT Release | -40°C ~ 85°C | 2.7V ~ 18V | 6mA | 20mA | Open Drain | Temperature Compensated | -40°C ~ 85°C (TA) | Surface Mount | PG-SC59-3 | TO-236-3, SC-59, SOT-23-3 | 7,028 Cart + RFQ |
TLE4913HTSA1 Infineon Technologies | 1 $0.9300 | Datasheet | Omnipolar Switch | Hall Effect | North Pole, South Pole | ±5mT Trip, ±4.2mT Release | 25°C | 2.4V ~ 5.5V | 2.5mA | 2mA | Open Drain | Temperature Compensated | -40°C ~ 85°C (TA) | Surface Mount | PG-SC59-3 | TO-236-3, SC-59, SOT-23-3 | 5,503 Cart + RFQ |
TLE49646MXTMA1 Infineon Technologies | 1 $0.9300 | Datasheet | Unipolar Switch | Hall Effect | South Pole | 5.4mT Trip, 0.9mT Release | 25°C | 3V ~ 32V | 2.5mA | 25mA | Open Drain | Temperature Compensated | -40°C ~ 170°C (TJ) | Surface Mount | PG-SOT23-3-15 | TO-236-3, SC-59, SOT-23-3 | 3,949 Cart + RFQ |

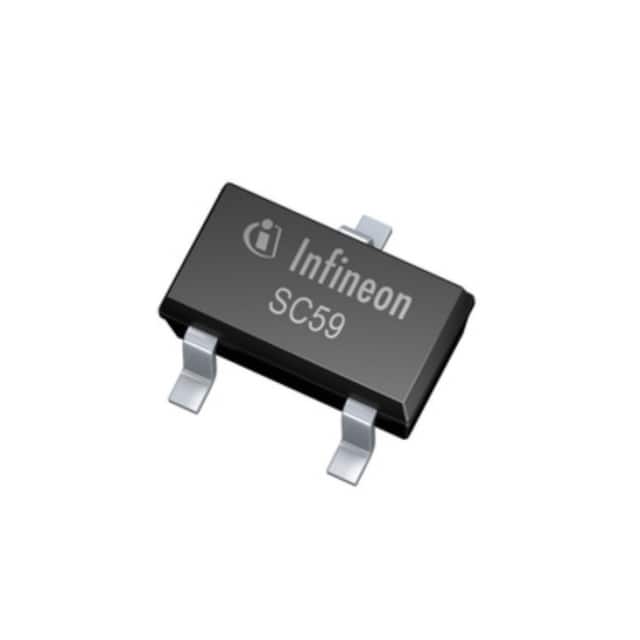

 TLE49643KXTSA1 Infineon Technologies | 1 $1.1400 | Datasheet | Unipolar Switch | Hall Effect | North Pole, South Pole | 12.5mT Trip, 9.5mT Release | 25°C | 3V ~ 32V | 1.6mA | 25mA | Open Drain | Temperature Compensated | -40°C ~ 170°C (TJ) | Surface Mount | PG-SC59-3-5 | TO-236-3, SC-59, SOT-23-3 | 3,633 Cart + RFQ |

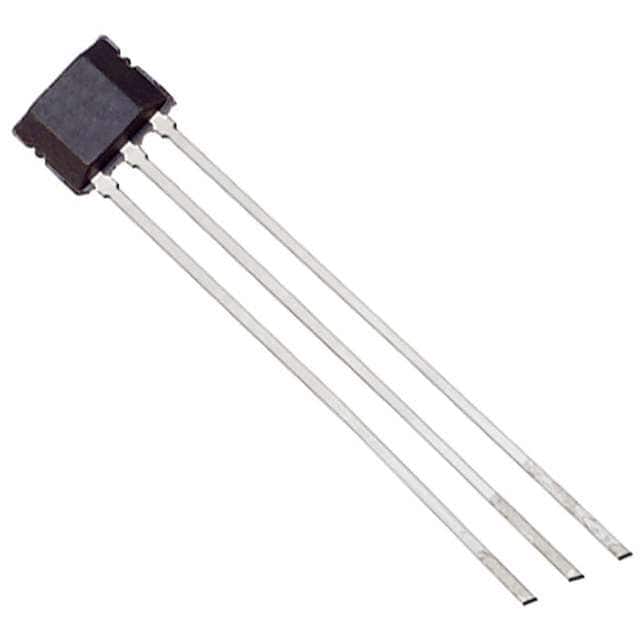

 TLE4905LE6433HAXA1 Infineon Technologies | 1 $1.4500 | Datasheet | Unipolar Switch | Hall Effect | South Pole | 18mT Trip, 5mT Release | 25°C | 3.8V ~ 24V | 8mA | 100mA | Open Collector | Temperature Compensated | -40°C ~ 150°C (TJ) | Through Hole | PG-SSO-3-2 | 3-SSIP, SSO-3-02 | 6,200 Cart + RFQ |

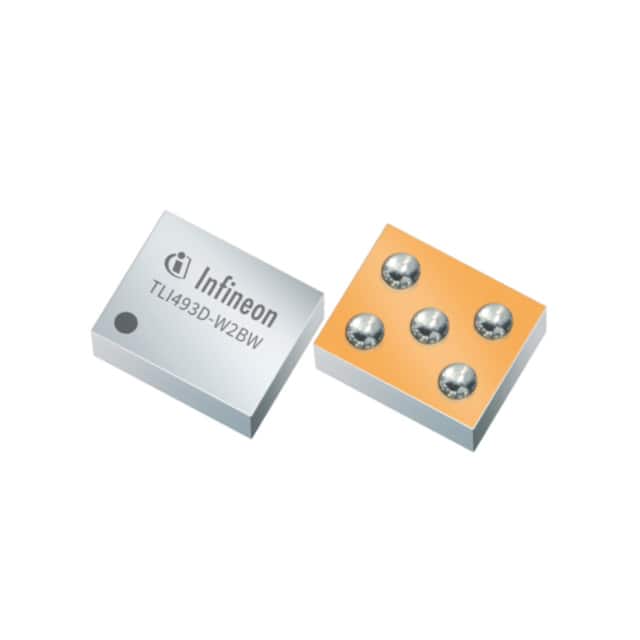

 TLI493DW2BWA1XTMA1 Infineon Technologies | 1 $2.7600 | Datasheet | Programmable | Hall Effect | South Pole | ±160mT | -40°C ~ 125°C | 2.8V ~ 3.5V | 5mA | - | Open Drain | Temperature Compensated | -40°C ~ 125°C (TJ) | Surface Mount | 5-WLCSP (1.13x0.93) | 5-UFBGA, WLCSP | 9,743 Cart + RFQ |
TLE49641MXTSA1 Infineon Technologies | 1 $0.9300 | Datasheet | Unipolar Switch | Hall Effect | South Pole | 23.5mT Trip, 8.4mT Release | 25°C | 3V ~ 32V | 2.5mA | 25mA | Open Drain | Temperature Compensated | -40°C ~ 170°C (TJ) | Surface Mount | PG-SOT23-3-15 | TO-236-3, SC-59, SOT-23-3 | 9,444 Cart + RFQ |
TLE49462KHTSA1 Infineon Technologies | 1 $1.0300 | Datasheet | Latch | Hall Effect | South Pole | 3.5mT Trip, -3.5mT Release | 25°C | 2.7V ~ 18V | 6mA | 20mA | Open Collector | Temperature Compensated | -40°C ~ 150°C (TJ) | Surface Mount | PG-SC59-3 | TO-236-3, SC-59, SOT-23-3 | 3,890 Cart + RFQ |
