IrDA Transceiver Modules
Infrared transceivers incorporate an infrared emitter, a photodiode and control circuitry in a single device package for use in data transmission at rates as high as 16 megabits per second. Modules are available as Serial (SIR), Mid (MIR) and Far (FIR) variations with side or top view options. The Infrared Data Association (IrDa) provides protocol specifications for wireless data communication such as IrDA 1.x and IrPHY 1.x for use with infrared transceivers.
Product List
Total Components: 15
| Product | Pricing | Datasheet | Data Rate | Voltage - Supply | Idle Current, Typ @ 25°C | Link Range, Low Power | Orientation | Operating Temperature | Size | Standards | Shutdown | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

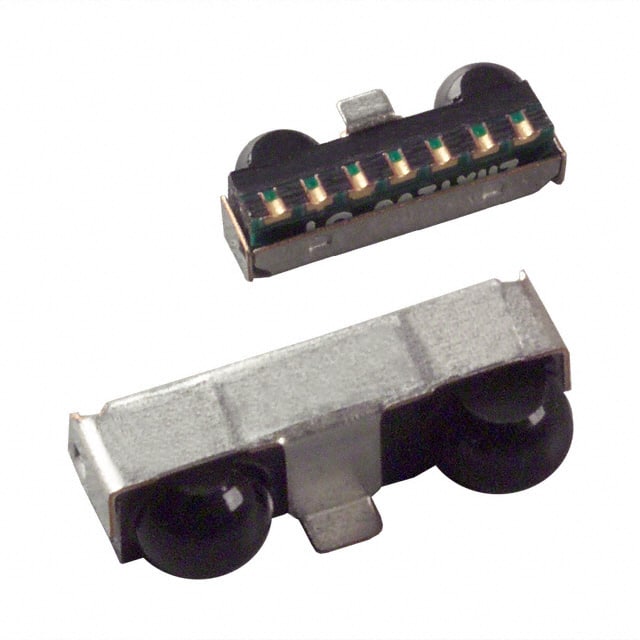

 ZHX1403MA115THTR Hamlin / Littelfuse | Datasheet | 115.2kbs (SIR) | 2.4 V ~ 3.6 V | 100 nA | 1m | Side View | -30°C ~ 85°C | 7.3mm x 2.8mm x 1.9mm | IrPHY 1.4 | Yes | 6,824 Cart + RFQ | |
 ZHX3403MA012THTR Hamlin / Littelfuse | Datasheet | 1.152Mbs (MIR) | 2.4 V ~ 3.6 V | 100 nA | 30cm | Side View | -30°C ~ 85°C | 7.3mm x 2.8mm x 1.9mm | IrPHY 1.3 | Yes | 4,760 Cart + RFQ | |
 ZHX1010MV115THTR Hamlin / Littelfuse | 1 $1.0100 | Datasheet | 115.2kbs (SIR) | 2.4 V ~ 5.5 V | 90 µA | 1m | Side View | -30°C ~ 85°C | 9.7mm x 3.7mm x 4.0mm | - | Yes | 5,378 Cart + RFQ |

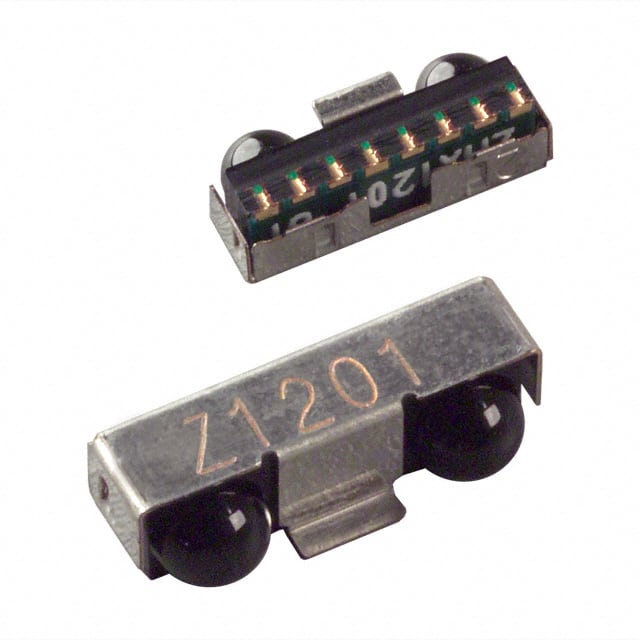

 ZHX1201MB115THTR Hamlin / Littelfuse | Datasheet | 115.2kbs (SIR) | 2.4 V ~ 3.6 V | 100 µA | 20cm | Side View | -30°C ~ 85°C | 8.0mm x 3.0mm x 2.5mm | IrPHY 1.4 | Yes | 9,897 Cart + RFQ | |

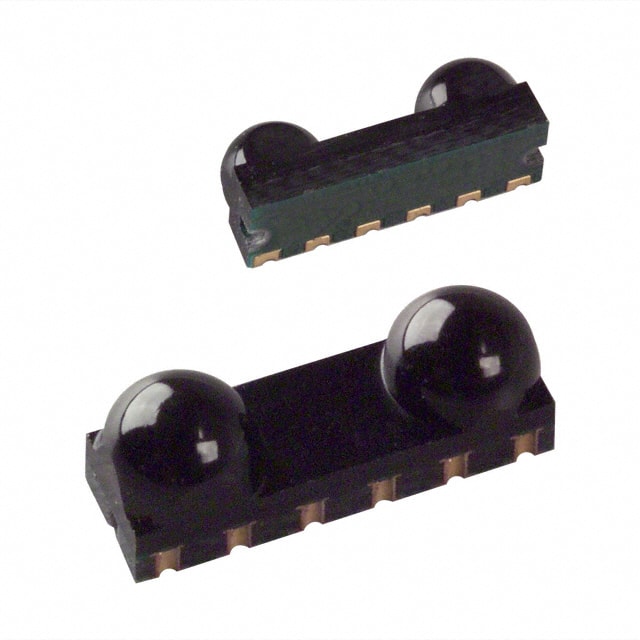

 ZHX1820TV115XHTR Hamlin / Littelfuse | Datasheet | 115.2kbs (SIR) | 2.4 V ~ 5.5 V | - | 1m | Top View | -30°C ~ 85°C | 9.1mm x 3.8mm x 2.7mm | IrPHY 1.4 | - | 5,351 Cart + RFQ | |
ZHX1203MB115THTR Hamlin / Littelfuse | Datasheet | 115.2kbs (SIR) | 2.4 V ~ 3.6 V | 100 µA | 20cm | Side View | -30°C ~ 85°C | 7.3mm x 2.8mm x 1.9mm | IrPHY 1.4 | Yes | 5,062 Cart + RFQ | |

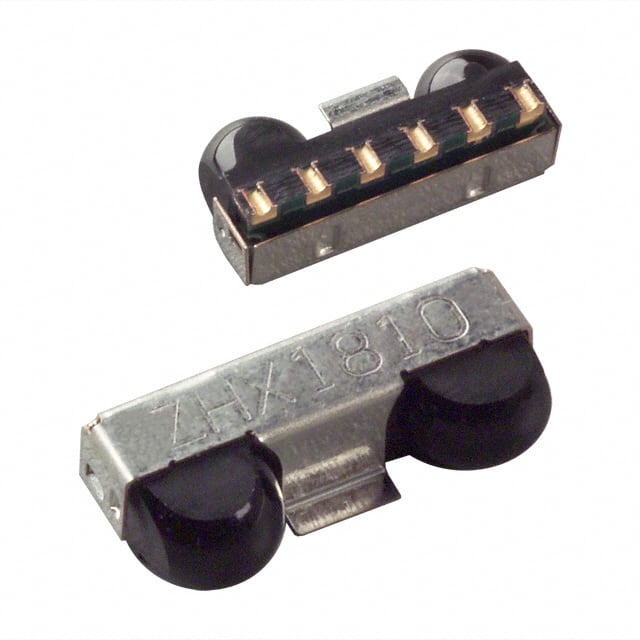

 ZHX1810MV115THTR Hamlin / Littelfuse | Datasheet | 115.2kbs (SIR) | 2.4 V ~ 5.5 V | 90 µA | 1m | Side View | -30°C ~ 85°C | 9.1mm x 3.8mm x 2.7mm | IrPHY 1.4 | Yes | 8,260 Cart + RFQ | |
ZHX2010ML040THSRTR Hamlin / Littelfuse | Datasheet | 4Mbs (FIR) | 2.7 V ~ 5.25 V | 2.5 mA | - | Side View | -30°C ~ 85°C | 9.8mm x 4.8mm x 4.0mm | IrPHY 1.4 | Yes | 7,115 Cart + RFQ | |

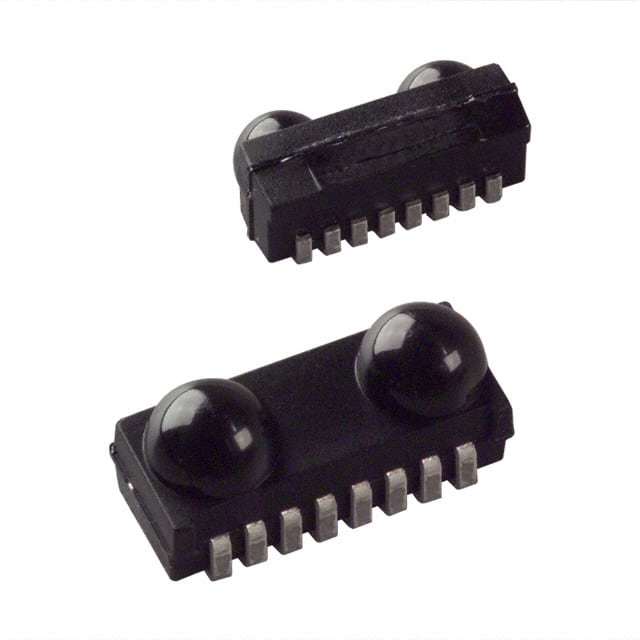

 ZHX2022MV040THTR Hamlin / Littelfuse | Datasheet | 4Mbs (FIR) | 2.7 V ~ 5.5 V | 2 mA | - | Top View | -25°C ~ 85°C | 9.7mm x 4.7mm x 4.0mm | IrPHY 1.4 | Yes | 8,841 Cart + RFQ | |
ZHX2022TV040THTR Hamlin / Littelfuse | Datasheet | 4Mbs (FIR) | 2.7 V ~ 5.5 V | 2 mA | - | Top View | -25°C ~ 85°C | 9.7mm x 4.7mm x 4.0mm | IrPHY 1.4 | Yes | 6,589 Cart + RFQ | |
ZHX1423TA115THTR Hamlin / Littelfuse | Datasheet | 115.2kbs (SIR) | 2.4 V ~ 3.6 V | 100 nA | 1m | Side View | -30°C ~ 85°C | 7.3mm x 2.8mm x 1.9mm | IrPHY 1.4 | Yes | 7,810 Cart + RFQ | |
ZHX1403MA115TH2090TR Hamlin / Littelfuse | Datasheet | 115.2kbs (SIR) | 2.4 V ~ 3.6 V | 100 nA | 1m | Side View | -30°C ~ 85°C | 7.3mm x 2.8mm x 1.9mm | IrPHY 1.4 | Yes | 5,745 Cart + RFQ | |

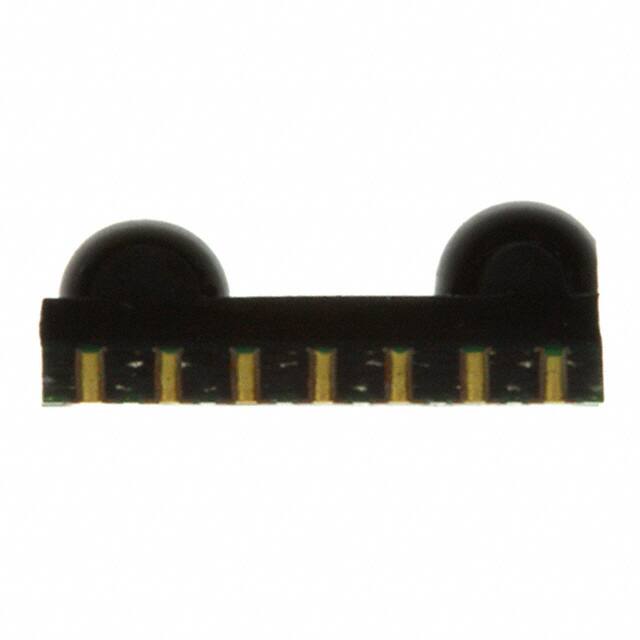

 ZHX1223TB115THTR Hamlin / Littelfuse | Datasheet | 115.2kbs (SIR) | 2.4 V ~ 3.6 V | 90 µA | 20cm | Top View | -30°C ~ 85°C | 7.3mm x 2.8mm x 1.9mm | IrPHY 1.4 | Yes | 9,952 Cart + RFQ | |
ZHX1203MB115TH2090TR Hamlin / Littelfuse | Datasheet | 115.2kbs (SIR) | 2.4 V ~ 3.6 V | 100 µA | 20cm | Side View | -30°C ~ 85°C | 7.3mm x 2.8mm x 1.9mm | IrPHY 1.4 | Yes | 5,747 Cart + RFQ | |

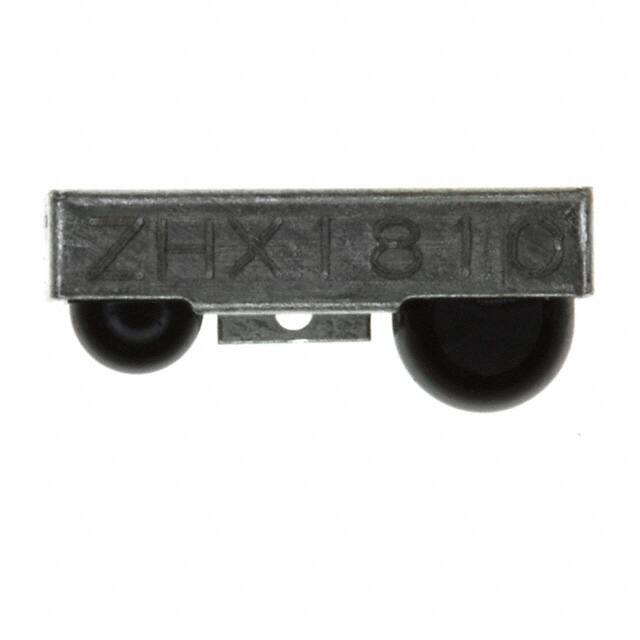

 ZHX1810MV115TH2090TR Hamlin / Littelfuse | Datasheet | 115.2kbs (SIR) | 2.4 V ~ 5.5 V | - | 1m | Side View | -30°C ~ 85°C | 9.1mm x 3.8mm x 2.7mm | IrPHY 1.4 | - | 6,881 Cart + RFQ |
