Power Relays, Over 2 Amps
Power Relays over 2 Amps are an electromechanical device which turns a large load on or off through the use of a smaller control signal. The contacts on these devices have a rating of 2 A, 3A, 3.5A, 4A, 5A, 6A, 7A, 7.5A, 8A, 8.5A, 9A, 10A, 11A, 12A, 14A, 15A, 16A, 18A, 20A, 21A, 23A, 25A, 26A, 30A, 31A, 32A, 33A, 35A, 40A, 48A, 50A ,60A, 90A, 100A, 120A, 150A, 200A, 400A, and 750A.
Product List
Total Components: 32
| Product | Pricing | Datasheet | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

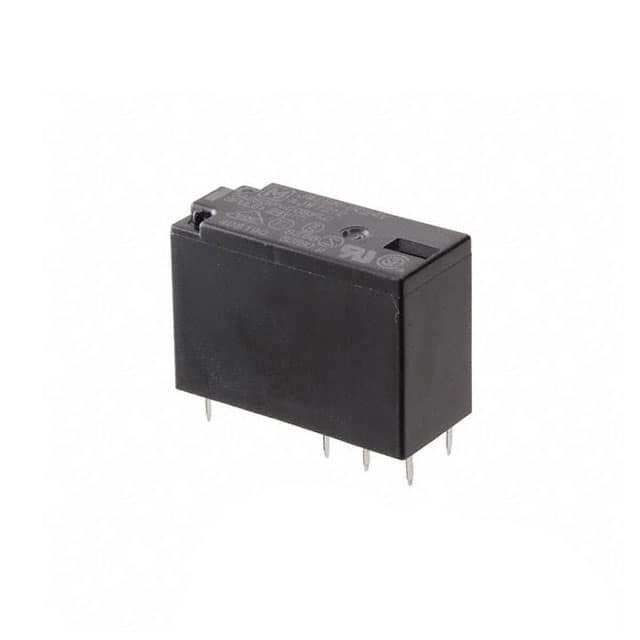

 JW2SN-DC24V Panasonic | 1 $3.3900 | Datasheet | Through Hole | 24VDC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 22 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | General Purpose | 6,385 Cart + RFQ |

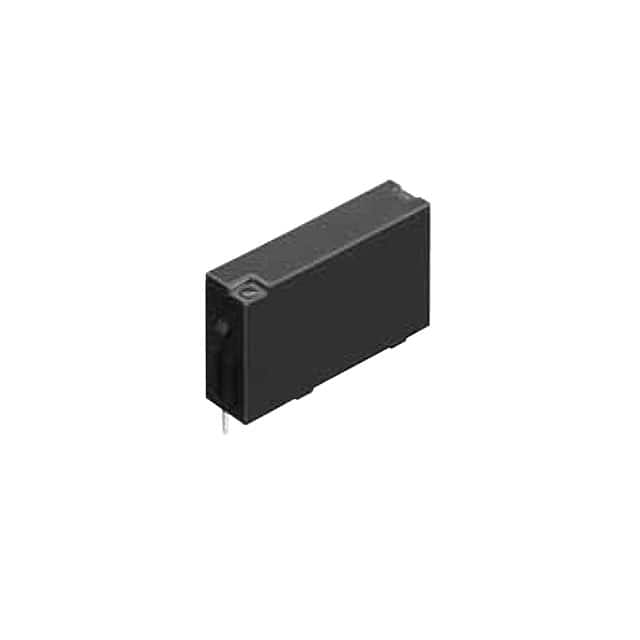

 APAN3103 Panasonic | 1 $5.9400 | Datasheet | Through Hole | 3VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 110VDC - Max | 36.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 2.1 VDC | 0.15 VDC | 10 ms | 5 ms | -40°C ~ 90°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | 2,724 Cart + RFQ |
APAN3105 Panasonic | 1 $0.8450 100 $0.6760 500 $0.5633 | Datasheet | Through Hole | 5VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 110VDC - Max | 22 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.5 VDC | 0.25 VDC | 10 ms | 5 ms | -40°C ~ 90°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | 400 Cart + RFQ |
APAN3112 Panasonic | 1 $5.9400 | Datasheet | Through Hole | 12VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 110VDC - Max | 9.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 0.6 VDC | 10 ms | 5 ms | -40°C ~ 90°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | 3,158 Cart + RFQ |

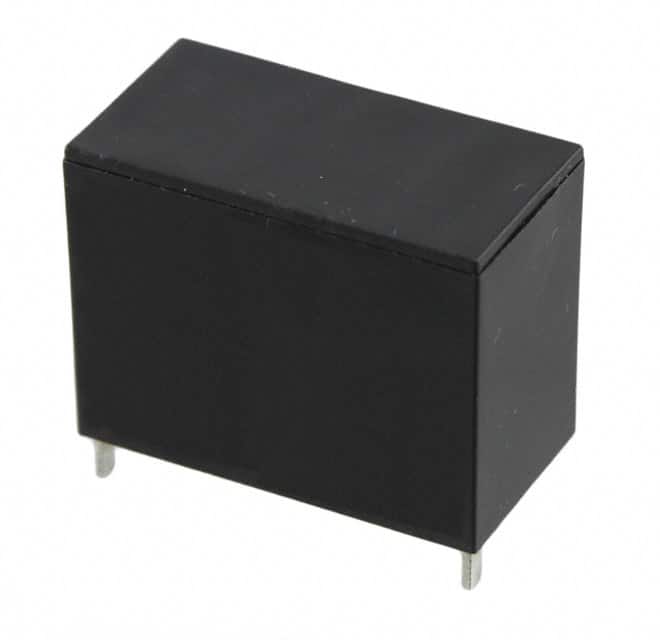

 ALFG2PF24 Panasonic | 1 $6.6400 | Datasheet | Through Hole | 24VDC | SPST-NO (1 Form A) | 31 A | 250VAC - Max | 58.6 mA | Non Latching | - | PC Pin | - | Class F | 16.8 VDC | 2.4 VDC | 20 ms | 10 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | 7,393 Cart + RFQ |

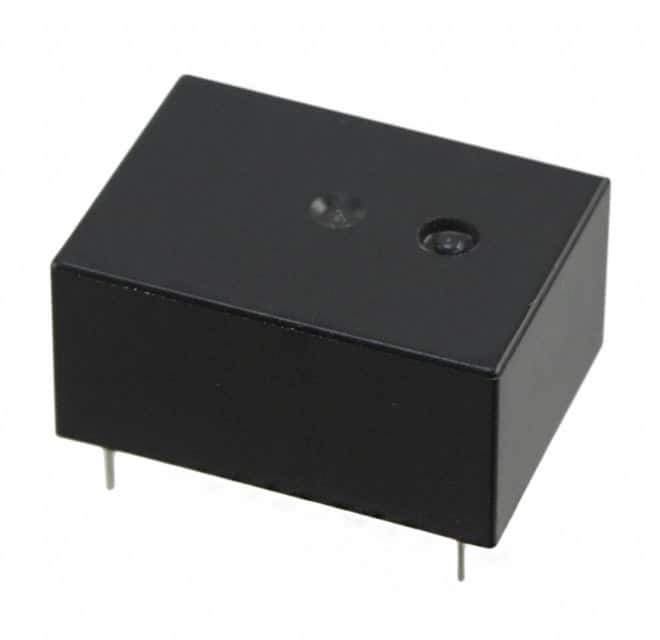

 JVN1A-12V-F Panasonic | 1 $7.4700 | Datasheet | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 277VAC, 30VDC - Max | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 0.6 VDC | 12 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | 1,281 Cart + RFQ |

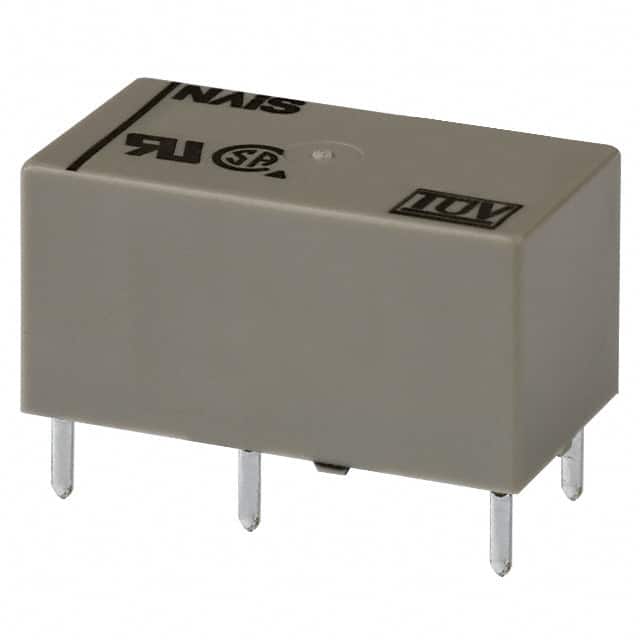

 DSP1-DC5V-F Panasonic | 1 $7.6300 | Datasheet | Through Hole | 5VDC | DPST-NO/NC (1 Form A, 1 Form B) | 5 A | 250VAC, 30VDC - Max | 60 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 65°C | Silver Tin Oxide (AgSnO) | General Purpose | 6,930 Cart + RFQ |

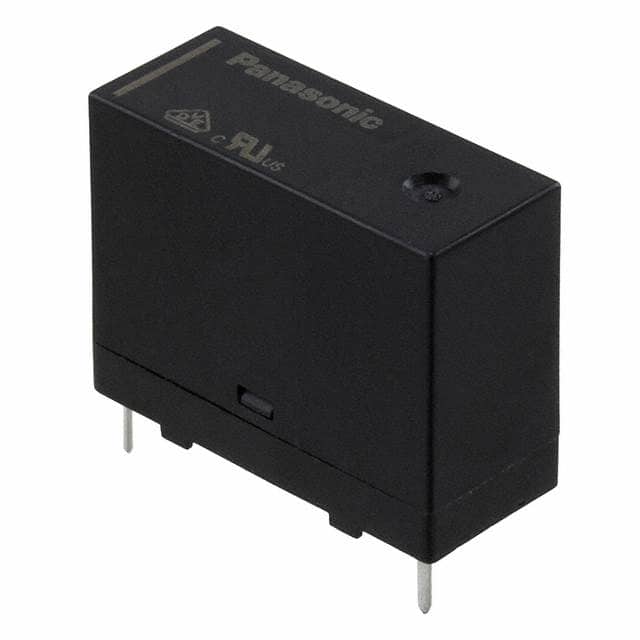

 ADW1212HTW Panasonic | 1 $7.9300 | Datasheet | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 33.3 mA | Latching, Dual Coil | IEC Compliant | PC Pin | Sealed - Flux Protection | Class F | 9.6 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | 2,807 Cart + RFQ |

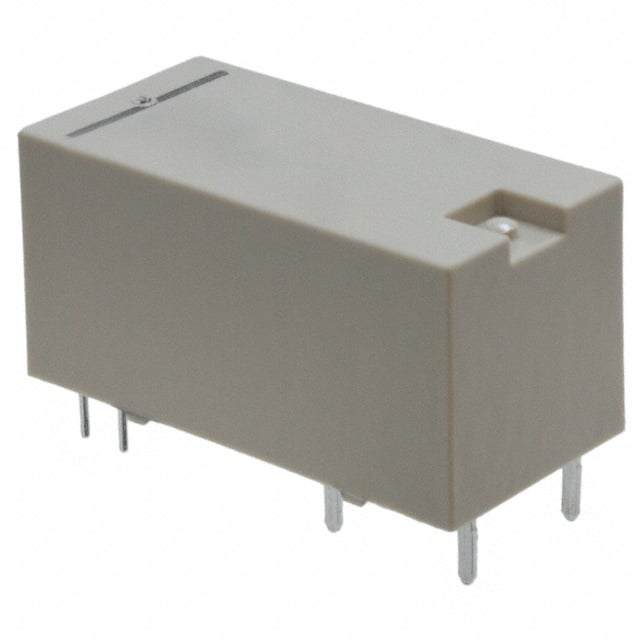

 DE1A1B-L2-12V Panasonic | 1 $11.7700 | Datasheet | Through Hole | 12VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 250VAC, 30VDC - Max | 16.7 mA | Latching, Dual Coil | - | PC Pin | - | - | 8.4 VDC | - | 10 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | 1,246 Cart + RFQ |

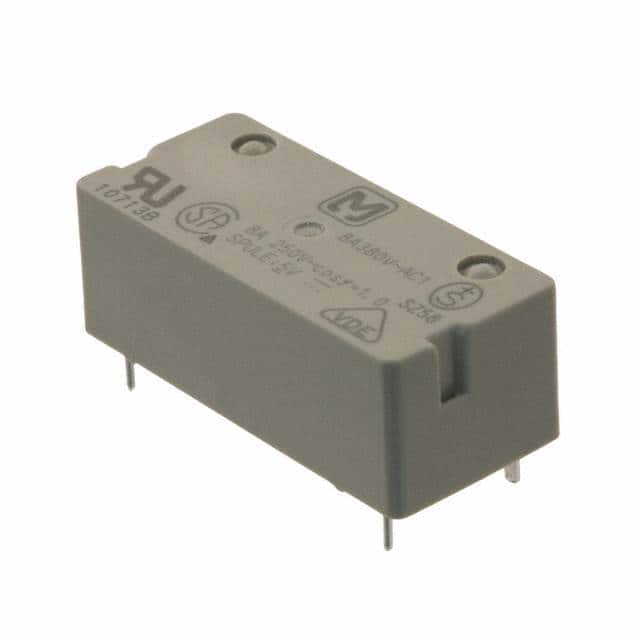

 ST1-DC5V-F Panasonic | 1 $12.2000 | Datasheet | Through Hole | 5VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 250VAC - Max | 47.6 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4 VDC | 0.5 VDC | 15 ms | 10 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | 4,312 Cart + RFQ |
ST2-DC5V-F Panasonic | 1 $12.2000 | Datasheet | Through Hole | 5VDC | DPST-NO (2 Form A) | 8 A | 380VAC, 250VDC - Max | 47.6 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4 VDC | 0.5 VDC | 15 ms | 10 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | 4,330 Cart + RFQ |

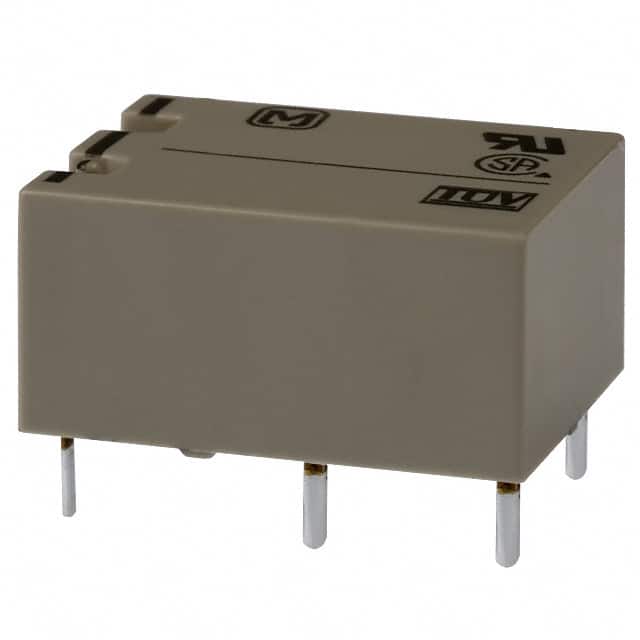

 DK2A-12V Panasonic | 1 $12.2800 | Datasheet | Through Hole | 12VDC | DPST-NO (2 Form A) | 8 A | 250VAC, 125VDC - Max | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.2 VDC | 10 ms | 8 ms | -40°C ~ 65°C | Silver Nickel (AgNi) | General Purpose | 7,717 Cart + RFQ |

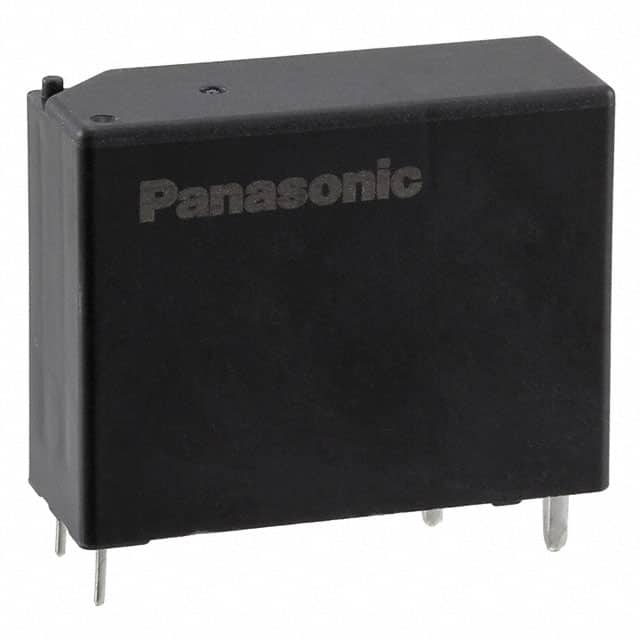

 ADJH23024 Panasonic | 1 $13.8300 | Datasheet | Through Hole | 24VDC | SPST-NO (1 Form A) | 50 A | 480VAC - Max | 83.3 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | Class F | 18 VDC | - | 20 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | 6,594 Cart + RFQ |
ADJH23012 Panasonic | 1 $13.8300 | Datasheet | Through Hole | 12VDC | SPST-NO (1 Form A) | 50 A | 480VAC - Max | 167 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | Class F | 9 VDC | - | 20 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | 8,820 Cart + RFQ |
 ST1-DC24V-F Panasonic | 1 $12.8900 | Datasheet | Through Hole | 24VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 250VAC - Max | 10 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 19.2 VDC | 2.4 VDC | 15 ms | 10 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | 5,320 Cart + RFQ |
 ST2-DC24V-F Panasonic | 1 $12.6900 | Datasheet | Through Hole | 24VDC | DPST-NO (2 Form A) | 8 A | 380VAC, 250VDC - Max | 10 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 19.2 VDC | 2.4 VDC | 15 ms | 10 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | 8,139 Cart + RFQ |
 ST2-DC12V-F Panasonic | 1 $13.3100 | Datasheet | Through Hole | 12VDC | DPST-NO (2 Form A) | 8 A | 380VAC, 250VDC - Max | 20 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9.6 VDC | 1.2 VDC | 15 ms | 10 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | 7,080 Cart + RFQ |
 ST1-DC12V-F Panasonic | 1 $13.4600 | Datasheet | Through Hole | 12VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 250VAC - Max | 20 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9.6 VDC | 1.2 VDC | 15 ms | 10 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | 6,632 Cart + RFQ |
 HE2AN-DC24V Panasonic | 1 $16.7300 | Datasheet | Chassis Mount | 24VDC | DPST-NO (2 Form A) | 25 A | 277VAC, 30VDC - Max | 80 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 16.8 VDC | 2.4 VDC | 30 ms | 10 ms | -50°C ~ 55°C | Silver Tin Oxide (AgSnO) | General Purpose | 4,819 Cart + RFQ |

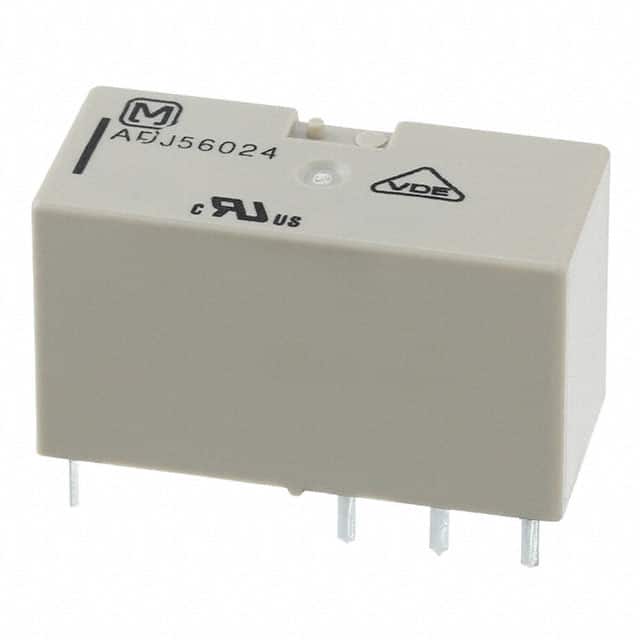

 ADJ56024 Panasonic | 1 $19.0500 | Datasheet | Through Hole | 24VDC | DPDT (2 Form C) | 10 A | 250VAC - Max | 10.4 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO), Gold (Au) | General Purpose | 8,907 Cart + RFQ |
