Automotive Relays
Automotive electromechanical relays are a specialized class designed to operate in temperature extremes, high vibration locations, and have gas and chemical ingress protection. Features may include built-in diodes or resistors, hermetic seals, flux protection or added dust and water ingress protection. Coil types are single or double latching or non latching DPST, SPDT, and SPST contact forms.
Product List
Total Components: 27
| Product | Pricing | Datasheet | Coil Type | Coil Current | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Type | Termination Style | Operating Temperature | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 A161CS12VDC.64 CIT Relay and Switch | 1 $1.3400 | Datasheet | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) | 25 A | 20VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 105°C | 9,840 Cart + RFQ |
 A2F1CSQ12VDC1.6 CIT Relay and Switch | 1 $2.5200 | Datasheet | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C | 2,923 Cart + RFQ |
 A2F1CSQ12VDC1.6R CIT Relay and Switch | 1 $2.5700 | Datasheet | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C | 2,095 Cart + RFQ |
 A2M1CSQ12VDC1.6 CIT Relay and Switch | 1 $2.6000 | Datasheet | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C | 9,706 Cart + RFQ |
 A171AS12VDC.96R CIT Relay and Switch | 1 $2.7000 | Datasheet | Non Latching | 80 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 9 VDC | 1.2 VDC | 10 ms | 5 ms | Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C | 5,246 Cart + RFQ |
 A41CS24VDC CIT Relay and Switch | 1 $1.7400 | Datasheet | Non Latching | 41.7 mA | 24VDC | SPDT (1 Form C) | 20 A | 380VAC, 75VDC - Max | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C | 9,784 Cart + RFQ |

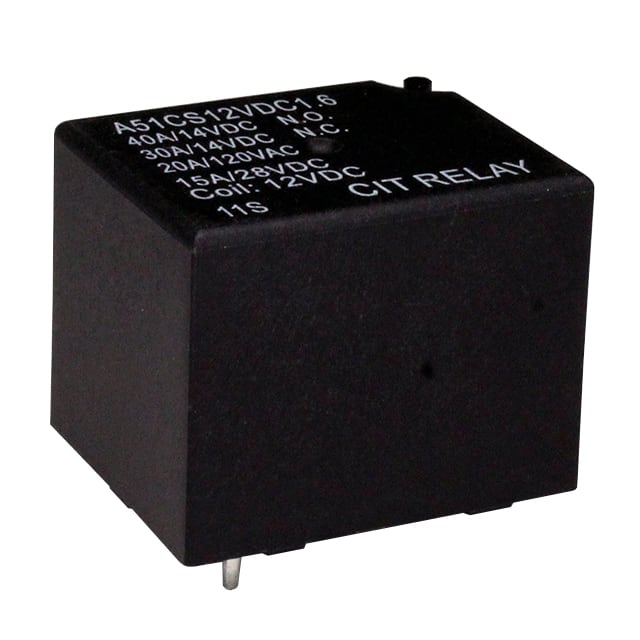

 A51CS12VDC1.6 CIT Relay and Switch | 1 $2.0700 | Datasheet | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 380VAC, 75VDC - Max | 8.4 VDC | 1.2 VDC | 5 ms | 3 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C | 6,068 Cart + RFQ |

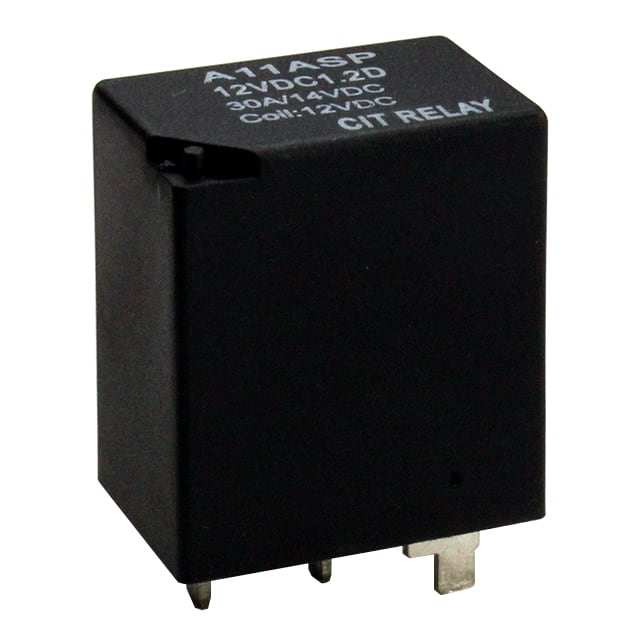

 A11ASP12VDC1.2D CIT Relay and Switch | 1 $2.2400 | Datasheet | Non Latching | 100 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 7 ms | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C | 8,992 Cart + RFQ |

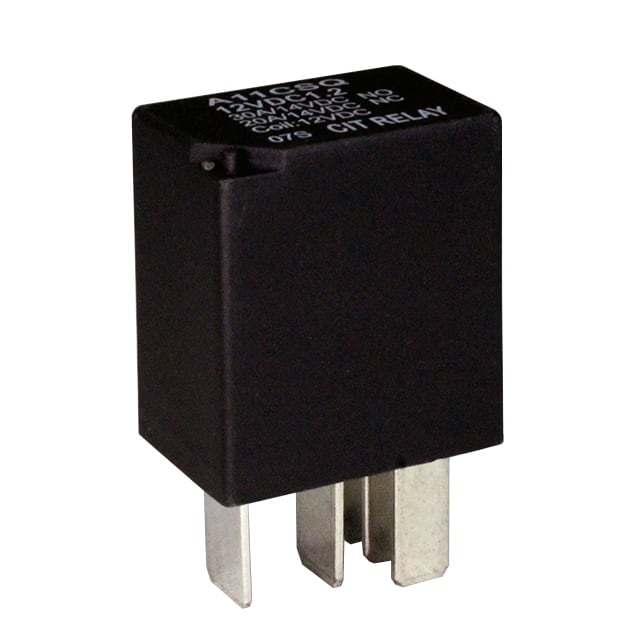

 A11CSQ12VDC1.2 CIT Relay and Switch | 1 $2.4900 | Datasheet | Non Latching | 100 mA | 12VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 7 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.187" (4.7mm) | -40°C ~ 85°C | 7,753 Cart + RFQ |

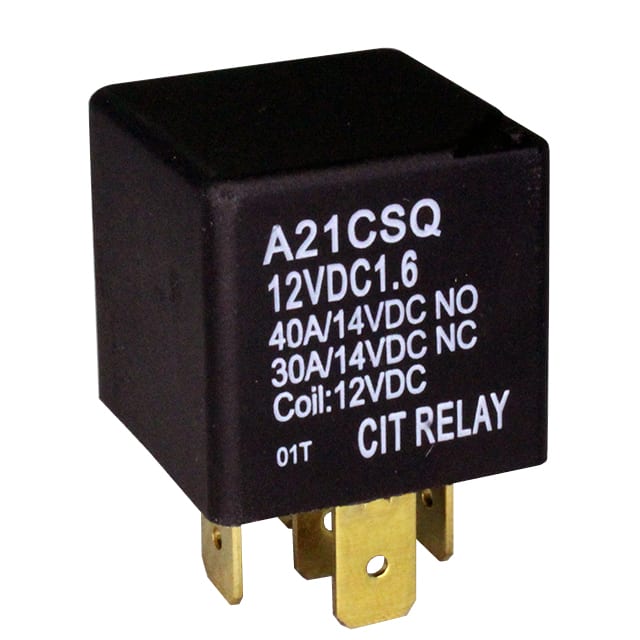

 A21CSQ12VDC1.6 CIT Relay and Switch | 1 $2.5200 | Datasheet | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C | 1,792 Cart + RFQ |

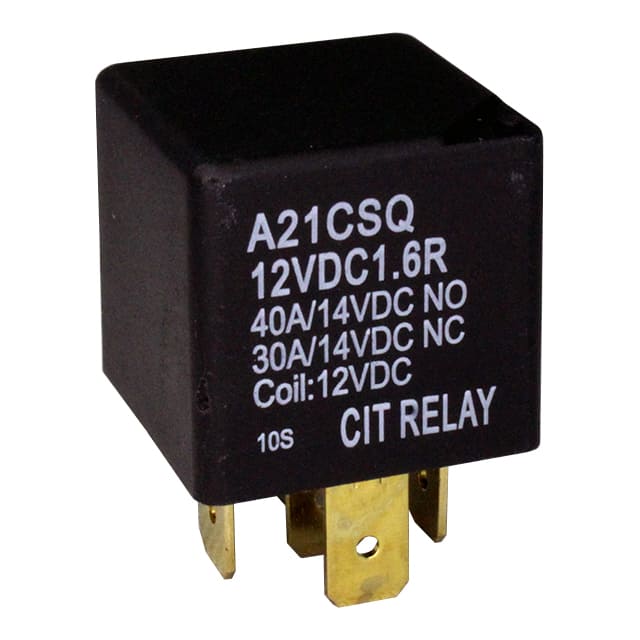

 A21CSQ12VDC1.6R CIT Relay and Switch | 1 $2.5700 | Datasheet | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C | 2,699 Cart + RFQ |

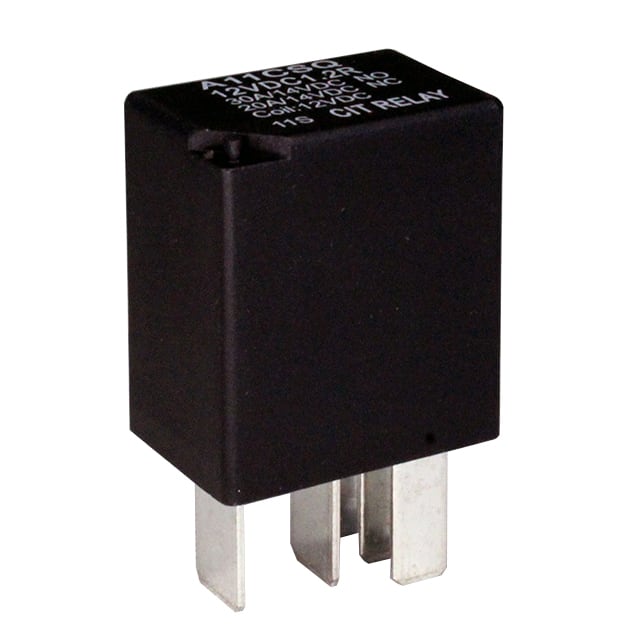

 A11CSQ12VDC1.2R CIT Relay and Switch | 1 $2.5700 | Datasheet | Non Latching | 100 mA | 12VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 7 ms | Resistor, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.187" (4.7mm) | -40°C ~ 85°C | 7,120 Cart + RFQ |

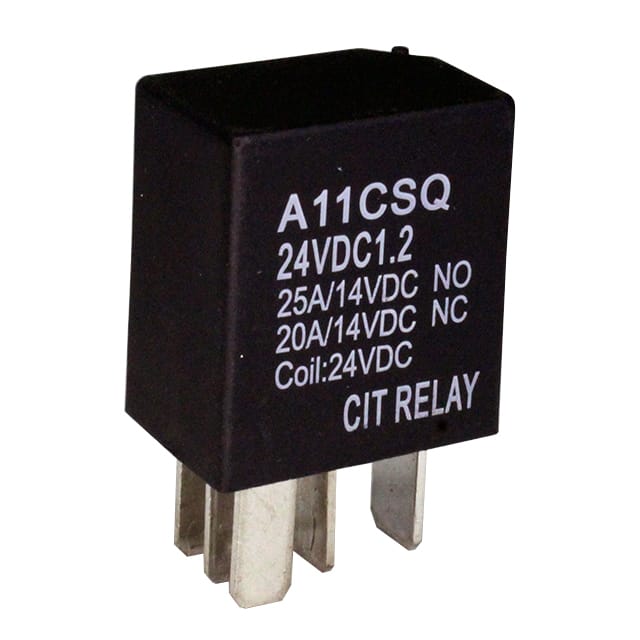

 A11CSQ24VDC1.2 CIT Relay and Switch | 1 $2.6000 | Datasheet | Non Latching | 50 mA | 24VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 7 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.187" (4.7mm) | -40°C ~ 85°C | 8,505 Cart + RFQ |

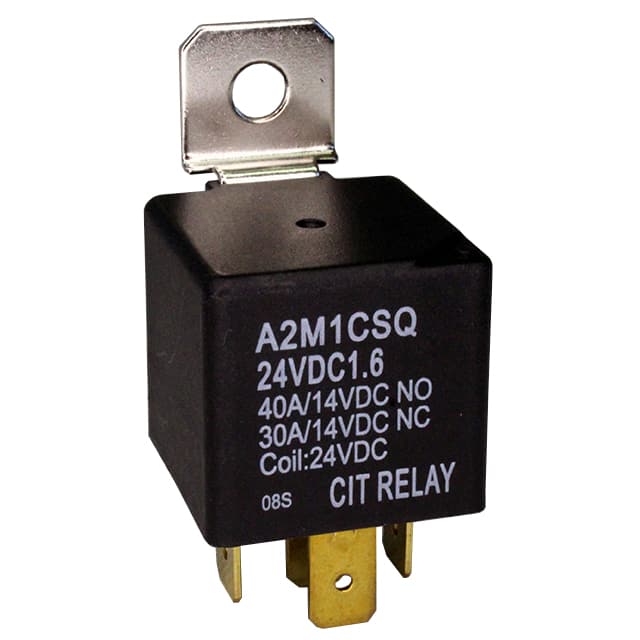

 A2M1CSQ24VDC1.6 CIT Relay and Switch | 1 $2.6700 | Datasheet | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C | 2,164 Cart + RFQ |

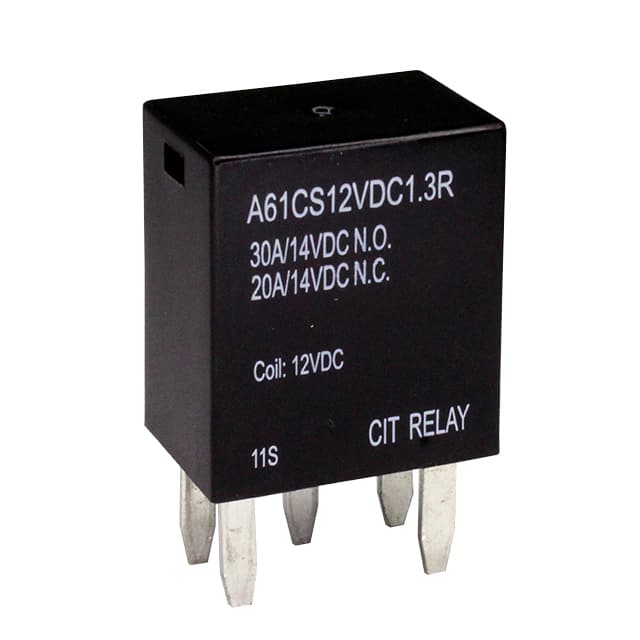

 A61CS12VDC1.3R CIT Relay and Switch | 1 $3.0000 | Datasheet | Non Latching | 110.1 mA | 12VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 5 ms | 2 ms | Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C | 2,305 Cart + RFQ |

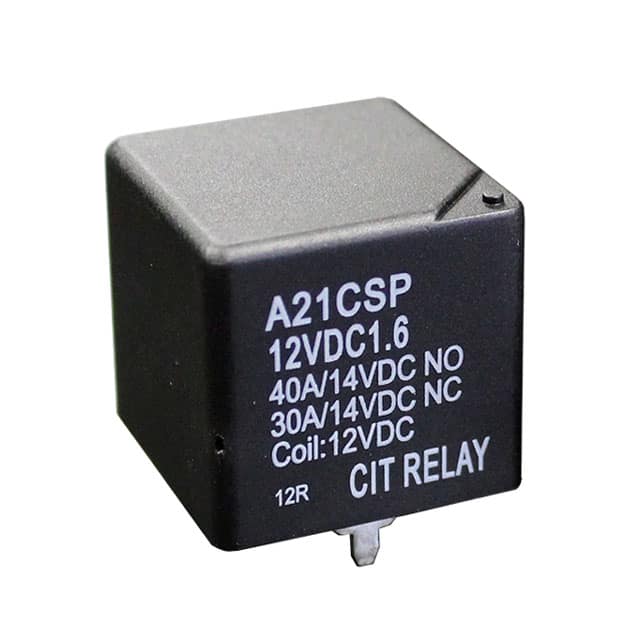

 A21CSP12VDC1.6 CIT Relay and Switch | 1 $2.5200 | Datasheet | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C | 4,033 Cart + RFQ |

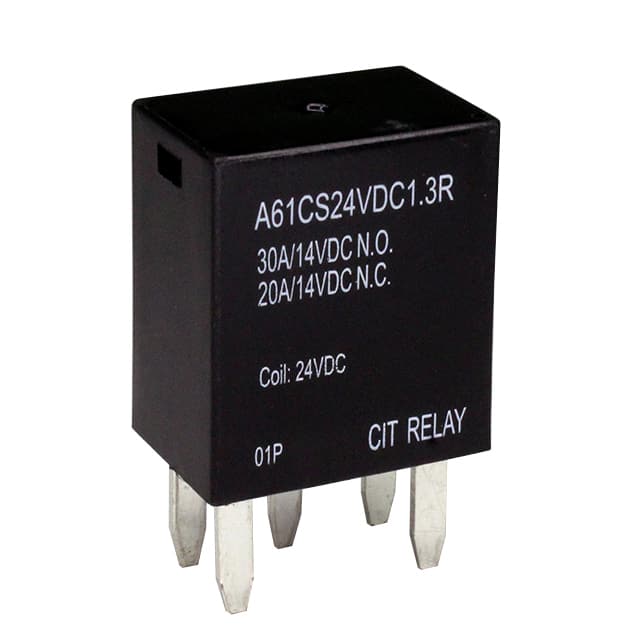

 A61CS24VDC1.3R CIT Relay and Switch | 1 $3.1200 | Datasheet | Non Latching | 55 mA | 24VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 5 ms | 2 ms | Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C | 3,253 Cart + RFQ |
 A21CSP12VDC1.6R CIT Relay and Switch | 1 $2.5700 | Datasheet | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C | 5,065 Cart + RFQ |

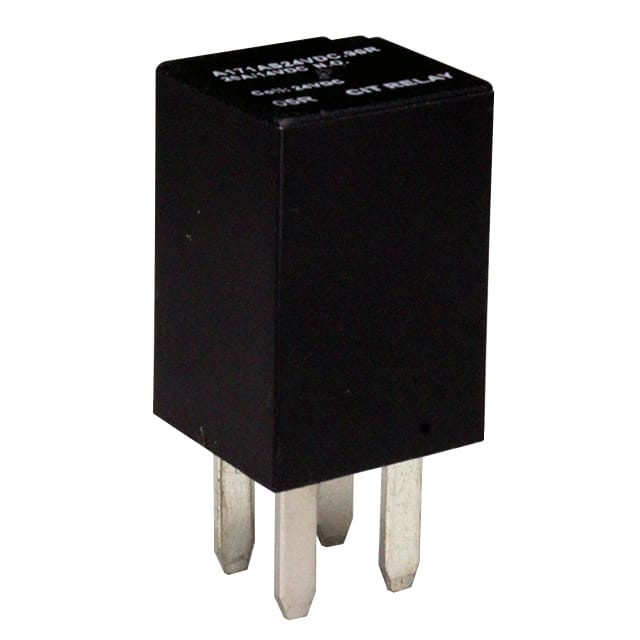

 A171AS24VDC.96R CIT Relay and Switch | 1 $2.7000 | Datasheet | Non Latching | 40 mA | 24VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 5 ms | Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C | 5,831 Cart + RFQ |

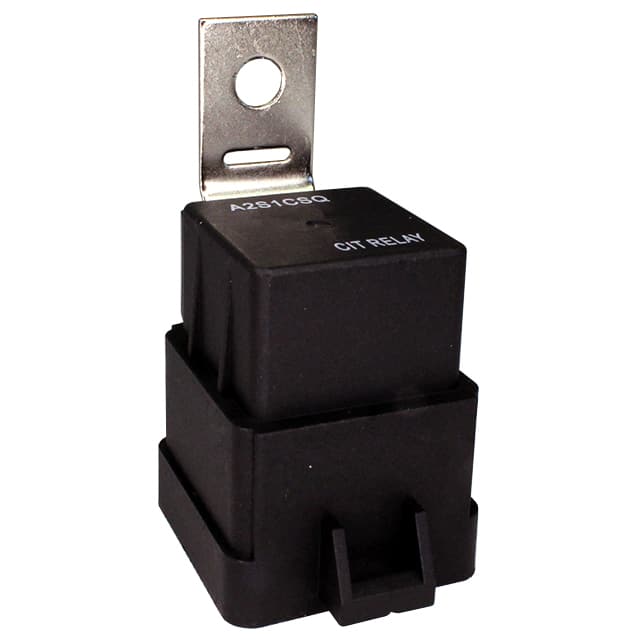

 A2S1CSQ12VDC1.6 CIT Relay and Switch | 1 $3.7300 | Datasheet | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C | 3,961 Cart + RFQ |
