RFI and EMI - Contacts, Fingerstock and Gaskets
Fingerstock and gasket contacts limit electromagnetic interference (EMI), also called radio-frequency interference (RFI) when in the radio frequency spectrum, that affect electrical circuits by electromagnetic induction, electrostatic coupling, or conduction. They are used where removable parts or doors attach to a chassis or enclosure, making them susceptible to EMI. Contacts are attached using adhesive, clips, hardware, solder, slotting or snap-in channels.
Product List
Total Components: 28
| Product | Pricing | Datasheet | Type | Shape | Width | Length | Height | Material | Plating | Plating - Thickness | Attachment Method | Operating Temperature | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 S0941-46R Harwin | 1 $0.4600 | Datasheet | Shield Clip | - | 0.043" (1.10mm) | 0.154" (3.90mm) | 0.039" (1.00mm) | Stainless Steel | Tin | 118.11µin (3.00µm) | Solder | -40°C ~ 85°C | 3,597 Cart + RFQ |

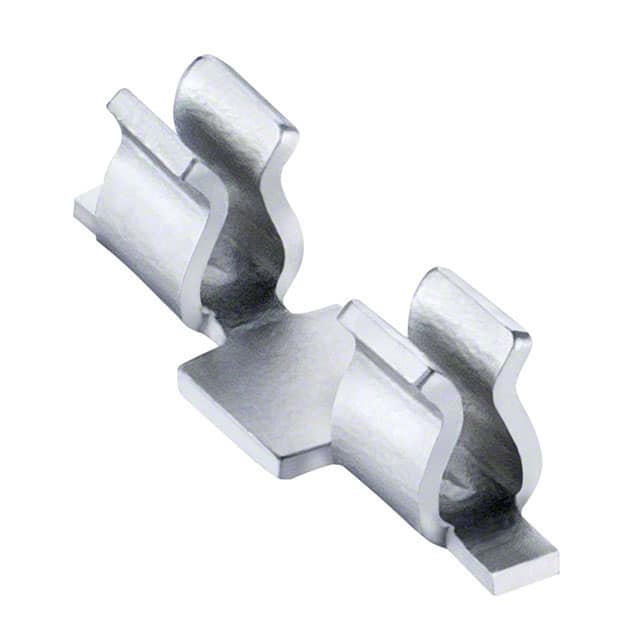

 S0951-46R Harwin | 1 $0.3900 | Datasheet | Shield Clip | - | 0.043" (1.10mm) | 0.154" (3.90mm) | 0.050" (1.28mm) | Stainless Steel | Tin | 118.11µin (3.00µm) | Solder | -40°C ~ 85°C | 7,097 Cart + RFQ |

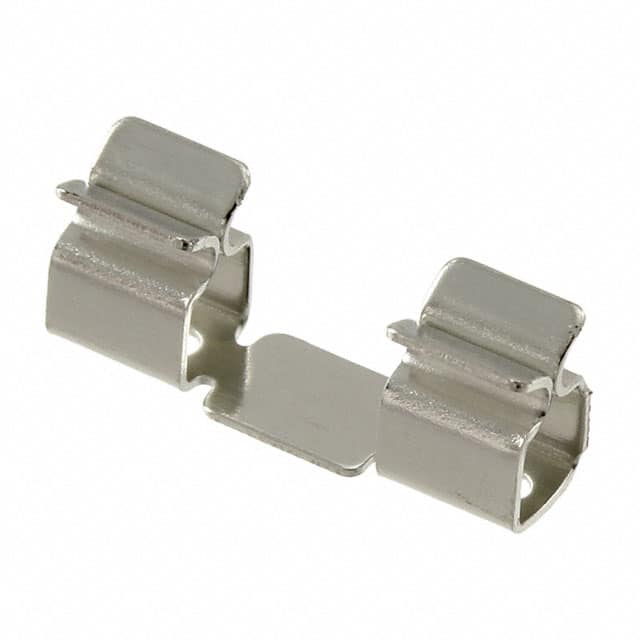

 S2711-46R Harwin | 1 $0.2700 | Datasheet | Shield Clip | - | 0.090" (2.28mm) | 0.346" (8.79mm) | 0.140" (3.55mm) | Copper Alloy | Tin | 118.11µin (3.00µm) | Solder | -40°C ~ 125°C | 5,694 Cart + RFQ |
 S0991-46R Harwin | 1 $0.5300 | Datasheet | Shield Clip | - | 0.035" (0.90mm) | 0.256" (6.50mm) | 0.054" (1.37mm) | Stainless Steel | Tin | 118.11µin (3.00µm) | Solder | -25°C ~ 150°C | 6,179 Cart + RFQ |
 S7121-42R Harwin | 1 $0.5300 | Datasheet | Shield Finger | - | 0.059" (1.50mm) | 0.106" (2.70mm) | 0.067" (1.70mm) | Copper Alloy | Gold | Flash | Solder | -55°C ~ 125°C | 7,666 Cart + RFQ |

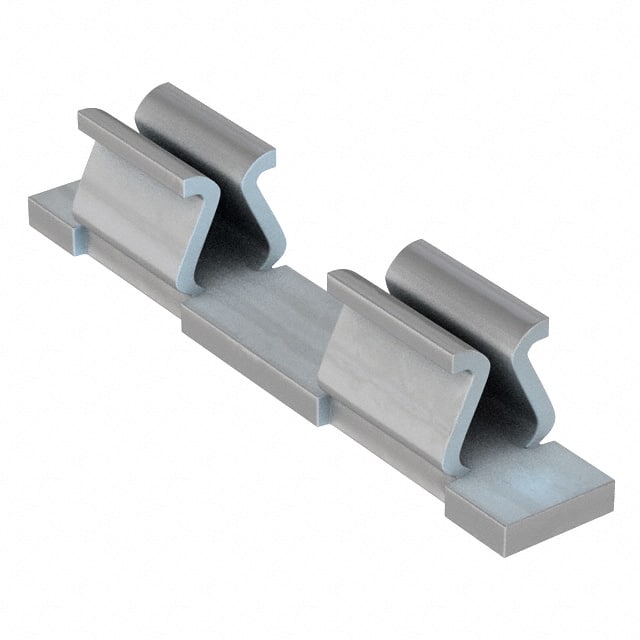

 S1001-46R Harwin | 1 $0.4900 | Datasheet | Shield Clip | - | 0.024" (0.60mm) | 0.177" (4.50mm) | 0.035" (0.90mm) | Stainless Steel | Tin | 118.11µin (3.00µm) | Solder | -25°C ~ 150°C | 8,299 Cart + RFQ |

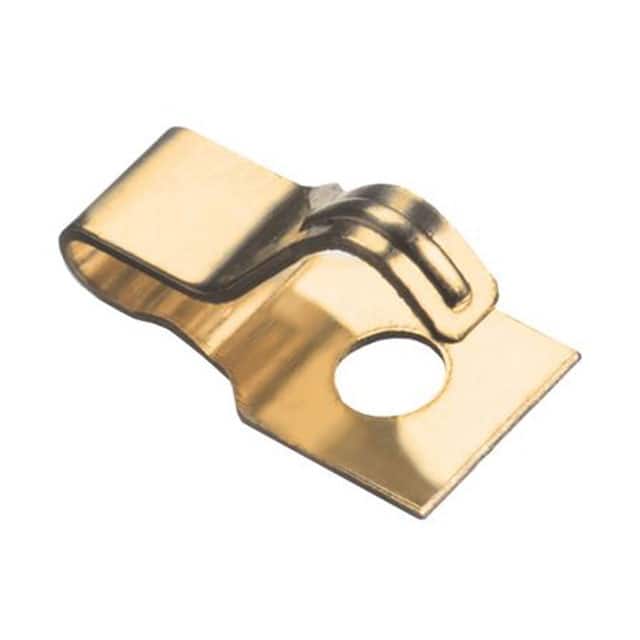

 S7141-45R Harwin | 1 $0.5500 | Datasheet | Shield Finger | - | 0.091" (2.30mm) | 0.181" (4.60mm) | 0.098" (2.50mm) | Phosphor Bronze | Gold | Flash | Solder | -20°C ~ 70°C | 5,111 Cart + RFQ |

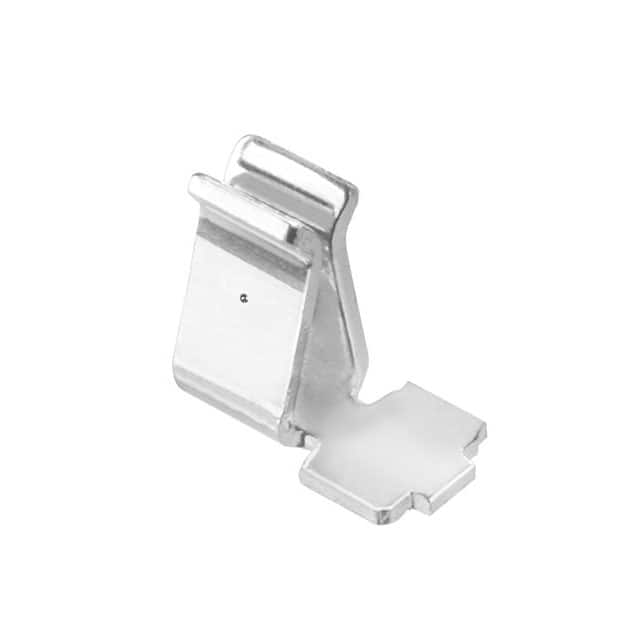

 S0911-46R Harwin | 1 $0.5100 | Datasheet | Shield Clip | - | 0.047" (1.20mm) | 0.091" (2.31mm) | 0.079" (2.00mm) | Beryllium Copper | Tin | 141.73µin (3.60µm) | Solder | -55°C ~ 105°C | 8,952 Cart + RFQ |
 S0971-46R Harwin | 1 $0.5200 | Datasheet | Shield Clip | - | 0.043" (1.10mm) | 0.233" (5.92mm) | 0.083" (2.10mm) | Stainless Steel | Tin | 118.11µin (3.00µm) | Solder | -40°C ~ 85°C | 8,792 Cart + RFQ |

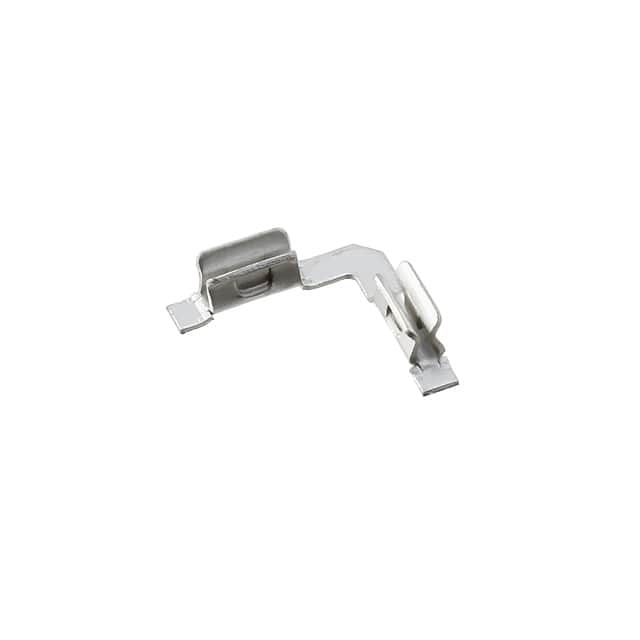

 S0981-46R Harwin | 1 $0.5500 | Datasheet | Shield Clip | - | 0.031" (0.80mm) | 0.185" (4.70mm) | 0.055" (1.40mm) | Stainless Steel | Tin | 118.11µin (3.00µm) | Solder | -25°C ~ 150°C | 9,361 Cart + RFQ |

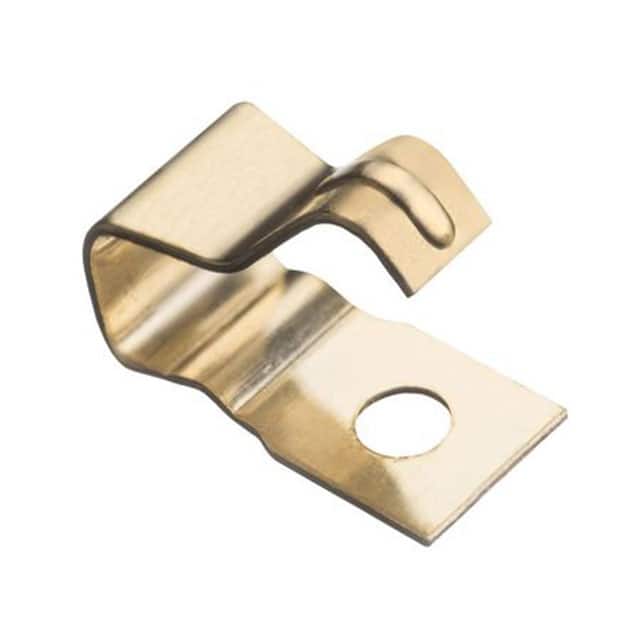

 S7171-45R Harwin | 1 $0.4700 | Datasheet | Shield Finger | - | 0.091" (2.30mm) | 0.181" (4.60mm) | 0.157" (4.00mm) | Phosphor Bronze | Gold | Flash | Solder | -20°C ~ 70°C | 3,409 Cart + RFQ |

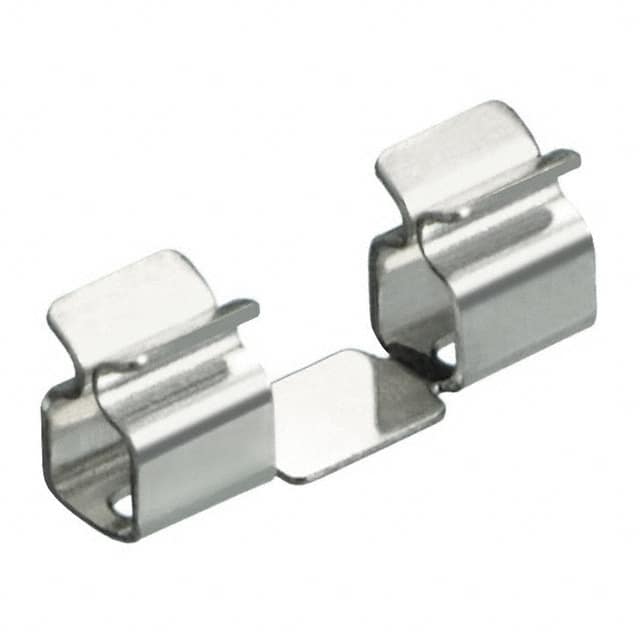

 S1711-46R Harwin | 1 $0.4800 | Datasheet | Shield Clip | - | 0.090" (2.28mm) | 0.346" (8.79mm) | 0.140" (3.55mm) | Stainless Steel | Tin | 118.11µin (3.00µm) | Solder | -40°C ~ 125°C | 5,960 Cart + RFQ |
 S1411-46R Harwin | 1 $0.5100 | Datasheet | Shield Clip | - | 0.090" (2.28mm) | 0.346" (8.79mm) | 0.144" (3.65mm) | Stainless Steel | Tin | 118.11µin (3.00µm) | Solder | -25°C ~ 150°C | 9,574 Cart + RFQ |

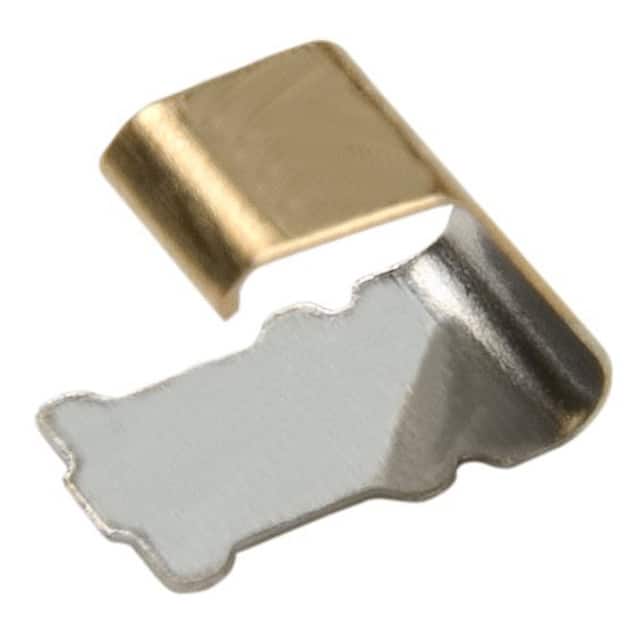

 S1791-42R Harwin | 1 $0.6400 | Datasheet | Shield Finger | - | 0.098" (2.50mm) | 0.276" (7.00mm) | 0.157" (4.00mm) | Stainless Steel | Gold | Flash | Solder | -55°C ~ 125°C | 2,150 Cart + RFQ |

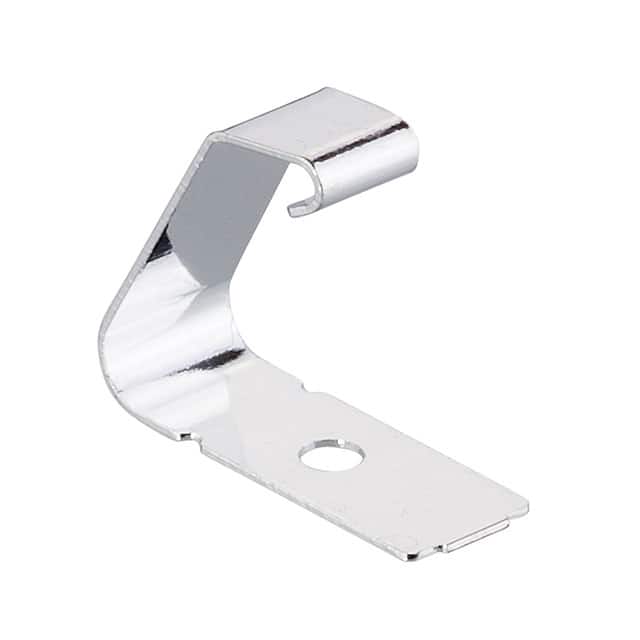

 S7061-46R Harwin | 1 $0.6000 | Datasheet | Shield Finger | - | 0.114" (2.90mm) | 0.274" (6.95mm) | 0.219" (5.57mm) | Copper Alloy | Tin | 94.49µin (2.40µm) | Solder | -55°C ~ 125°C | 6,081 Cart + RFQ |

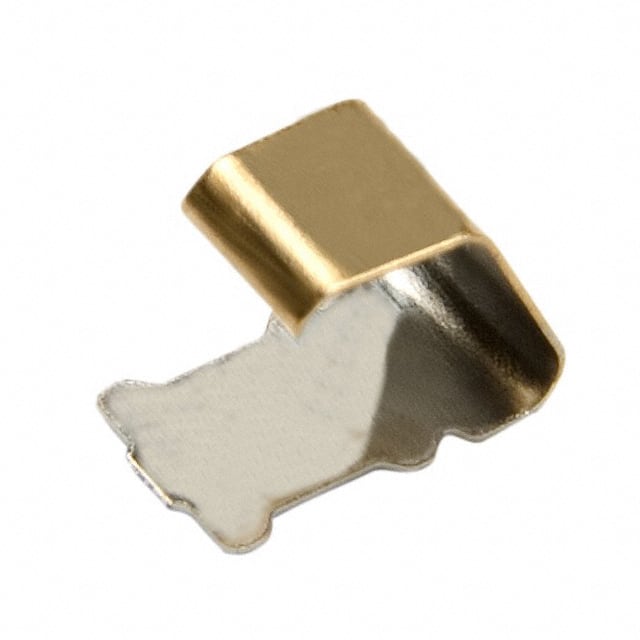

 S1761-42R Harwin | 1 $0.6600 | Datasheet | Shield Finger | - | 0.098" (2.50mm) | 0.177" (4.50mm) | 0.138" (3.50mm) | Stainless Steel | Gold | Flash | Solder | -55°C ~ 125°C | 4,956 Cart + RFQ |

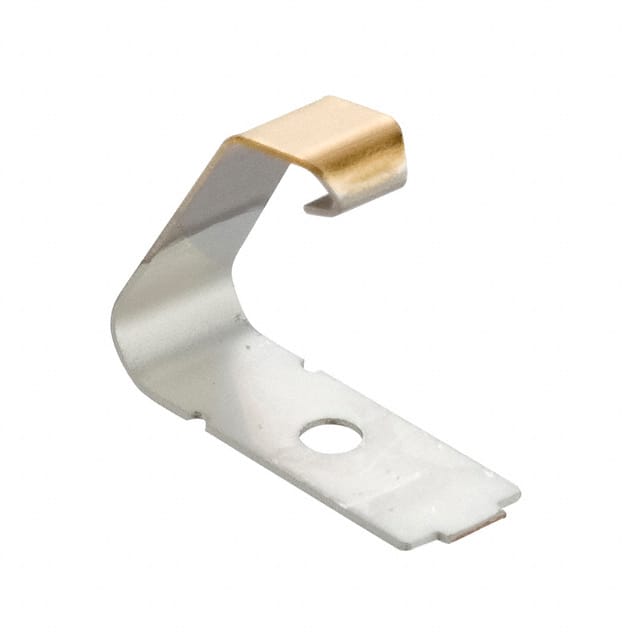

 S7061-42R Harwin | 1 $0.6500 | Datasheet | Shield Finger | - | 0.114" (2.90mm) | 0.274" (6.95mm) | 0.219" (5.57mm) | Copper Alloy | Gold | Flash | Solder | -55°C ~ 125°C | 5,537 Cart + RFQ |

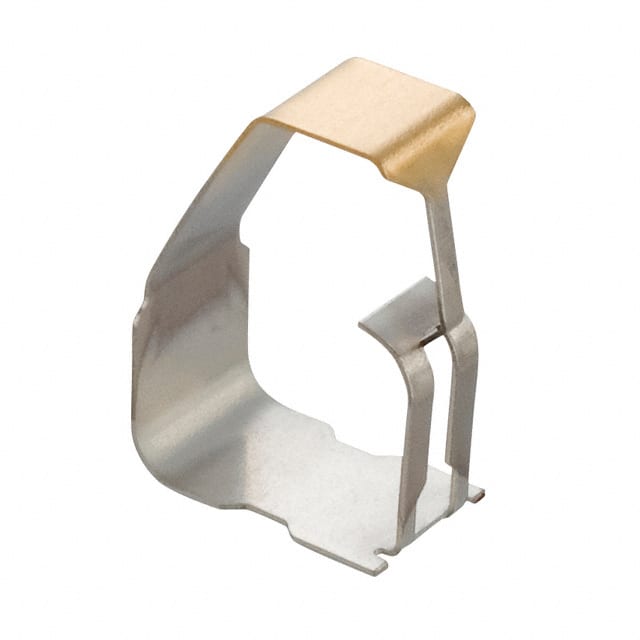

 S7051-42R Harwin | 1 $0.6500 | Datasheet | Shield Finger, Pre-Loaded | - | 0.098" (2.50mm) | 0.157" (4.00mm) | 0.236" (6.00mm) | Copper Alloy | Gold | Flash | Solder | -55°C ~ 125°C | 2,819 Cart + RFQ |

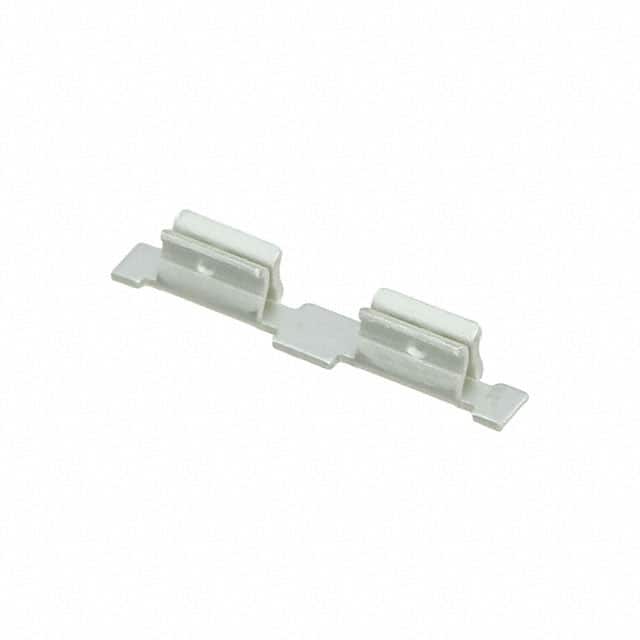

 S0961-46R Harwin | 1 $0.4200 | Datasheet | Shield Clip | - | 0.039" (1.00mm) | 0.256" (6.50mm) | 0.050" (1.28mm) | Stainless Steel | Tin | 118.11µin (3.00µm) | Solder | -40°C ~ 85°C | 8,568 Cart + RFQ |
 S7231-45R Harwin | 1 $0.4400 | Datasheet | Shield Finger, Pre-Loaded | - | 0.039" (1.00mm) | 0.098" (2.50mm) | 0.050" (1.28mm) | Copper Alloy | Gold | Flash | Solder | -40°C ~ 85°C | 2,473 Cart + RFQ |
