RF Transceiver ICs
RF Transceiver ICs are semiconductor devices that consist of a transmitter and a receiver in a single package. Transceivers are designed to function proficiently within an RF family or standard such as AISG, Bluetooth, ISM, VHF, Wi-Fi, cellular, RADAR, 802.15.4 and Z-Wave. They are further classified by the type of modulation and the specific protocol versions. Some ICs include a built-in microcontroller.
Product List
Total Components: 10
| Product | Pricing | Datasheet | Type | RF Family/Standard | Protocol | Modulation | Frequency | Data Rate (Max) | Power - Output | Sensitivity | Memory Size | Serial Interfaces | GPIO | Voltage - Supply | Current - Receiving | Current - Transmitting | Operating Temperature | Mounting Type | Package / Case | Supplier Device Package | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ESP8285H16 Espressif Systems | 1 $1.2000 | Datasheet | TxRx + MCU | WiFi | 802.11b/g/n | - | 2.4GHz | 54Mbps | 20dBm | -91dBm | - | I²C, I²S, SPI, UART | 8 | 2.7V ~ 3.6V | 50mA ~ 56mA | 120mA ~ 170mA | - | Surface Mount | 32-VFQFN Exposed Pad | 32-QFN (5x5) | 5,088 Cart + RFQ |
 ESP8266EX Espressif Systems | 1 $1.6000 | Datasheet | TxRx + MCU | WiFi | 802.11b/g/n | - | 2.4GHz | 54Mbps | 20dBm | -91dBm | - | I²C, I²S, SPI, UART | 8 | 2.5V ~ 3.6V | 50mA ~ 56mA | 120mA ~ 170mA | - | Surface Mount | 32-VFQFN Exposed Pad | 32-QFN (5x5) | 3,922 Cart + RFQ |
 ESP32-D0WD-V3 Espressif Systems | 1 $1.8441 100 $1.4753 500 $1.2294 | Datasheet | TxRx + MCU | Bluetooth, WiFi | 802.11b/g/n, Bluetooth 4.2 | 8DPSK, DSSS, DQPSK, OFDM | 2.412GHz ~ 2.484GHz | 150Mbps | 20.5dBm | -97dBm | 448kB ROM, 520kB SRAM | ADC, I²C, I²S, SDIO, SPI, PWM, UART | 34 | 2.3V ~ 3.6V | 95mA ~ 100mA | 130mA ~ 240mA | -40°C ~ 125°C | Surface Mount | 48-VFQFN Exposed Pad | 48-QFN (5x5) | 350 Cart + RFQ |

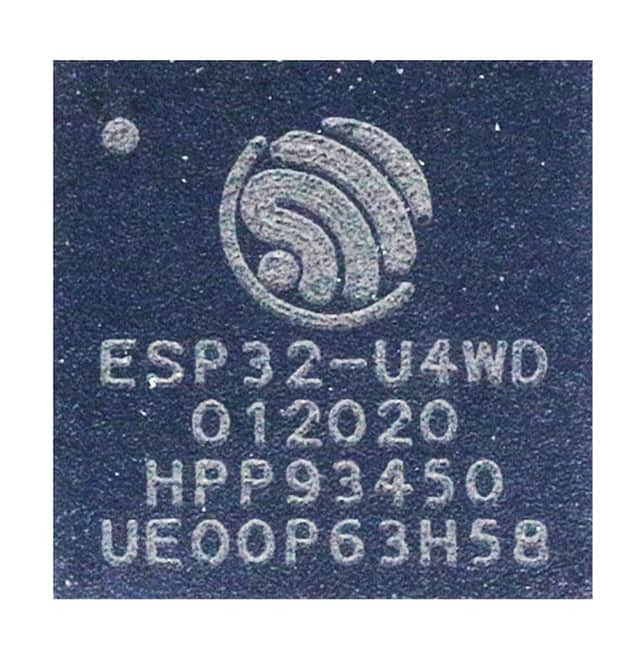

 ESP32-U4WDH Espressif Systems | 1 $8.8460 | Datasheet | TxRx + MCU | Bluetooth, WiFi | - | - | 2.4GHz | - | 19.5dBm | - | 4MB Flash, 448kB ROM, 520kB SRAM | I²C, I²S, SPI, UART | - | - | - | - | - | Surface Mount | 48-QFN | 48-QFN (5x5) | 100,000 Cart + RFQ |
ESP32-S3R2 Espressif Systems | 1 $8.8460 | Datasheet | TxRx + MCU | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v5.0 | - | 2.412GHz ~ 2.484GHz | 150Mbps | 21dBm | -98.4dBm | 2MB PSRAM | I²C, I²S, SPI, UART, USB | 30 | 3.3V | - | - | -40°C ~ 85°C | Surface Mount | 56-VFQFN Exposed Pad | 56-QFN (7x7) | 100,000 Cart + RFQ |
ESP32-S3R8 Espressif Systems | 1 $8.8460 | Datasheet | TxRx + MCU | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v5.0 | - | 2.412GHz ~ 2.484GHz | 150Mbps | 21dBm | -98.4dBm | 8MB PSRAM | I²C, I²S, SPI, UART, USB | 30 | 3.3V | - | - | -40°C ~ 85°C | Surface Mount | 56-VFQFN Exposed Pad | 56-QFN (7x7) | 100,000 Cart + RFQ |

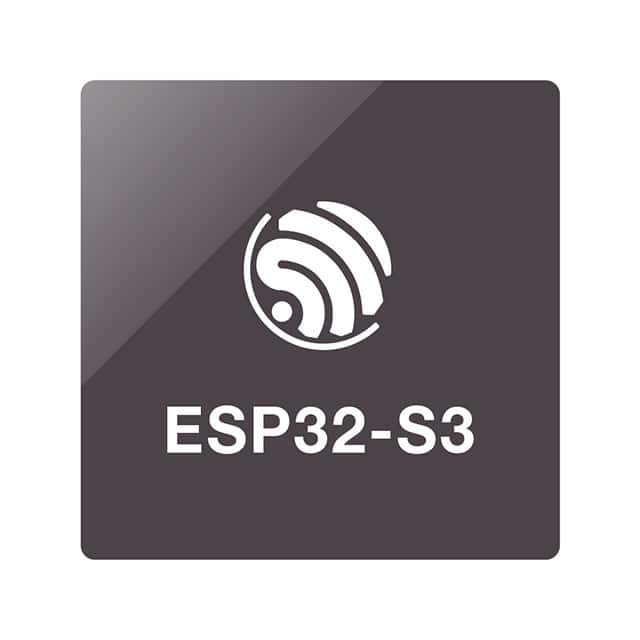

 ESP32-S3 Espressif Systems | 1 $8.8460 | Datasheet | TxRx + MCU | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v5.0 | - | 2.412GHz ~ 2.484GHz | 150Mbps | 21dBm | -98.4dBm | - | I²C, I²S, SPI, UART, USB | 30 | 3.3V | - | - | -40°C ~ 105°C | Surface Mount | 56-VFQFN Exposed Pad | 56-QFN (7x7) | 100,000 Cart + RFQ |
ESP32-S3R8V Espressif Systems | 1 $8.8460 | Datasheet | TxRx + MCU | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v5.0 | - | 2.412GHz ~ 2.484GHz | 150Mbps | 21dBm | -98.4dBm | 8MB PSRAM | I²C, I²S, SPI, UART, USB | 30 | 3.3V | - | - | -40°C ~ 85°C | Surface Mount | 56-VFQFN Exposed Pad | 56-QFN (7x7) | 100,000 Cart + RFQ |
ESP32-D0WD Espressif Systems | 1 $8.8460 | Datasheet | TxRx + MCU | Bluetooth, WiFi | 802.11b/g/n, Bluetooth 4.2 | - | 2.4GHz | 150Mbps | 20dBm | -98dBm | 448kB ROM, 520kB SRAM | I²C, I²S, SPI, UART | 34 | 2.3V ~ 3.6V | 100mA | 240mA | -40°C ~ 125°C | Surface Mount | 48-VFQFN Exposed Pad | 48-QFN (5x5) | 100,000 Cart + RFQ |
ESP32-D0WDQ6 Espressif Systems | 1 $8.8460 | Datasheet | TxRx + MCU | Bluetooth, WiFi | 802.11b/g/n, Bluetooth 4.2 | - | 2.4GHz | 150Mbps | 20dBm | -98dBm | 448kB ROM, 520kB SRAM | I²C, I²S, SPI, UART | 34 | 2.3V ~ 3.6V | 100mA | 240mA | -40°C ~ 125°C | Surface Mount | 48-VFQFN Exposed Pad | 48-QFN (6x6) | 100,000 Cart + RFQ |
