RF Switches
Radio frequency switch products are devices used for routing RF, IF, or microwave signals between multiple available signal paths. Example applications include antenna selection in multi-antenna (diversity) receivers, selection of a transmit-receive path in multi-mode systems, or switching an antenna between a transmit and receive signal chain.
Product List
Total Components: 25
| Product | Pricing | Datasheet | RF Type | Topology | Circuit | Frequency Range | Isolation | Insertion Loss | Test Frequency | P1dB | IIP3 | Features | Impedance | Voltage - Supply | Operating Temperature | Package / Case | Supplier Device Package | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HMC221BETR ADI (Analog Devices, Inc.) | 1 $3.5100 | Datasheet | General Purpose | - | SPDT | 10kHz ~ 3GHz | 18dB | 0.8dB | 3GHz | 29dBm | 54dBm | - | 50Ohm | 5V | -40°C ~ 85°C | SOT-23-6 | SOT-23-6 | 2,635 Cart + RFQ |
 ADG918BCPZ-REEL7 ADI (Analog Devices, Inc.) | 1 $4.1300 | Datasheet | General Purpose | Absorptive | SPDT | 0Hz ~ 2GHz | 43dB | 0.8dB | 1GHz | 17dBm | 36dBm | - | - | 1.65V ~ 2.75V | -40°C ~ 85°C | 8-WFDFN Exposed Pad, CSP | 8-LFCSP (3x3) | 8,577 Cart + RFQ |
HMC545AETR ADI (Analog Devices, Inc.) | 1 $4.0500 | Datasheet | WiMax, WLAN | - | SPDT | 0Hz ~ 3GHz | 22dB | 0.4dB | 3GHz | 33dBm | 54dBm | - | 50Ohm | - | -40°C ~ 85°C | SOT-23-6 | SOT-23-6 | 8,170 Cart + RFQ |
 HMC435AMS8GETR ADI (Analog Devices, Inc.) | 1 $1.0800 100 $0.8640 500 $0.7200 | Datasheet | General Purpose | - | SPDT | 0Hz ~ 4GHz | 48dB | 0.8dB | 2.5GHz | 30dBm | 53dBm | - | 50Ohm | 5V | -40°C ~ 85°C | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | 8-MSOP-EP | 1,000 Cart + RFQ |
 HMC194AMS8ETR ADI (Analog Devices, Inc.) | 1 $6.0200 | Datasheet | General Purpose | - | SPDT | 0Hz ~ 3GHz | 38dB | 0.5dB | 2.5GHz | 29dBm | 53dBm | - | 50Ohm | 3V ~ 7V | -40°C ~ 85°C | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-MSOP | 9,691 Cart + RFQ |
HMC595AETR ADI (Analog Devices, Inc.) | 1 $7.0200 | Datasheet | WiMax, WLAN | - | SPDT | 0Hz ~ 3GHz | 18dB | 0.5dB | 3GHz | 39dBm | 63dBm | - | 50Ohm | 5V | -40°C ~ 85°C | SOT-23-6 | SOT-23-6 | 1,948 Cart + RFQ |
HMC574AMS8ETR ADI (Analog Devices, Inc.) | 1 $7.3700 | Datasheet | WiMax, WLAN | Reflective | SPDT | 0Hz ~ 3GHz | 20dB | 0.5dB | 3GHz | 39dBm | 63dBm | - | 50Ohm | 3V ~ 8V | -40°C ~ 85°C | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-MSOP | 1,383 Cart + RFQ |
HMC545AE ADI (Analog Devices, Inc.) | 1 $4.0500 | Datasheet | WiMax, WLAN | - | SPDT | 0Hz ~ 3GHz | 22dB | 0.4dB | 3GHz | 33dBm | 54dBm | - | 50Ohm | - | -40°C ~ 85°C | SOT-23-6 | SOT-23-6 | 4,203 Cart + RFQ |

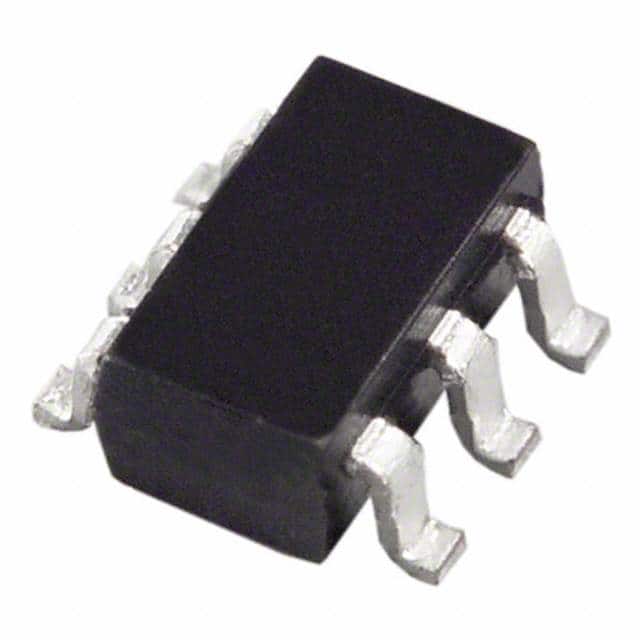

 HMC550AETR ADI (Analog Devices, Inc.) | 1 $7.6400 | Datasheet | WiMax, WLAN | Reflective | SPST | 0Hz ~ 6GHz | 12dB | 0.7dB | 6GHz | - | 52dBm | - | 50Ohm | 5V | -40°C ~ 85°C | SOT-23-6 | SOT-23-6 | 1,805 Cart + RFQ |
HMC349AMS8GETR ADI (Analog Devices, Inc.) | 1 $6.9300 100 $5.5440 500 $4.6200 | Datasheet | General Purpose | - | SPDT | 0Hz ~ 4GHz | 50dB | 1.2dB | 3GHz | 34dBm | 53dBm | - | 50Ohm | 5V | -40°C ~ 85°C | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | 8-MSOP-EP | 40 Cart + RFQ |
 HMC536LP2ETR ADI (Analog Devices, Inc.) | 1 $8.0700 | Datasheet | Cellular | - | SPDT | 0Hz ~ 6GHz | 29dB | 1dB | 6GHz | 33dBm | 52dBm | - | 50Ohm | 5V | -40°C ~ 85°C | 6-TDFN Exposed Pad | 6-DFN (2x2) | 6,673 Cart + RFQ |
HMC284AMS8GE ADI (Analog Devices, Inc.) | 1 $2.0571 100 $1.6457 500 $1.3714 | Datasheet | Cellular, ISM, PCS | Absorptive | SPDT | 0Hz ~ 3.5GHz | 40dB | 0.7dB | 3.5GHz | 29dBm | 50dBm (min) | - | 50Ohm | - | -40°C ~ 85°C | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | 8-MSOPG | 250 Cart + RFQ |

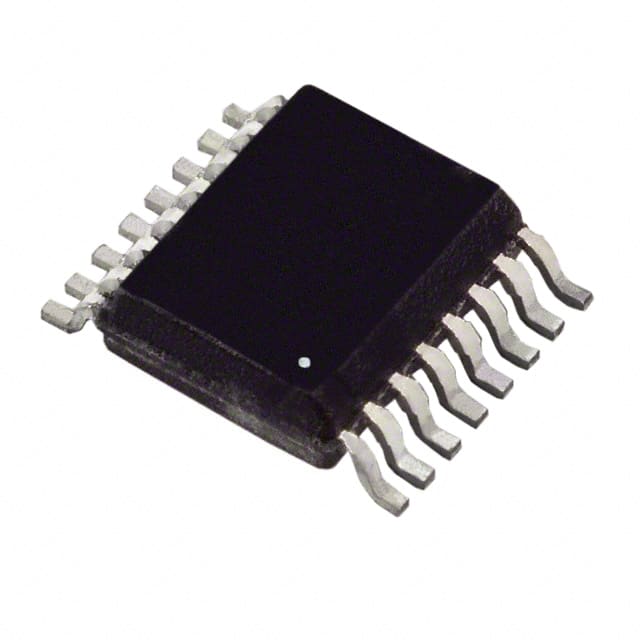

 HMC245AQS16ETR ADI (Analog Devices, Inc.) | 1 $9.5800 | Datasheet | CATV | Absorptive | SP3T | 0Hz ~ 3.5GHz | 36dB | 0.8dB | 2.5GHz | 29dBm | 48dBm | - | 50Ohm | 5V | -40°C ~ 85°C | 16-SSOP (0.154", 3.90mm Width) | 16-QSOP | 8,394 Cart + RFQ |
HMC8038LP4CETR ADI (Analog Devices, Inc.) | 1 $0.9555 100 $0.7644 500 $0.6370 | Datasheet | Cellular | Absorptive | SPDT | 100MHz ~ 6GHz | 60dB | 0.8dB | 100MHz, 6GHz | 36dBm | 60dBm | - | 50Ohm | 3.3V ~ 5V | -40°C ~ 105°C | 16-VQFN Exposed Pad, CSP | 16-LFCSP (4x4) | 1,796 Cart + RFQ |

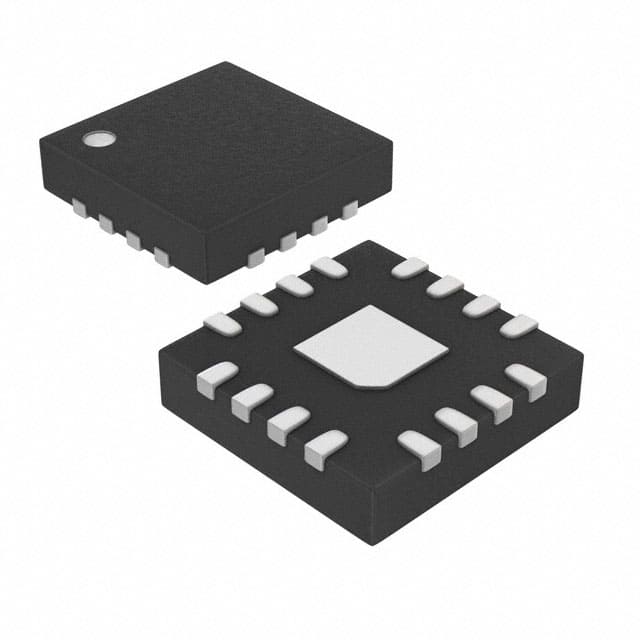

 HMC849ALP4CETR ADI (Analog Devices, Inc.) | 1 $10.0700 | Datasheet | General Purpose | - | SPDT | 0Hz ~ 6GHz | 56dB | 1dB | 4GHz | 33dBm | 52dBm | - | 50Ohm | 3V ~ 5V | -40°C ~ 85°C | 16-VQFN Exposed Pad | 16-QFN (4x4) | 1,534 Cart + RFQ |
 HMC241ALP3ETR ADI (Analog Devices, Inc.) | 1 $18.4616 | Datasheet | WiMax, WLAN | Absorptive | SP4T | 0Hz ~ 4GHz | 32dB | 1.2dB | 4GHz | - | 47dBm | - | 50Ohm | 5V | -40°C ~ 85°C | 16-VFQFN Exposed Pad | 16-QFN (3x3) | 100,000 Cart + RFQ |
HMC194AMS8E ADI (Analog Devices, Inc.) | 1 $2.1738 100 $1.7390 500 $1.4492 | Datasheet | General Purpose | - | SPDT | 0Hz ~ 3GHz | 38dB | 0.5dB | 2.5GHz | 29dBm | 53dBm | - | 50Ohm | 3V ~ 7V | -40°C ~ 85°C | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-MSOP | 28 Cart + RFQ |
 HMC241AQS16ETR ADI (Analog Devices, Inc.) | 1 $4.3269 100 $3.4615 500 $2.8846 | Datasheet | CATV | Absorptive | SP4T | 0Hz ~ 3.5GHz | 36dB | 0.8dB | 2.5GHz | 29dBm | 48dBm | - | 50Ohm | 5V | -40°C ~ 85°C | 16-SSOP (0.154", 3.90mm Width) | 16-QSOP | 76 Cart + RFQ |
HMC349AMS8GE ADI (Analog Devices, Inc.) | 1 $8.6538 100 $6.9230 500 $5.7692 | Datasheet | General Purpose | - | SPDT | 0Hz ~ 4GHz | 50dB | 1.2dB | 3GHz | 34dBm | 53dBm (min) | - | 50Ohm | 5V | -40°C ~ 85°C | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | 8-MSOP-EP | 3 Cart + RFQ |
HMC536LP2E ADI (Analog Devices, Inc.) | 1 $8.0700 | Datasheet | WiMAX / WiBro | Reflective | SPDT | 0Hz ~ 6GHz | 29dB | 1dB | 6GHz | - | 49dBm | - | 50Ohm | - | -40°C ~ 85°C | 6-TDFN Exposed Pad | 6-DFN (2x2) | 4,399 Cart + RFQ |
