RF Shields
RF Shields are metal devices that are designed to block or reduce electromagnetic interference to provide protection for components. The characteristics are type, height, length, width, ventilation, and mounting type. The types are CAN, cover, frame, shield 1-piece, and shield 2-piece with the mounting types being adhesive, snap-fit, solder, solder and snap on, surface mount, and through hole.
Product List
Total Components: 28
| Product | Pricing | Datasheet | Type | Height - Overall | Length - Overall | Width - Overall | Ventilation | Mounting Type | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|

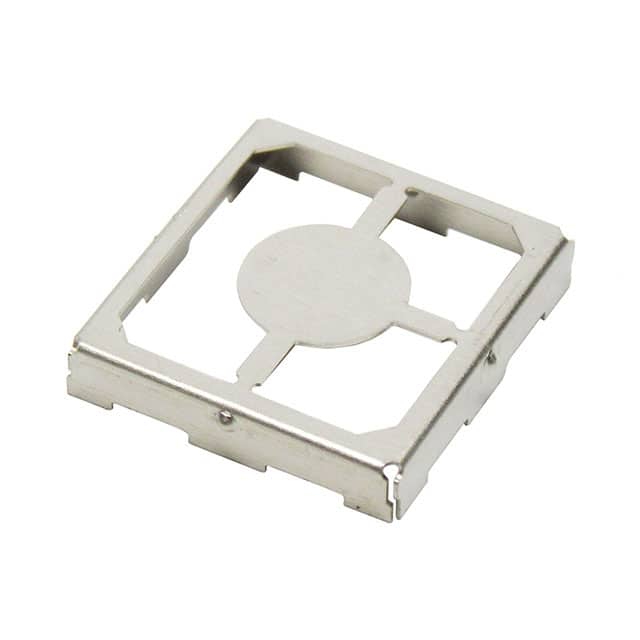

 SMS-201F Leader Tech Inc. | 1 $0.8900 | Datasheet | Frame | 0.100" (2.54mm) | 0.538" (13.67mm) | 0.500" (12.70mm) | - | Surface Mount | 2,037 Cart + RFQ |

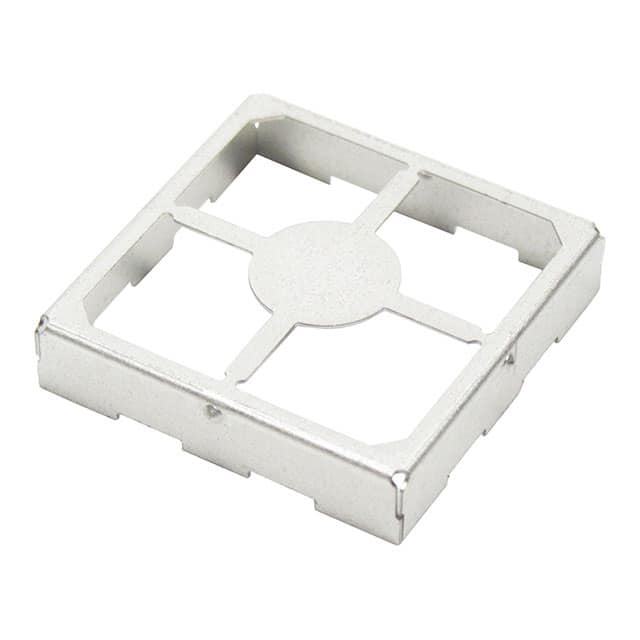

 SMS-202F Leader Tech Inc. | 1 $1.0200 | Datasheet | Frame | 0.142" (3.60mm) | 0.650" (16.51mm) | 0.650" (16.51mm) | - | Surface Mount | 1,976 Cart + RFQ |

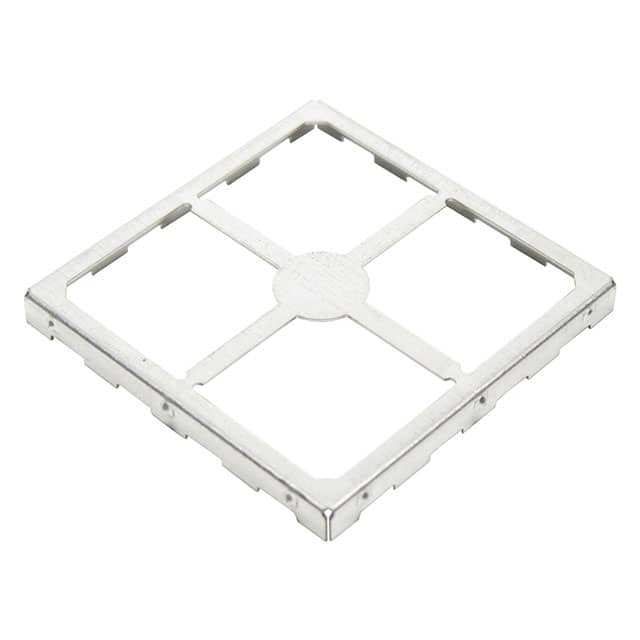

 SMS-254F Leader Tech Inc. | 1 $1.3200 | Datasheet | Frame | 0.098" (2.49mm) | 1.034" (26.26mm) | 1.034" (26.26mm) | - | Surface Mount | 1,213 Cart + RFQ |

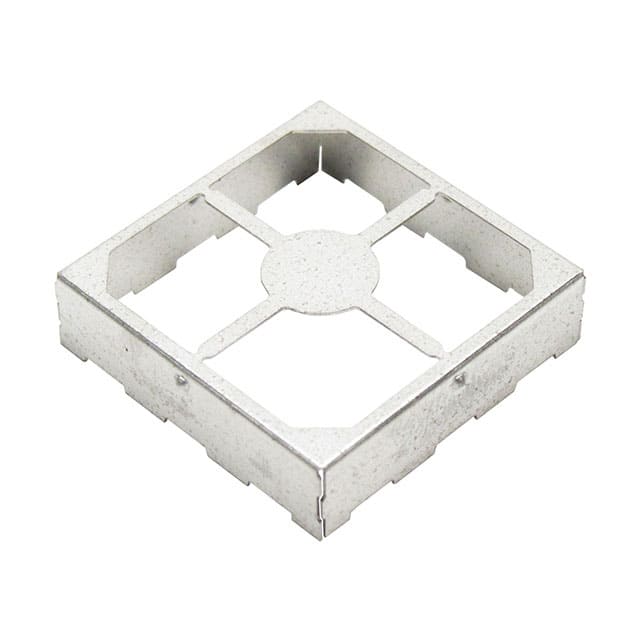

 SMS-255F Leader Tech Inc. | 1 $2.0400 | Datasheet | Frame | 0.200" (5.08mm) | 0.750" (19.05mm) | 0.750" (19.05mm) | - | Surface Mount | 3,265 Cart + RFQ |

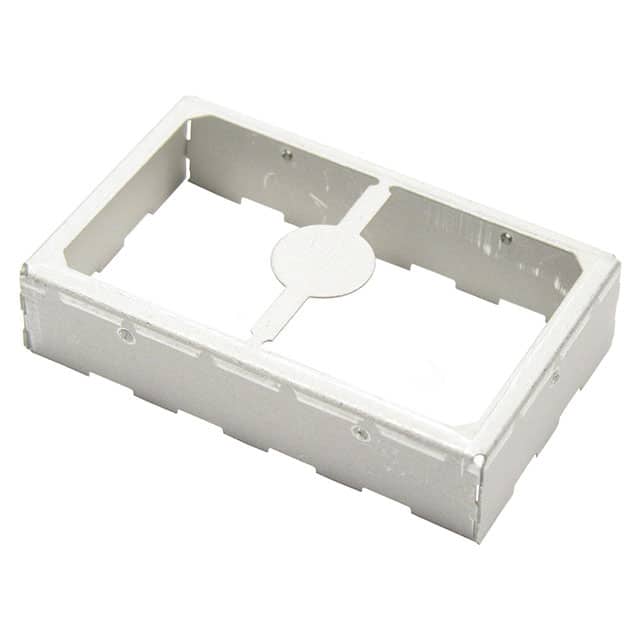

 SMS-409F Leader Tech Inc. | 1 $2.6000 | Datasheet | Frame | 0.276" (7.01mm) | 1.156" (29.36mm) | 0.728" (18.49mm) | - | Surface Mount | 8,547 Cart + RFQ |

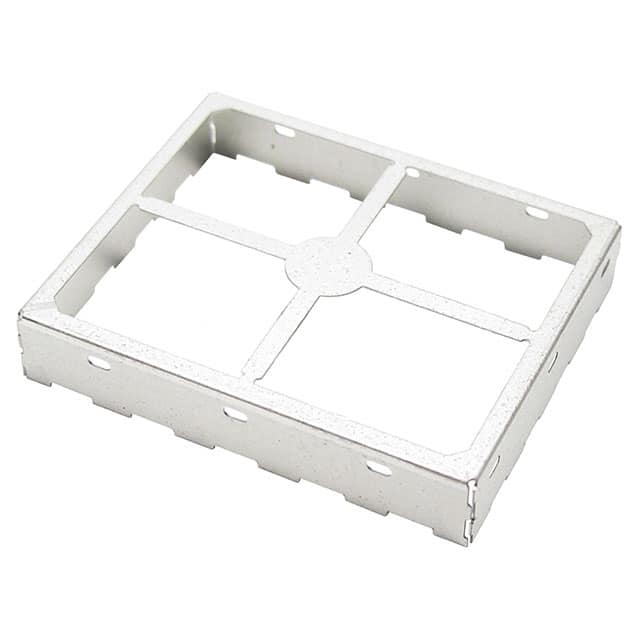

 SMS-457F Leader Tech Inc. | 1 $2.9200 | Datasheet | Frame | 0.236" (6.00mm) | 1.304" (33.12mm) | 1.070" (27.18mm) | - | Surface Mount | 9,185 Cart + RFQ |

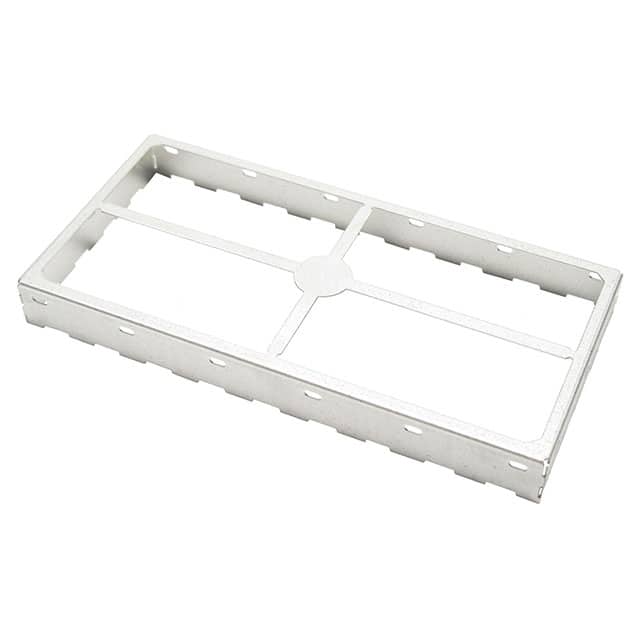

 SMS-461F Leader Tech Inc. | 1 $3.7400 | Datasheet | Frame | 0.236" (6.00mm) | 2.206" (56.03mm) | 1.070" (27.18mm) | - | Surface Mount | 1,726 Cart + RFQ |

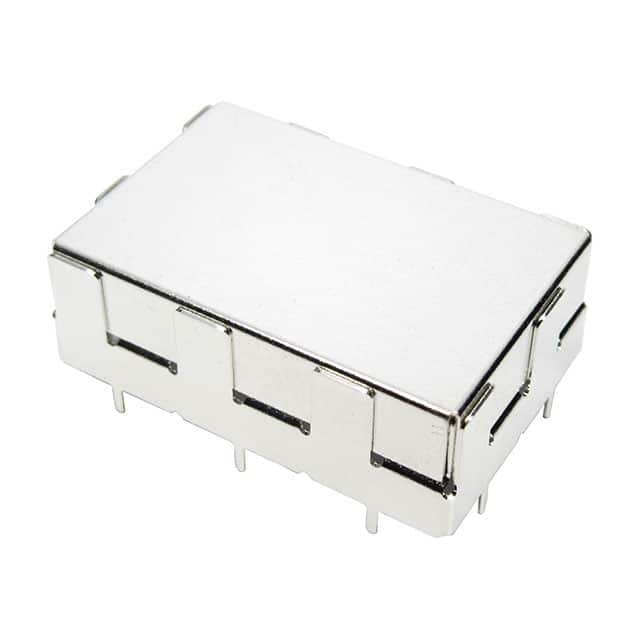

 44-CBSA-1.0X1.0X0.4 Leader Tech Inc. | 1 $24.1200 | Datasheet | Shield, 2-Piece | 0.400" (10.16mm) | 1.000" (25.40mm) | 1.000" (25.40mm) | Non-Vented | Through Hole | 6,582 Cart + RFQ |

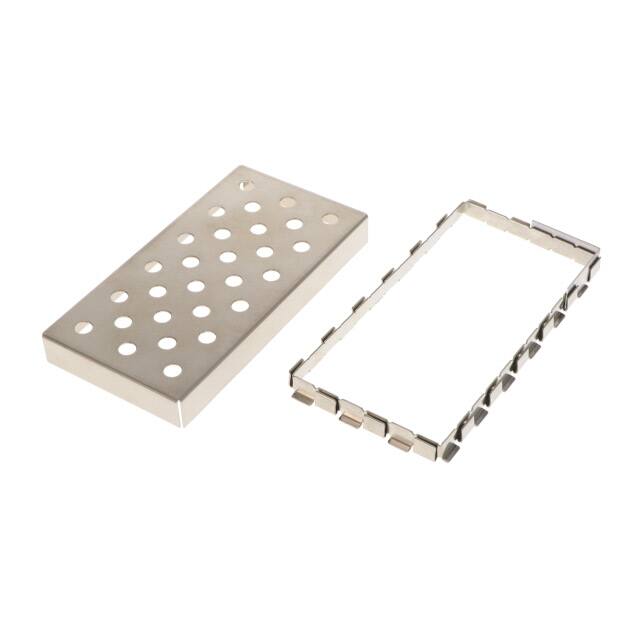

 20S-CBSFNSV-1.5X3.0X0.35 Leader Tech Inc. | 1 $29.7800 | Datasheet | Shield, 2-Piece | 0.350" (8.89mm) | 3.000" (76.20mm) | 1.500" (38.10mm) | Vent Holes in Pattern | Surface Mount | 5,640 Cart + RFQ |

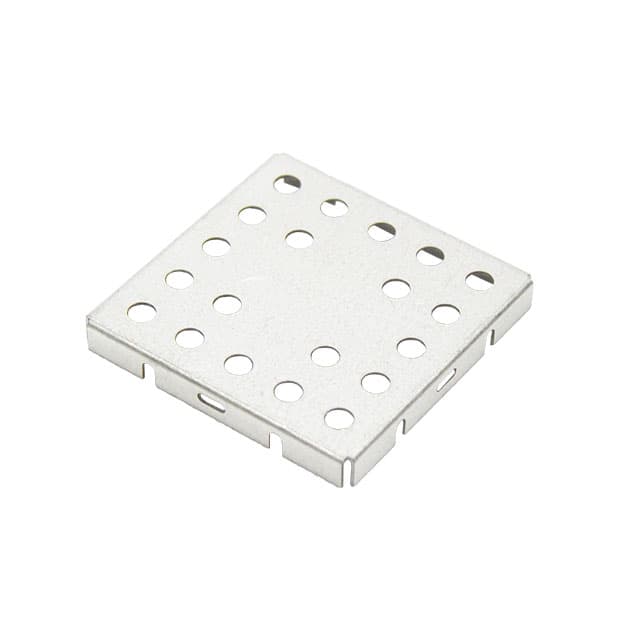

 SMS-202C Leader Tech Inc. | 1 $0.3900 | Datasheet | Cover | 0.079" (2.01mm) | 0.672" (17.07mm) | 0.672" (17.07mm) | Vented | Surface Mount | 1,783 Cart + RFQ |

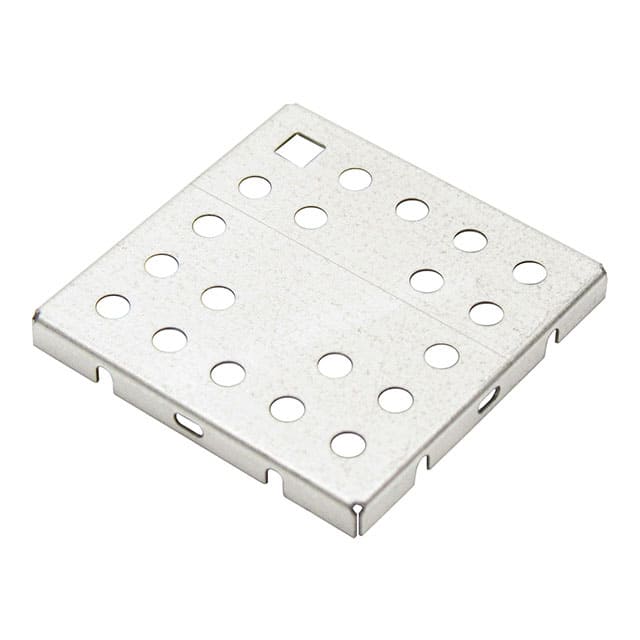

 SMS-255C Leader Tech Inc. | 1 $0.5600 | Datasheet | Cover | 0.079" (2.01mm) | 0.774" (19.66mm) | 0.774" (19.66mm) | Vented | Surface Mount | 3,787 Cart + RFQ |

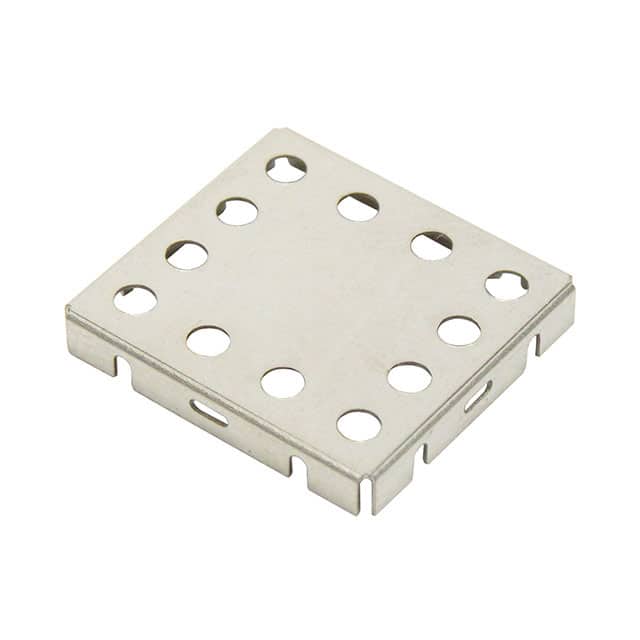

 SMS-201C Leader Tech Inc. | 1 $0.5700 | Datasheet | Cover | 0.079" (2.01mm) | 0.560" (14.22mm) | 0.522" (13.26mm) | Vented | Surface Mount | 6,454 Cart + RFQ |

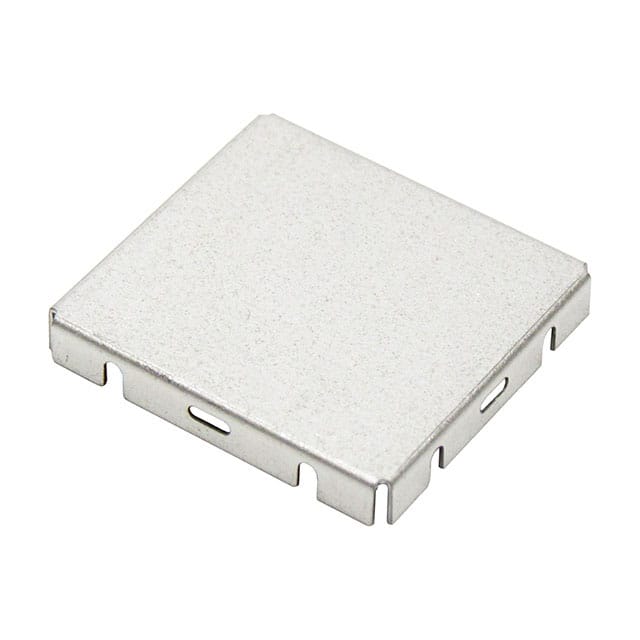

 SMS-401C Leader Tech Inc. | 1 $0.5700 | Datasheet | Cover | 0.079" (2.01mm) | 0.560" (14.22mm) | 0.522" (13.26mm) | Non-Vented | Surface Mount | 1,910 Cart + RFQ |

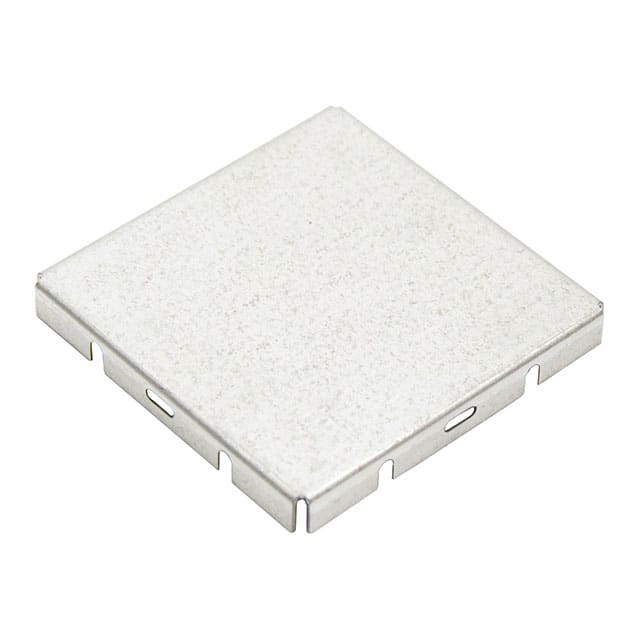

 SMS-402C Leader Tech Inc. | 1 $0.6100 | Datasheet | Cover | 0.079" (2.01mm) | 0.672" (17.07mm) | 0.672" (17.07mm) | Non-Vented | Surface Mount | 7,188 Cart + RFQ |

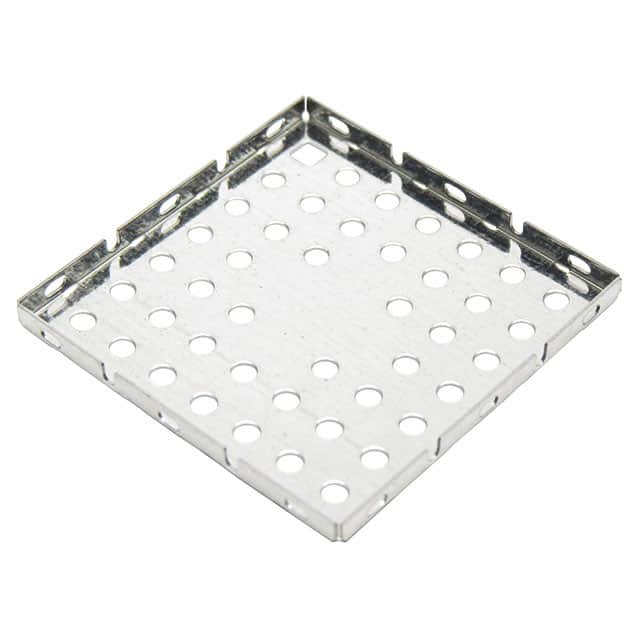

 SMS-254C Leader Tech Inc. | 1 $0.6400 | Datasheet | Cover | 0.079" (2.01mm) | 1.058" (26.87mm) | 1.058" (26.87mm) | Vented | Surface Mount | 2,211 Cart + RFQ |

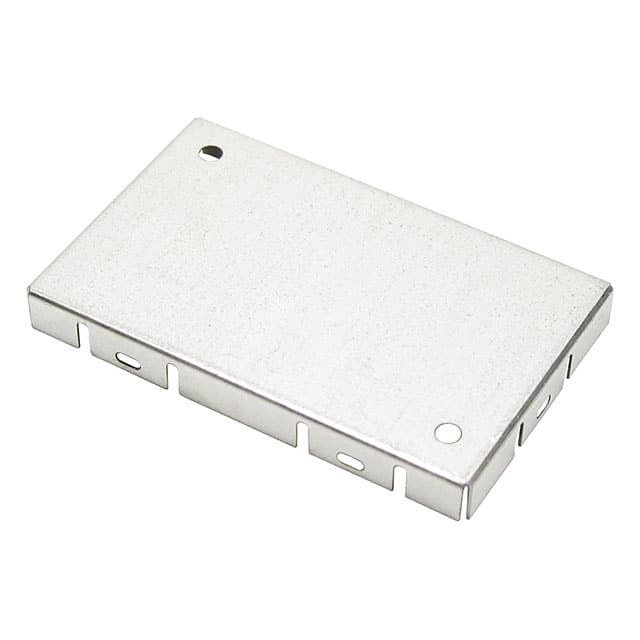

 SMS-409C Leader Tech Inc. | 1 $0.6400 | Datasheet | Cover | 0.079" (2.01mm) | 1.178" (29.92mm) | 0.750" (19.05mm) | Non-Vented | Surface Mount | 6,831 Cart + RFQ |

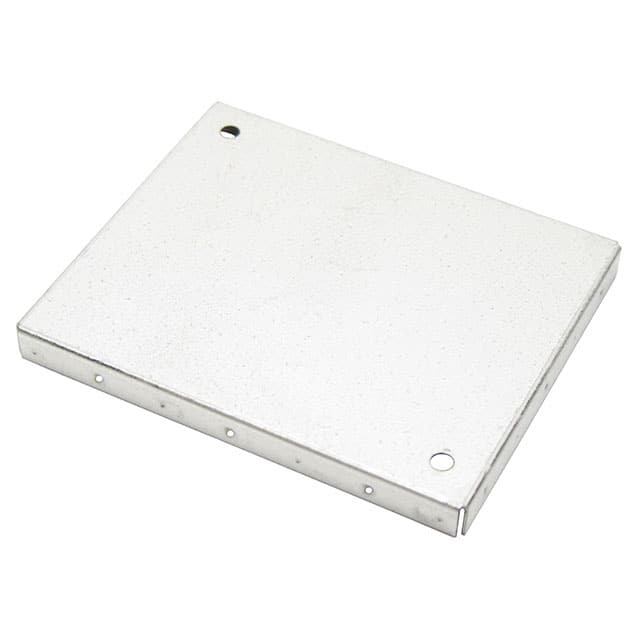

 SMS-457C Leader Tech Inc. | 1 $0.7100 | Datasheet | Cover | 0.118" (3.00mm) | 1.328" (33.73mm) | 1.094" (27.79mm) | Non-Vented | Surface Mount | 4,677 Cart + RFQ |

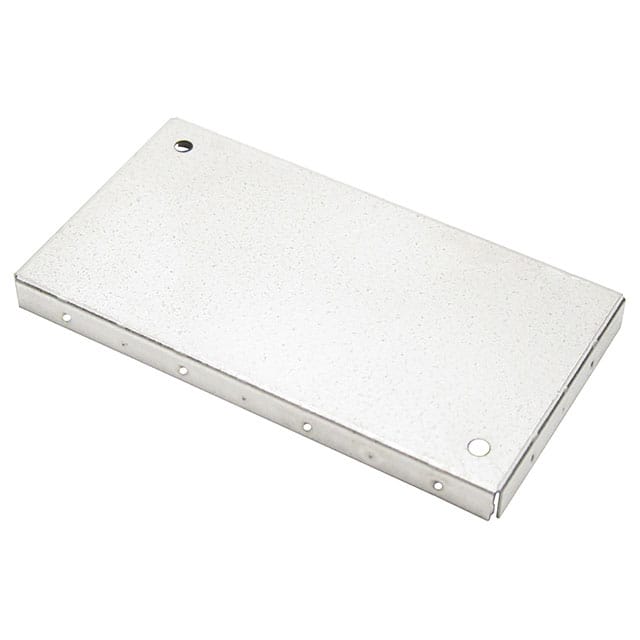

 SMS-456C Leader Tech Inc. | 1 $0.7100 | Datasheet | Cover | 0.118" (3.00mm) | 1.567" (39.80mm) | 0.859" (21.82mm) | Non-Vented | Surface Mount | 1,893 Cart + RFQ |

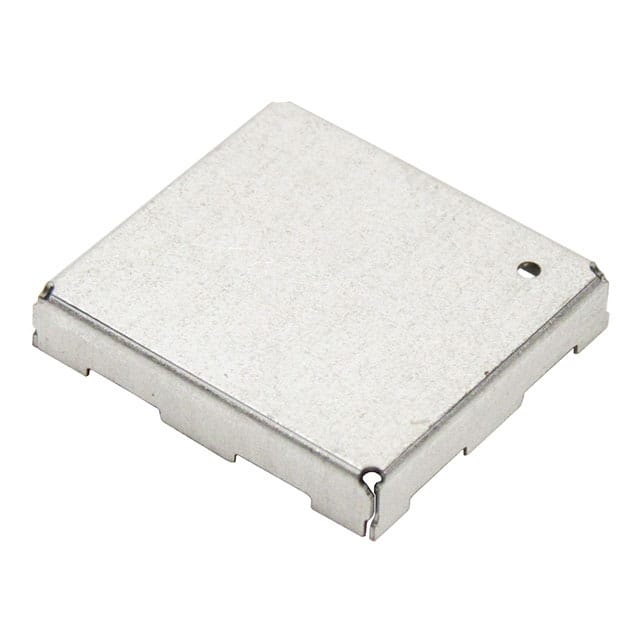

 SMS-301 Leader Tech Inc. | 1 $1.5300 | Datasheet | Cover | 0.100" (2.54mm) | 0.538" (13.67mm) | 0.500" (12.70mm) | Vented | Surface Mount | 1,494 Cart + RFQ |

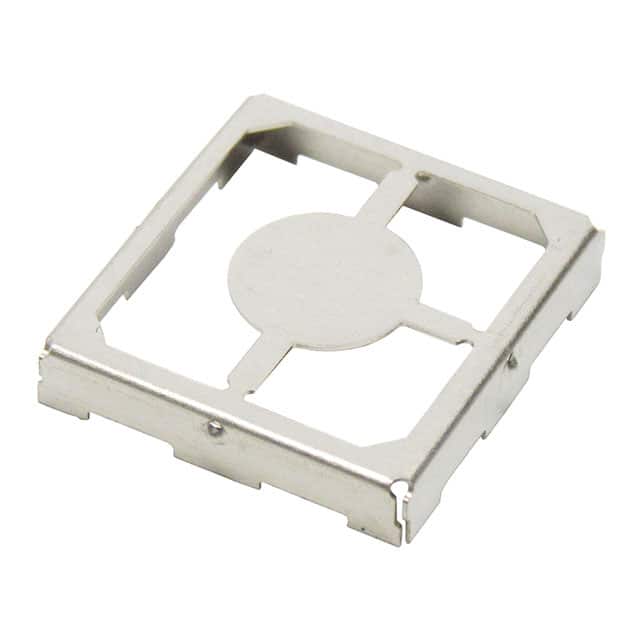

 SMS-401F Leader Tech Inc. | 1 $1.5300 | Datasheet | Frame | 0.100" (2.54mm) | 0.538" (13.67mm) | 0.500" (12.70mm) | - | Surface Mount | 5,169 Cart + RFQ |
