RF Shields
RF Shields are metal devices that are designed to block or reduce electromagnetic interference to provide protection for components. The characteristics are type, height, length, width, ventilation, and mounting type. The types are CAN, cover, frame, shield 1-piece, and shield 2-piece with the mounting types being adhesive, snap-fit, solder, solder and snap on, surface mount, and through hole.
Product List
Total Components: 21
| Product | Pricing | Datasheet | Type | Height - Overall | Length - Overall | Width - Overall | Ventilation | Mounting Type | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|

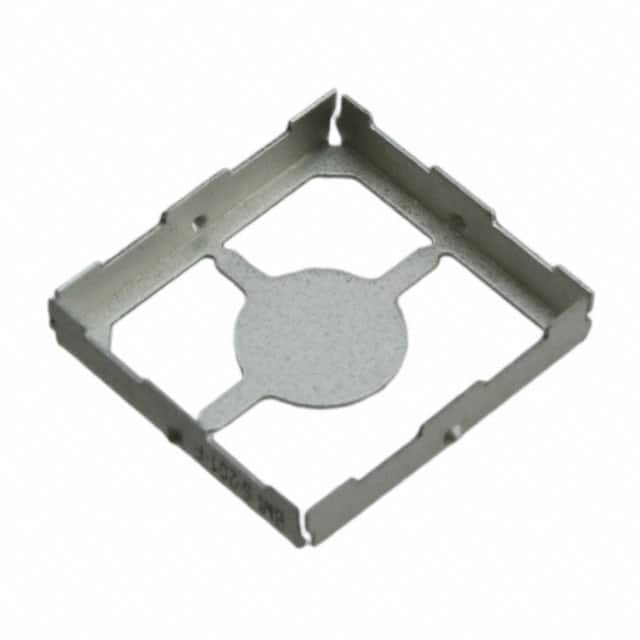

 BMI-S-201-F Laird - Performance Materials | 1 $1.5800 | Datasheet | Frame | 0.100" (2.54mm) | 0.538" (13.66mm) | 0.500" (12.70mm) | - | Surface Mount | 7,028 Cart + RFQ |

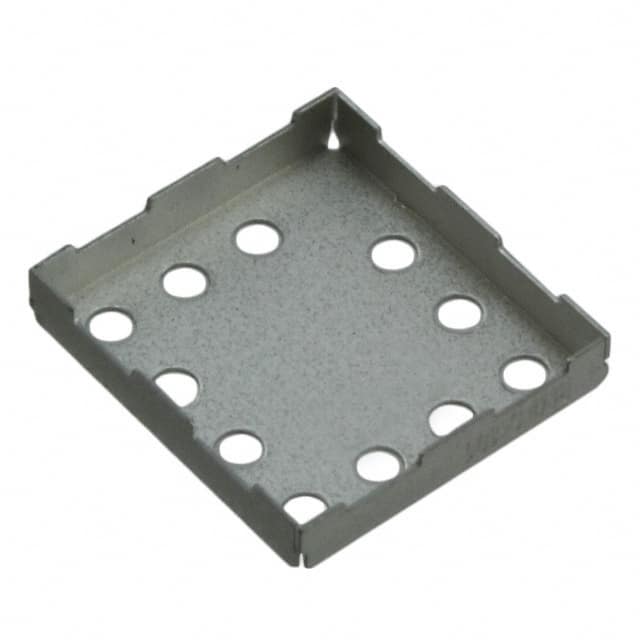

 BMI-S-101 Laird - Performance Materials | 1 $1.6900 | Datasheet | Shield, 1-Piece | 0.100" (2.54mm) | 0.538" (13.66mm) | 0.512" (13.00mm) | Vent Holes in Pattern | Surface Mount | 5,277 Cart + RFQ |

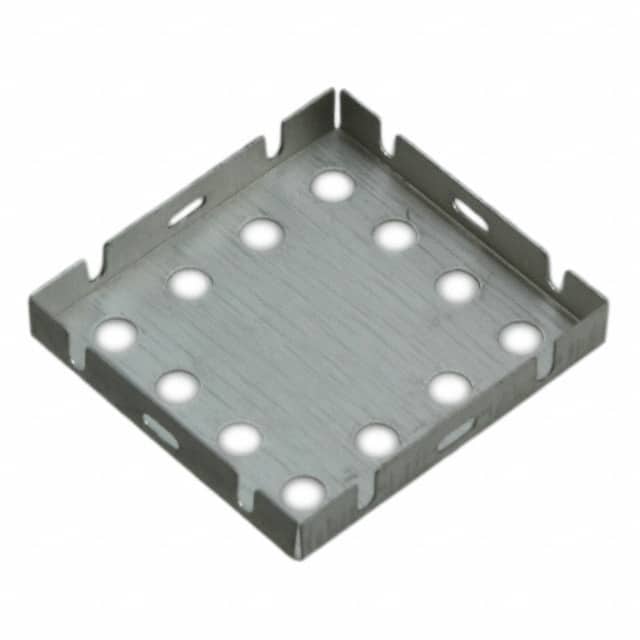

 BMI-S-201-C Laird - Performance Materials | 1 $0.8100 | Datasheet | Cover | 0.079" (2.00mm) | 0.552" (14.02mm) | 0.514" (13.06mm) | Vent Holes in Pattern | Snap Fit | 1,438 Cart + RFQ |

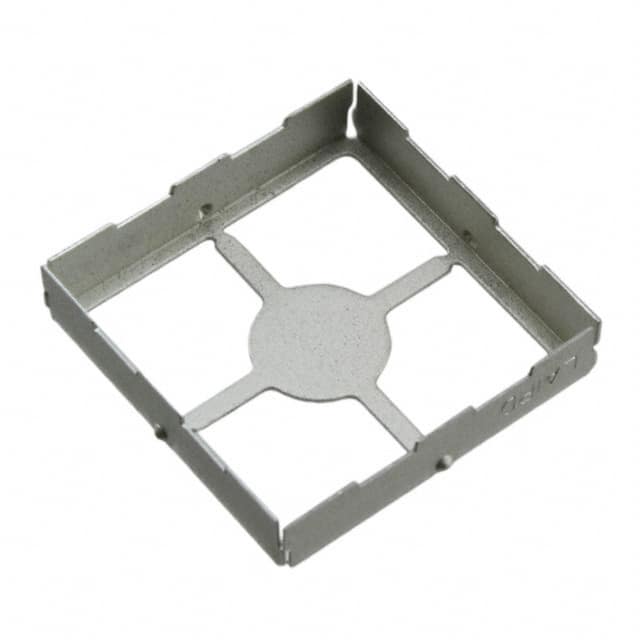

 BMI-S-202-F Laird - Performance Materials | 1 $2.0000 | Datasheet | Frame | 0.142" (3.60mm) | 0.650" (16.50mm) | 0.650" (16.50mm) | - | Surface Mount | 8,356 Cart + RFQ |

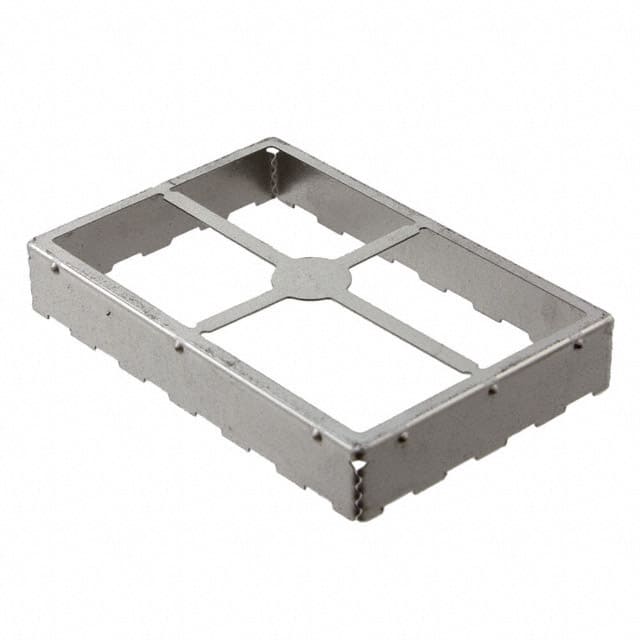

 BMI-S-205-F Laird - Performance Materials | 1 $1.8200 | Datasheet | Frame | 0.236" (6.00mm) | 1.500" (38.10mm) | 1.000" (25.40mm) | - | Surface Mount | 9,466 Cart + RFQ |

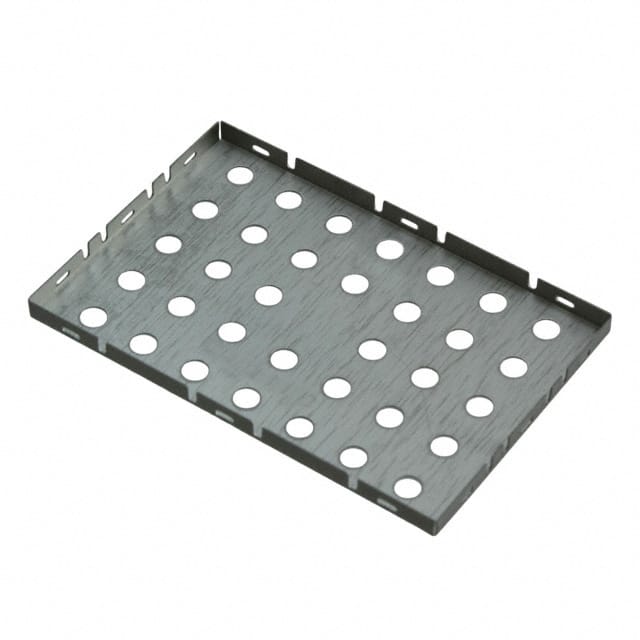

 BMI-S-205-C Laird - Performance Materials | 1 $1.3900 | Datasheet | Cover | 0.079" (2.00mm) | 1.518" (38.56mm) | 1.018" (25.86mm) | Vent Holes in Pattern | Snap Fit | 4,927 Cart + RFQ |

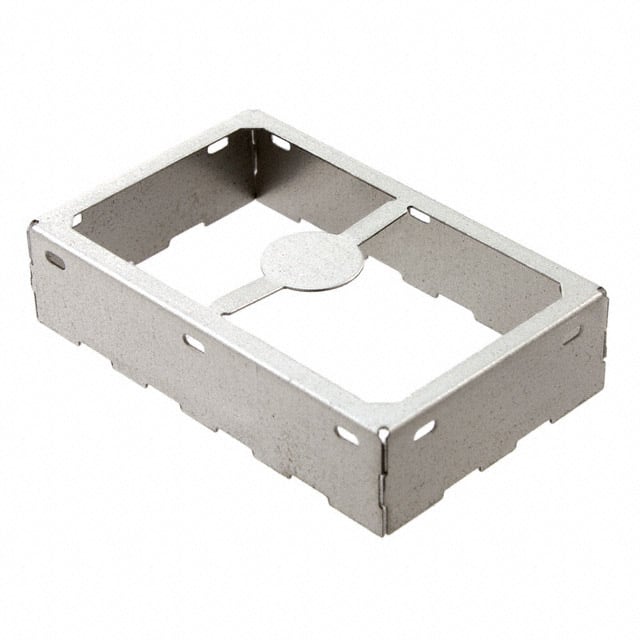

 BMI-S-209-F Laird - Performance Materials | 1 $2.0900 | Datasheet | Frame | 0.276" (7.00mm) | 1.156" (29.36mm) | 0.728" (18.50mm) | - | Surface Mount | 4,838 Cart + RFQ |

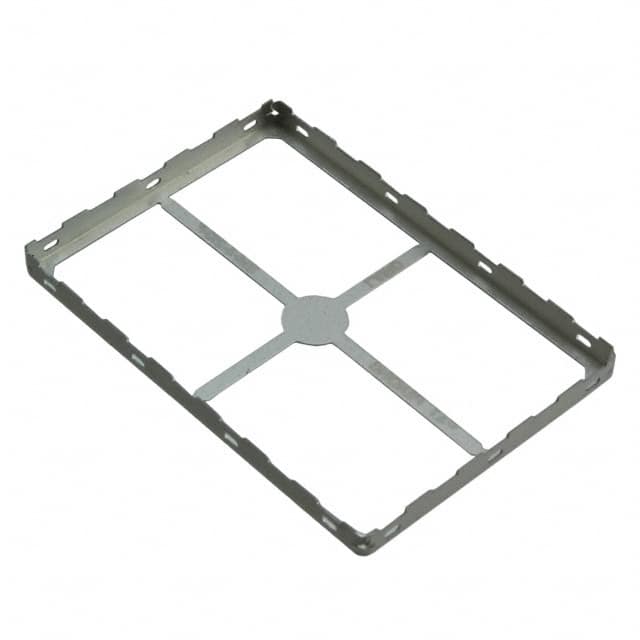

 BMI-S-210-F Laird - Performance Materials | 1 $2.3500 | Datasheet | Frame | 0.118" (3.00mm) | 1.732" (44.00mm) | 1.201" (30.50mm) | - | Surface Mount | 8,412 Cart + RFQ |

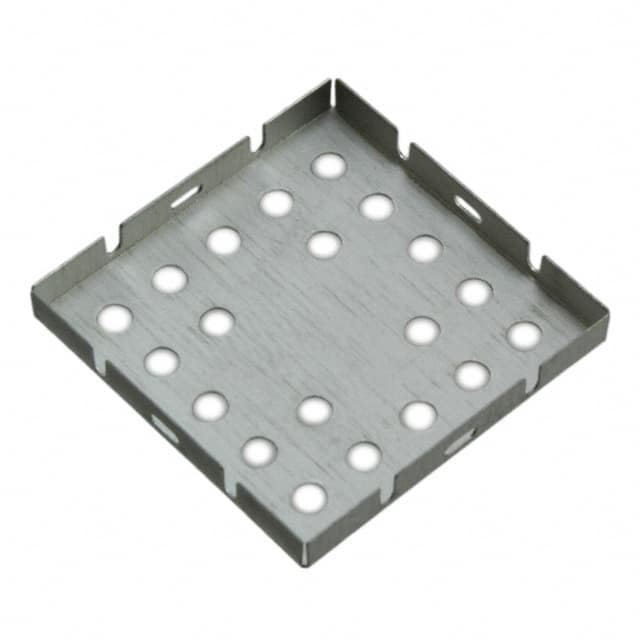

 BMI-S-202-C Laird - Performance Materials | 1 $1.7900 | Datasheet | Cover | 0.079" (2.00mm) | 0.668" (16.96mm) | 0.668" (16.96mm) | Vent Holes in Pattern | Snap Fit | 7,498 Cart + RFQ |

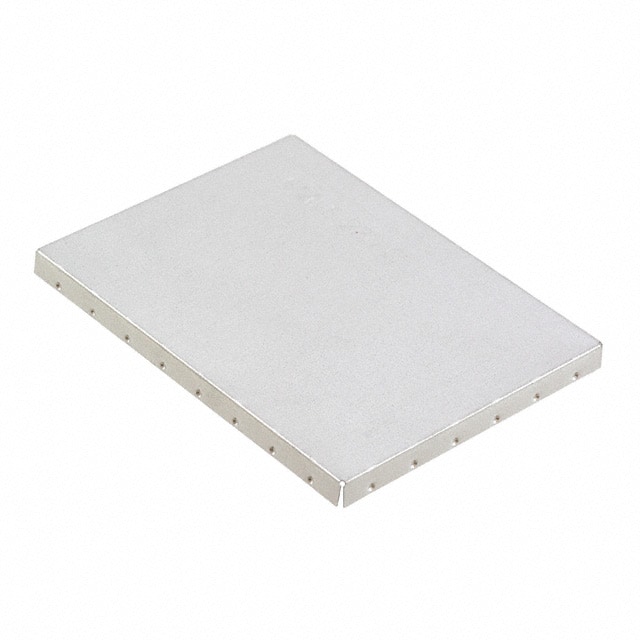

 BMI-S-230-C Laird - Performance Materials | 1 $1.7000 | Datasheet | Cover | 0.125" (3.18mm) | 1.514" (38.46mm) | 2.014" (51.16mm) | Non-Vented | Snap Fit | 1,851 Cart + RFQ |

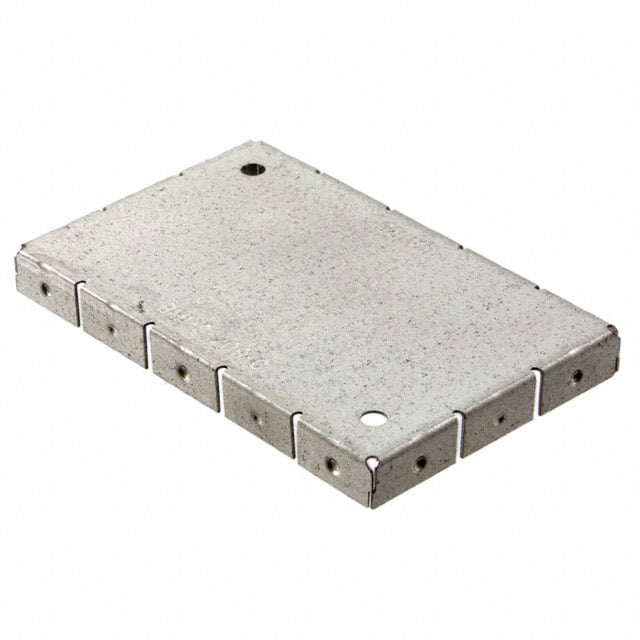

 BMI-S-209-C Laird - Performance Materials | 1 $1.7100 | Datasheet | Cover | 0.118" (3.00mm) | 1.180" (29.96mm) | 0.752" (19.10mm) | Non-Vented | Snap Fit | 3,762 Cart + RFQ |

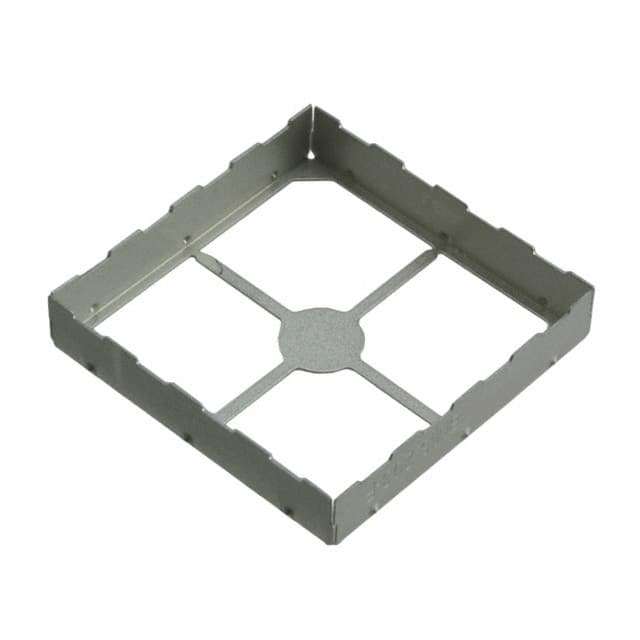

 BMI-S-203-F Laird - Performance Materials | 1 $2.7900 | Datasheet | Frame | 0.200" (5.08mm) | 1.032" (26.21mm) | 1.032" (26.21mm) | - | Surface Mount | 3,255 Cart + RFQ |

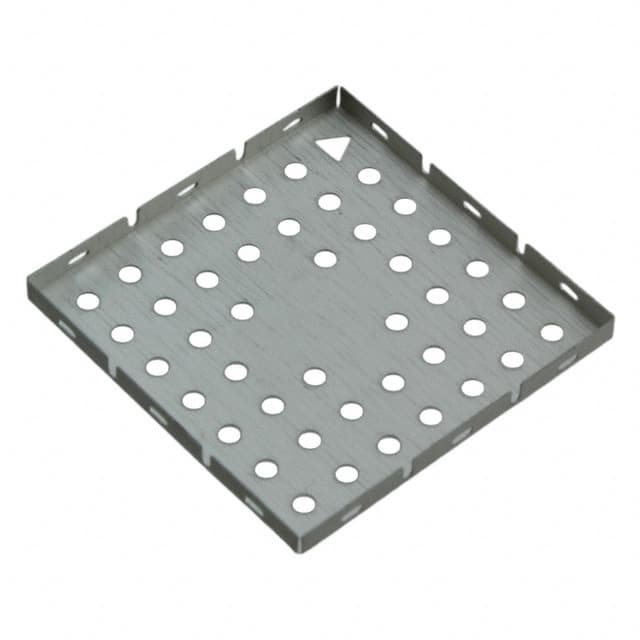

 BMI-S-203-C Laird - Performance Materials | 1 $2.0800 | Datasheet | Cover | 0.079" (2.00mm) | 1.050" (26.67mm) | 1.050" (26.67mm) | Vent Holes in Pattern | Snap Fit | 5,957 Cart + RFQ |

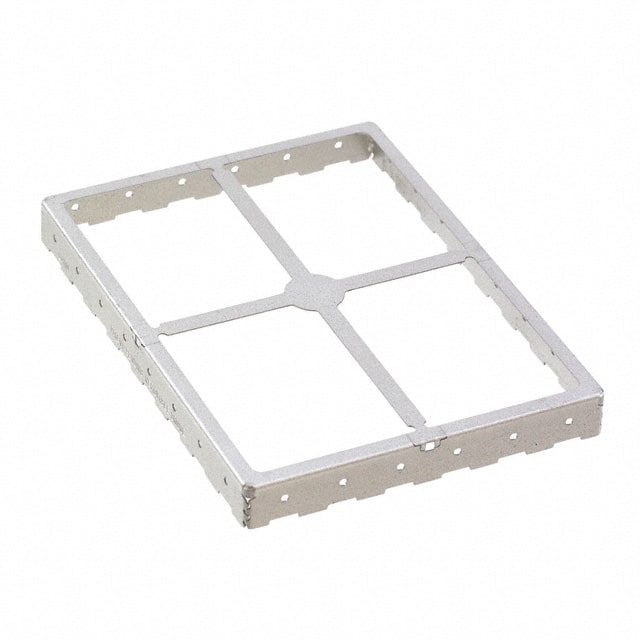

 BMI-S-230-F-R Laird - Performance Materials | 1 $2.9400 | Datasheet | Frame | 0.200" (5.08mm) | 1.500" (38.10mm) | 2.000" (50.80mm) | - | Surface Mount | 1,230 Cart + RFQ |

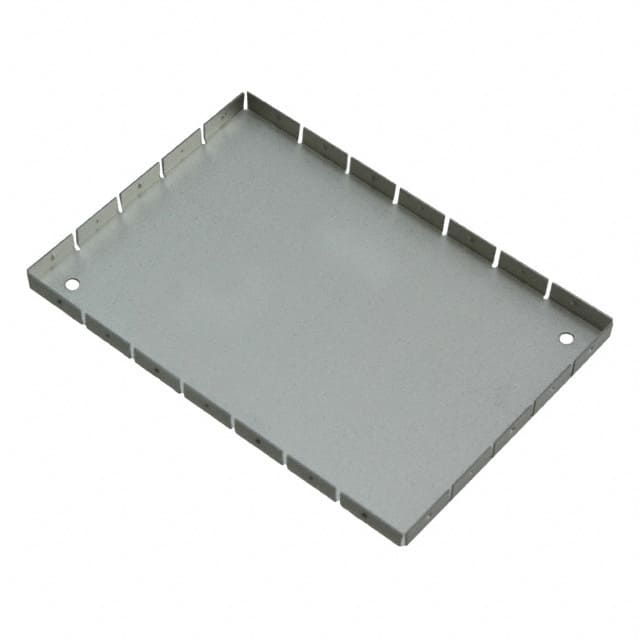

 BMI-S-210-C Laird - Performance Materials | 1 $2.2600 | Datasheet | Cover | 0.094" (2.40mm) | 1.756" (44.60mm) | 1.224" (31.10mm) | Non-Vented | Snap Fit | 5,281 Cart + RFQ |

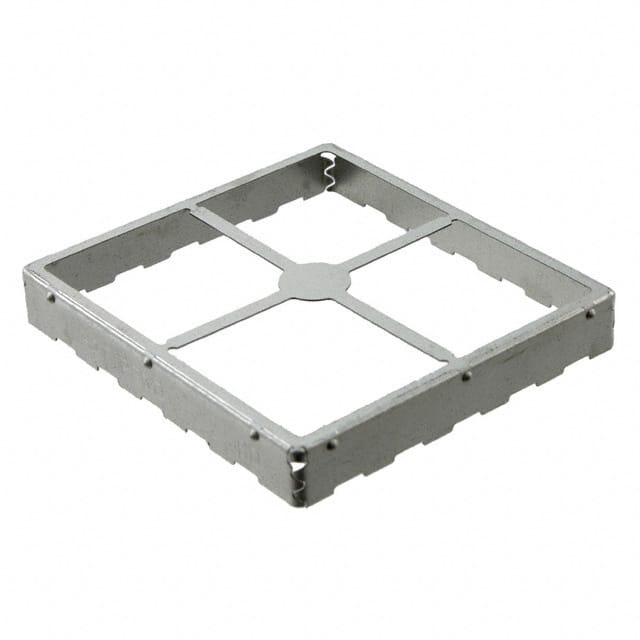

 BMI-S-206-F Laird - Performance Materials | 1 $3.6300 | Datasheet | Frame | 0.200" (5.08mm) | 1.450" (36.83mm) | 1.326" (33.68mm) | - | Surface Mount | 3,714 Cart + RFQ |

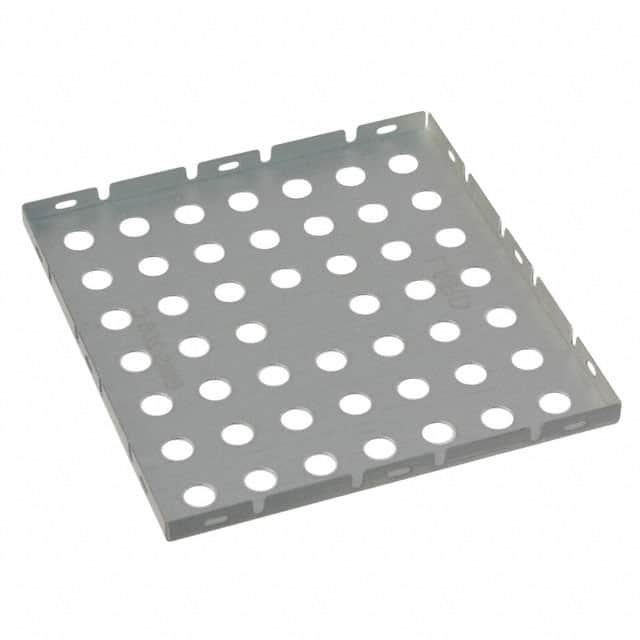

 BMI-S-206-C Laird - Performance Materials | 1 $2.8300 | Datasheet | Cover | 0.079" (2.00mm) | 1.468" (37.29mm) | 1.344" (34.14mm) | Vent Holes in Pattern | Snap Fit | 5,490 Cart + RFQ |

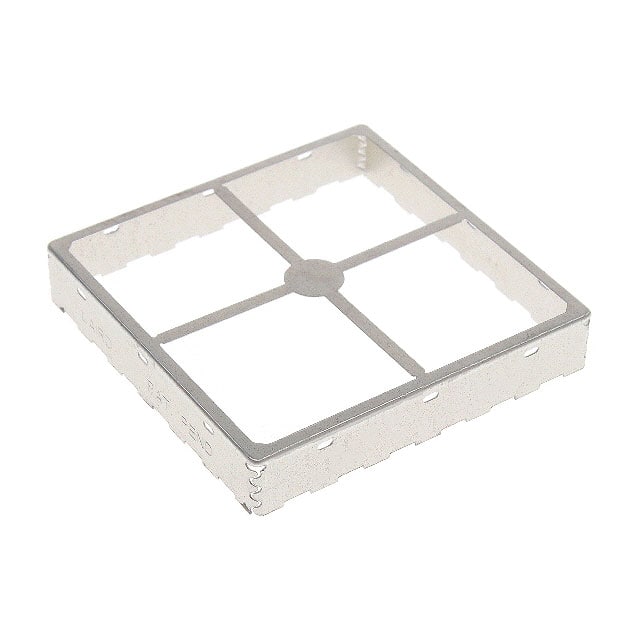

 BMI-S-208-F Laird - Performance Materials | 1 $3.9800 | Datasheet | Frame | 0.276" (7.00mm) | 1.559" (39.60mm) | 1.559" (39.60mm) | - | Surface Mount | 3,274 Cart + RFQ |

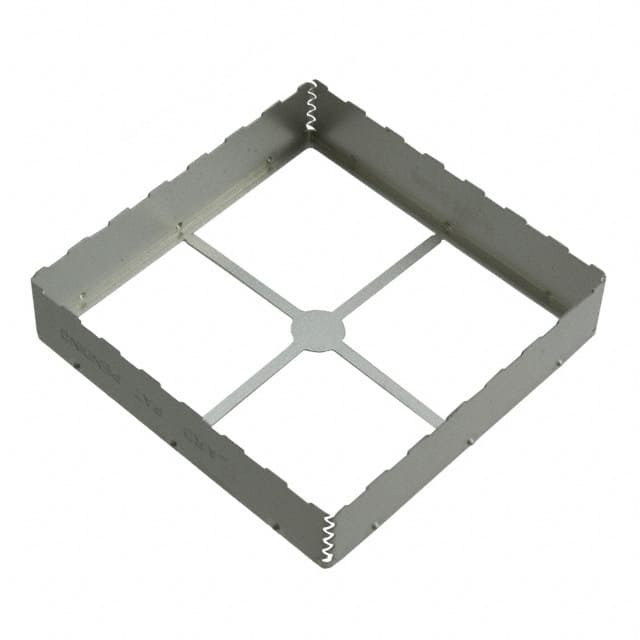

 BMI-S-207-F Laird - Performance Materials | 1 $5.1600 | Datasheet | Frame | 0.384" (9.75mm) | 1.747" (44.37mm) | 1.747" (44.37mm) | - | Surface Mount | 1,670 Cart + RFQ |

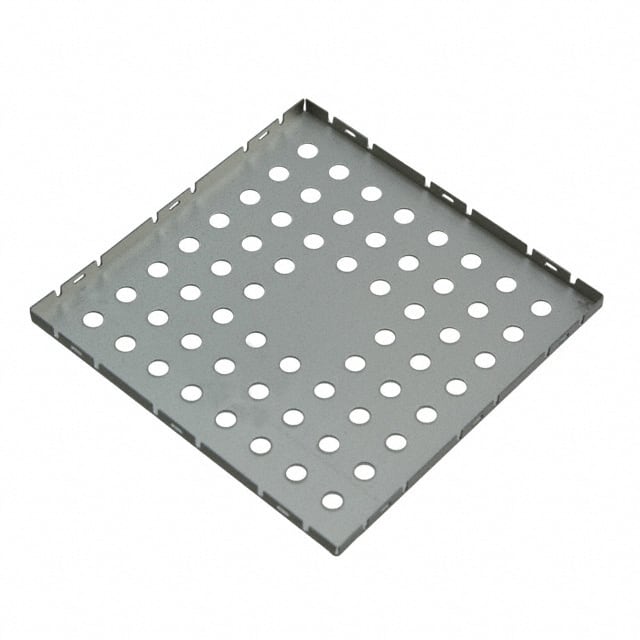

 BMI-S-207-C Laird - Performance Materials | 1 $5.0100 | Datasheet | Cover | 0.079" (2.00mm) | 1.765" (44.83mm) | 1.765" (44.83mm) | Vent Holes in Pattern | Snap Fit | 2,195 Cart + RFQ |
