RF Multiplexers
RF Multiplexers use bi-directional bandpass filters to combine RF signals for transmission through a single coaxial cable or to split a combined signal into separate signals for transmission through independent coax cables. Types of multiplexing include diplexing, duplexing. triplexing, quadplexing and quintplexing. Multiplexors are differentiated by their frequency bands, low band attenuation, high band attenuation, return loss and mounting type.
Product List
Total Components: 23
| Product | Pricing | Datasheet | Type | Frequency Bands (Low / High) | Low Band Attenuation (min / max dB) | High Band Attenuation (min / max dB) | Return Loss (Low Band / High Band) | Mounting Type | Package / Case | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|
 D6DA2G140K2A7-Z TAIYO YUDEN | 1 $1.1100 | Datasheet | Duplexer | 1GHz / 5GHz | - | 45.00dB / 55.00dB | - | Surface Mount | 8-SMD, No Lead | 7,639 Cart + RFQ |
D5DA942M5K2S2-Z TAIYO YUDEN | 1 $2.0600 | Datasheet | Duplexer | 880MHz ~ 915MHz / 925MHz ~ 960MHz | - | 45.00dB / 54.00dB | - | Surface Mount | 8-SMD, No Lead | 4,443 Cart + RFQ |
 D6HQ1G962DP35-Z TAIYO YUDEN | 1 $3.5600 | Datasheet | Duplexer | - | - / 57.00dB | - / 57.00dB | - | Surface Mount | 8-SMD, No Lead | 4,165 Cart + RFQ |

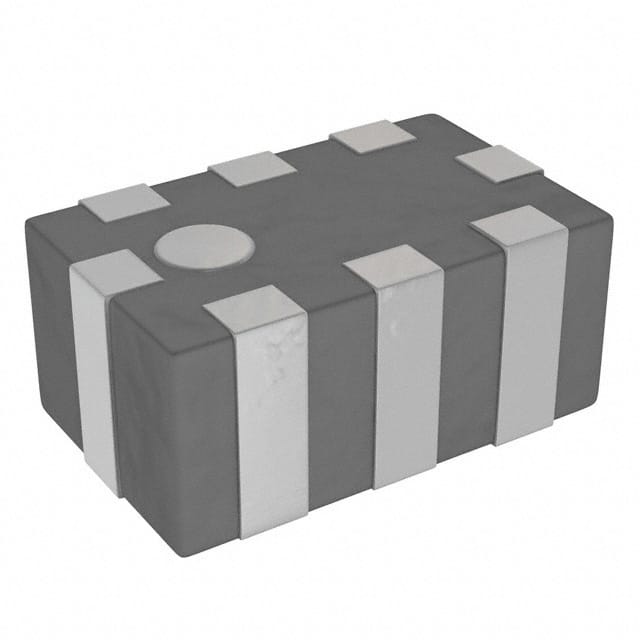

 FI212P089208-T TAIYO YUDEN | 1 $1.0700 | Datasheet | Diplexer | 824MHz ~ 960MHz / 1.71GHz ~ 2.17GHz | 13.00dB / - | 19.00dB / - | 9.5dB / 9.5dB | Surface Mount | 2012 (5030 Metric) | 3,521 Cart + RFQ |
D6DA2G140K2A4-Z TAIYO YUDEN | 1 $1.3300 | Datasheet | Duplexer | 1.92GHz ~ 1.98GHz / 2.11GHz ~ 2.17GHz | 45.00dB / 49.00dB | 42.00dB / 50.00dB | - | Surface Mount | 8-SMD, No Lead | 3,457 Cart + RFQ |
 D5DA881M5K2E4-Z TAIYO YUDEN | 1 $1.3300 | Datasheet | Duplexer | - | - | - | - | Surface Mount | 8-SMD, No Lead | 5,722 Cart + RFQ |
FI212P082931-T TAIYO YUDEN | 1 $1.0700 | Datasheet | Diplexer | 698MHz ~ 960MHz / 1.42GHz ~ 2.69GHz | 13.00dB / - | 13.00dB / - | - | Surface Mount | 0805 (2012 Metric), 6 PC Pad | 4,581 Cart + RFQ |

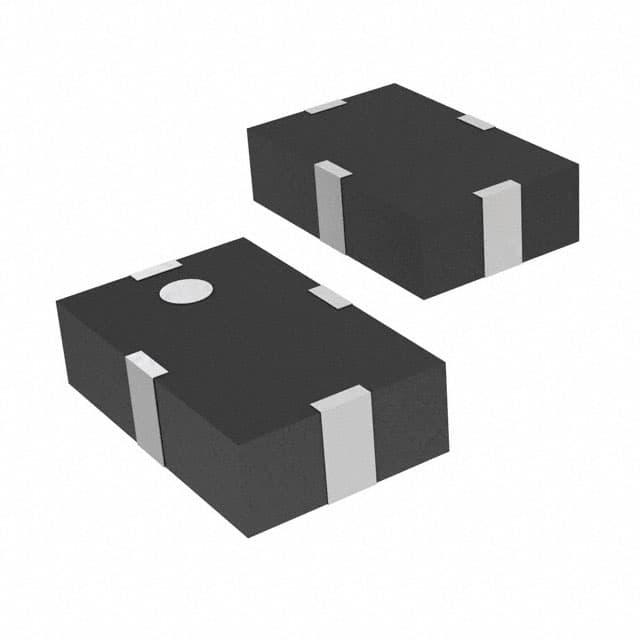

 FI168P157519-T TAIYO YUDEN | 1 $0.9300 | Datasheet | Diplexer | 824MHz ~ 960MHz / 1.558GHz ~ 1.61GHz | 13.00dB / - | 20.00dB / - | - | Surface Mount | 0603 (1608 Metric) | 1,312 Cart + RFQ |
FI168P157525-T TAIYO YUDEN | 1 $0.9300 | Datasheet | Diplexer | 824MHz ~ 960MHz / 1.558GHz ~ 1.61GHz | 20.00dB / - | 13.00dB / - | - | Surface Mount | 0603 (1608 Metric) | 1,632 Cart + RFQ |

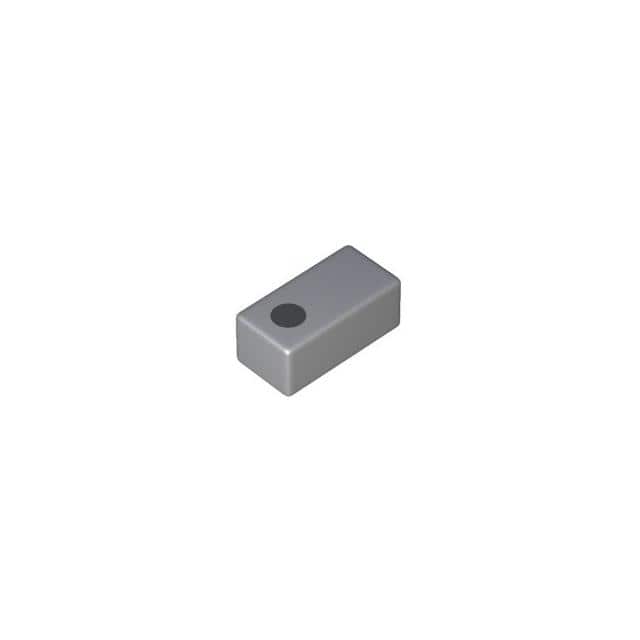

 TSD1N21C1G70LV0CLT TAIYO YUDEN | 1 $1.1000 | Datasheet | Diplexer | 699MHz ~ 2.69GHz / 3.3GHz ~ 5GHz | - | - | - | Surface Mount | 6-WFLGA | 1,227 Cart + RFQ |
 TSD1N21A1G95LV0ENT TAIYO YUDEN | 1 $1.1000 | Datasheet | Diplexer | 1.427GHz ~ 2.2GHz / 2.496GHz ~ 5GHz | - | - | - | Surface Mount | 6-VFLGA | 4,462 Cart + RFQ |
D5RB881M5E1BH-Z TAIYO YUDEN | 1 $1.3300 | Datasheet | Duplexer | 700MHz ~ 1GHz / - | - / 58.00dB | - / 52.00dB | - | Surface Mount | 8-SMD, No Lead | 8,628 Cart + RFQ |
D6RB2G140E1AJ-Z TAIYO YUDEN | 1 $1.3300 | Datasheet | Duplexer | 1GHz ~ 5GHz / - | - / 57.00dB | - / 48.00dB | - | Surface Mount | 8-SMD, No Lead | 1,756 Cart + RFQ |
D6RB2G140E1AL-Z TAIYO YUDEN | 1 $1.3300 | Datasheet | Duplexer | 1GHz ~ 5GHz / - | - / 57.00dB | - / 51.00dB | - | Surface Mount | 8-SMD, No Lead | 8,897 Cart + RFQ |

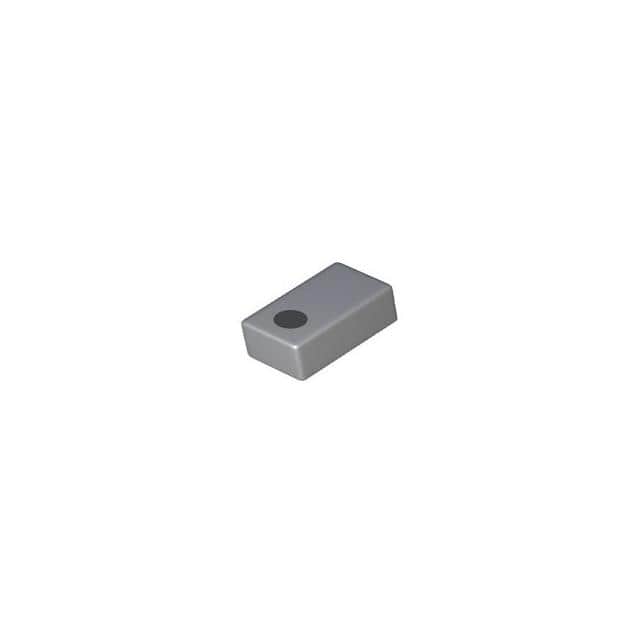

 TST1N22D829MLV0H2T TAIYO YUDEN | 1 $1.4100 | Datasheet | Triplexer | - | - | - | - | Surface Mount | 9-UFLGA | 2,218 Cart + RFQ |
D5RB942M5E1CF-Z TAIYO YUDEN | 1 $2.0000 | Datasheet | Duplexer | 700MHz ~ 1GHz / - | - | - | - | Surface Mount | 10-SMD, No Lead | 1,400 Cart + RFQ |
D6PE2G132P3DWBZ TAIYO YUDEN | 1 $2.1100 | Datasheet | Duplexer | 1GHz ~ 5GHz / - | - / 55.00dB | - / 50.00dB | - | Surface Mount | 9-SMD, No Lead | 8,347 Cart + RFQ |
 D6DA1G485K2W1-Z TAIYO YUDEN | 1 $2.1700 | Datasheet | Duplexer | 1GHz / 5GHz | - / 58.00dB | - / 60.00dB | - | Surface Mount | 8-SMD, No Lead | 9,534 Cart + RFQ |

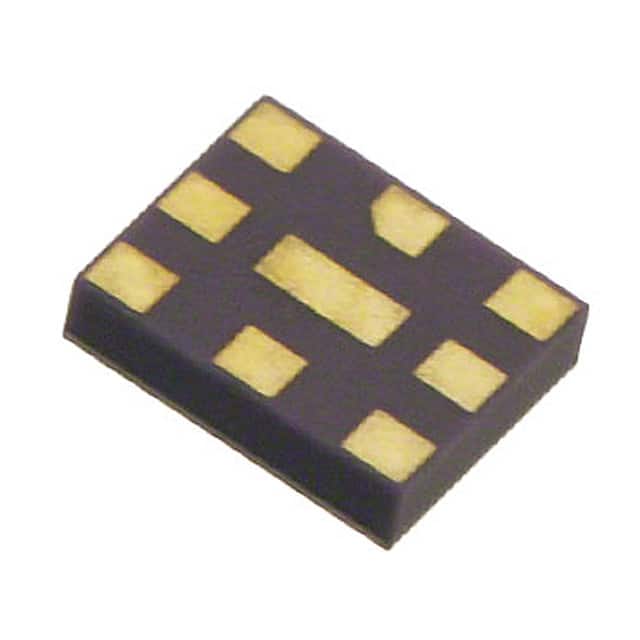

 D5PE942M5P3GT-Z TAIYO YUDEN | 1 $2.2300 | Datasheet | Duplexer | - | - | - | - | Surface Mount | 9-SMD, No Lead | 3,631 Cart + RFQ |

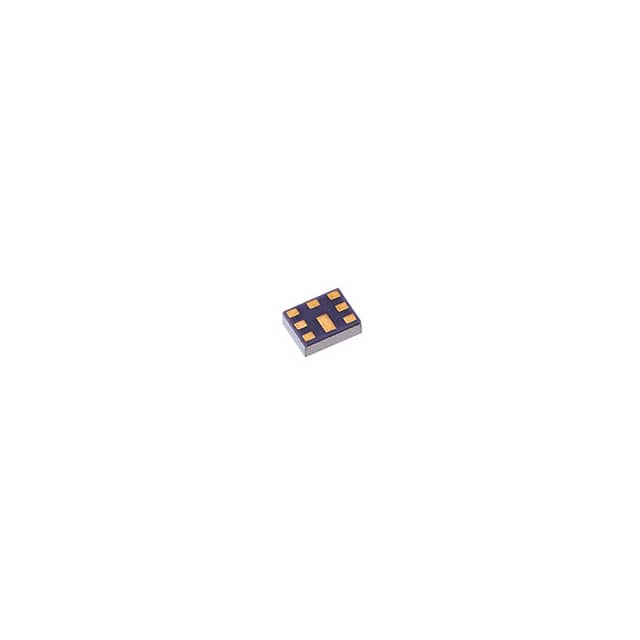

 D6DA1G842K2C7-Z TAIYO YUDEN | 1 $2.7800 | Datasheet | Duplexer | 1GHz / 5GHz | - / 60.00dB | - / 56.00dB | - | Surface Mount | 8-SMD, No Lead | 6,555 Cart + RFQ |
