RF Antennas
RF Antennas are used to receive and transmit electromagnetic waves. These antennas are designed to be used by devices that work at radio frequencies from DC to 18GHz and RF Families like Bluetooth, Cellular, General ISM, Navigation, Wi-Fi, and 802.15.4. The types of antennas are Bead, Biconical, Blade, Ceramic Patch, Chip, Coiled Inductor, Corner Reflector, Directional Antenna, Dish, Dome, Flat, Flex Notch, Helical, Horn, Log Periodic, Loop, Module, Whip, Yagi, and Puck to name a few.
Product List
Total Components: 100
ProductPricingDatasheetRF Family/StandardFrequency GroupFrequency (Center/Band)Frequency RangeAntenna TypeNumber of BandsVSWRReturn LossGainPower - MaxFeaturesTerminationIngress ProtectionMounting TypeHeight (Max)ApplicationsStock & Quantity
GP.1575.25.4.A.02
Taoglas
1
$4.3900
Datasheet
NavigationUHF (1GHz ~ 2GHz)1.575GHz1.570GHz ~ 1.580GHzCeramic Patch11.2-10dB1.55dBic--Pin-Adhesive0.197" (5.00mm)GPS
4,001
Cart +
RFQ
GP.1575.25.2.A.02
Taoglas
1
$4.9900
Datasheet
NavigationUHF (1GHz ~ 2GHz)1.575GHz1.573GHz ~ 1.577GHzCeramic Patch11.5-10dB2dBic--Pin-Adhesive0.098" (2.50mm)GPS
9,321
Cart +
RFQ
GP.1575.18.4.A.02
Taoglas
1
$5.6900
Datasheet
NavigationUHF (1GHz ~ 2GHz)1.575GHz-Ceramic Patch11.5-10dB2.5dBic--Pin-Adhesive0.157" (4.00mm)GPS
6,603
Cart +
RFQ
AA.105.301111
Taoglas
1
$14.2000
Datasheet
NavigationUHF (1GHz ~ 2GHz)1.575GHz1.57GHz ~ 1.58GHzModule11.92-2dBic-Cable - 3m, LNASMA MaleIP67Magnetic0.551" (14.00mm)GPS
4,052
Cart +
RFQ
ALA.01.07.0095A
Taoglas
1
$21.0100
Datasheet
NavigationUHF (1GHz ~ 2GHz)1.575GHz1.54GHz ~ 1.61GHzPCB Trace12-10dB3.1dBi-LNA, FilterU.FL (UMCC), IPEX MHF1-Adhesive, Chassis Mount0.020" (0.50mm)GPS
8,453
Cart +
RFQ
AP.35A.07.0054A
Taoglas
1
$18.4700
Datasheet
NavigationUHF (1GHz ~ 2GHz)1.575GHz-Ceramic Patch12-2.5dBic-LNA, FilterU.FL (UMCC), IPEX MHF1-Solder0.138" (3.50mm)GPS
2,110
Cart +
RFQ
A.01.C.301111
Taoglas
1
$51.0600
Datasheet
NavigationUHF (1GHz ~ 2GHz)1.575GHz1.575GHz ~ 1.576GHzDome12-32dBic-Cable - 3m, LNA, FilterSMA MaleIP67, IP69KPanel Mount1.142" (29.00mm)GPS
2,192
Cart +
RFQ
WLA.01
Taoglas
1
$13.6200
Datasheet
802.15.4, Bluetooth, WiFiUHF (2GHz ~ 3GHz)2.4GHz2.4GHz ~ 2.5GHzChip12-2.5dBi--Solder-Surface Mount0.020" (0.50mm)Bluetooth, WLAN, Zigbee™
3,628
Cart +
RFQ
PCS.06.A
Taoglas
1
$4.3400
Datasheet
CellularWide Band700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.6GHz698MHz ~ 960MHz, 1.71GHz ~ 2.69GHzChip7--7dB, -6dB-0.21dBi, 0.77dBi, 0.61dBi, 3.05dBi, 2.92dBi, 3.17dBi, 3.72dBi5 W-Solder-Surface Mount0.118" (3.00mm)CDMA, DCS, EDGE, GPRS, GSM, HSDPA, PCS, UMTS, WCDMA
1,564
Cart +
RFQ
LA.02
Taoglas
1
$6.5300
Datasheet
802.15.4, Bluetooth, WiFiUHF (2GHz ~ 3GHz)2.4GHz2.4GHz ~ 2.5GHzChip12-1dBi--Solder-Surface Mount0.079" (2.00mm)Bluetooth, Wi-Fi, Zigbee™
4,938
Cart +
RFQ
GGBLA.01.A
Taoglas
1
$13.6200
Datasheet
NavigationUHF (1GHz ~ 2GHz)1.561GHz, 1.575GHz, 1.602GHz1.598GHz ~ 1.608GHzChip32-25dB3.2dBi, 2.6dBi, 2.8dBi--Solder-Surface Mount0.020" (0.50mm)Beidou, GLONASS, GPS
1,000
Cart +
RFQ
GW.34.5153
Taoglas
1
$2.8500
Datasheet
WiFiUHF (2GHz ~ 3GHz)2.45GHz2.4GHz ~ 2.5GHzWhip, Tilt1--4.22dBi, 5.89dBi1 W-RP-SMA Male-Connector Mount7.795" (198.00mm)Wi-Fi
7,186
Cart +
RFQ
UWC.20
Taoglas
1
$3.8400
Datasheet
-SHF (f > 4GHz)4.05GHz, 7.1GHz, 8.5GHz3.1GHz ~ 5GHz, 6.2GHz ~ 8GHz, 8GHz ~ 9GHzChip32, 3-6dB, -10dB6dBi, 3.5dBi, 2.5dBi10 W-Solder-Surface Mount0.118" (3.00mm)UWB
4,928
Cart +
RFQ
FXP70.07.0053A
Taoglas
1
$3.5200
Datasheet
802.15.4, Bluetooth, WiFiUHF (2GHz ~ 3GHz)2.4GHz2.4GHz ~ 2.483.5GHzFlat Patch11.5-1.1dBi5 W-U.FL (UMCC), IPEX MHF1-Adhesive0.003" (0.08mm)Bluetooth, WLAN, Zigbee™
2,084
Cart +
RFQ
SWLP.2450.12.4.B.02
Taoglas
1
$8.1100
Datasheet
802.15.4, WiFiUHF (2GHz ~ 3GHz)2.4GHz2.4GHz ~ 2.5GHzCeramic Patch13-2dBi--Solder-Surface Mount0.157" (4.00mm)WLAN, Zigbee™
3,635
Cart +
RFQ
SGGP.18.4.A.08
Taoglas
1
$6.3400
Datasheet
NavigationUHF (1GHz ~ 2GHz)1.575GHz, 1.602GHz1.574GHz ~ 1.576GHz, 1.598GHz ~ 1.607GHzCeramic Patch2--10dB2.86dBi, 3.04dBi--Solder-Surface Mount0.157" (4.00mm)Galileo, GLONASS, GPS
1,926
Cart +
RFQ
CGGP.18.4.C.02
Taoglas
1
$5.6900
Datasheet
NavigationUHF (1GHz ~ 2GHz)1.575GHz, 1.602GHz1.574GHz ~ 1.576GHzCeramic Patch22.4-7.6dB3dBi--Pin-Adhesive0.177" (4.50mm)GLONASS, GPS
6,724
Cart +
RFQ
FXP830.07.0100C
Taoglas
1
$5.8000
Datasheet
WiFiUHF (2GHz ~ 3GHz), SHF (f > 4GHz)2.4GHz, 5.4GHz2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.8GHzFlat Patch2--2.6dBi, 5dBi2 W-U.FL (UMCC), IPEX MHF1-Adhesive0.004" (0.10mm)WLAN
8,844
Cart +
RFQ
FXP830.24.0100B
Taoglas
1
$5.8000
Datasheet
Bluetooth, WiFiUHF (2GHz ~ 3GHz), SHF (f > 4GHz)2.4GHz, 5.4GHz2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.8GHzFlat Patch2--2.6dBi, 5dBi2 WCable - 100mmIPEX MHF4L-Adhesive0.004" (0.10mm)Bluetooth, Wi-Fi
5,048
Cart +
RFQ

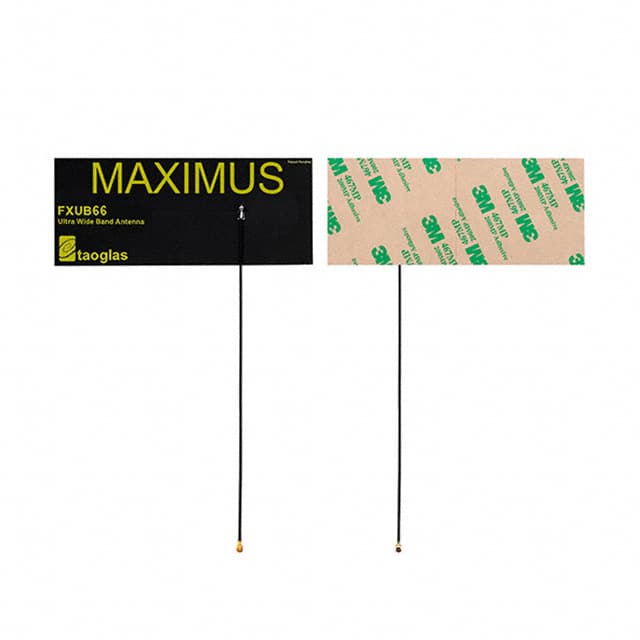

FXUB66.07.0150C
Taoglas
1
$6.0200
Datasheet
Cellular, Navigation, WiFiWide Band3.4GHz700MHz ~ 6GHzFlat Patch12.2-7dB5dBi5 W-U.FL (UMCC), IPEX MHF1-Adhesive0.008" (0.20mm)CDMA, GPS, GSM, LTE, UMTS, WLAN
6,708
Cart +
RFQ
