RF Amplifiers
RF amplifier products are used for signal gain and buffering purposes in radio frequency applications. They differ from general purpose op amps in that they are typically suitable for use at much higher frequencies and are more inclined to provide a fixed, non-adjustable amount of gain along with input or output impedances of values that match commonly used transmission line characteristic impedance values.
Product List
Total Components: 45
Product | Pricing | Datasheet | Frequency | P1dB | Gain | Noise Figure | RF Type | Voltage - Supply | Current - Supply | Test Frequency | Mounting Type | Package / Case | Supplier Device Package | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AD8354ACPZ-REEL7 ADI (Analog Devices, Inc.) | 1 $1.8900 | Datasheet | 1MHz ~ 2.7GHz | - | 17.1dB | 5.4dB | Cellular, LMDS, MMDS | 3V, 5V | 16mA ~ 31mA | 2.7GHz | Surface Mount | 8-VFDFN Exposed Pad, CSP | 8-LFCSP-VD (3x2) | 1,497 Cart + RFQ |
ADL5602ARKZ-R7 ADI (Analog Devices, Inc.) | 1 $6.0800 | Datasheet | 50MHz ~ 4GHz | 19.3dBm | 19.5dB | 3.3dB | Cellular, CATV | 5V | 89mA | 2GHz | Surface Mount | TO-243AA | SOT-89-3 | 1,119 Cart + RFQ |
ADL5535ARKZ-R7 ADI (Analog Devices, Inc.) | 1 $2.8929 100 $2.3143 500 $1.9286 | Datasheet | 20MHz ~ 1GHz | 18.9dBm | 16dB | 3.2dB | General Purpose | 4.5V ~ 5.5V | 97mA | 190MHz | Surface Mount | TO-243AA | SOT-89-3 | 1,900 Cart + RFQ |
ADL5611ARKZ-R7 ADI (Analog Devices, Inc.) | 1 $6.9200 | Datasheet | 30MHz ~ 6GHz | 21dBm | 22.2dB | 2.1dB | W-CDMA | 4.75V ~ 5.25V | 94mA | 900MHz | Surface Mount | TO-243AA | SOT-89-3 | 6,021 Cart + RFQ |
ADL5324ARKZ-R7 ADI (Analog Devices, Inc.) | 1 $9.9600 | Datasheet | 400MHz ~ 4GHz | 29.1dBm | 14.6dB | 3.8dB | ISM | 3.15V ~ 5.25V | 140mA | 2.14GHz | Surface Mount | TO-243AA | SOT-89-3 | 8,192 Cart + RFQ |
HMC311SC70ETR ADI (Analog Devices, Inc.) | 1 $12.0800 | Datasheet | 0Hz ~ 8GHz | 11dBm | 13dB | 5dB | General Purpose | 5V | 74mA | - | Surface Mount | 6-VSSOP, SC-88, SOT-363 | SC-70-6 | 6,963 Cart + RFQ |
HMC414MS8GETR ADI (Analog Devices, Inc.) | 1 $13.5200 | Datasheet | 2.2GHz ~ 2.8GHz | 27dBm | 20dB | 7dB | Bluetooth | 2.75V ~ 5V | 300mA | - | Surface Mount | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | 8-MSOP-EP | 3,938 Cart + RFQ |
ADL5606ACPZ-R7 ADI (Analog Devices, Inc.) | 1 $20.1800 | Datasheet | 1.8GHz ~ 2.7GHz | 28.9dBm | 20.6dB | 5.1dB | General Purpose | 4.75V ~ 5.25V | 362mA | 2.63GHz | Surface Mount | 16-VQFN Exposed Pad, CSP | 16-LFCSP-VQ (4x4) | 1,396 Cart + RFQ |
HMC788ALP2ETR ADI (Analog Devices, Inc.) | 1 $21.9000 | Datasheet | 0Hz ~ 10GHz | 18dBm | 12dB | 7dB | LTE, WiMax | 5V | 76mA | 6GHz ~ 10GHz | Surface Mount | 6-VDFN Exposed Pad, CSP | 6-LFCSP (2x2) | 9,582 Cart + RFQ |

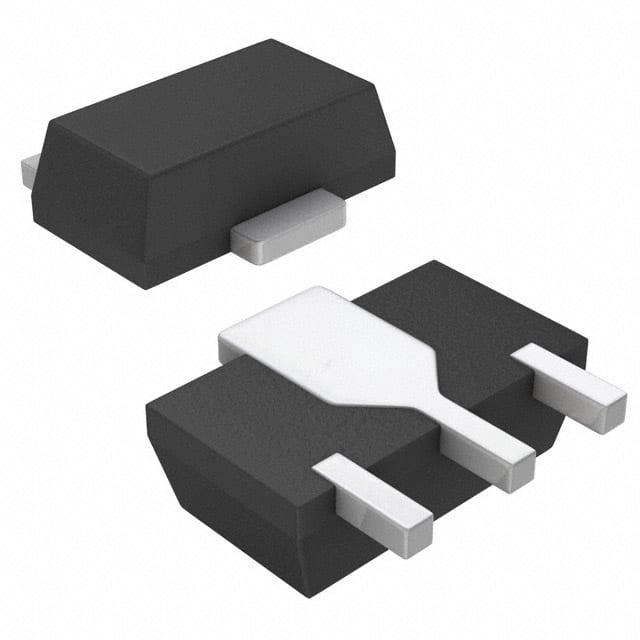

HMC741ST89E ADI (Analog Devices, Inc.) | 1 $12.5500 | Datasheet | 50MHz ~ 3GHz | 16dBm | 19dB | 2.5dB | General Purpose | 5V | 96mA | - | Surface Mount | TO-243AA | SOT-89 | 6,719 Cart + RFQ |
HMC625BLP5E ADI (Analog Devices, Inc.) | 1 $29.7800 | Datasheet | 0Hz ~ 6GHz | 19dBm | 13dB | 6dB | VSAT | 5V | 87.5mA | 0Hz ~ 3GHz | Surface Mount | 32-VFQFN Exposed Pad | 32-QFN (5x5) | 3,851 Cart + RFQ |
HMC788ALP2E ADI (Analog Devices, Inc.) | 1 $4.1295 100 $3.3036 500 $2.7530 | Datasheet | 0Hz ~ 10GHz | 18dBm | 12dB | 7dB | LTE, WiMax | 5V | 76mA | 6GHz ~ 10GHz | Surface Mount | 6-VDFN Exposed Pad, CSP | 6-LFCSP (2x2) | 590 Cart + RFQ |
HMC903LP3ETR ADI (Analog Devices, Inc.) | 1 $57.7500 100 $46.2000 500 $38.5000 | Datasheet | 6GHz ~ 17GHz | 13dBm | 18dB | 2.2dB | General Purpose | 3.5V | 110mA | - | Surface Mount | 16-VFQFN Exposed Pad | 16-QFN (3x3) | 10,200 Cart + RFQ |
HMC903 ADI (Analog Devices, Inc.) | 1 $46.7360 | Datasheet | 6GHz ~ 18GHz | 16dBm | 19dB | 1.6dB | General Purpose | 3.5V | 90mA | 6GHz ~ 18GHz | Surface Mount | Die | Die | 5,335 Cart + RFQ |
HMC962LC4TR ADI (Analog Devices, Inc.) | 1 $66.2300 | Datasheet | 7.5GHz ~ 26.5GHz | 13dBm | 13dB | 2.5dB | General Purpose | 3.5V | 70mA | - | Surface Mount | 24-TFCQFN Exposed Pad | 24-CQFN (4x4) | 9,370 Cart + RFQ |
HMC3587LP3BE ADI (Analog Devices, Inc.) | 1 $32.0600 | Datasheet | 4GHz ~ 10GHz | 11dBm | 14.5dB | 4.5dB | General Purpose | 5V | 47mA | 4GHz ~ 5GHz | Surface Mount | 12-VFQFN Exposed Pad | 12-SMT (3x3) | 2,844 Cart + RFQ |
HMC963LC4TR ADI (Analog Devices, Inc.) | 1 $69.3800 | Datasheet | 6GHz ~ 26.5GHz | 10dBm | 22dB | 2.5dB | General Purpose | 3.5V | 45mA | - | Surface Mount | 24-TFCQFN Exposed Pad | 24-CQFN (4x4) | 3,114 Cart + RFQ |
HMC441LC3BTR ADI (Analog Devices, Inc.) | 1 $276.9231 | Datasheet | 6GHz ~ 18GHz | 20dBm | 14dB | 4.5dB | General Purpose | 5V | 115mA | - | Surface Mount | 12-VFCQFN Exposed Pad | 12-CSMT (3x3) | 100,000 Cart + RFQ |
HMC1131LC4TR ADI (Analog Devices, Inc.) | 1 $83.2300 | Datasheet | 24GHz ~ 35GHz | 24dBm | 24dB | - | VSAT | 5V | 225mA | 24GHz ~ 27GHz | Surface Mount | 24-VFQFN Exposed Pad | 24-QFN (4x4) | 8,078 Cart + RFQ |
HMC633LC4TR ADI (Analog Devices, Inc.) | 1 $84.1800 | Datasheet | 5.5GHz ~ 17GHz | 23dBm | 30dB | 10dB | General Purpose | 5V | 180mA | - | Surface Mount | 24-TFCQFN Exposed Pad | 24-CQFN (4x4) | 6,879 Cart + RFQ |
