RF Amplifiers
RF amplifier products are used for signal gain and buffering purposes in radio frequency applications. They differ from general purpose op amps in that they are typically suitable for use at much higher frequencies and are more inclined to provide a fixed, non-adjustable amount of gain along with input or output impedances of values that match commonly used transmission line characteristic impedance values.
Product List
Total Components: 17
Product | Pricing | Datasheet | Frequency | P1dB | Gain | Noise Figure | RF Type | Voltage - Supply | Current - Supply | Test Frequency | Mounting Type | Package / Case | Supplier Device Package | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
GVA-63+ Mini-Circuits | 1 $2.7300 | Datasheet | 10MHz ~ 6GHz | 15.9dBm | 15.9dB | 4.6dB | CATV, DBS, LTE, MMDS, Wireless LAN | 4.8V ~ 5.2V | 69mA | 800MHz | Surface Mount | TO-243AA | SOT-89 | 4,234 Cart + RFQ |
PSA-5453+ Mini-Circuits | 1 $3.2600 | Datasheet | 50MHz ~ 4GHz | 20.1dBm | 10.2dB | 1.6dB | Cellular, GSM, ISM, LTE, WCDMA, WiMAX, WLAN | 3V | 60mA | 4GHz | Surface Mount | 6-VSSOP, SC-88, SOT-363 | SC-70-6 | 1,555 Cart + RFQ |
PHA-1+ Mini-Circuits | 1 $3.4700 | Datasheet | 50MHz ~ 6GHz | 22.7dBm | 9.7dB | 3.5dB | CATV, DBS, LTE, MMDS, Wireless LAN | 4.8V ~ 5.2V | 146mA | 3GHz ~ 4GHz | Surface Mount | TO-243AA | SOT-89 | 2,720 Cart + RFQ |
ERA-2SM+ Mini-Circuits | 1 $4.1550 100 $3.3240 500 $2.7700 | Datasheet | 0Hz ~ 6GHz | 13.1dBm | 10.7dB | 3.4dB | Cellular, CATV, DBS, PCS, WLAN | 3.2V ~ 3.6V | 40mA | 100MHz | Surface Mount | 4-SMD, Gull Wing | - | 8 Cart + RFQ |
PGA-103+ Mini-Circuits | 1 $2.0325 100 $1.6260 500 $1.3550 | Datasheet | 50MHz ~ 4GHz | 23.2dBm | 18dB | 1.5dB | CATV, Cellular, DBS, MMDS, PCS, WLAN, Wireless LAN | 4.8V ~ 3V, 5.2V | 97mA | 4GHz | Surface Mount | TO-243AA | SOT-89 | 40,605 Cart + RFQ |
PGA-105+ Mini-Circuits | 1 $2.0700 100 $1.6560 500 $1.3800 | Datasheet | 40MHz ~ 2.6GHz | 20.9dBm | 15.9dB | 2.1dB | CATV, DBS, LTE, MMDS, Wireless LAN | 4.8V ~ 5.2V | 63mA | 40MHz | Surface Mount | TO-243AA | SOT-89 | 12 Cart + RFQ |
TSS-53LNB+ Mini-Circuits | 1 $4.9000 | Datasheet | 500MHz ~ 5GHz | 21dBm | 18.7dB | 1.7dB | General Purpose | 4.8V ~ 5.2V | 82mA | 2GHz | Surface Mount | 12-VQFN Exposed Pad | 12-MCLP (3x3) | 7,755 Cart + RFQ |
GALI-74+ Mini-Circuits | 1 $3.1305 100 $2.5044 500 $2.0870 | Datasheet | 0Hz ~ 1GHz | 19.2dBm | 13.4dB | 2.7dB | Cellular | 4.3V ~ 5.3V | 80mA | 100MHz | Surface Mount | TO-243AA | SOT-89 | 44 Cart + RFQ |
LHA-83W+ Mini-Circuits | 1 $10.1800 | Datasheet | 50MHz ~ 8GHz | 23.8dBm | 12.5dB | 4.9dB | LTE, Radar, SATCOM, WiFi, WiMAX, WLAN | 8.5V ~ 5V, 9V | 105mA | 2GHz | Surface Mount | 12-VQFN Exposed Pad | 12-MCLP (3x3) | 1,571 Cart + RFQ |
GVA-123+ Mini-Circuits | 1 $10.6300 | Datasheet | 10MHz ~ 12GHz | 16.3dBm | 7.1dB | 6.9dB | LTE, MMDS, Wireless LAN | 4.8V ~ 5.2V | 52mA | 850MHz | Surface Mount | TO-243AA | SOT-89 | 4,581 Cart + RFQ |

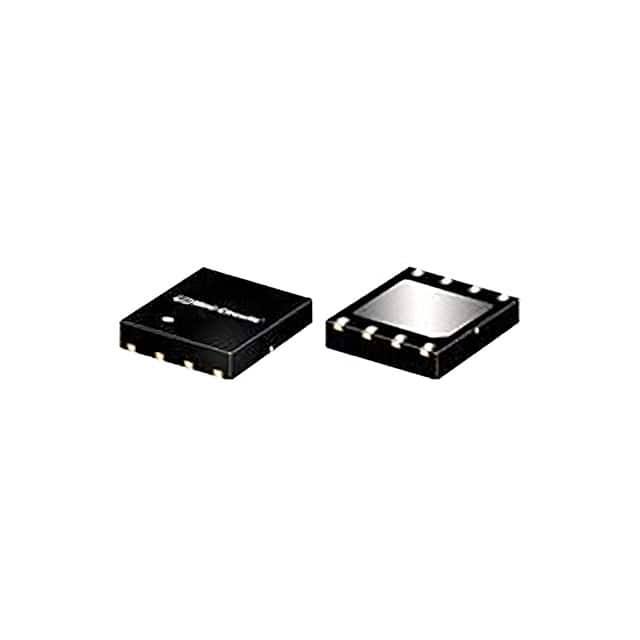

PHA-202+ Mini-Circuits | 1 $10.9600 | Datasheet | 30MHz ~ 2.7GHz | 30.4dBm | 12.7dB | 5.4dB | CATV, LTE | 11V | 350mA | 1GHz | Surface Mount | 8-TDFN Exposed Pad | 8-DFN (4.9x6) | 6,525 Cart + RFQ |

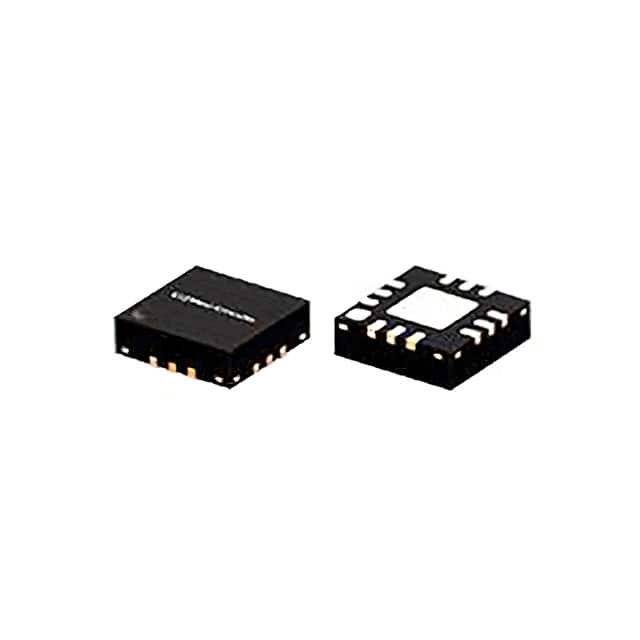

PMA3-83LN+ Mini-Circuits | 1 $13.0200 | Datasheet | 500MHz ~ 8GHz | 20.7dBm | 19.2dB | 2.2dB | LTE, Radar, SATCOM, UMTS, WiFi, WiMAX, WLAN | 5V, 6V | 77mA | 2GHz | Surface Mount | 12-VQFN Exposed Pad | 12-MCLP (3x3) | 5,242 Cart + RFQ |
PHA-13LN+ Mini-Circuits | 1 $16.2500 100 $13.0000 500 $10.8333 | Datasheet | 1MHz ~ 1GHz | 24.5dBm | 20.1dB | 1.2dB | CATV, Cellular | 3V, 5V | 138.9mA | 500MHz | Surface Mount | TO-243AA | SOT-89 | 124 Cart + RFQ |
PHA-13HLN+ Mini-Circuits | 1 $15.2174 100 $12.1739 500 $10.1449 | Datasheet | 1MHz ~ 1GHz | 28.7dBm | 20.4dB | 1.4dB | CATV, Cellular | 8V | 234.1mA | 5.02GHz | Surface Mount | TO-243AA | SOT-89 | 5 Cart + RFQ |
PHA-23LN+ Mini-Circuits | 1 $14.2000 | Datasheet | 30MHz ~ 2GHz | 24.1dBm | 18.9dB | 1.6dB | CATV, Cellular | 3V, 5V | 141.7mA | 500MHz | Surface Mount | TO-243AA | SOT-89 | 6,763 Cart + RFQ |
PHA-23HLN+ Mini-Circuits | 1 $15.1800 | Datasheet | 30MHz ~ 2GHz | 28.4dBm | 19.5dB | 1.9dB | CATV, Cellular | 8V | 235mA | 1GHz | Surface Mount | TO-243AA | SOT-89 | 7,403 Cart + RFQ |
PMA2-153LN+ Mini-Circuits | 1 $20.8600 | Datasheet | 500MHz ~ 15GHz | 15.3dBm | 12.5dB | 3.8dB | LTE, Radar, SATCOM, UMTS, WiFi, WiMAX, WLAN | 5V, 6V | 66mA | 500MHz | Surface Mount | 8-TFDFN Exposed Pad | MC1631-1 | 7,800 Cart + RFQ |
