RF Amplifiers
RF amplifier products are used for signal gain and buffering purposes in radio frequency applications. They differ from general purpose op amps in that they are typically suitable for use at much higher frequencies and are more inclined to provide a fixed, non-adjustable amount of gain along with input or output impedances of values that match commonly used transmission line characteristic impedance values.
Product List
Total Components: 16
Product | Pricing | Datasheet | Frequency | P1dB | Gain | Noise Figure | RF Type | Voltage - Supply | Current - Supply | Test Frequency | Mounting Type | Package / Case | Supplier Device Package | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MAAL-007304-TR3000 MACOM Technology Solutions | 1 $2.4500 | Datasheet | 500MHz ~ 3GHz | - | 25.5dB | 0.7dB | General Purpose | 3V ~ 5V | 11.5mA | - | Surface Mount | SOT-23-6 | SOT-26 | 5,337 Cart + RFQ |
MAAL-010570-TR3000 MACOM Technology Solutions | 1 $3.5800 | Datasheet | 100MHz ~ 3.5GHz | 18.6dBm | 14.3dB | 0.95dB | General Purpose | 3V ~ 5V | 60mA | 2GHz | Surface Mount | 6-TSSOP, SC-88, SOT-363 | SC70-6LD (SOT-363) | 9,397 Cart + RFQ |
MAAL-010704-TR3000 MACOM Technology Solutions | 1 $55.3847 100 $44.3077 500 $36.9231 | Datasheet | 100MHz ~ 3.5GHz | 22.2dBm | 16dB | 0.8dB | General Purpose | 3V ~ 5V | 60mA | - | Surface Mount | 6-TSSOP, SC-88, SOT-363 | SC-70-6 (SOT-363) | 450 Cart + RFQ |
MAAL-011134-TR3000 MACOM Technology Solutions | 1 $1.2495 100 $0.9996 500 $0.8330 | Datasheet | 700MHz ~ 6GHz | 15dBm | 15dB | 0.85dB | 802.11ac | 3V ~ 5V | 60mA | 5.8GHz | Surface Mount | 8-VFDFN Exposed Pad | 8-PDFN (2x2) | 1,108 Cart + RFQ |
MAAL-010706-TR3000 MACOM Technology Solutions | 1 $6.9400 | Datasheet | 1.4GHz ~ 4GHz | 19dBm | 17.5dB | 0.6dB | General Purpose | 3V | 80mA | - | Surface Mount | 8-VFDFN Exposed Pad | 8-PDFN (2x2) | 3,406 Cart + RFQ |
MAAL-011078-TR1000 MACOM Technology Solutions | 1 $7.6300 | Datasheet | 700MHz ~ 6GHz | 17.5dBm | 23dB | 0.35dB | - | 3V ~ 5V | 50mA | 1.9GHz | Surface Mount | 8-VFDFN Exposed Pad | 8-PDFN (2x2) | 9,758 Cart + RFQ |
MAAM-011101-TR1000 MACOM Technology Solutions | 1 $10.9200 | Datasheet | 4GHz ~ 20GHz | 18dBm | 16dB | 4dB | General Purpose | 5V ~ 12V | 45mA | - | Surface Mount | 6-WFDFN Exposed Pad | 6-TDFN (1.5x1.2) | 4,884 Cart + RFQ |
MAAM-011100-TR1000 MACOM Technology Solutions | 1 $10.9200 | Datasheet | 400MHz ~ 20GHz | 15dBm | 12dB | 5dB | General Purpose | 5V | 70mA | - | Surface Mount | 6-WFDFN Exposed Pad | 6-TDFN (1.5x1.2) | 1,456 Cart + RFQ |
MAAL-011130-TR3000 MACOM Technology Solutions | 1 $15.3700 | Datasheet | 2GHz ~ 18GHz | 14dBm | 21dB | 1.4dB | - | 3.3V ~ 5V | - | 10GHz | Surface Mount | 8-VFDFN Exposed Pad | 8-PDFN (2x2) | 6,202 Cart + RFQ |
MAAL-011129-TR1000 MACOM Technology Solutions | 1 $51.3600 | Datasheet | 18GHz ~ 31.5GHz | 16dBm | 23dB | 2.5dB | ISM, VSAT | 3V ~ 5V | 50mA | 24GHz | Surface Mount | 8-VFDFN Exposed Pad | 8-PDFN (2x2) | 2,435 Cart + RFQ |
MAAP-011246-TR0500 MACOM Technology Solutions | 1 $86.4700 | Datasheet | 27.5GHz ~ 31GHz | 30dBm | 22dB | - | VSAT | 6V | 1.4A | - | Surface Mount | 32-LFQFN Exposed Pad | 32-AQFN (5x5) | 2,381 Cart + RFQ |
MAAM-011109-TR1000 MACOM Technology Solutions | 1 $87.4700 | Datasheet | 10MHz ~ 40GHz | 17dBm | 13dB | 3.5dB | General Purpose | ±5V | 190mA | - | Surface Mount | 9-LLGA | 9-LGA (5x5) | 1,385 Cart + RFQ |
MAAP-011233-TR0500 MACOM Technology Solutions | 1 $88.9400 | Datasheet | 28.5GHz ~ 31GHz | 36dBm | 25dB | - | VSAT | 6V | 2A | 30GHz | Surface Mount | 32-LFQFN Exposed Pad | 32-AQFN (5x5) | 6,769 Cart + RFQ |
NPA1003QA MACOM Technology Solutions | 1 $56.1100 | Datasheet | 20MHz ~ 1.5GHz | 38.5dBm | 18dB | 2dB | General Purpose | 28V | 100mA | 1GHz | Surface Mount | 16-VQFN Exposed Pad | 16-QFN (4x4) | 2,252 Cart + RFQ |
MAAL-011141-TR0500 MACOM Technology Solutions | 1 $136.2700 | Datasheet | 0Hz ~ 28GHz | 12dBm | 17.5dB | 3.4dB | Radar | 5V ~ 6V | 60mA ~ 100mA | 26.5GHz | Surface Mount | 32-LFQFN Exposed Pad | 32-AQFN (5x5) | 7,982 Cart + RFQ |

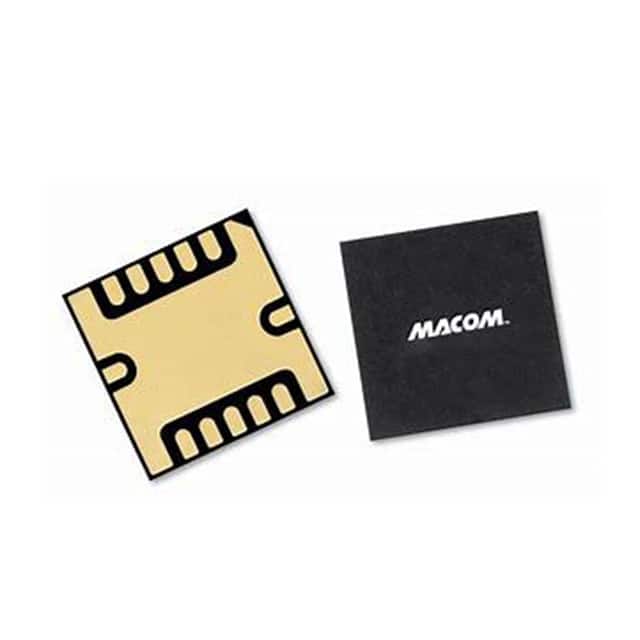

MAAM-011275-DIE MACOM Technology Solutions | 1 $127.8280 | Datasheet | 30KHz ~ 40GHz | 21dBm | 16dB | 6.8dB | General Purpose | 3V ~ 8V | 200mA | 22GHz | Surface Mount | Die | Die | 9,509 Cart + RFQ |
