Balun
A Balun is a device designed to connect two circuits by converting or unconverting balanced and unbalanced loads. The characteristics are frequency range, impedance -unbalanced/balanced, phase difference, insertion loss, and return loss. The frequency range is from 10kHz to 23.6GHz with an impedance from 1:1 to 100/100Ohm and a phase difference from -155° ±15° to 195°.
Product List
Total Components: 26
| Product | Pricing | Datasheet | Frequency Range | Impedance - Unbalanced/Balanced | Phase Difference | Insertion Loss (Max) | Return Loss (Min) | Package / Case | Mounting Type | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|
 TC1-1-13MX+ Mini-Circuits | 1 $2.4179 100 $1.9343 500 $1.6119 | Datasheet | 4.5MHz ~ 3GHz | 50 / 50Ohm | 3° | 3dB | 6.79dB | 6-SMD (5 Leads), Flat Lead | Surface Mount | 105 Cart + RFQ |
 TC1-1-13M+ Mini-Circuits | 1 $1.5000 100 $1.2000 500 $1.0000 | Datasheet | 4.5MHz ~ 3GHz | 50 / 50Ohm | 3° | 3dB | 6.79dB | 6-SMD (5 Leads), Flat Lead | Surface Mount | 32 Cart + RFQ |
TC2-1TX+ Mini-Circuits | 1 $6.4286 100 $5.1428 500 $4.2857 | Datasheet | 3MHz ~ 300MHz | 1:2 | 4° | 1.0dB | 15dB | 5-SMD Module | Surface Mount | 1,650 Cart + RFQ |
 TCM1-43X+ Mini-Circuits | 1 $6.1700 | Datasheet | 10MHz ~ 4GHz | 50 / 50Ohm | 7° | 3dB | 14.24dB | 6-SMD Module | Surface Mount | 2,630 Cart + RFQ |
 ADTL1-12+ Mini-Circuits | 1 $6.3100 | Datasheet | 20MHz ~ 1.2GHz | 50 / 50Ohm | 4° | 2.0dB | 7.49dB | 6-SMD, Flat Leads | Surface Mount | 4,896 Cart + RFQ |
TCM4-452X+ Mini-Circuits | 1 $43.7144 100 $34.9715 500 $29.1429 | Datasheet | 20MHz ~ 4.5GHz | 1:4 | 5° | 3dB | 10.63dB | 6-SMD (5 Leads), Flat Lead | Surface Mount | 10 Cart + RFQ |
ADT1-1WT+ Mini-Circuits | 1 $6.6500 | Datasheet | 400kHz ~ 800MHz | 75 / 75Ohm | 4° | 3dB | 9.75dB | 6-SMD, Flat Leads | Surface Mount | 8,266 Cart + RFQ |
ADT1.5-122+ Mini-Circuits | 1 $6.6500 | Datasheet | 20MHz ~ 1.2GHz | 1:1.5 | 1.2° | 2.0dB | 11.92dB | 6-SMD, Flat Leads | Surface Mount | 2,560 Cart + RFQ |
ADT2-1T+ Mini-Circuits | 1 $6.5100 100 $5.2080 500 $4.3400 | Datasheet | 400kHz ~ 450MHz | 1:2 | 1° | 3dB | 7.38dB | 6-SMD, Flat Leads | Surface Mount | 10 Cart + RFQ |
ADTT1-1+ Mini-Circuits | 1 $8.3078 100 $6.6462 500 $5.5385 | Datasheet | 300kHz ~ 300MHz | 50 / 50Ohm | 2° | 3dB | 6.02dB | 6-SMD, Flat Leads | Surface Mount | 49 Cart + RFQ |
ADT2-1T-1P+ Mini-Circuits | 1 $8.1000 | Datasheet | 8MHz ~ 600MHz | 1:2 | 1° | 3dB | 7.78dB | 6-SMD, Flat Leads | Surface Mount | 8,384 Cart + RFQ |
ADT16-1T+ Mini-Circuits | 1 $8.1000 | Datasheet | 1.5MHz ~ 160MHz | 1:16 | 2° | 3dB | 4.93dB | 6-SMD, Flat Leads | Surface Mount | 5,880 Cart + RFQ |
 ADT4-6WT+ Mini-Circuits | 1 $8.5500 | Datasheet | 500kHz ~ 600MHz | 1:4 | 2° | 3dB | 7.99dB | 6-SMD, Flat Leads | Surface Mount | 3,252 Cart + RFQ |
 ADT4-6T+ Mini-Circuits | 1 $8.5500 | Datasheet | 60kHz ~ 300MHz | 1:4 | 2° | 3dB | 13.83dB | 6-SMD, Flat Leads | Surface Mount | 6,617 Cart + RFQ |
ADTT1-6+ Mini-Circuits | 1 $9.2100 | Datasheet | 15kHz ~ 100MHz | 50 / 50Ohm | 2° | 3dB | 6.7dB | 6-SMD, Flat Leads | Surface Mount | 4,332 Cart + RFQ |

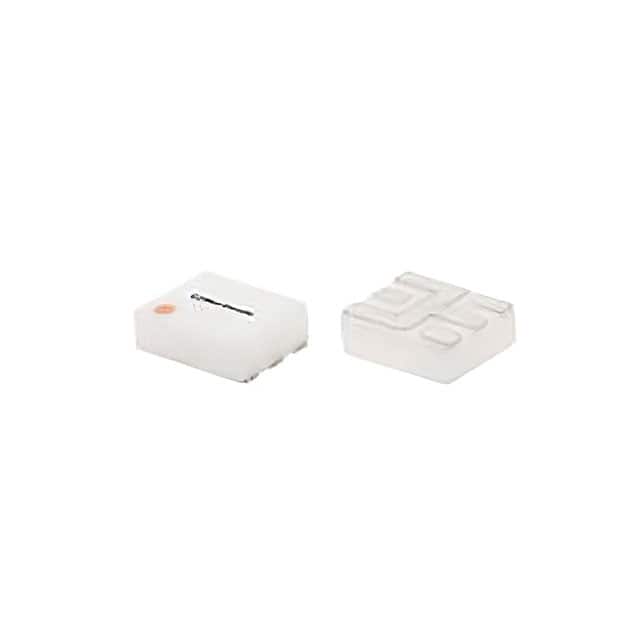

 NCR2-113+ Mini-Circuits | 1 $11.6100 | Datasheet | 3.5GHz ~ 11GHz | 1:2 | 9° | 2.7dB | 9.66dB | 6-SMD, No Lead | Surface Mount | 9,807 Cart + RFQ |
NCR2-123+ Mini-Circuits | 1 $13.9701 100 $11.1761 500 $9.3134 | Datasheet | 4.7GHz ~ 12GHz | 1:2 | 8° | 2.7dB | 16.93dB | 6-SMD, No Lead | Surface Mount | 40 Cart + RFQ |
TCM2-63WX+ Mini-Circuits | 1 $14.7761 100 $11.8208 500 $9.8507 | Datasheet | 30MHz ~ 6GHz | 1:2 | 5° | 3.9dB | 10.37dB | 6-SMD, Flat Leads | Surface Mount | 40 Cart + RFQ |
 NCS2-33+ Mini-Circuits | 1 $2.2300 | Datasheet | 1.5GHz ~ 3.1GHz | 1:2 | 5° | 1.0dB | 14.72dB | 6-SMD, No Lead | Surface Mount | 7,352 Cart + RFQ |
 TCM4-1W+ Mini-Circuits | 1 $2.6700 | Datasheet | 3MHz ~ 800MHz | 1:4 | - | 3dB | 9.01dB | 6-SMD Module | Surface Mount | 6,747 Cart + RFQ |
