Solderless Breadboards
Solderless breadboard products provide a convenient means of interconnecting electronic components in hobby, educational, or development contexts, without the need for soldering or similar fixation processes. Composed of U-shaped metallic contacts positioned beneath a grid of holes in an electrically insulating housing, component leads, and wire segments inserted through the holes in the insulator are electrically connected and retained under spring tension by the contacts beneath. Though easily reconfigurable and thus ideal for experimentation, they do not provide mechanically robust interconnections, and introduce significant parasitic circuit elements which make them ill-suited for high-speed circuits.
Product List
Total Components: 21
Product | Pricing | Datasheet | Type | Number of Terminal Strips | Number of Distribution Buses | Number of Tie Points (Total) | Number of 5-Tie Point Terminals | Number of Binding Posts | Size / Dimension | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|
GS-830 Global Specialties | 1 $8.6500 | Datasheet | Terminal Strip (No Frame) | 1 | 2 | 830 | 166 | - | 6.50" L x 2.13" W (165.1mm x 54.0mm) | 9,957 Cart + RFQ |
GS-400 Global Specialties | 1 $5.9500 | Datasheet | Terminal Strip (No Frame) | 1 | 2 | 400 | 60 | - | 3.30" L x 1.40" W (83.8mm x 35.6mm) | 9,907 Cart + RFQ |
PB-103M Global Specialties | 1 $43.7300 | Datasheet | Assembly (On Frame) | 3 | 5 | 2390 | 378 | 4 | 9.06" L x 6.89" W (230.0mm x 175.0mm) | 7,389 Cart + RFQ |
PB-104M Global Specialties | 1 $62.4800 | Datasheet | Assembly (On Frame) | 4 | 7 | 3220 | 504 | 4 | 9.45" L x 8.27" W (240.0mm x 210.0mm) | 4,738 Cart + RFQ |
GS-060 Global Specialties | 1 $2.9400 | Datasheet | Distribution Strip (No Frame) | - | 1 | 60 | - | - | 4.00" L x 0.69" W (101.6mm x 17.5mm) | 1,806 Cart + RFQ |
GS-090 Global Specialties | 1 $3.9000 | Datasheet | Distribution Strip (No Frame) | - | 1 | 90 | - | - | 6.50" L x 0.69" W (165.1mm x 17.5mm) | 2,798 Cart + RFQ |
GS-351 Global Specialties | 1 $4.3300 | Datasheet | Terminal Strip (No Frame) | 1 | - | 350 | 70 | - | 4.00" L x 1.38" W (101.6mm x 34.9mm) | 9,261 Cart + RFQ |
EXP-355 Global Specialties | 1 $7.5500 | Datasheet | Terminal Strip (No Frame) | 1 | 2 | 470 | 94 | - | 4.12" L x 2.31" W (104.6mm x 58.7mm) | 1,796 Cart + RFQ |
PB-204 Global Specialties | 1 $264.5600 | Datasheet | Assembly (On Frame) | 3 | 5 | 2250 | - | 4 | 9.80" L x 6.60" W (248.9mm x 167.6mm) | 6,440 Cart + RFQ |
GS-080 Global Specialties | 1 $3.4200 | Datasheet | Distribution Strip (No Frame) | - | 1 | 80 | - | - | 5.25" L x 0.69" W (133.4mm x 17.5mm) | 5,537 Cart + RFQ |
GS-100 Global Specialties | 1 $3.6000 | Datasheet | Distribution Strip (No Frame) | 1 | 2 | 100 | 20 | - | 6.50" L x 0.69" W (165.1mm x 17.5mm) | 4,101 Cart + RFQ |
GS-630 Global Specialties | 1 $5.9500 | Datasheet | Terminal Strip (No Frame) | 1 | - | 630 | 126 | - | 6.50" L x 1.38" W (165.1mm x 34.9mm) | 1,256 Cart + RFQ |
PB-60 Global Specialties | 1 $44.1000 | Datasheet | Assembly (On Frame) | 2 | 4 | 1680 | 256 | 4 | 6.57" L x 6.06" W (167.0mm x 154.0mm) | 3,167 Cart + RFQ |
PB-105T Global Specialties | 1 $103.0000 | Datasheet | - | - | - | - | - | - | - | 7,266 Cart + RFQ |
PB-203A Global Specialties | 1 $281.4600 | Datasheet | Assembly (On Frame) | 3 | 5 | 2250 | - | 4 | 9.80" L x 6.60" W (248.9mm x 167.6mm) | 1,414 Cart + RFQ |
EXP-350E Global Specialties | 1 $5.4000 | Datasheet | Terminal Strip (No Frame) | 1 | 2 | 270 | 46 | - | 3.25" L x 1.75" W (82.6mm x 44.5mm) | 1,326 Cart + RFQ |
GS-830T Global Specialties | 1 $9.7000 | Datasheet | Terminal Strip (No Frame) | 1 | 2 | 830 | 166 | - | 6.50" L x 2.13" W (165.1mm x 54.0mm) | 1,251 Cart + RFQ |

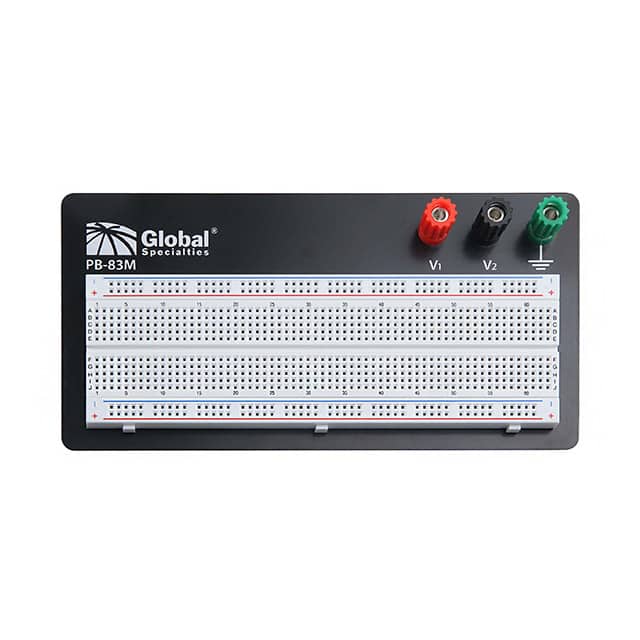

PB-83M Global Specialties | 1 $19.4500 | Datasheet | Assembly (On Frame) | 1 | 2 | 830 | 126 | 3 | 7.20" L x 3.74" W (183.0mm x 95.0mm) | 6,918 Cart + RFQ |

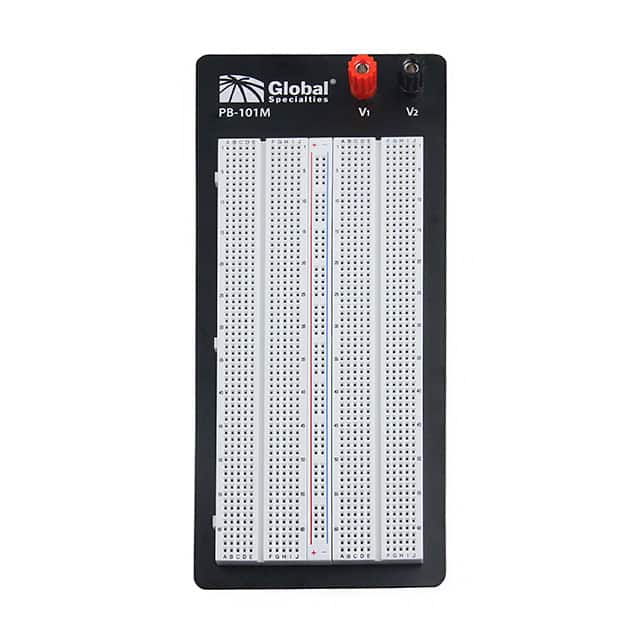

PB-101M Global Specialties | 1 $22.4500 | Datasheet | Assembly (On Frame) | 2 | 1 | 1360 | 252 | 2 | 8.46" L x 3.94" W (215.0mm x 100.0mm) | 2,839 Cart + RFQ |

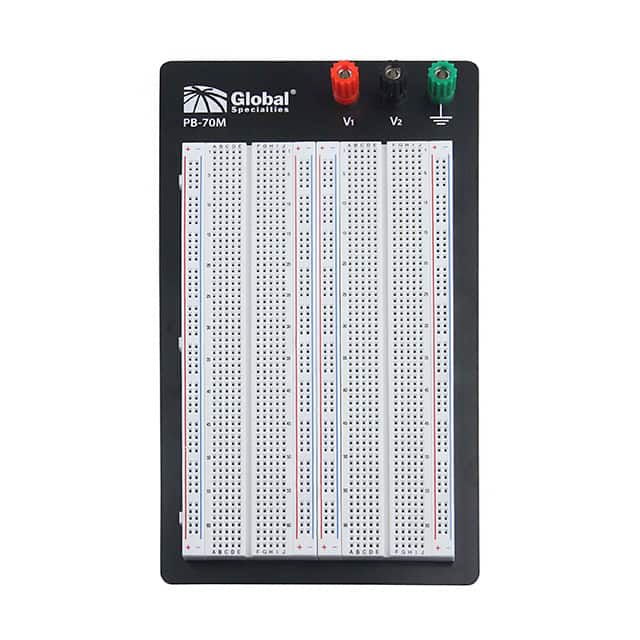

PB-70M Global Specialties | 1 $36.7500 | Datasheet | Assembly (On Frame) | 2 | 4 | 1660 | 252 | 3 | 8.46" L x 5.12" W (215.0mm x 130.0mm) | 1,146 Cart + RFQ |
