Prototype Boards Unperforated
Unperforated prototype board products are commonly used to construct customized printed circuit boards for interconnecting electronic components in a hobby or developmental context. Typically consisting of a sheet of fiberglass-reinforced epoxy resin that is coated on one or both sides with a layer of copper, materials are available pre-coated with a photosensitive material for use with photographic pattern reproduction techniques, or without such a coating to accommodate production processes based on computer-controlled machining operations.
Product List
Total Components: 99
| Product | Pricing | Datasheet | Proto Board Type | Size / Dimension | Board Thickness | Material | Stock & Quantity |
|---|---|---|---|---|---|---|---|

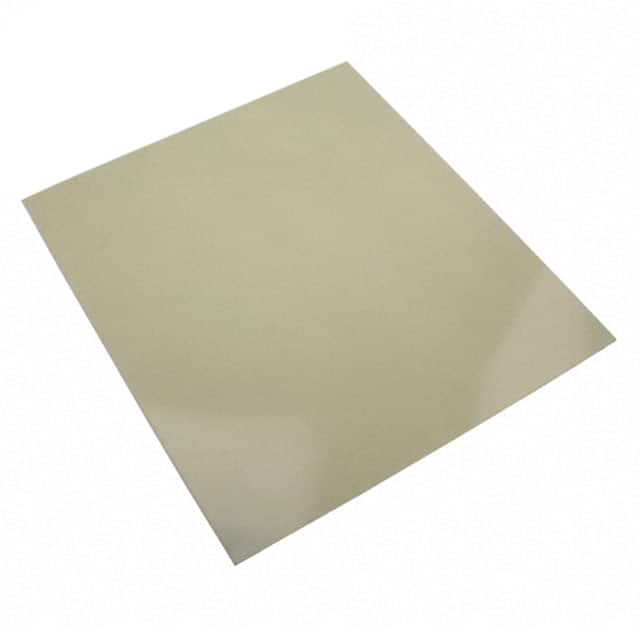

 12X12WE Vector Electronics & Technology, Inc. | 1 $18.6300 | Datasheet | Unclad (No Copper) | 12.00" x 12.00" (304.8mm x 304.8mm) | 0.062" (1.57mm) 1/16" | FR4 Epoxy Glass | 8,472 Cart + RFQ |

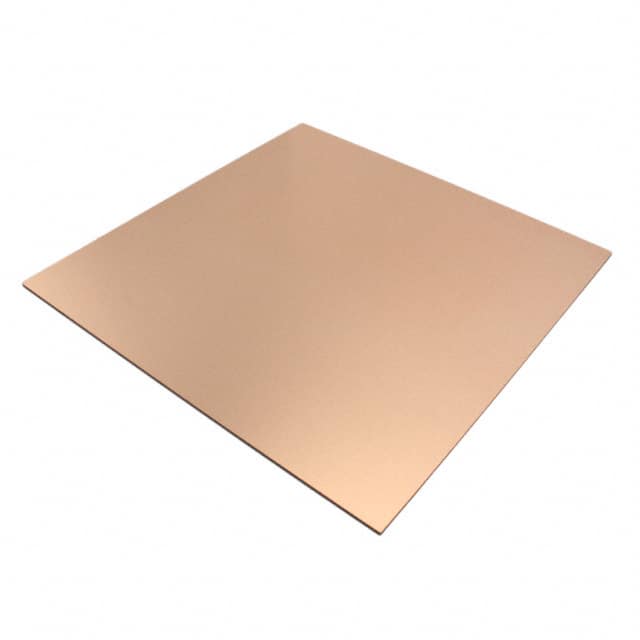

 540 MG Chemicals | 1 $10.0300 | Datasheet | Copper Clad, Uncoated | 5.00" x 3.00" (127.0mm x 76.2mm) | 0.062" (1.57mm) 1/16" | Copper Clad FR4, Double Sided, 1 oz. | 5,987 Cart + RFQ |
555 MG Chemicals | 1 $27.2200 | Datasheet | Copper Clad, Uncoated | 12.00" x 12.00" (304.8mm x 304.8mm) | 0.062" (1.57mm) 1/16" | Copper Clad FR4, Double Sided, 1 oz. | 3,518 Cart + RFQ |
503 MG Chemicals | 1 $6.8500 | Datasheet | Copper Clad, Uncoated | 5.00" x 3.00" (127.0mm x 76.2mm) | 0.062" (1.57mm) 1/16" | Copper Clad FR4, Single Sided, 1 oz. | 7,631 Cart + RFQ |
506 MG Chemicals | 1 $8.0000 | Datasheet | Copper Clad, Uncoated | 6.00" x 4.00" (152.4mm x 101.6mm) | 0.062" (1.57mm) 1/16" | Copper Clad FR4, Single Sided, 1 oz. | 8,602 Cart + RFQ |
586 MG Chemicals | 1 $9.1500 | Datasheet | Copper Clad, Uncoated | 6.00" x 4.00" (152.4mm x 101.6mm) | 0.031" (0.79mm) 1/32" | Copper Clad FR4, Single Sided, 1 oz. | 1,117 Cart + RFQ |
509 MG Chemicals | 1 $10.0300 | Datasheet | Copper Clad, Uncoated | 6.00" x 6.00" (152.4mm x 152.4mm) | 0.062" (1.57mm) 1/16" | Copper Clad FR4, Single Sided, 1 oz. | 5,780 Cart + RFQ |
 E160-3U-00 Vector Electronics & Technology, Inc. | 1 $11.3600 | Datasheet | Unclad (No Copper) | 6.30" L x 3.94" W (160.0mm x 100.1mm) | 0.063" (1.60mm) | FR4 Epoxy Glass | 6,549 Cart + RFQ |
587 MG Chemicals | 1 $11.7200 | Datasheet | Copper Clad, Uncoated | 6.00" x 4.00" (152.4mm x 101.6mm) | 0.031" (0.79mm) 1/32" | Copper Clad FR4, Double Sided, 1 oz. | 5,406 Cart + RFQ |
588 MG Chemicals | 1 $13.4000 | Datasheet | Copper Clad, Uncoated | 9.00" x 6.00" (228.6mm x 152.4mm) | 0.031" (0.79mm) 1/32" | Copper Clad FR4, Single Sided, 1 oz. | 6,383 Cart + RFQ |
589 MG Chemicals | 1 $15.6400 | Datasheet | Copper Clad, Uncoated | 9.00" x 6.00" (228.6mm x 152.4mm) | 0.031" (0.79mm) 1/32" | Copper Clad FR4, Double Sided, 1 oz. | 5,698 Cart + RFQ |
515 MG Chemicals | 1 $15.6400 | Datasheet | Copper Clad, Uncoated | 10.00" x 8.00" (254.0mm x 203.2mm) | 0.062" (1.57mm) 1/16" | Copper Clad FR4, Single Sided, 1 oz. | 8,342 Cart + RFQ |

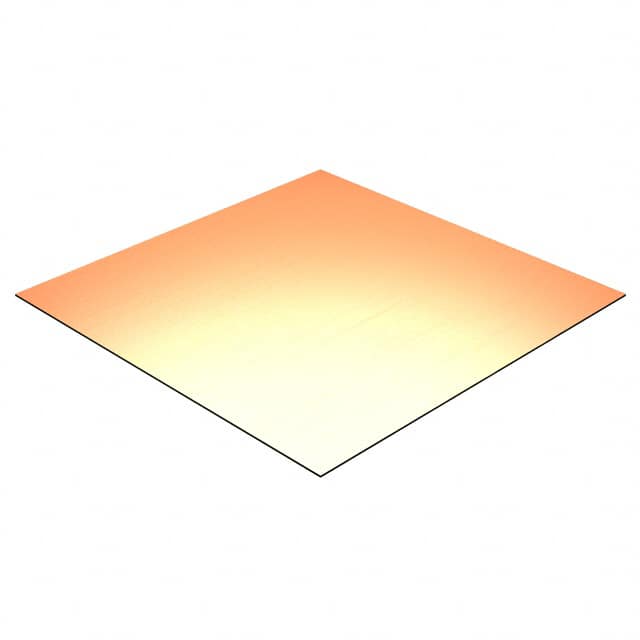

 12X12WEC1 Vector Electronics & Technology, Inc. | 1 $19.5400 | Datasheet | Copper Clad, Uncoated | 12.00" x 12.00" (304.8mm x 304.8mm) | 0.062" (1.57mm) 1/16" | Copper Clad FR4, Single Sided, 1 oz. | 5,614 Cart + RFQ |
521 MG Chemicals | 1 $21.7600 | Datasheet | Copper Clad, Uncoated | 12.00" x 12.00" (304.8mm x 304.8mm) | 0.062" (1.57mm) 1/16" | Copper Clad FR4, Single Sided, 1 oz. | 2,045 Cart + RFQ |
550 MG Chemicals | 1 $11.1500 | Datasheet | Copper Clad, Uncoated | 6.00" x 6.00" (152.4mm x 152.4mm) | 0.062" (1.57mm) 1/16" | Copper Clad FR4, Double Sided, 1 oz. | 1,385 Cart + RFQ |

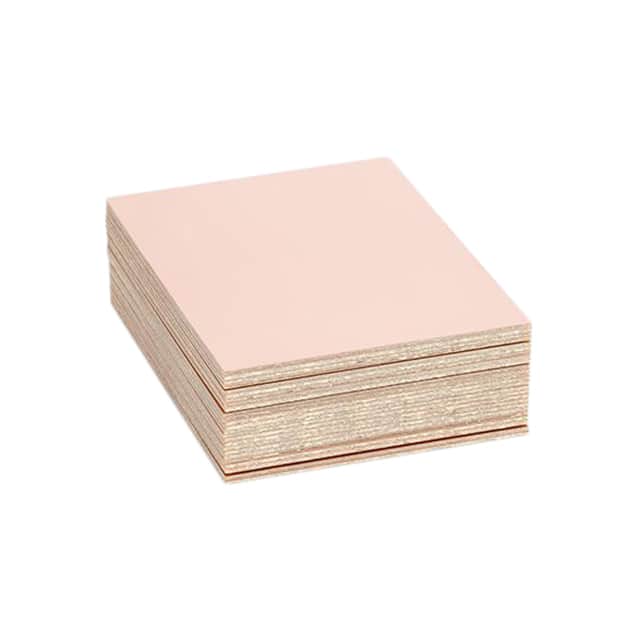

 MT1005 Bantam Tools | 1 $73.1700 | Datasheet | Copper Clad, Uncoated | 5.00" x 4.00" (127.0mm x 101.6mm) | 0.063" (1.60mm) | Copper Clad FR1, Double Sided, 1 oz. | 8,789 Cart + RFQ |
575 MG Chemicals | 1 $112.3800 | Datasheet | Copper Clad, Uncoated | 36.00" x 24.00" (914.4mm x 609.6mm) | 0.062" (1.57mm) 1/16" | Copper Clad FR4, Single Sided, 1 oz. | 2,789 Cart + RFQ |

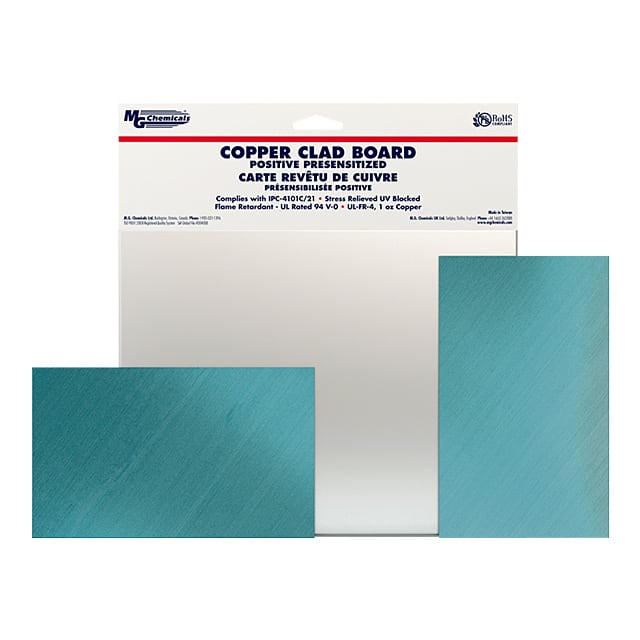

 689 MG Chemicals | 1 $25.0300 | Datasheet | Copper Clad, Positive Sensitized | 9.00" x 6.00" (228.6mm x 152.4mm) | 0.031" (0.79mm) 1/32" | Copper Clad FR4, Single Sided, 1 oz. | 4,582 Cart + RFQ |
 50-1507 Pulsar | 1 $25.6900 | Datasheet | Copper Clad, Uncoated | 8.00" x 6.00" (203.2mm x 152.4mm) | 0.031" (0.79mm) | Copper Clad FR4, Single Sided, 1/2 oz. | 4,541 Cart + RFQ |
50-1508 Pulsar | 1 $29.7800 | Datasheet | Copper Clad, Uncoated | 8.00" x 6.00" (203.2mm x 152.4mm) | 0.031" (0.79mm) | Copper Clad FR4, Double Sided, 1/2 oz. | 7,959 Cart + RFQ |
