Drill Bits, End Mills
The cutting tool products within this family are primarily intended for the production of printed circuit boards by means of a mechanical milling process, though those tools adapted for drilling holes do so equally well on boards that have been chemically etched. Characteristic of this application is a relatively small tool size in comparison to those commonly found in household or industrial use.
Product List
Total Components: 25
Product | Pricing | Datasheet | Type | Diameter - Bit | Diameter - Shank | Material | Number of Flutes | Flute Radius | Length - Flute | Length - Overall | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|
DK20002JS Jabil | 1 $11.4700 | Datasheet | End Mill, Radius | 2mm | 4mm | Carbide | 2 | 0.2mm | 4.0mm | 1.77" (45.0mm) | 2,381 Cart + RFQ |
DK01003JS Jabil | 1 $13.0700 | Datasheet | End Mill, Square | 1mm | 4mm | Carbide | 4 | - | 1.5mm | 1.77" (45.0mm) | 6,318 Cart + RFQ |
DK00403JS Jabil | 1 $13.3300 | Datasheet | End Mill, Ball | 0.4mm | 4mm | Carbide | 4 | 0.2mm | 0.4mm | 1.77" (45.0mm) | 5,446 Cart + RFQ |
DK01004JS Jabil | 1 $13.9400 | Datasheet | End Mill, Square | 0.040" (1.02mm) | 4mm | Carbide | 4 | - | 1.5mm | 1.77" (45.0mm) | 7,276 Cart + RFQ |
DK00610JS Jabil | 1 $14.6400 | Datasheet | End Mill, Ball | 0.6mm | 4mm | Carbide | 2 | 0.3mm | 0.5mm | 1.77" (45.0mm) | 1,041 Cart + RFQ |
DK00601JS Jabil | 1 $14.7100 | Datasheet | End Mill, Ball | 0.4mm | 4mm | Carbide | 2 | 0.2mm | 0.4mm | 1.77" (45.0mm) | 9,380 Cart + RFQ |
DK20004JS Jabil | 1 $14.7500 | Datasheet | End Mill, Square | 2mm | 4mm | Carbide | 4 | - | 3.0mm | 1.77" (45.0mm) | 6,775 Cart + RFQ |
DK02007JS Jabil | 1 $15.2900 | Datasheet | End Mill, Ball | 2mm | 4mm | Carbide | 2 | 1.0mm | 3.0mm | 1.77" (45.0mm) | 4,738 Cart + RFQ |
DK01005JS Jabil | 1 $15.5200 | Datasheet | End Mill, Ball | 0.040" (1.02mm) | 4mm | Carbide | 2 | 0.5mm | 2.0mm | 1.77" (45.0mm) | 2,367 Cart + RFQ |
DK10006JS Jabil | 1 $16.0500 | Datasheet | End Mill, Ball | 2mm | 4mm | Carbide | 2 | 1.0mm | 3.0mm | 1.77" (45.0mm) | 5,618 Cart + RFQ |
DK02006JS Jabil | 1 $16.0500 | Datasheet | End Mill, Ball | 2mm | 4mm | Carbide | 2 | 1.0mm | - | - | 1,991 Cart + RFQ |
DK01002JS Jabil | 1 $16.0800 | Datasheet | End Mill, Ball | 0.040" (1.02mm) | 4mm | Carbide | 2 | 0.5mm | 2.0mm | 1.77" (45.0mm) | 1,101 Cart + RFQ |

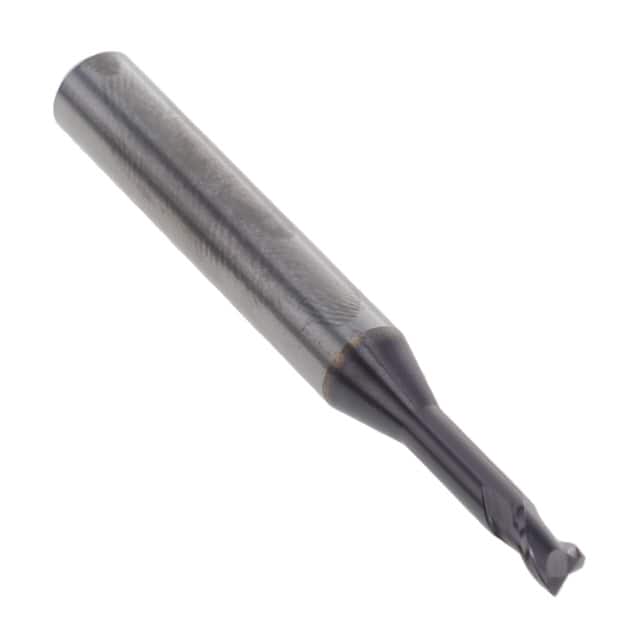

DK03017JS Jabil | 1 $16.8000 | Datasheet | End Mill, Square | 3mm | 6mm | Carbide | 2 | - | 4.0mm | - | 7,533 Cart + RFQ |

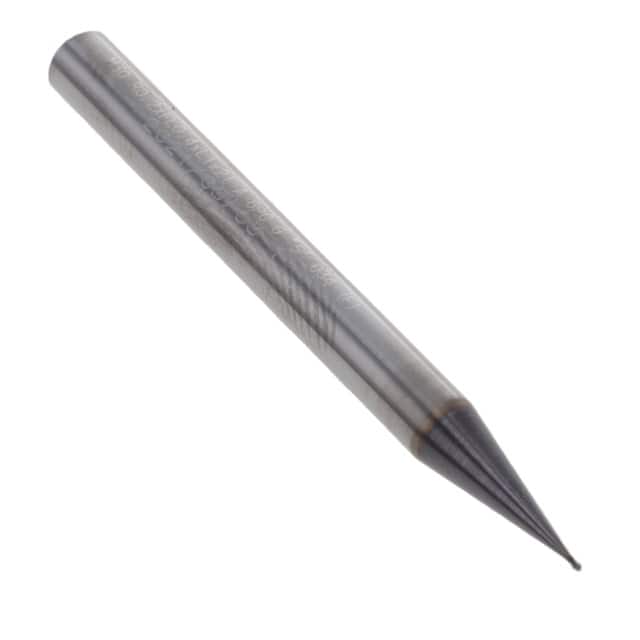

DK04003JS Jabil | 1 $17.7900 | Datasheet | End Mill, Square | 4mm | 6mm | Carbide | 4 | - | 5.0mm | 1.77" (45.0mm) | 6,360 Cart + RFQ |

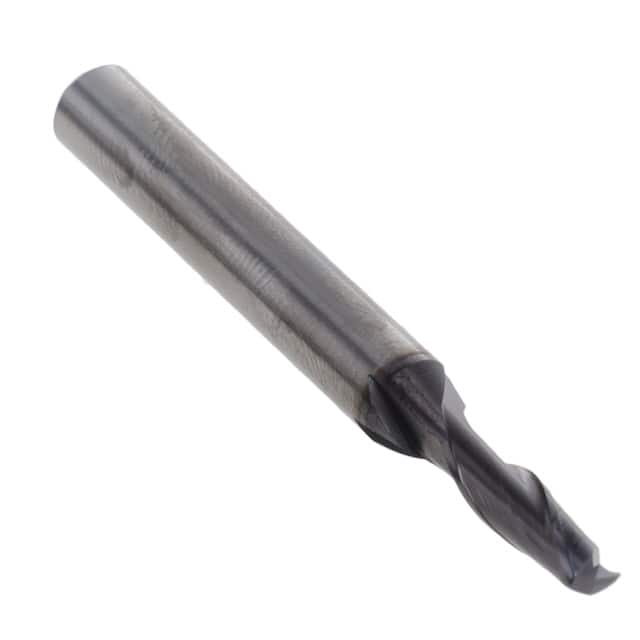

DK04009JS Jabil | 1 $20.9600 | Datasheet | End Mill, Radius | 4mm | 6mm | Carbide | 2 | 0.2mm | 12.0mm | - | 8,204 Cart + RFQ |

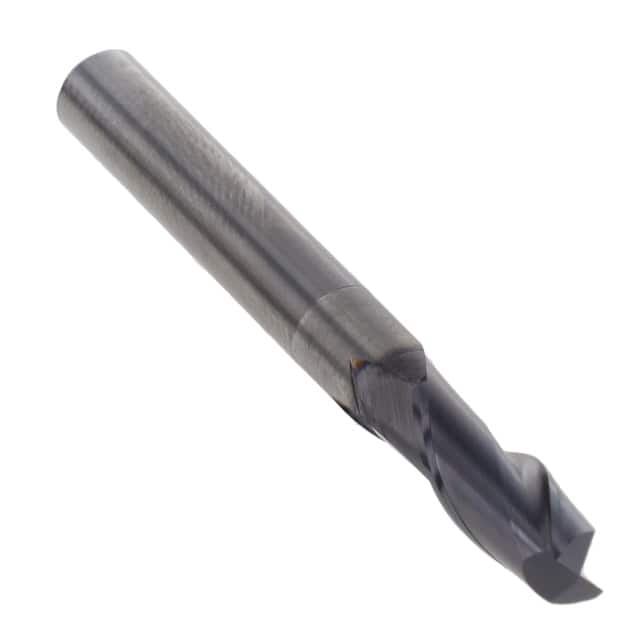

DK06034JS Jabil | 1 $21.0400 | Datasheet | End Mill, Radius | 6mm | 6mm | Carbide | 2 | 0.2mm | 15.0mm | - | 2,941 Cart + RFQ |

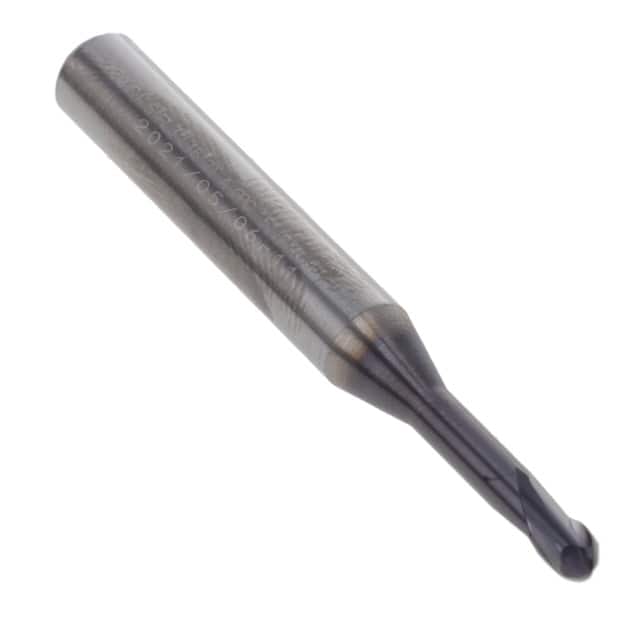

DK03001JS Jabil | 1 $21.0600 | Datasheet | End Mill, Ball | 3mm | 6mm | Carbide | 2 | 1.5mm | 3.0mm | - | 7,092 Cart + RFQ |

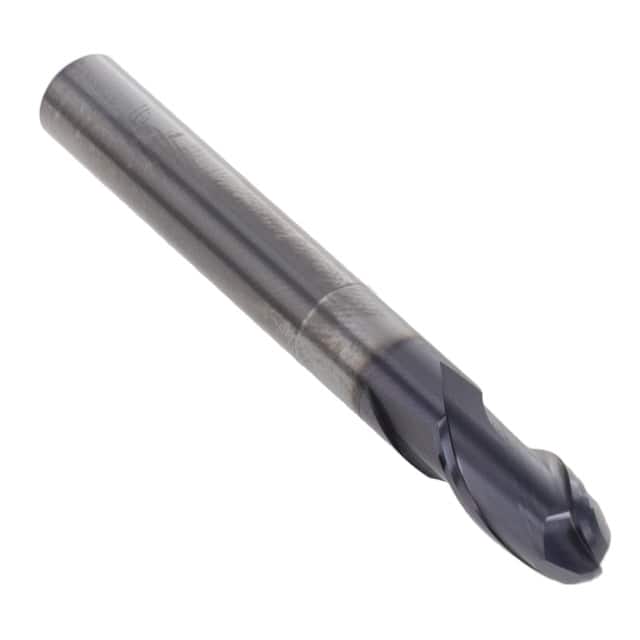

DK30001JS Jabil | 1 $21.3600 | Datasheet | End Mill, Ball | 6mm | 6mm | Carbide | 2 | 3.0mm | 12.0mm | - | 7,638 Cart + RFQ |

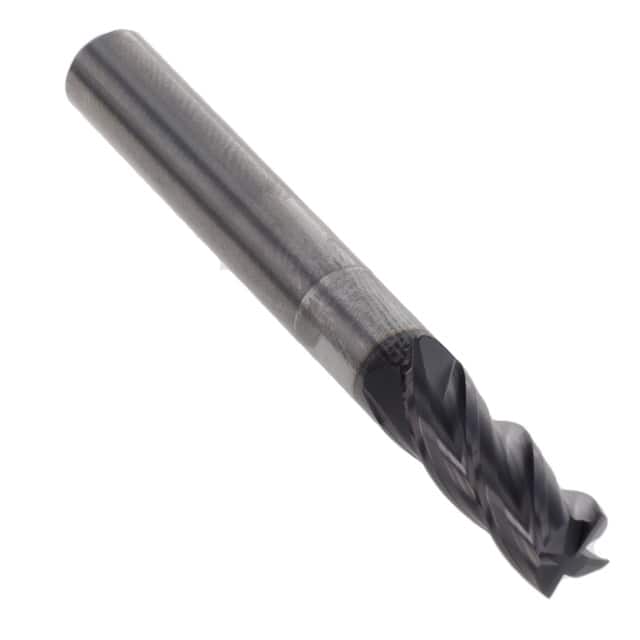

DK06032JS Jabil | 1 $22.6700 | Datasheet | End Mill, Square | 6mm | 6mm | Carbide | 4 | - | 15.0mm | - | 6,916 Cart + RFQ |

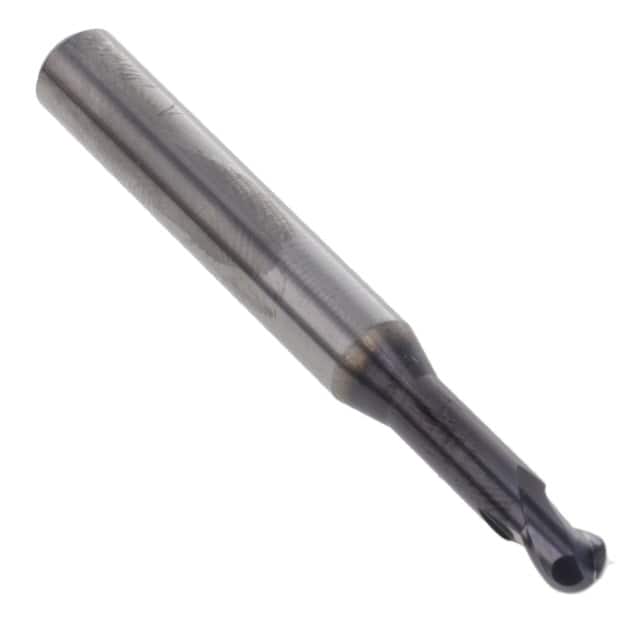

DK04001JS Jabil | 1 $24.9300 | Datasheet | End Mill, Ball | 4mm | 6mm | Carbide | 2 | 2.0mm | 4.0mm | - | 1,666 Cart + RFQ |
