DC DC Converters
DC-DC Converters convert a direct current voltage input into a different direct current voltage output. They have essentially the same wattage rating on both the input and the output, minus switching losses. DC-to-DC converters can be mounted on- or off-board. They come in a variety of inputs, outputs, and packages, and can have single or multiple output options.
Product List
Total Components: 23
| Product | Pricing | Datasheet | Type | Voltage - Input (Min) | Voltage - Input (Max) | Number of Outputs | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Efficiency | Operating Temperature | Mounting Type | Size / Dimension | Approval Agency | Standard Number | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SD-15B-12 MEAN WELL | 1 $16.4400 | Datasheet | Enclosed | 18V | 36V | 1 | 12V | - | - | - | 1.25A | 15W | 1.5 kV | ITE (Commercial) | 76% | -10°C ~ 60°C (With Derating) | Chassis Mount | 3.07" L x 2.01" W x 1.10" H (78.0mm x 51.0mm x 28.0mm) | CE | - | 7,308 Cart + RFQ |
 RSD-30G-12 MEAN WELL | 1 $36.3400 | Datasheet | Enclosed | 9V | 36V | 1 | 12V | - | - | - | 2.5A | 30W | 4 kV | ITE (Commercial), Railway | 86.5% | -40°C ~ 70°C (With Derating) | Chassis Mount | 4.45" L x 2.36" W x 0.98" H (113.0mm x 60.0mm x 25.0mm) | CE | - | 2,837 Cart + RFQ |
 RSD-30L-12 MEAN WELL | 1 $36.3400 | Datasheet | Enclosed | 18V | 72V | 1 | 12V | - | - | - | 2.5A | 30W | 4 kV | ITE (Commercial), Railway | 90% | -40°C ~ 70°C (With Derating) | Chassis Mount | 4.45" L x 2.36" W x 0.98" H (113.0mm x 60.0mm x 25.0mm) | CE | - | 3,236 Cart + RFQ |
 SD-100B-12 MEAN WELL | 1 $42.4000 | Datasheet | Enclosed | 19V | 36V | 1 | 12V | - | - | - | 8.5A | 102W | 1.5 kV | ITE (Commercial) | 75% | -10°C ~ 60°C (With Derating) | Chassis Mount | 7.83" L x 3.86" W x 1.50" H (199.0mm x 98.0mm x 38.0mm) | CE | - | 4,652 Cart + RFQ |
 RSD-60L-12 MEAN WELL | 1 $45.6200 | Datasheet | Enclosed | 18V | 72V | 1 | 12V | - | - | - | 5A | 60W | 4 kV | ITE (Commercial), Railway | 93% | -40°C ~ 70°C (With Derating) | Chassis Mount | 5.04" L x 2.36" W x 0.98" H (128.0mm x 60.0mm x 25.0mm) | CE | - | 2,244 Cart + RFQ |
RSD-60H-12 MEAN WELL | 1 $45.6200 | Datasheet | Enclosed | 40V | 160V | 1 | 12V | - | - | - | 5A | 60W | 4 kV | ITE (Commercial), Railway | 92.5% | -40°C ~ 70°C (With Derating) | Chassis Mount | 5.04" L x 2.36" W x 0.98" H (128.0mm x 60.0mm x 25.0mm) | CE | - | 5,266 Cart + RFQ |
RSD-60H-24 MEAN WELL | 1 $45.6200 | Datasheet | Enclosed | 40V | 160V | 1 | 24V | - | - | - | 2.5A | 60W | 4 kV | ITE (Commercial), Railway | 91.5% | -40°C ~ 70°C (With Derating) | Chassis Mount | 5.04" L x 2.36" W x 0.98" H (128.0mm x 60.0mm x 25.0mm) | CE | - | 9,599 Cart + RFQ |

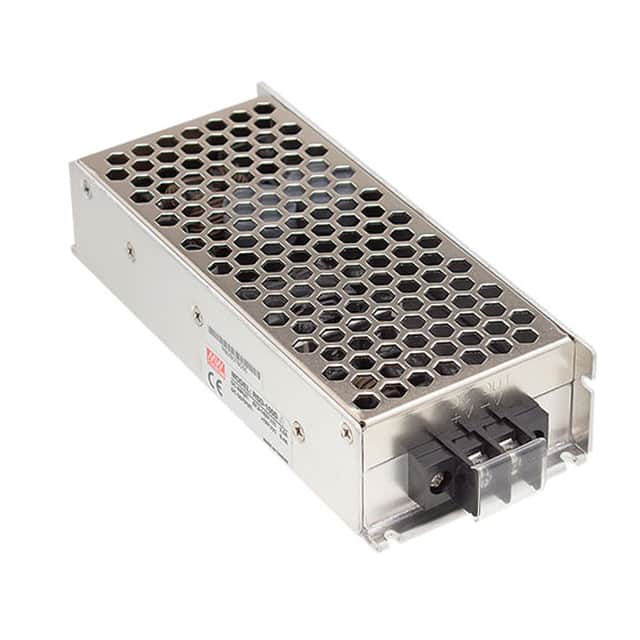

 RSD-100D-12 MEAN WELL | 1 $79.3700 | Datasheet | Enclosed | 67.2V | 143V | 1 | 12V | - | - | - | 8.4A | 101W | 4 kV | ITE (Commercial), Railway | 91% | -40°C ~ 70°C (With Derating) | Chassis Mount | 6.34" L x 2.68" W x 1.42" H (161.0mm x 68.0mm x 36.0mm) | CE | - | 7,137 Cart + RFQ |
RSD-100B-12 MEAN WELL | 1 $79.3700 | Datasheet | Enclosed | 16.8V | 31.2V | 1 | 12V | - | - | - | 8.4A | 101W | 4 kV | ITE (Commercial), Railway | 89% | -40°C ~ 70°C (With Derating) | Chassis Mount | 6.34" L x 2.68" W x 1.42" H (161.0mm x 68.0mm x 36.0mm) | CE | - | 9,669 Cart + RFQ |

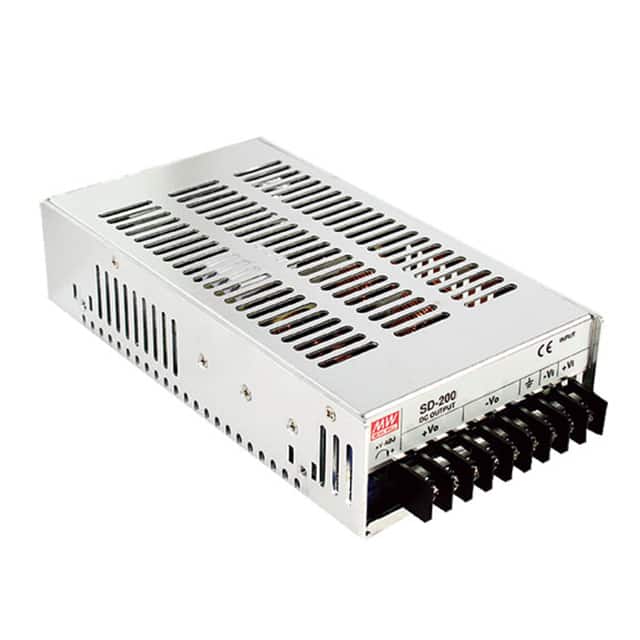

 SD-200B-12 MEAN WELL | 1 $92.1600 | Datasheet | Enclosed | 19V | 36V | 1 | 12V | - | - | - | 16.7A | 200W | 1.5 kV | ITE (Commercial) | 82% | -20°C ~ 60°C (With Derating) | Chassis Mount | 8.46" L x 4.53" W x 1.97" H (215.0mm x 115.0mm x 50.0mm) | CE | - | 9,668 Cart + RFQ |

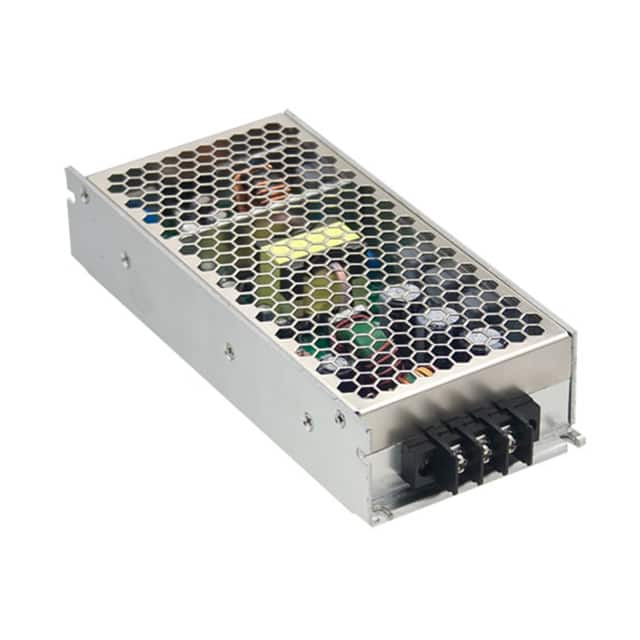

 RSD-200C-48 MEAN WELL | 1 $118.8700 | Datasheet | Enclosed | 33.6V | 62.4V | 1 | 48V | - | - | - | 4.2A | 202W | 4 kV | ITE (Commercial), Railway | 91% | -40°C ~ 70°C (With Derating) | Chassis Mount | 7.52" L x 3.39" W x 1.57" H (191.0mm x 86.0mm x 40.0mm) | CE | - | 6,761 Cart + RFQ |

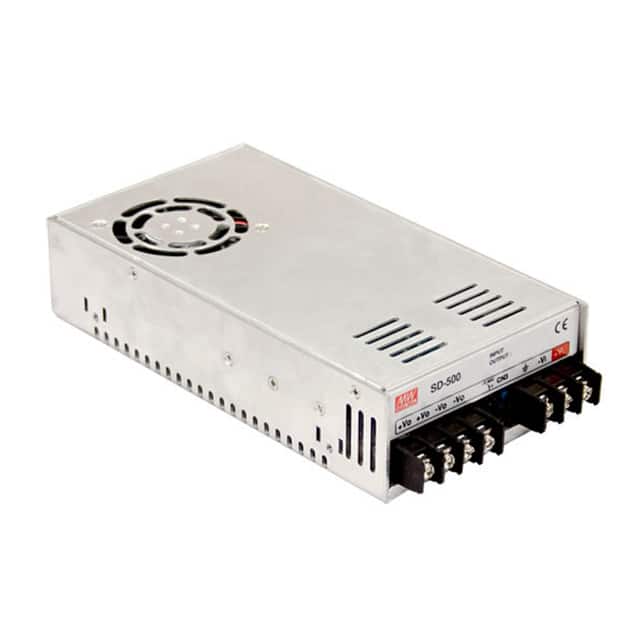

 SD-500L-24 MEAN WELL | 1 $166.2800 | Datasheet | Enclosed | 19V | 72V | 1 | 24V | - | - | - | 21A | 504W | 2 kV | ITE (Commercial) | 88% | -20°C ~ 60°C (With Derating) | Chassis Mount | 8.46" L x 4.53" W x 1.97" H (215.0mm x 115.0mm x 50.0mm) | CB, CE | - | 2,410 Cart + RFQ |

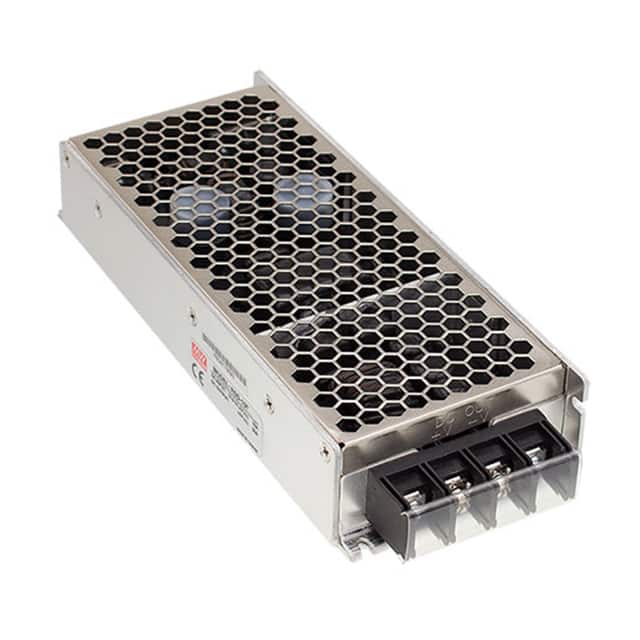

 RSD-150C-12 MEAN WELL | 1 $101.1700 | Datasheet | Enclosed | 33.6V | 62.4V | 1 | 12V | - | - | - | 12.5A | 150W | 4 kV | ITE (Commercial), Railway | 92% | -40°C ~ 70°C (With Derating) | Chassis Mount | 7.44" L x 3.03" W x 1.42" H (189.0mm x 77.0mm x 36.0mm) | CE | - | 1,226 Cart + RFQ |
 RSD-300C-24 MEAN WELL | 1 $142.5800 | Datasheet | Enclosed | 33.6V | 62.4V | 1 | 24V | - | - | - | 12.5A | 300W | 4 kV | ITE (Commercial), Railway | 91.5% | -40°C ~ 70°C (With Derating) | Chassis Mount | 8.50" L x 3.80" W x 1.57" H (216.0mm x 96.5mm x 40.0mm) | CE | - | 8,622 Cart + RFQ |
SD-15C-12 MEAN WELL | 1 $16.4400 | Datasheet | Enclosed | 36V | 72V | 1 | 12V | - | - | - | 1.25A | 15W | 1.5 kV | ITE (Commercial) | 79% | -10°C ~ 60°C (With Derating) | Chassis Mount | 3.07" L x 2.01" W x 1.10" H (78.0mm x 51.0mm x 28.0mm) | CE | - | 8,148 Cart + RFQ |
SD-15A-12 MEAN WELL | 1 $16.4400 | Datasheet | Enclosed | 9.2V | 18V | 1 | 12V | - | - | - | 1.25A | 15W | 1.5 kV | ITE (Commercial) | 72% | -10°C ~ 60°C (With Derating) | Chassis Mount | 3.07" L x 2.01" W x 1.10" H (78.0mm x 51.0mm x 28.0mm) | CE | - | 2,878 Cart + RFQ |

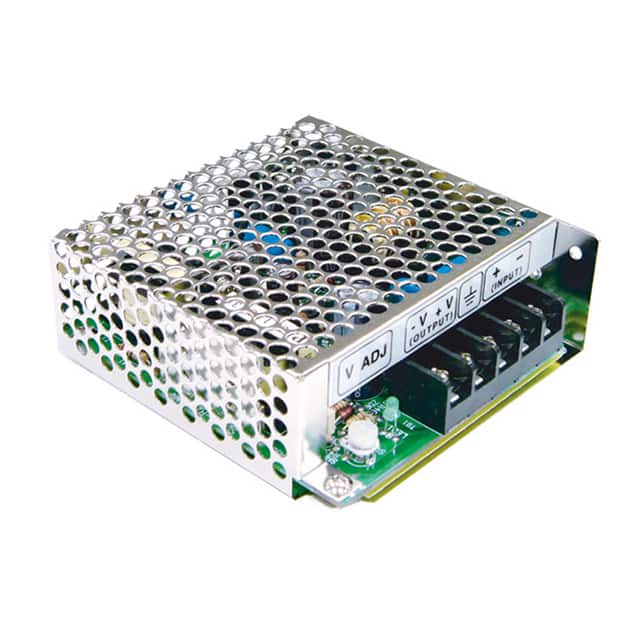

 SD-25A-5 MEAN WELL | 1 $27.7300 | Datasheet | Enclosed | 9.2V | 18V | 1 | 5V | - | - | - | 5A | 25W | 1.5 kV | ITE (Commercial) | 71% | -10°C ~ 60°C (With Derating) | Chassis Mount | 3.90" L x 3.82" W x 1.42" H (99.0mm x 97.0mm x 36.0mm) | CE | - | 7,093 Cart + RFQ |
SD-200B-48 MEAN WELL | 1 $92.1600 | Datasheet | Enclosed | 19V | 36V | 1 | 48V | - | - | - | 4.2A | 202W | 1.5 kV | ITE (Commercial) | 86% | -20°C ~ 60°C (With Derating) | Chassis Mount | 8.46" L x 4.53" W x 1.97" H (215.0mm x 115.0mm x 50.0mm) | CE | - | 7,487 Cart + RFQ |
SD-200C-24 MEAN WELL | 1 $92.1600 | Datasheet | Enclosed | 36V | 96V | 1 | 24V | - | - | - | 8.4A | 202W | 1.5 kV | ITE (Commercial) | 86% | -20°C ~ 60°C (With Derating) | Chassis Mount | 8.46" L x 4.53" W x 1.97" H (215.0mm x 115.0mm x 50.0mm) | CE | - | 6,808 Cart + RFQ |
SD-200C-12 MEAN WELL | 1 $92.1600 | Datasheet | Enclosed | 36V | 96V | 1 | 12V | - | - | - | 16.7A | 200W | 1.5 kV | ITE (Commercial) | 84% | -20°C ~ 60°C (With Derating) | Chassis Mount | 8.46" L x 4.53" W x 1.97" H (215.0mm x 115.0mm x 50.0mm) | CE | - | 1,581 Cart + RFQ |
