Grounding Braid, Straps
Products in this family are woven from fine strands of conductive material into a form having either a rectangular or circular cross-section, and sold as either a simple length of such material or an assembly with a terminal of some form pre-applied. The woven construction provides significant flexibility, and in the case of tubular materials, an interesting property of constricting diametrically when stretched axially allows it to function as a "finger trap". Such products are commonly used for creating electrical connections between machine or enclosure components, and in cable harness assembly for purposes of electrostatic shielding, abrasion resistance, or cosmetic purposes.
Product List
Total Components: 100
Product | Pricing | Datasheet | Type | Material | Size, Supplied | Thickness | Number of Carriers | Wire Gauge - Ends | Length | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|
RAY-103-3.0(100) Aerospace Defense and Marine / TE Connectivity | 1 $11.0100 | Datasheet | Tubular | Copper, Nickel Plated | 0.118" (3.00mm) - Inner Dia | - | 16 | 38 AWG | Enter Number of Meters in Order Quantity | 4,998 Cart + RFQ |
RAY-101-4.0(100) Aerospace Defense and Marine / TE Connectivity | 1 $12.8000 | Datasheet | Tubular | Copper, Tin Plated | 0.157" (4.00mm) - Inner Dia | - | 24 | 36 AWG | Enter Number of Meters in Order Quantity | 7,130 Cart + RFQ |

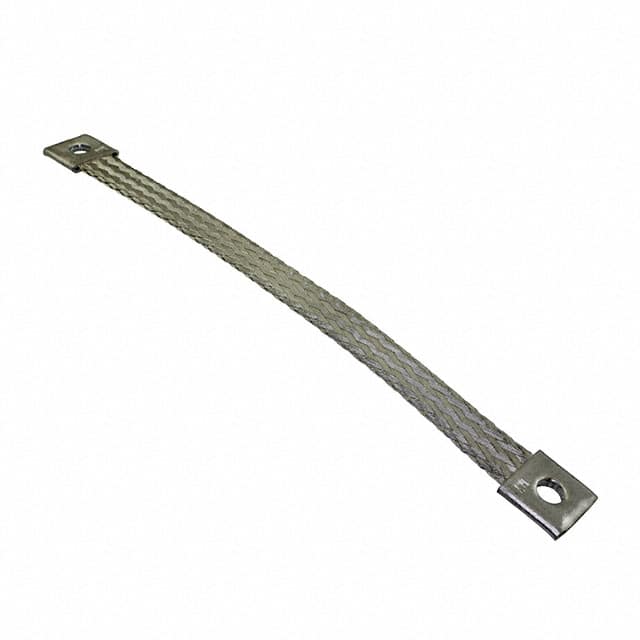

2076025001 Molex | 1 $16.3600 | Datasheet | Flat, Busbar | Copper, Tin Plated | 0.540" (13.72mm) - Width | - | - | - | 0.5' (0.15m) | 1,655 Cart + RFQ |

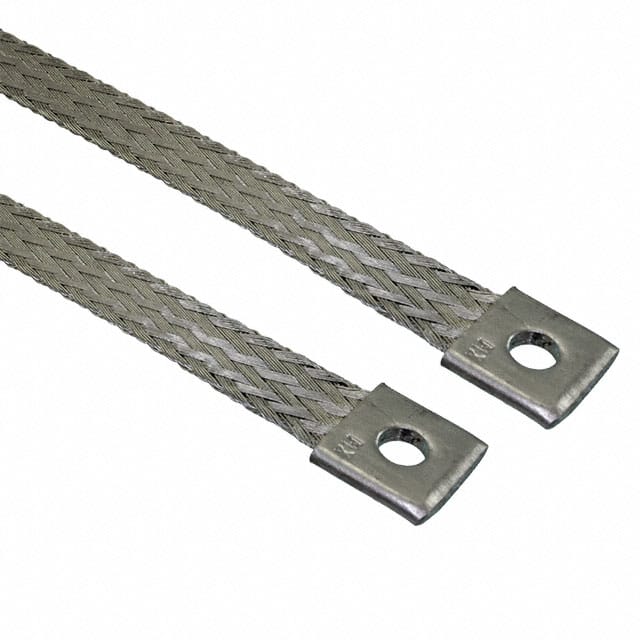

2076025002 Molex | 1 $16.8200 | Datasheet | Flat, Busbar | Copper, Tin Plated | 0.540" (13.72mm) - Width | - | - | - | 1.0' (0.30m) | 3,887 Cart + RFQ |
RAY-101-6.0(100) Aerospace Defense and Marine / TE Connectivity | 1 $17.0800 | Datasheet | Tubular | Copper, Tin Plated | 0.236" (6.00mm) - Inner Dia | - | 24 | 36 AWG | Enter Number of Meters in Order Quantity | 4,471 Cart + RFQ |
RAY-101-7.5(100) Aerospace Defense and Marine / TE Connectivity | 1 $18.3200 | Datasheet | Tubular | Copper, Tin Plated | 0.295" (7.50mm) - Inner Dia | - | 24 | 36 AWG | Enter Number of Meters in Order Quantity | 9,695 Cart + RFQ |
RAY-103-4.0(100) Aerospace Defense and Marine / TE Connectivity | 1 $18.9700 | Datasheet | Tubular | Copper, Nickel Plated | 0.157" (4.00mm) - Inner Dia | - | 24 | 36 AWG | Enter Number of Meters in Order Quantity | 7,063 Cart + RFQ |

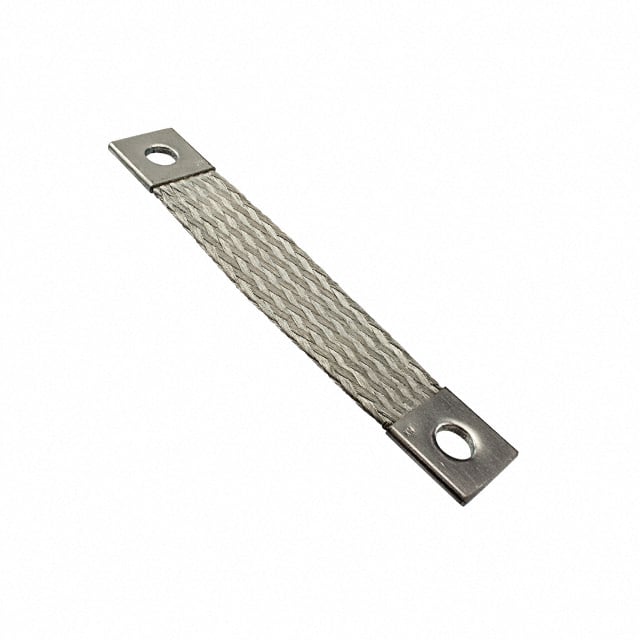

2076025009 Molex | 1 $21.1900 | Datasheet | Flat, Busbar | Copper, Tin Plated | 1.000" (25.40mm) - Width | - | - | - | 0.5' (0.15m) | 5,228 Cart + RFQ |
RAY-101-12.5(100) Aerospace Defense and Marine / TE Connectivity | 1 $22.2500 | Datasheet | Tubular | Copper, Tin Plated | 0.492" (12.50mm) - Inner Dia | - | 36 | 36 AWG | Enter Number of Meters in Order Quantity | 3,954 Cart + RFQ |
RAY-103-7.5(100) Aerospace Defense and Marine / TE Connectivity | 1 $26.0000 | Datasheet | Tubular | Copper, Nickel Plated | 0.295" (7.50mm) - Inner Dia | - | 24 | 36 AWG | Enter Number of Meters in Order Quantity | 3,084 Cart + RFQ |
RAY-103-6.0(100) Aerospace Defense and Marine / TE Connectivity | 1 $25.7800 | Datasheet | Tubular | Copper, Nickel Plated | 0.236" (6.00mm) - Inner Dia | - | 24 | 36 AWG | Enter Number of Meters in Order Quantity | 2,558 Cart + RFQ |
RAY-101-20.0(50) TE Connectivity Raychem Cable Protection | 1 $35.8100 | Datasheet | Tubular | Copper, Tin Plated | 0.787" (20.00mm) - Inner Dia | - | 48 | 36 AWG | Enter Number of Meters in Order Quantity | 2,539 Cart + RFQ |

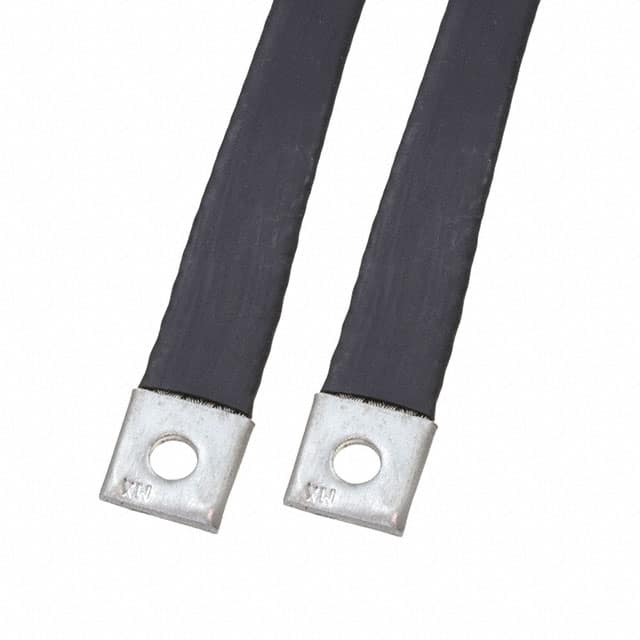

2076025023 Molex | 1 $26.5800 | Datasheet | Flat, Busbar | Copper, Tin Plated | 0.750" (19.05mm, 3/4") - Width | - | - | - | 1.5' (0.46m) | 4,020 Cart + RFQ |
MBN0.25SV100 Techflex | 1 $100.9900 | Datasheet | Tubular | Copper, Tinned | 0.250" (6.35mm, 1/4") - Outer Dia | 0.013" (0.33mm) | 24 | 36 AWG | 100.0' (30.48m) | 2,486 Cart + RFQ |
MBN0.38SV100 Techflex | 1 $103.8700 | Datasheet | Tubular | Copper, Tinned | 0.375" (9.53mm, 3/8") - Outer Dia | 0.013" (0.33mm) | 48 | 36 AWG | 100.0' (30.48m) | 8,369 Cart + RFQ |
MBN0.63SV100 Techflex | 1 $159.3600 | Datasheet | Tubular | Copper, Tinned | 0.625" (15.88mm, 5/8") - Outer Dia | 0.016" (0.41mm) | 48 | 34 AWG | 100.0' (30.48m) | 6,389 Cart + RFQ |
1229 SV005 Alpha Wire | 1 $195.7400 | Datasheet | Flat | Copper, Tinned | 0.125" (3.18mm, 1/8") - Width | 0.020" (0.51mm) | 24 | 36 AWG | 100.0' (30.48m) | 5,837 Cart + RFQ |
MBN0.25SV250 Techflex | 1 $199.9200 | Datasheet | Tubular | Copper, Tinned | 0.250" (6.35mm, 1/4") - Outer Dia | 0.013" (0.33mm) | 24 | 36 AWG | 250.0' (76.20m) | 9,017 Cart + RFQ |
MBN0.38SV250 Techflex | 1 $206.2200 | Datasheet | Tubular | Copper, Tinned | 0.375" (9.53mm, 3/8") - Outer Dia | 0.013" (0.33mm) | 48 | 36 AWG | 250.0' (76.20m) | 8,577 Cart + RFQ |
1230 SV005 Alpha Wire | 1 $214.0700 | Datasheet | Flat | Copper, Tinned | 0.187" (4.75mm, 3/16") - Width | 0.020" (0.51mm) | 24 | 36 AWG | 100.0' (30.48m) | 5,835 Cart + RFQ |
