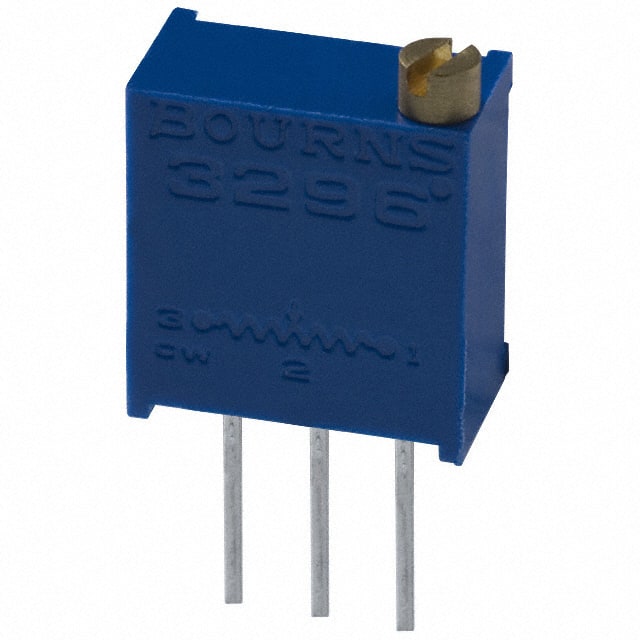

Trimmer Potentiometers
Trimmer potentiometers allow for precise manual adjustment of an in-circuit resistance value. Also known as trim pots, they are available in bottom, side or top adjustment and may allow for single or multiple turns of actuation. They range in value from 10 Ω to 5 MΩ of resistance and 5% to 30% of value tolerance in surface mount, through-hole, chassis mount, and panel mount configurations.
Product List
Total Components: 15
| Product | Pricing | Datasheet | Resistance | Power (Watts) | Tolerance | Temperature Coefficient | Number of Turns | Adjustment Type | Resistive Material | Mounting Type | Termination Style | Size / Dimension | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 23BR10KLFTR TT Electronics | 1 $1.3847 100 $1.1077 500 $0.9231 | Datasheet | 10 kOhms | 0.25W, 1/4W | ±20% | ±100ppm/°C | 1 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.197" x 0.177" Face (5.00mm x 4.50mm) | 750 Cart + RFQ |
23BR500LFTR TT Electronics | 1 $1.5100 | Datasheet | 500 Ohms | 0.25W, 1/4W | ±20% | ±100ppm/°C | 1 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.197" x 0.177" Face (5.00mm x 4.50mm) | 3,278 Cart + RFQ |

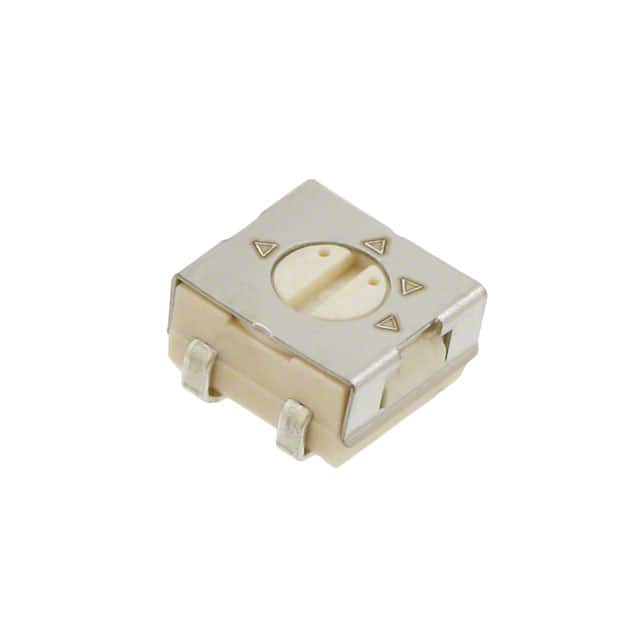

 23AR500LFTR TT Electronics | 1 $1.6700 | Datasheet | 500 Ohms | 0.25W, 1/4W | ±20% | ±100ppm/°C | 1 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.197" x 0.177" Face (5.00mm x 4.50mm) | 7,074 Cart + RFQ |
23AR1KLFTR TT Electronics | 1 $1.6700 | Datasheet | 1 kOhms | 0.25W, 1/4W | ±20% | ±100ppm/°C | 1 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.197" x 0.177" Face (5.00mm x 4.50mm) | 6,535 Cart + RFQ |
23AR10KLFTR TT Electronics | 1 $1.6700 | Datasheet | 10 kOhms | 0.25W, 1/4W | ±20% | ±100ppm/°C | 1 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.197" x 0.177" Face (5.00mm x 4.50mm) | 1,452 Cart + RFQ |

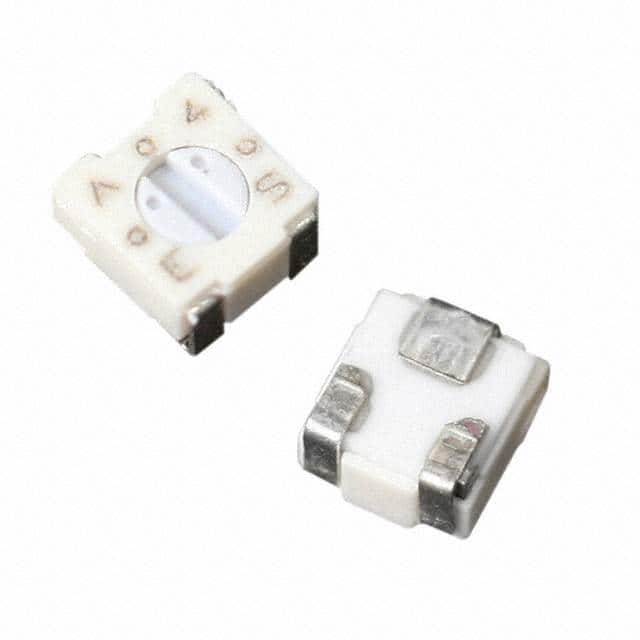

 22AR20KLFTR TT Electronics | 1 $2.3700 | Datasheet | 20 kOhms | 0.125W, 1/8W | ±20% | ±100ppm/°C | 1 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.138" x 0.126" Face (3.50mm x 3.20mm) | 6,621 Cart + RFQ |
22AR1KLFTR TT Electronics | 1 $2.3700 | Datasheet | 1 kOhms | 0.125W, 1/8W | ±20% | ±100ppm/°C | 1 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.138" x 0.126" Face (3.50mm x 3.20mm) | 2,425 Cart + RFQ |
22AR5KLFTR TT Electronics | 1 $2.3700 | Datasheet | 5 kOhms | 0.125W, 1/8W | ±20% | ±100ppm/°C | 1 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.138" x 0.126" Face (3.50mm x 3.20mm) | 9,262 Cart + RFQ |
22AR100KLFTR TT Electronics | 1 $2.3700 | Datasheet | 100 kOhms | 0.125W, 1/8W | ±20% | ±100ppm/°C | 1 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.138" x 0.126" Face (3.50mm x 3.20mm) | 2,035 Cart + RFQ |
22AR10KLFTR TT Electronics | 1 $2.3700 | Datasheet | 10 kOhms | 0.125W, 1/8W | ±20% | ±100ppm/°C | 1 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.138" x 0.126" Face (3.50mm x 3.20mm) | 8,391 Cart + RFQ |

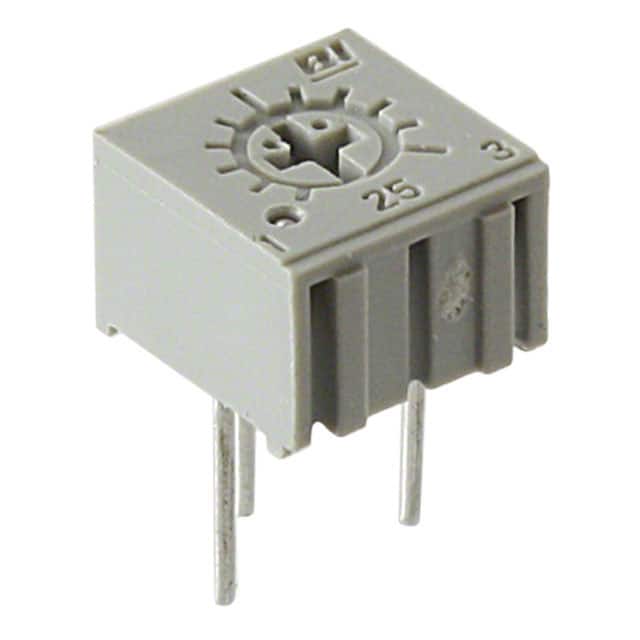

 25PR10KLF TT Electronics | 1 $1.5500 | Datasheet | 10 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 1 | Top Adjustment | Cermet | Through Hole | PC Pins | Square - 0.270" x 0.270" Face (6.86mm x 6.86mm) | 2,283 Cart + RFQ |

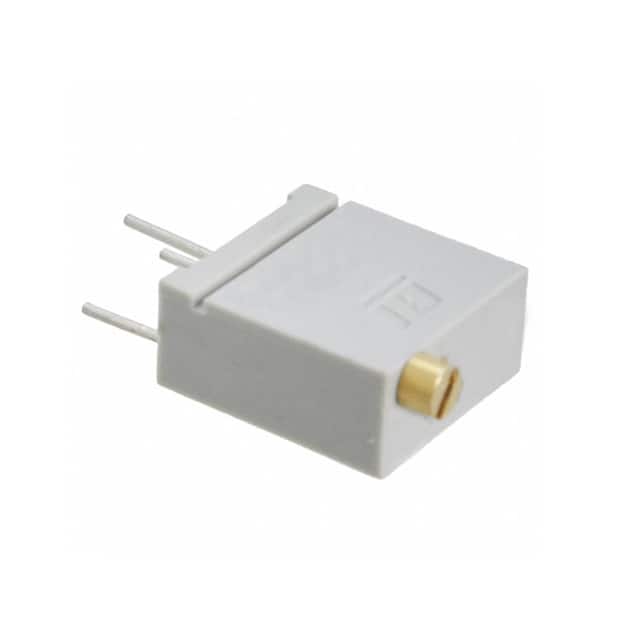

 67WR20KLF TT Electronics | 1 $1.9300 | Datasheet | 20 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 20 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.195" Face (9.53mm x 4.95mm) | 3,770 Cart + RFQ |
67WR10KLF TT Electronics | 1 $1.9300 | Datasheet | 10 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 20 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.195" Face (9.53mm x 4.95mm) | 8,316 Cart + RFQ |

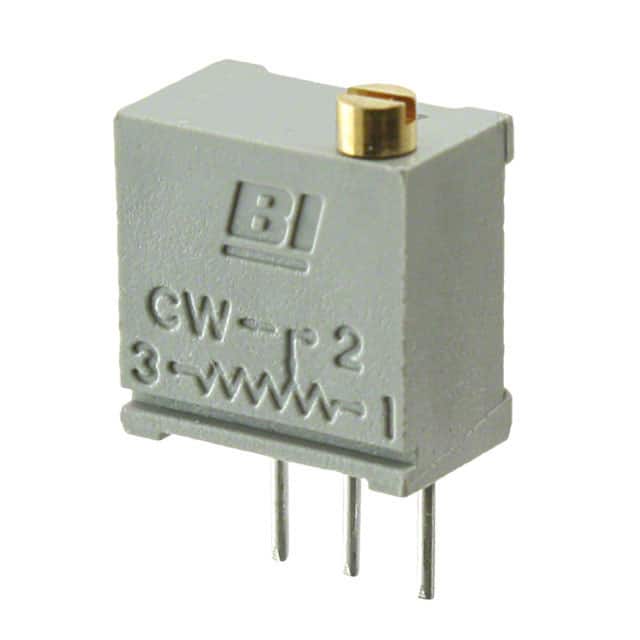

 68WR10KLF TT Electronics | 1 $2.1700 | Datasheet | 10 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 20 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.375" x 0.245" Face (9.53mm x 6.22mm) | 9,937 Cart + RFQ |

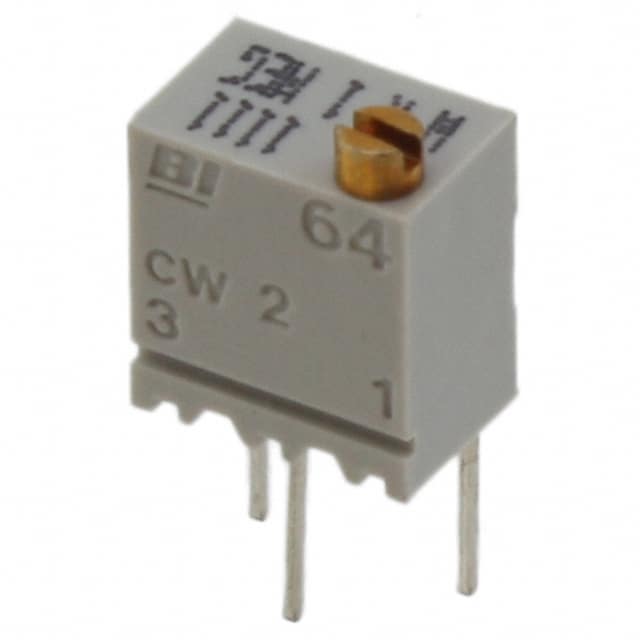

 64WR50KLF TT Electronics | 1 $2.5000 | Datasheet | 50 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.250" x 0.165" Face (6.35mm x 4.19mm) | 4,495 Cart + RFQ |
