Rotary Potentiometers, Rheostats
A rotary potentiometer (Pot) is a three-terminal device that employs a resistive element and a rotating contact to form an adjustable voltage divider. If only two terminals are used, one end of the element and the adjustable contact, it acts as a variable resistor or rheostat. Potentiometers are selected by the resistance value of the element, degree of rotation/number of turns, linear or logarithmic taper, power dissipation, number of ganged elements, resistive material and termination style. Some have built-in switch contacts.
Product List
Total Components: 36
| Product | Pricing | Datasheet | Resistance (Ohms) | Tolerance | Power (Watts) | Built in Switch | Number of Turns | Features | Taper | Number of Gangs | Adjustment Type | Temperature Coefficient | Rotation | Resistive Material | Termination Style | Actuator Type | Actuator Length | Actuator Diameter | Bushing Thread | Mounting Type | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

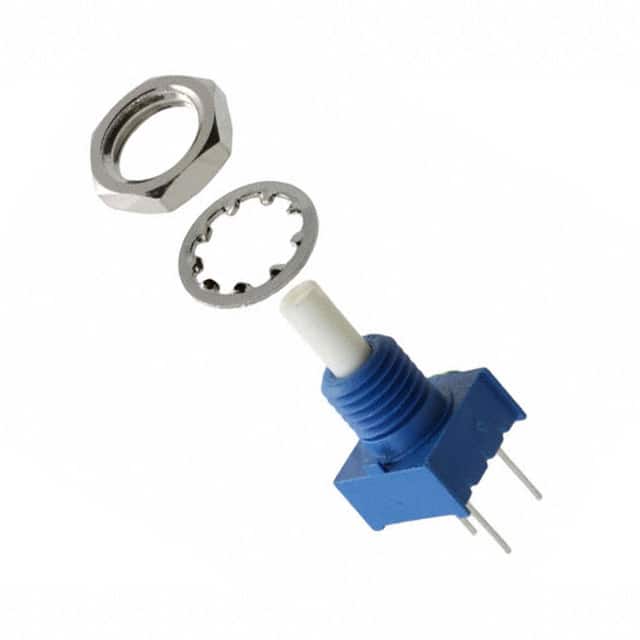

 3310Y-001-103L Bourns, Inc. | 1 $3.6100 | Datasheet | 10k | ±20% | 0.25W, 1/4W | None | 1 | Sealed | Linear | 1 | Top Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.500" (12.70mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount | 9,472 Cart + RFQ |

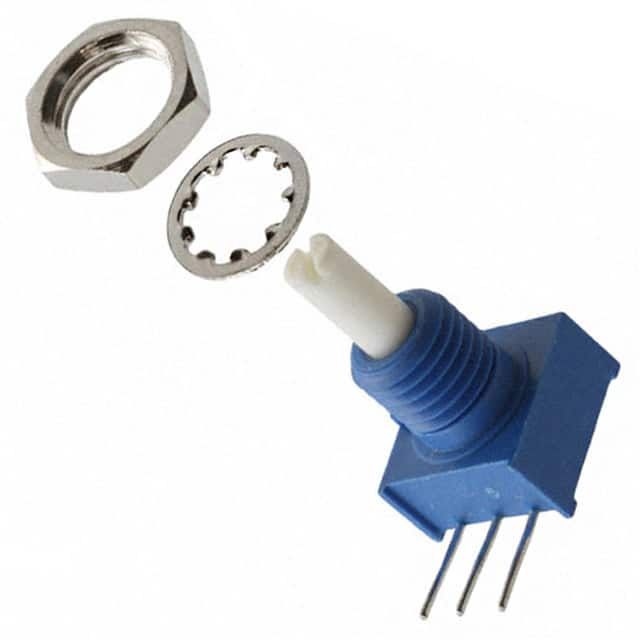

 3310C-001-502L Bourns, Inc. | 1 $3.6100 | Datasheet | 5k | ±20% | 0.25W, 1/4W | None | 1 | Sealed | Linear | 1 | Side Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.500" (12.70mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount | 5,387 Cart + RFQ |
3310C-001-503L Bourns, Inc. | 1 $3.6100 | Datasheet | 50k | ±20% | 0.25W, 1/4W | None | 1 | Sealed | Linear | 1 | Side Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.500" (12.70mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount | 6,520 Cart + RFQ |

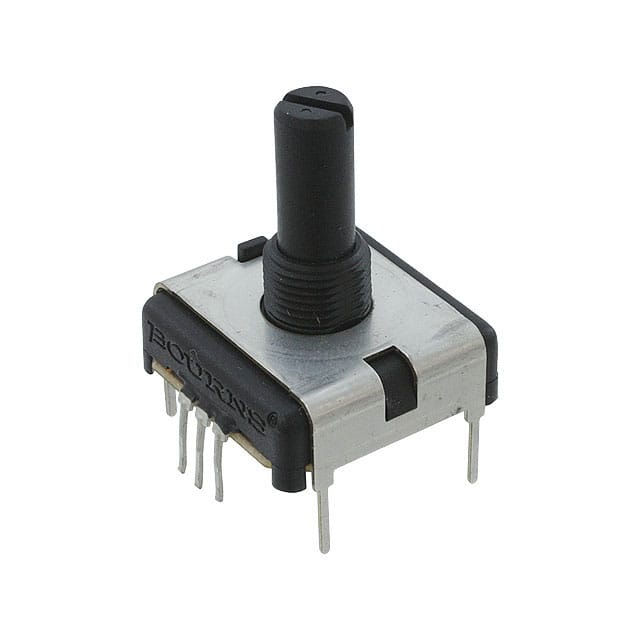

 PCW1J-B24-BAB103L Bourns, Inc. | 1 $6.9400 | Datasheet | 10k | ±20% | 0.75W, 3/4W | None | 1 | - | Linear | 1 | Top Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.750" (19.05mm) | 0.250" (6.35mm) | M9 x 0.75 | Panel Mount | 2,635 Cart + RFQ |
 91A1A-B28-B15L Bourns, Inc. | 1 $8.1900 | Datasheet | 10k | ±20% | 1W | None | 1 | - | Linear | 1 | Side Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount | 1,860 Cart + RFQ |

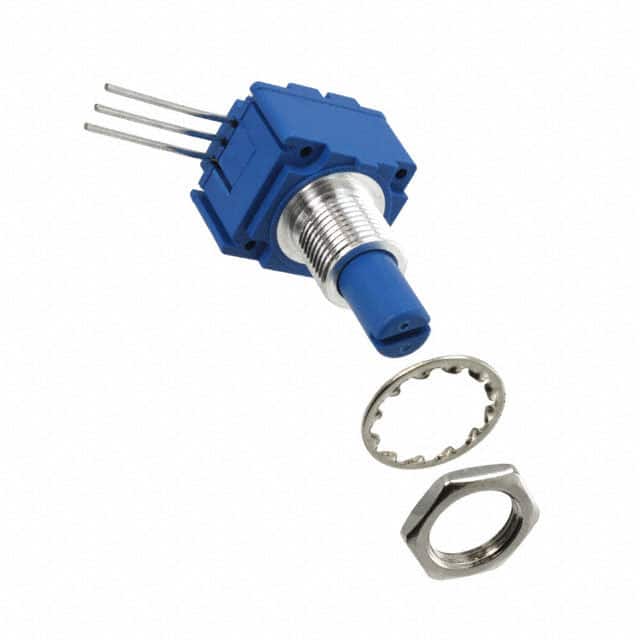

 91A1A-B24-B15L Bourns, Inc. | 1 $8.1900 | Datasheet | 10k | ±20% | 1W | None | 1 | - | Linear | 1 | Side Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.750" (19.05mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount | 9,396 Cart + RFQ |

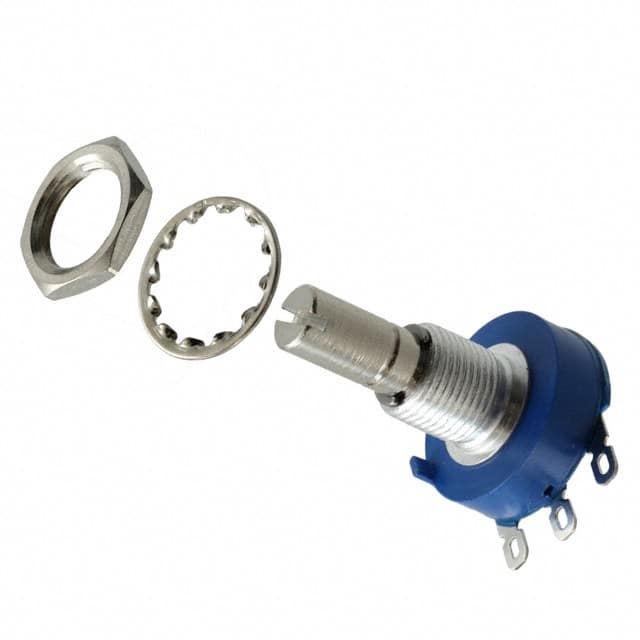

 3852A-282-103AL Bourns, Inc. | 1 $13.9300 | Datasheet | 10k | ±10% | 2W | None | 1 | - | Linear | 1 | User Defined | ±150ppm/°C | 280° | Cermet | Solder Lug | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount | 3,668 Cart + RFQ |
 3590S-2-103L Bourns, Inc. | 1 $18.3900 | Datasheet | 10k | ±5% | 2W | None | 10 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount | 4,151 Cart + RFQ |
3590S-2-102L Bourns, Inc. | 1 $18.3900 | Datasheet | 1k | ±5% | 2W | None | 10 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount | 9,284 Cart + RFQ |
3590S-2-502L Bourns, Inc. | 1 $18.3900 | Datasheet | 5k | ±5% | 2W | None | 10 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount | 5,966 Cart + RFQ |

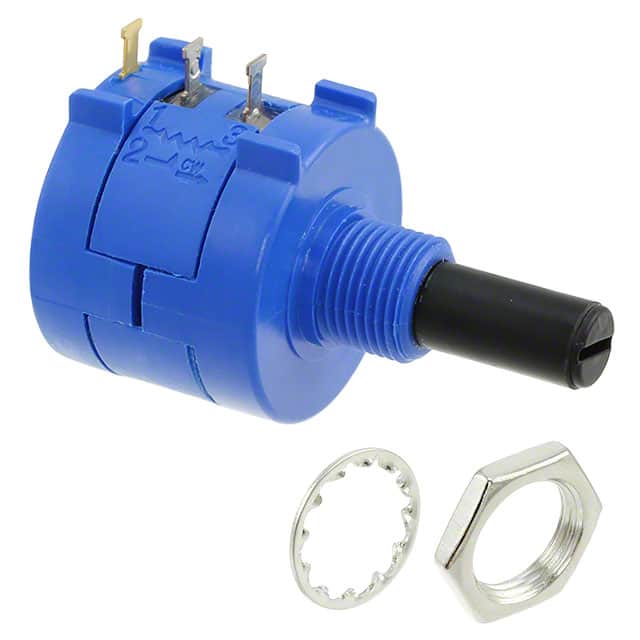

 3590S-1-103L Bourns, Inc. | 1 $18.3900 | Datasheet | 10k | ±5% | 2W | None | 10 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.248" (6.30mm) | 3/8-32 | Panel Mount | 9,982 Cart + RFQ |
3590S-2-104L Bourns, Inc. | 1 $22.9300 | Datasheet | 100k | ±5% | 2W | None | 10 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount | 6,930 Cart + RFQ |
 3540S-1-502L Bourns, Inc. | 1 $34.1000 | Datasheet | 5k | ±5% | 2W | None | 10 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount | 1,955 Cart + RFQ |
3540S-1-102L Bourns, Inc. | 1 $34.1000 | Datasheet | 1k | ±5% | 2W | None | 10 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount | 9,814 Cart + RFQ |

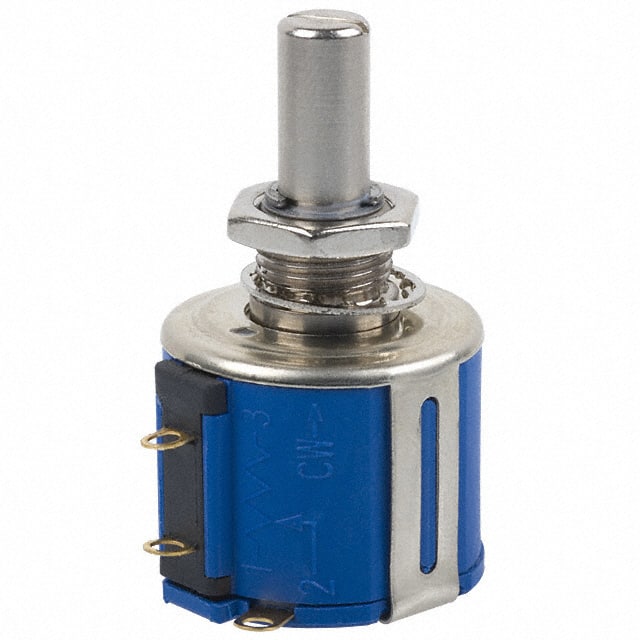

 3540S-1-503L Bourns, Inc. | 1 $37.9500 | Datasheet | 50k | ±5% | 2W | None | 10 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount | 6,207 Cart + RFQ |

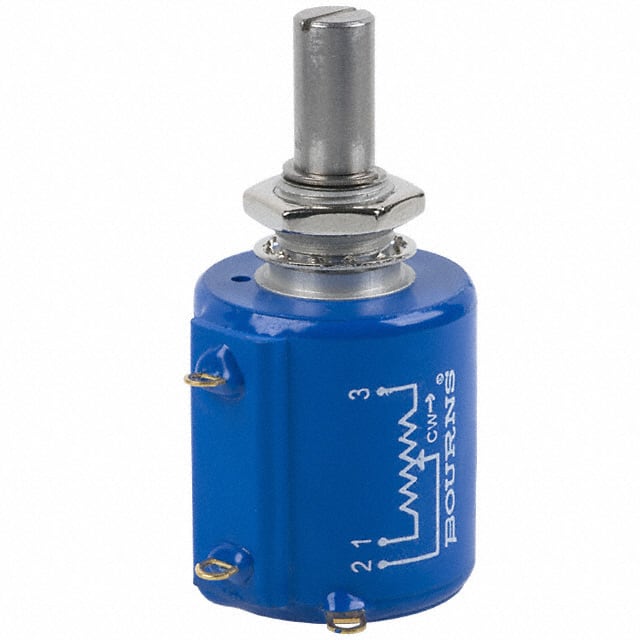

 3500S-2-502L Bourns, Inc. | 1 $71.9700 | Datasheet | 5k | ±3% | 2W | None | 10 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.813" (20.64mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount | 1,338 Cart + RFQ |

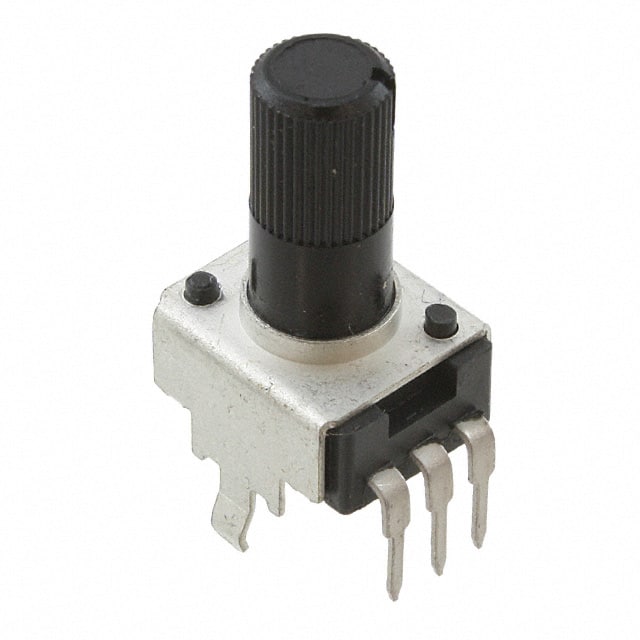

 PTV09A-4020U-B104 Bourns, Inc. | 1 $0.9800 | Datasheet | 100k | ±20% | 0.05W, 1/20W | None | 1 | - | Linear | 1 | Top Adjustment | - | 280° | Carbon | PC Pins, Board Locks | Knurled | 0.787" (20.00mm) | 0.236" (6.00mm) | - | Through Hole, Snap In | 9,294 Cart + RFQ |

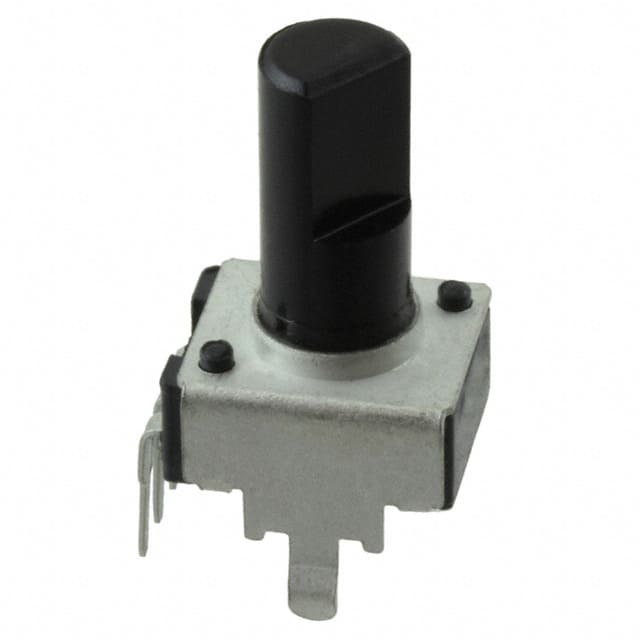

 PTV09A-4020F-B202 Bourns, Inc. | 1 $0.9800 | Datasheet | 2k | ±20% | 0.05W, 1/20W | None | 1 | - | Linear | 1 | Top Adjustment | - | 280° | Carbon | PC Pins, Board Locks | Flatted | 0.787" (20.00mm) | 0.236" (6.00mm) | - | Through Hole, Snap In | 4,913 Cart + RFQ |

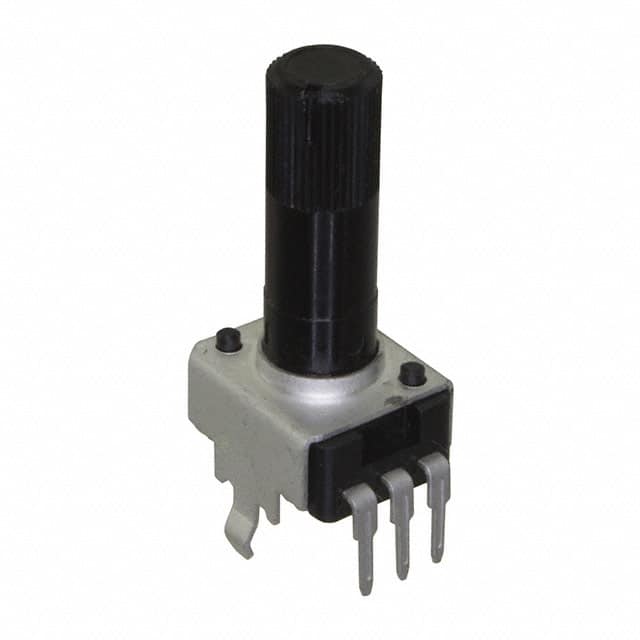

 PTV09A-4025U-B103 Bourns, Inc. | 1 $0.9800 | Datasheet | 10k | ±20% | 0.05W, 1/20W | None | 1 | - | Linear | 1 | Top Adjustment | - | 280° | Carbon | PC Pins, Board Locks | Knurled | 0.984" (25.00mm) | 0.236" (6.00mm) | - | Through Hole, Snap In | 4,683 Cart + RFQ |

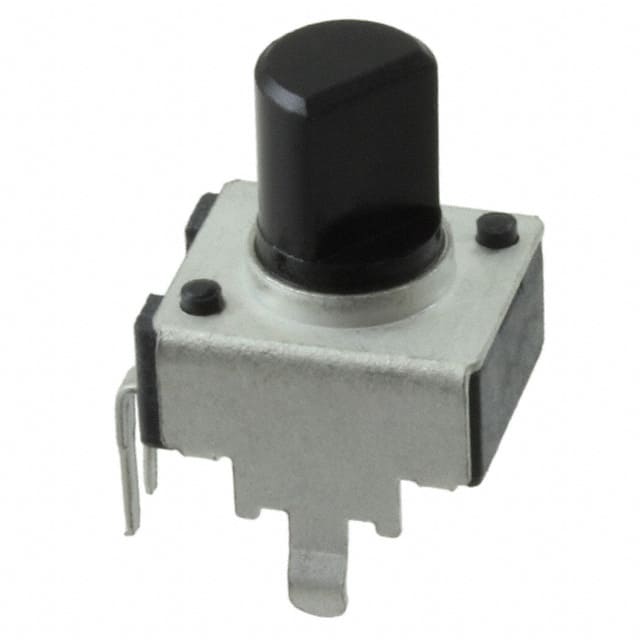

 PTV09A-4015F-B104 Bourns, Inc. | 1 $0.9800 | Datasheet | 100k | ±20% | 0.05W, 1/20W | None | 1 | - | Linear | 1 | Top Adjustment | - | 280° | Carbon | PC Pins, Board Locks | Flatted | 0.591" (15.00mm) | 0.236" (6.00mm) | - | Through Hole, Snap In | 7,677 Cart + RFQ |
