Panel Indicators, Pilot Lights
Panel Indicators and Pilot Lights are designed to emit a visible light to indicate a specific state of another device. These items are mounted into a panel. The type of lights are Incandescent, LED, and Neon, with lamp colors of Amber, Blue, Clear, Cyan, Green, Orange, Red, White, and Yellow. The voltage range from 1.6 V to 480 V and current ranges of 0.3 mA to 10 A with Millicandela ratings from 0.2 mcd to 46860 mcd.
Product List
Total Components: 1,091
| Product | Pricing | Datasheet | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

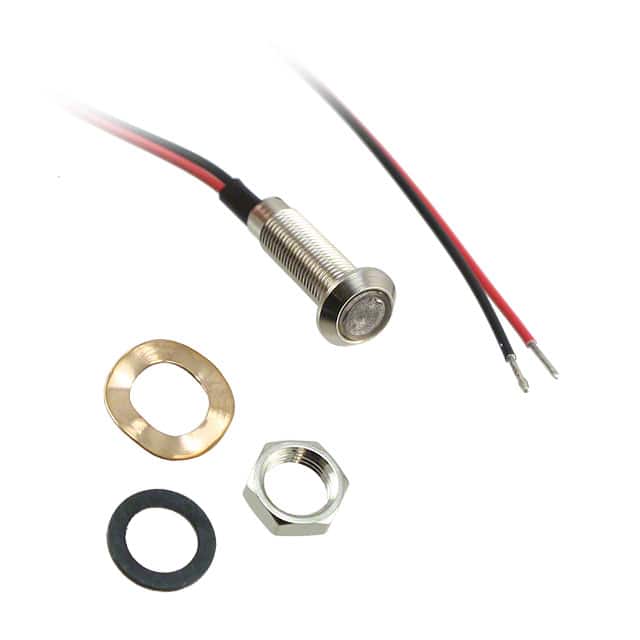

 PM5-B5G3.4V Bivar, Inc. | 1 $41.1600 | Datasheet | LED | Green | Green | Fresnel | Vf (Typ), If (Max) | 3.4V | 20mA | Round | 0.20" (5.08mm) | 5.10mm Dia | Round with Flat Top | 576mcd | 525nm | 120° | Wire Leads - 5.9" (150.00mm) | IP67 | - | 9,214 Cart + RFQ |

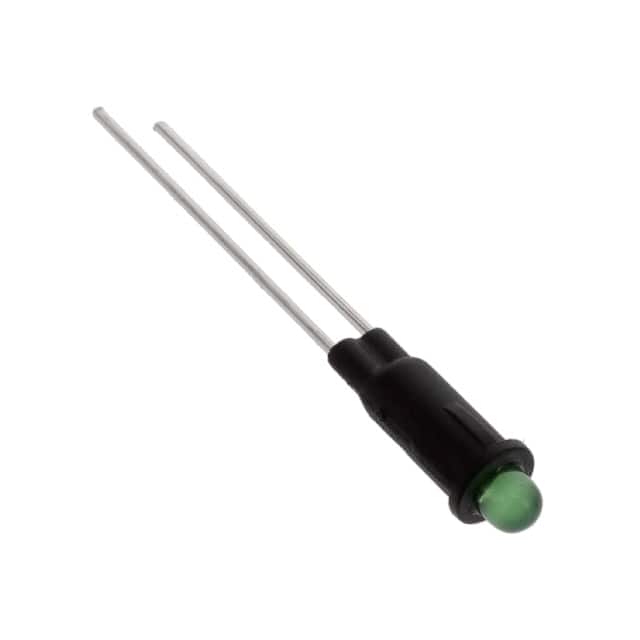

 PM3GDL Bivar, Inc. | 1 $0.8000 | Datasheet | LED | Green | - | Diffused | Vf (Typ), If (Max) | 2.1V | 2mA | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 2mcd | 568nm | 40° | - | - | - | 6,369 Cart + RFQ |

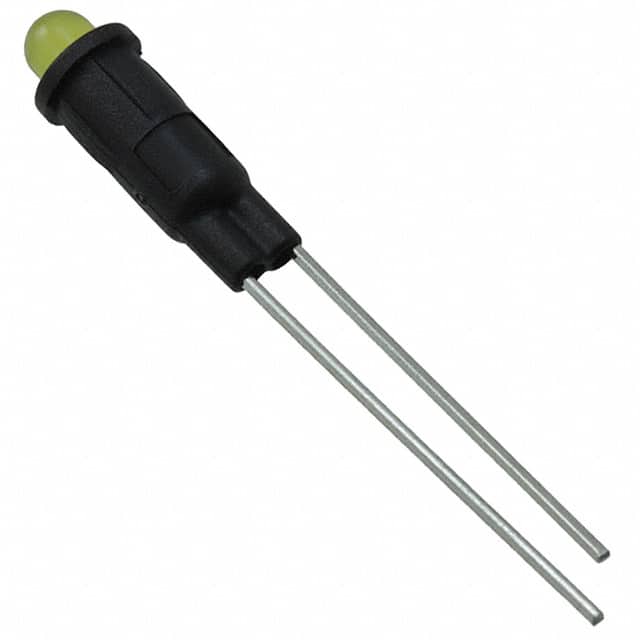

 PM3YD Bivar, Inc. | 1 $0.8100 | Datasheet | LED | Yellow | Yellow | Diffused | Vf (Typ), If (Max) | 2V | 30mA | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 20mcd | 590nm | 40° | PC Pin | - | - | 9,841 Cart + RFQ |

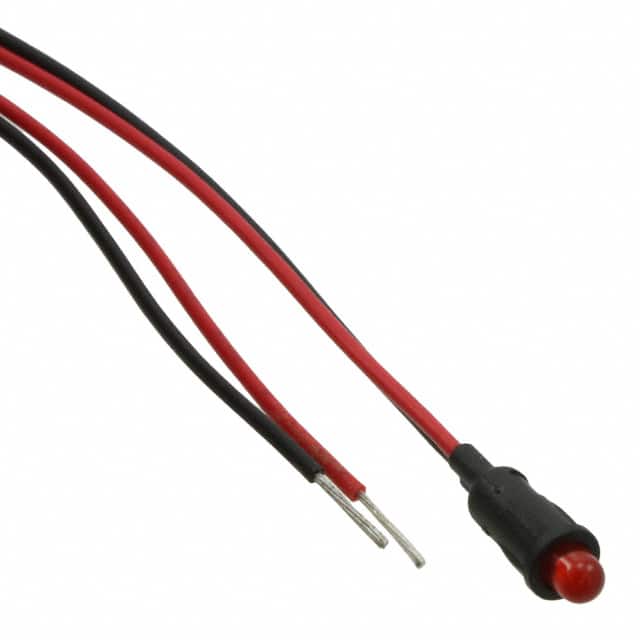

 PM3RDW12.0 Bivar, Inc. | 1 $2.9400 | Datasheet | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2.1V | 20mA | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 2mcd | 700nm | 40° | Wire Leads - 12" (304.80mm) | - | - | 7,148 Cart + RFQ |

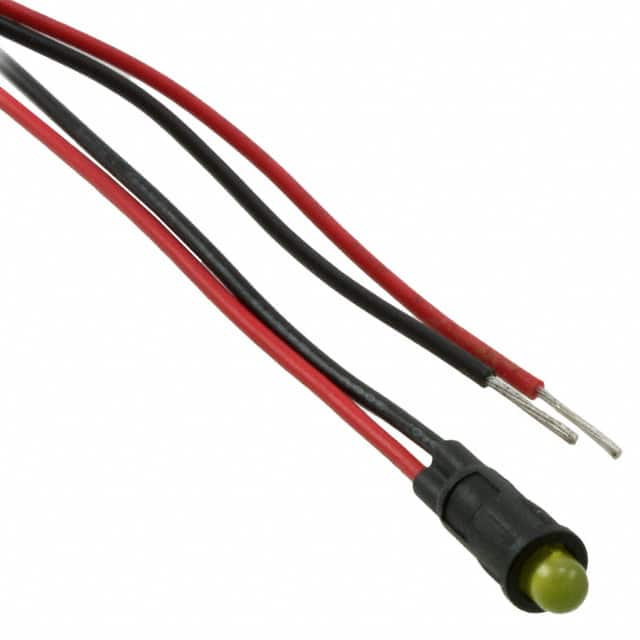

 PM3YDW12.0 Bivar, Inc. | 1 $2.9700 | Datasheet | LED | Yellow | Yellow | Diffused | Vf (Typ), If (Max) | 2V | 30mA | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 20mcd | 590nm | 40° | Wire Leads - 12" (304.80mm) | - | - | 3,137 Cart + RFQ |
 PM3GDW12.0 Bivar, Inc. | 1 $2.9700 | Datasheet | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 2.1V | 30mA | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 25mcd | 568nm | 40° | Wire Leads - 12" (304.80mm) | - | - | 4,739 Cart + RFQ |
MPC3RDW12.0 Bivar, Inc. | 1 $4.3600 | Datasheet | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2.1V | 20mA | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Domed Top | 2mcd | 700nm | 20° | Wire Leads - 12" (304.80mm) | - | - | 8,471 Cart + RFQ |
MPC3GDW12.0 Bivar, Inc. | 1 $4.3900 | Datasheet | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 2.1V | 30mA | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Domed Top | 25mcd | 568nm | 35° | Wire Leads - 12" (304.80mm) | - | - | 8,916 Cart + RFQ |
MPR3GDW12.0 Bivar, Inc. | 1 $4.3900 | Datasheet | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 2.1V | 30mA | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Domed Top | 25mcd | 568nm | 35° | Wire Leads - 12" (304.80mm) | - | - | 9,166 Cart + RFQ |
MPR5RDW12.0 Bivar, Inc. | 1 $4.4500 | Datasheet | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2.1V | 20mA | Round | 0.32" (8.13mm) | 5mm, T-1 3/4 | Round with Domed Top | 2mcd | 700nm | 40° | Wire Leads - 12" (304.80mm) | - | - | 2,379 Cart + RFQ |
MPR5GDW12.0 Bivar, Inc. | 1 $4.4900 | Datasheet | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 2.1V | 30mA | Round | 0.32" (8.13mm) | 5mm, T-1 3/4 | Round with Domed Top | 25mcd | 568nm | 40° | Wire Leads - 12" (304.80mm) | - | - | 5,116 Cart + RFQ |
MPC5GDW12.0 Bivar, Inc. | 1 $4.4900 | Datasheet | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 2.1V | 30mA | Round | 0.32" (8.13mm) | 5mm, T-1 3/4 | Round with Domed Top | 25mcd | 568nm | 45° | Wire Leads - 12" (304.80mm) | - | - | 8,445 Cart + RFQ |
MPC5HDW12.0 Bivar, Inc. | 1 $4.4900 | Datasheet | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2V | 30mA | Round | 0.32" (8.13mm) | 5mm, T-1 3/4 | Round with Domed Top | 25mcd | 625nm | 45° | Wire Leads - 12" (304.80mm) | - | - | 7,875 Cart + RFQ |
MPC5YDW12.0 Bivar, Inc. | 1 $4.4900 | Datasheet | LED | Yellow | Yellow | Diffused | Vf (Typ), If (Max) | 2V | 30mA | Round | 0.32" (8.13mm) | 5mm, T-1 3/4 | Round with Domed Top | 25mcd | 590nm | 45° | Wire Leads - 12" (304.80mm) | - | - | 4,043 Cart + RFQ |
PM53-BCW12.0CC Bivar, Inc. | 1 $4.9100 | Datasheet | LED | Green, Red | White | Diffused | Vf (Typ), If (Max) | 2.1V Green, 2V Red | 30mA Green, 30mA Red | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | - | 568nm Green, 625nm Red | 40° | Wire Leads - 12" (304.80mm) | - | - | 9,292 Cart + RFQ |
MPC3BWDW12.0 Bivar, Inc. | 1 $6.3200 | Datasheet | LED | Blue | Blue | Diffused | Vf (Typ), If (Max) | 4V | 25mA | Round | 0.24" (6.10mm) | 3mm, T-1 | Round with Domed Top | 10mcd | 430nm | 35° | Wire Leads - 12" (304.80mm) | - | - | 7,310 Cart + RFQ |
PM3-PHDW12.0 Bivar, Inc. | 1 $17.2100 | Datasheet | LED | Red | White | Diffused | AC/DC | 8V ~ 48V | 20mA | Round | 0.19" (4.83mm) | 5.90mm Dia | Round with Flat Top | 30mcd | 625nm | 120° | Wire Leads - 12" (304.80mm) | IP67 | - | 9,553 Cart + RFQ |
PM3-PGDW12.0 Bivar, Inc. | 1 $17.2100 | Datasheet | LED | Green | White | Diffused | AC/DC | 8V ~ 48V | 20mA | Round | 0.19" (4.83mm) | 5.90mm Dia | Round with Flat Top | 30mcd | 568nm | 120° | Wire Leads - 12" (304.80mm) | IP67 | - | 1,394 Cart + RFQ |
PM3-PPGDW12.0 Bivar, Inc. | 1 $17.4100 | Datasheet | LED | Green | White | Diffused | AC/DC | 8V ~ 48V | 20mA | Round | 0.19" (4.83mm) | 5.90mm Dia | Round with Flat Top | 20mcd | 555nm | 120° | Wire Leads - 12" (304.80mm) | IP67 | - | 4,982 Cart + RFQ |
PM5-B5G28V Bivar, Inc. | 1 $41.1600 | Datasheet | LED | Green | Green | Fresnel | DC | 24V ~ 28V | 20mA | Round | 0.20" (5.08mm) | 5.10mm Dia | Round with Flat Top | 576mcd | 525nm | 120° | Wire Leads - 5.9" (150.00mm) | IP67 | - | 6,117 Cart + RFQ |
