Optics - Light Pipes
Light pipes are products used to channel optical energy between a light source and a point some distance away where light is desired for some purpose. A common use is for routing light between an LED on a printed circuit board and an aperture in a product control panel or enclosure for purposes of providing a visual indication of operational status.
Product List
Total Components: 61
| Product | Pricing | Datasheet | Color | Configuration | Type | Mounting Type | Lens Style | Lens Size | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|

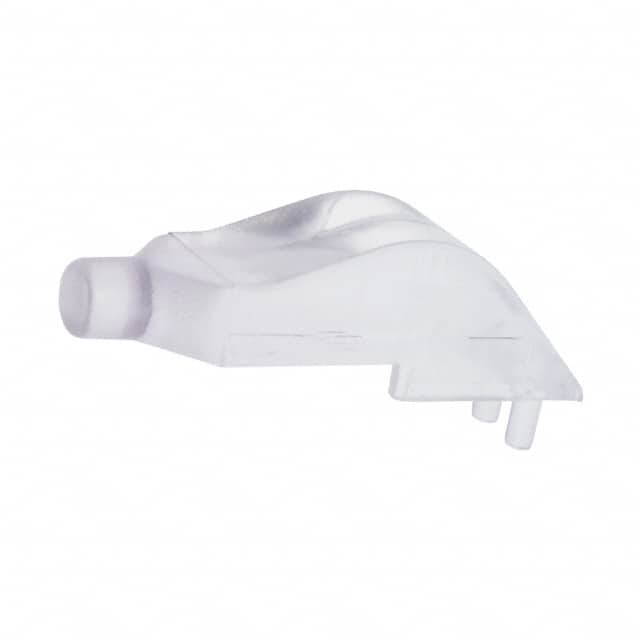

 LPF-C011302S Lumex, Inc. | 1 $1.1900 | Datasheet | Clear | Single | Rigid | Board Mount, Press Fit, Right Angle | Round with Flat Top | 3mm | 3,654 Cart + RFQ |
 LPF-C011304S Lumex, Inc. | 1 $1.2600 | Datasheet | Clear | Single | Rigid | Board Mount, Press Fit, Right Angle | Round with Flat Top | 2.8mm | 2,147 Cart + RFQ |

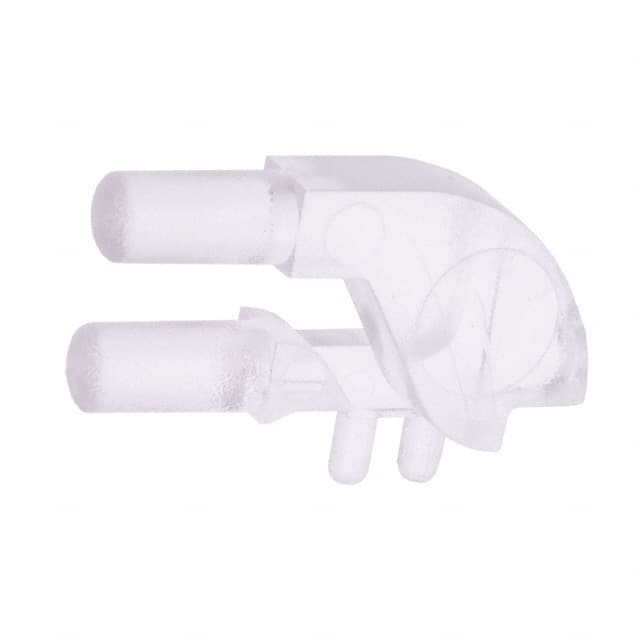

 LPF-C012303S Lumex, Inc. | 1 $1.4100 | Datasheet | Clear | 2 High | Rigid | Board Mount, Snap-In, Right Angle | Round with Flat Top | 3mm | 7,511 Cart + RFQ |

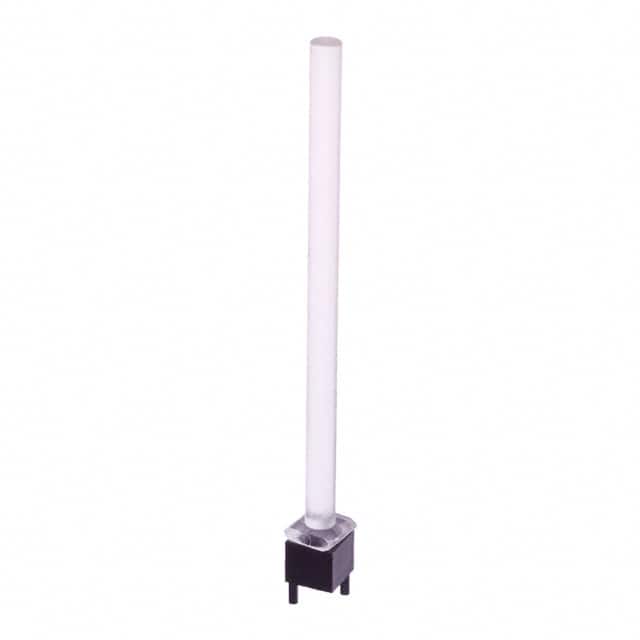

 LPA-C011301S-50 Lumex, Inc. | 1 $1.7300 | Datasheet | Clear | Single | Rigid | Board Mount, Press Fit | Round with Flat Top | 3mm | 2,281 Cart + RFQ |

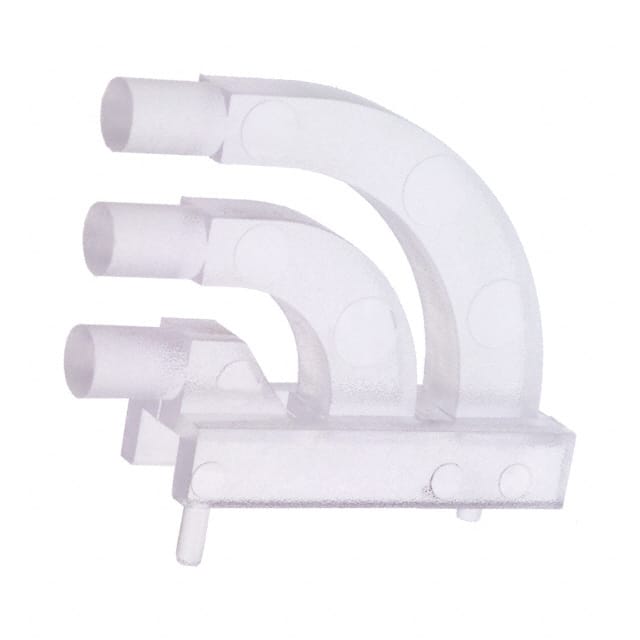

 LPF-C013301S Lumex, Inc. | 1 $1.7800 | Datasheet | Clear | 3 High | Rigid | Board Mount, Press Fit, Right Angle | Round with Flat Top | 3mm | 2,739 Cart + RFQ |

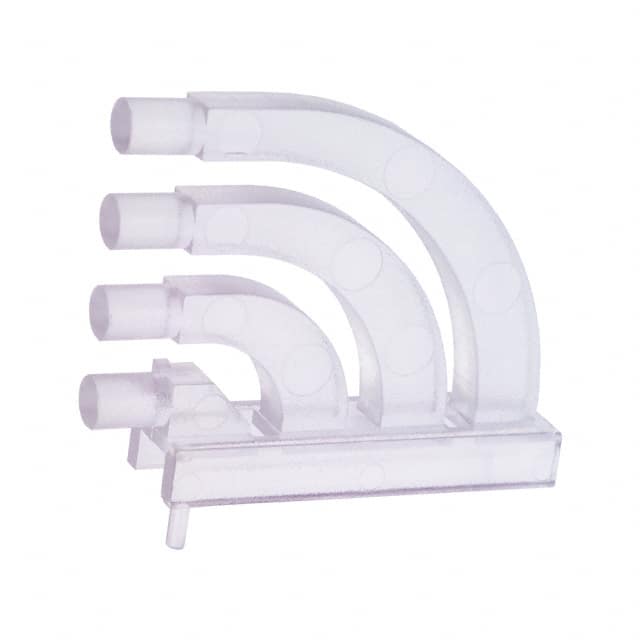

 LPF-C014301S Lumex, Inc. | 1 $2.0700 | Datasheet | Clear | 4 High | Rigid | Board Mount, Press Fit, Right Angle | Round with Flat Top | 3mm | 1,736 Cart + RFQ |

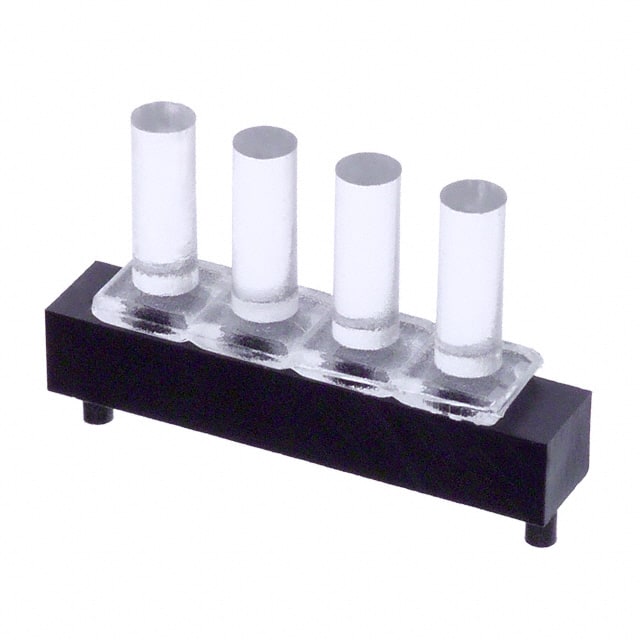

 LPA-C041301S-10 Lumex, Inc. | 1 $3.3600 | Datasheet | Clear | 4 Wide | Rigid | Board Mount, Press Fit | Round with Flat Top | 3mm | 2,510 Cart + RFQ |
LPA-C011301S-10 Lumex, Inc. | 1 $1.7300 | Datasheet | Clear | Single | Rigid | Board Mount, Press Fit | Round with Flat Top | 3mm | 5,757 Cart + RFQ |
LPF-C011303S Lumex, Inc. | 1 $1.0700 | Datasheet | Clear | Single | Rigid | Board Mount, Press Fit, Right Angle | Round with Flat Top | 2.8mm | 7,515 Cart + RFQ |
LPA-C011302S-2 Lumex, Inc. | 1 $1.2400 | Datasheet | Clear, Diffused | Single | Rigid | Panel Mount, Press Fit, Front | Round with Domed Top | 2.60mm | 8,584 Cart + RFQ |
LPF-C031303S Lumex, Inc. | 1 $3.3900 | Datasheet | Clear | 3 Wide | Rigid | Board Mount, Snap-In, Right Angle | Round with Flat Top | 2.8mm | 2,517 Cart + RFQ |
LPF-R011340S Lumex, Inc. | 1 $0.1684 | Datasheet | Clear | Single | Rigid | Board Mount, Press Fit, Right Angle | Square with Flat Top | 3.18mm | 2,924 Cart + RFQ |
LPA-C061302S Lumex, Inc. | 1 $0.2365 | Datasheet | White Diffused | 6 Wide | Rigid | - | Round with Domed Top | 3.00mm Dia | 7,754 Cart + RFQ |
LPA-C011301S-6 Lumex, Inc. | 1 $0.3617 | Datasheet | Clear | Single | Rigid | Board Mount, Press Fit | Round with Flat Top | 3mm | 7,574 Cart + RFQ |
LPA-C011301S-37.9 Lumex, Inc. | 1 $0.4413 | Datasheet | Clear | Single | Rigid | Board Mount, Press Fit | Round with Flat Top | 3mm | 7,556 Cart + RFQ |
LPA-C011302S-13 Lumex, Inc. | 1 $0.4877 | Datasheet | Clear, Diffused | Single | Rigid | Panel Mount, Press Fit, Front | Round with Flat Top | 2.60mm | 4,321 Cart + RFQ |
LPA-C011301S-2 Lumex, Inc. | 1 $0.5014 | Datasheet | Clear | Single | Rigid | Board Mount, Press Fit | Round with Flat Top | 3mm | 5,195 Cart + RFQ |
LPA-C011301S-30 Lumex, Inc. | 1 $0.5041 | Datasheet | Clear | Single | - | Surface Mount | - | - | 5,081 Cart + RFQ |
LPA-C011301S-23 Lumex, Inc. | 1 $0.8696 | Datasheet | Clear | Single | Rigid | Board Mount, Press Fit | Round with Flat Top | 3mm | 8,780 Cart + RFQ |
LPA-C041301S-25 Lumex, Inc. | 1 $1.2185 | Datasheet | Clear | 4 Wide | Rigid | Board Mount, Press Fit | Round with Flat Top | 3mm | 4,719 Cart + RFQ |
