LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Products within this family are Light Emitting Diode (LED) devices that are mechanically packaged for convenient use as visual indicators in various formats, ranging from single LEDs that are commonly used for indicating the power-on status of a device, to multi-segment devices used to create simple bar graph displays that are useful for communicating information such as the level of fluid remaining in a tank, or amount of charge remaining in a battery.
Product List
Total Components: 118
| Product | Pricing | Datasheet | Color | Wavelength - Peak | Configuration | Current | Millicandela Rating | Viewing Angle | Lens Type | Lens Style | Lens Size | Voltage Rating | Mounting Type | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

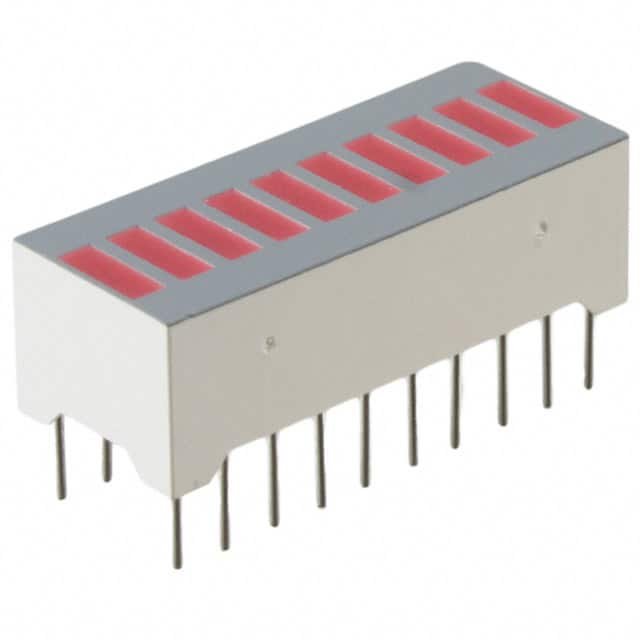

 MV57164 Everlight Electronics | 1 $2.0300 | Datasheet | Red (x 10) | 630nm | Bar - 10 Wide, DIP | 30mA | 1.8mcd | - | - | Rectangle with Flat Top | 5.08mm x 1.78mm | 2V | Through Hole | 5,448 Cart + RFQ |
MV60539MP7 Everlight Electronics | 1 $0.5000 | Datasheet | Red | - | Single | 20mA | 3.2mcd | 65° | Diffused, Tinted | Round with Domed Top | 5mm, T-1 3/4 | 1.7V | Through Hole, Right Angle | 4,511 Cart + RFQ |
HLMP2500 Everlight Electronics | 1 $1.3100 | Datasheet | Green | 565nm | Bar - Single, SIP | 90mA | 25mcd | - | - | Rectangle with Flat Top | - | 2.2V | Through Hole | 9,937 Cart + RFQ |
HLMP-2685 Everlight Electronics | 1 $2.2700 | Datasheet | Red | 635nm | Bar - Single, DIP | 90mA | 80mcd | - | - | Rectangle with Flat Top | - | 2V | Through Hole | 8,589 Cart + RFQ |
HLMP2885 Everlight Electronics | 1 $2.3500 | Datasheet | Green | 565nm | Bar - Single, DIP | 90mA | 100mcd | - | - | Rectangle with Flat Top | - | 2.2V | Through Hole | 9,251 Cart + RFQ |
MV5464MP4B Everlight Electronics | 1 $0.5000 | Datasheet | Green | - | Single | 20mA | 5mcd | 60° | Diffused, Tinted | Round with Domed Top | 3mm, T-1 | 2.2V | Through Hole, Right Angle | 4,831 Cart + RFQ |
MV5377C Everlight Electronics | 1 $0.0696 | Datasheet | Yellow | 585nm | Single | 35mA | 7mcd | 140° | - | Round with Domed Top | 3mm, T-1 | 2.1V | Through Hole, Right Angle | 7,867 Cart + RFQ |
HLMP1790C3R0 Everlight Electronics | 1 $0.0719 | Datasheet | Green | 585nm | Single | 25mA | 2mcd | 50° | Diffused, Tinted | Round with Domed Top | 3mm, T-1 | 2V | Through Hole | 4,710 Cart + RFQ |
HLMP1301C4R0 Everlight Electronics | 1 $0.0762 | Datasheet | - | - | - | - | - | - | - | Round with Domed Top | 3mm, T-1 | - | Through Hole | 8,566 Cart + RFQ |
HLMP1700C3R0 Everlight Electronics | 1 $0.0762 | Datasheet | Red | 635nm | Single | 25mA | 2mcd | 50° | Diffused, Tinted | Round with Domed Top | 3mm, T-1 | 2V | Through Hole | 9,701 Cart + RFQ |
HLMP1700C4R0 Everlight Electronics | 1 $0.0762 | Datasheet | Red | 635nm | Single | 25mA | 2mcd | 50° | Diffused, Tinted | Round with Domed Top | 3mm, T-1 | 2V | Through Hole | 3,807 Cart + RFQ |
HLMP1790C2R0 Everlight Electronics | 1 $0.0762 | Datasheet | Green | 585nm | Single | 25mA | 2mcd | 50° | Diffused, Tinted | Round with Domed Top | 3mm, T-1 | 2V | Through Hole | 6,933 Cart + RFQ |
HLMP1790C4R0 Everlight Electronics | 1 $0.0762 | Datasheet | Green | 585nm | Single | 25mA | 2mcd | 50° | Diffused, Tinted | Round with Domed Top | 3mm, T-1 | 2V | Through Hole | 4,244 Cart + RFQ |
A2703B/UY/S530-A3 Everlight Electronics | 1 $0.0858 | Datasheet | Yellow | 591nm | Single | 25mA | 200mcd | 50° | Diffused, Tinted | - | - | 2V | Through Hole, Right Angle | 8,419 Cart + RFQ |
A2753B/SDR/S530-A3 Everlight Electronics | 1 $0.0858 | Datasheet | Red | 650nm | Single | 25mA | 50mcd | 40° | Diffused, Tinted | Round with Domed Top | 3.00mm Dia | 2V | Through Hole, Right Angle | 1,367 Cart + RFQ |
A2703B/SYG/S530-E2 Everlight Electronics | 1 $0.0881 | Datasheet | Green, Yellow | 575nm | Single | 25mA | 80mcd | 45° | Diffused, Tinted | Round with Domed Top | 4.80mm Dia | 2V | Through Hole, Right Angle | 7,576 Cart + RFQ |
A1643B/UY/S530-A3 Everlight Electronics | 1 $0.0905 | Datasheet | Yellow (x 2) | 591nm | 2 High | 20mA | 120mcd | - | Diffused, Tinted | Round with Domed Top | 4.80mm Dia | 2V | Through Hole, Right Angle | 5,781 Cart + RFQ |
A1643B/SUR/S530-A3 Everlight Electronics | 1 $0.0927 | Datasheet | Red (x 2) | 632nm | 2 High | 20mA | 100mcd | 40° | Diffused, Tinted | Round with Domed Top | 4.80mm Dia | 2V | Through Hole, Right Angle | 5,176 Cart + RFQ |
HLMP1790MP4BS Everlight Electronics | 1 $0.0939 | Datasheet | Green | 585nm | Single | 25mA | 2mcd | 50° | Diffused, Tinted | Round with Domed Top | 3mm, T-1 | 2V | Through Hole | 7,539 Cart + RFQ |
A2774B/SYG/S530-E2 Everlight Electronics | 1 $0.1042 | Datasheet | Green, Yellow | 575nm | Single | 25mA | 50mcd | 60° | Diffused, Tinted | Round with Domed Top | 3.00mm Dia | 2V | Through Hole, Right Angle | 1,218 Cart + RFQ |
