LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Products within this family are Light Emitting Diode (LED) devices that are mechanically packaged for convenient use as visual indicators in various formats, ranging from single LEDs that are commonly used for indicating the power-on status of a device, to multi-segment devices used to create simple bar graph displays that are useful for communicating information such as the level of fluid remaining in a tank, or amount of charge remaining in a battery.
Product List
Total Components: 4,817
| Product | Pricing | Datasheet | Color | Wavelength - Peak | Configuration | Current | Millicandela Rating | Viewing Angle | Lens Type | Lens Style | Lens Size | Voltage Rating | Mounting Type | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 5912304013F Dialight | 1 $1.8000 | Datasheet | Green | 570nm | Single | 2mA | 5mcd | 50° | - | Round with Domed Top | 3mm, T-1 | 1.8V | Surface Mount, Right Angle | 8,711 Cart + RFQ |
 5510407F Dialight | 1 $1.1400 | Datasheet | Red | 650nm | Single | 10mA | 10mcd | 45° | Diffused, Tinted | Round with Domed Top | 3mm, T-1 | 2V | Through Hole, Right Angle | 1,397 Cart + RFQ |
 5510307F Dialight | 1 $1.1400 | Datasheet | Yellow | 585nm | Single | 10mA | 6.3mcd | 45° | Diffused, Tinted | Round with Domed Top | 3mm, T-1 | 2.1V | Through Hole, Right Angle | 2,774 Cart + RFQ |
 5510207F Dialight | 1 $1.1400 | Datasheet | Green | 563nm | Single | 10mA | 16mcd | 45° | Diffused, Tinted | Round with Domed Top | 3mm, T-1 | 2.1V | Through Hole, Right Angle | 7,065 Cart + RFQ |
5511307F Dialight | 1 $1.4900 | Datasheet | Green | 565nm | Single | 2mA | 1.6mcd | 60° | Diffused, Tinted | Round with Domed Top | 3mm, T-1 | 1.9V | Through Hole, Right Angle | 5,725 Cart + RFQ |
5912601013F Dialight | 1 $3.2700 | Datasheet | Blue | 428nm | Single | 20mA | 6mcd | 40° | - | Round with Domed Top | 3mm, T-1 | 3.5V | Surface Mount, Right Angle | 5,088 Cart + RFQ |
5913101007F Dialight | 1 $3.3800 | Datasheet | Green, Yellow | 572nm, 586nm | Single | 30mA | 11.3mcd Green, 11.3mcd Yellow | 40° | Diffused | Round with Domed Top | 3mm, T-1 | 2V | Surface Mount, Right Angle | 5,532 Cart + RFQ |
5913001007F Dialight | 1 $3.3800 | Datasheet | Green, Red | 570nm, 628nm | Single | 30mA | 8mcd Green, 6.5mcd Red | 40° | Diffused | - | - | 2V | Surface Mount, Right Angle | 2,463 Cart + RFQ |

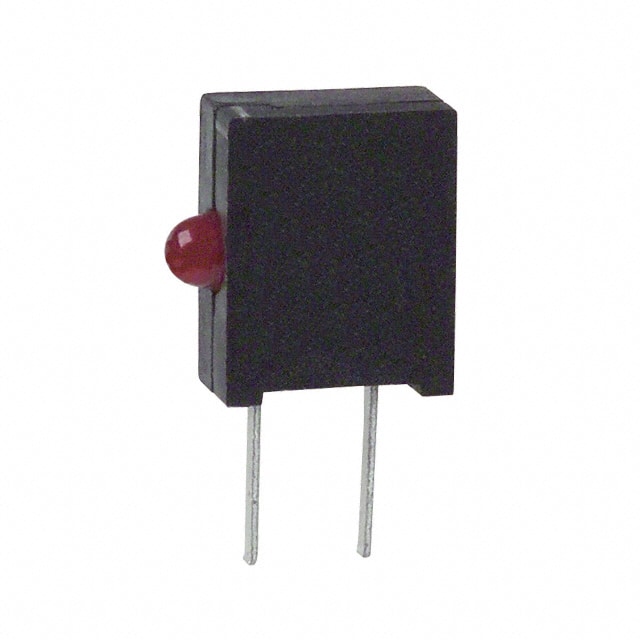

 5552001F Dialight | 1 $1.8200 | Datasheet | Red | 655nm | Single | 50mA | 0.6mcd | 35° | Diffused, Tinted | Round with Domed Top | 2.00mm Dia | 1.6V | Through Hole, Right Angle | 3,720 Cart + RFQ |

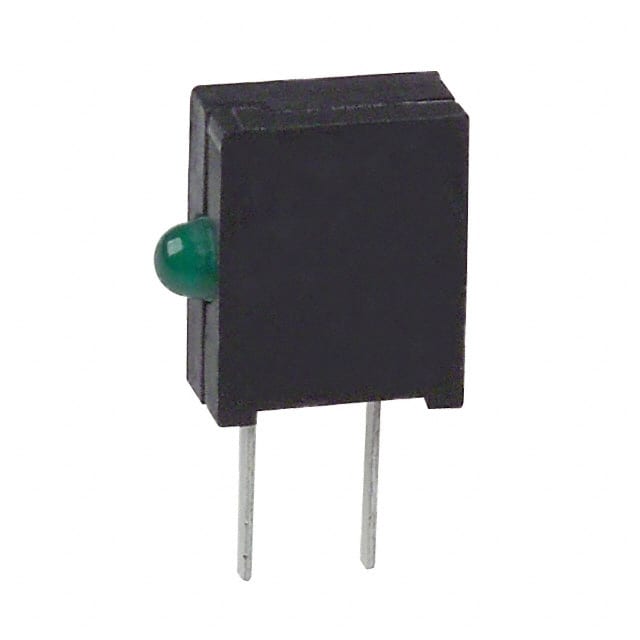

 5552303F Dialight | 1 $1.8400 | Datasheet | Green | 565nm | Single | 4.7mA | 2.5mcd | 40° | Clear | Round with Domed Top | 2.00mm Dia | 5V | Through Hole, Right Angle | 2,890 Cart + RFQ |

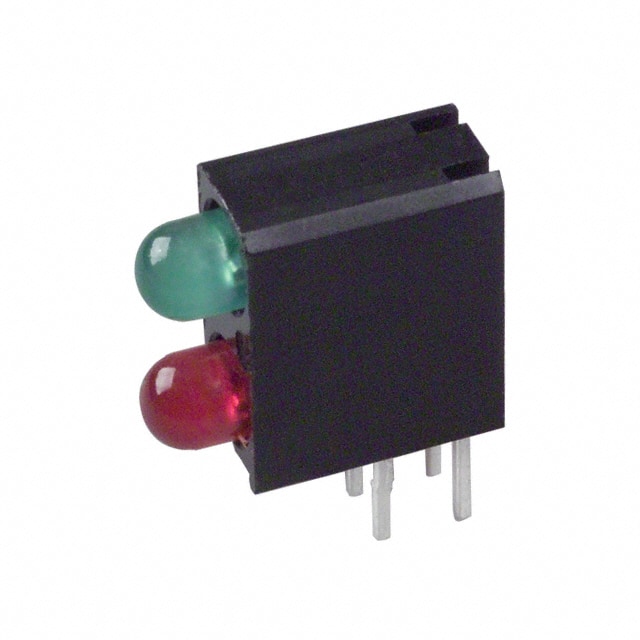

 5530121F Dialight | 1 $1.8600 | Datasheet | Green (x 1), Red (x 1) | 563nm, 650nm | 2 High | 10mA | 16mcd Green, 10mcd Red | - | Diffused, Tinted | Round with Domed Top | 3mm, T-1 | 2.1V Green, 2V Red | Through Hole, Right Angle | 9,822 Cart + RFQ |
5552301F Dialight | 1 $1.8800 | Datasheet | Green | 565nm | Single | 20mA | 1mcd | 40° | Clear | - | - | 2.4V | Through Hole, Right Angle | 3,440 Cart + RFQ |

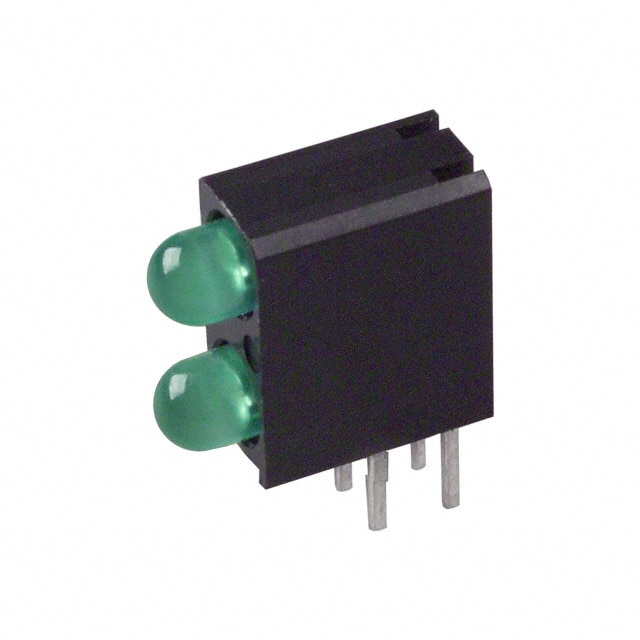

 5530122F Dialight | 1 $1.9700 | Datasheet | Green (x 2) | 563nm | 2 High | 10mA | 16mcd | 45° | Diffused, Tinted | Round with Domed Top | 3mm, T-1 | 2.1V | Through Hole, Right Angle | 8,725 Cart + RFQ |

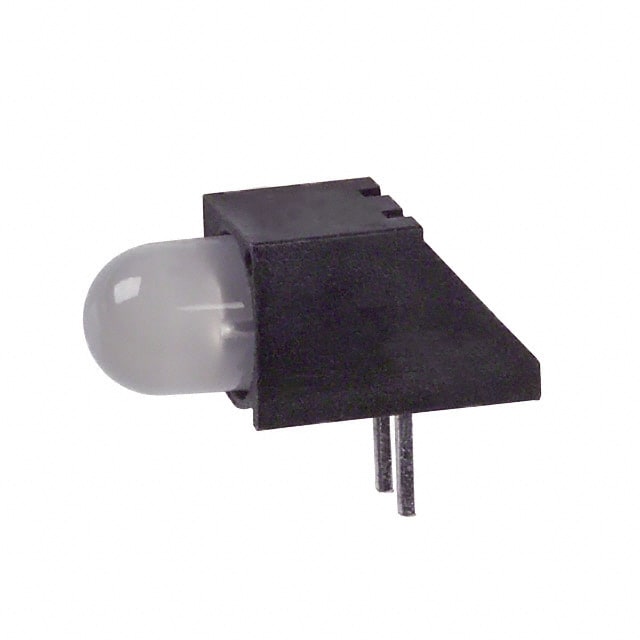

 5503007F Dialight | 1 $2.1200 | Datasheet | Green, Red | 565nm, 660nm | Single | 20mA | 40mcd Green, 90mcd Red | 60° | Diffused | - | - | 2.1V Green, 1.8V Red | Through Hole, Right Angle | 5,226 Cart + RFQ |

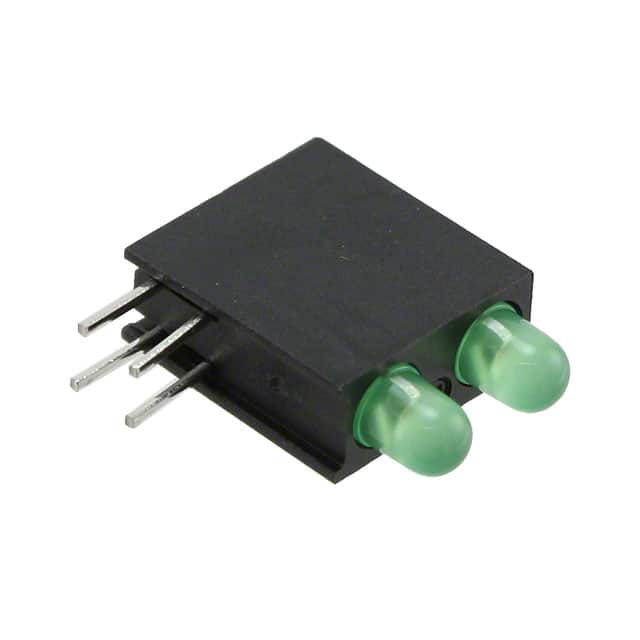

 5530122200F Dialight | 1 $2.2100 | Datasheet | Green (x 2) | 565nm | 2 High | 20mA | 12.6mcd | 60° | Diffused, Tinted | Round with Domed Top | 3mm, T-1 | 2.1V | Through Hole, Right Angle | 9,292 Cart + RFQ |

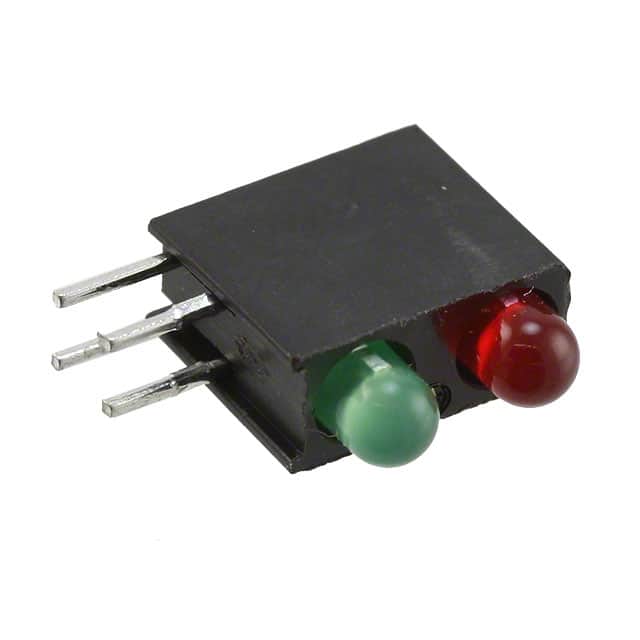

 5530112F Dialight | 1 $2.2100 | Datasheet | Green (x 1), Red (x 1) | 563nm, 650nm | 2 High | 10mA | 16mcd Green, 10mcd Red | 45° | Diffused, Tinted | Round with Domed Top | 3mm, T-1 | 2.1V Green, 2V Red | Through Hole, Right Angle | 2,783 Cart + RFQ |

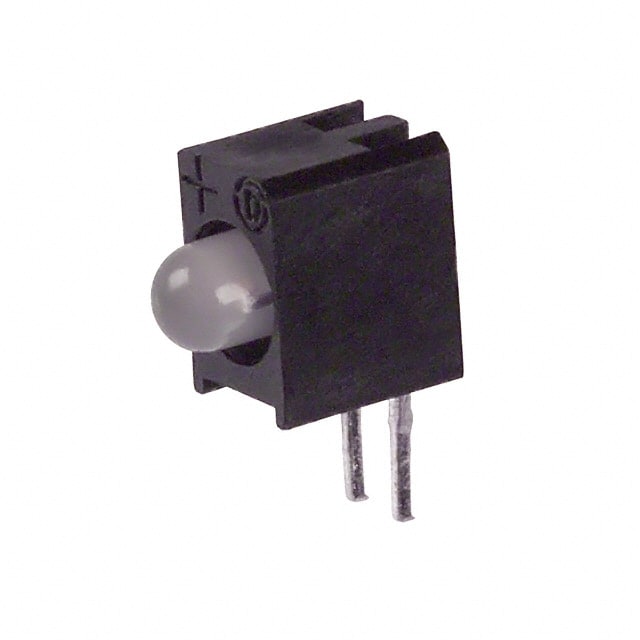

 5513009F Dialight | 1 $2.2100 | Datasheet | Green, Red | 565nm, 635nm | Single | 10mA | 10mcd Green, 4.7mcd Red | 50° | Diffused | Round with Domed Top | 3mm, T-1 | 2.1V Green, 2V Red | Through Hole, Right Angle | 3,037 Cart + RFQ |
 5530123F Dialight | 1 $2.2100 | Datasheet | Green (x 1), Yellow (x 1) | 563nm, 585nm | 2 High | 10mA | 16mcd Green, 6.3mcd Yellow | - | Diffused, Tinted | Round with Domed Top | 3mm, T-1 | 2.1V | Through Hole, Right Angle | 5,837 Cart + RFQ |

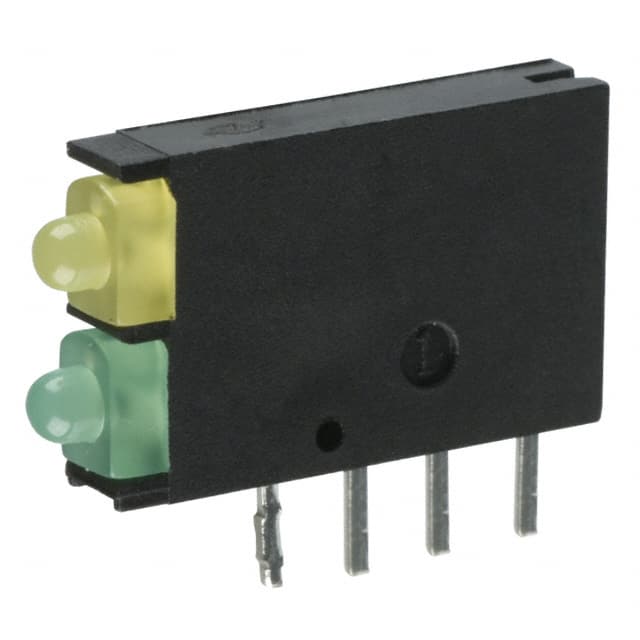

 5710132F Dialight | 1 $2.3800 | Datasheet | Green (x 1), Yellow (x 1) | 565nm, 585nm | 2 High | 20mA | 10mcd Green, 8mcd Yellow | 38° | Diffused, Tinted | - | - | 2.1V | Through Hole, Right Angle | 4,860 Cart + RFQ |

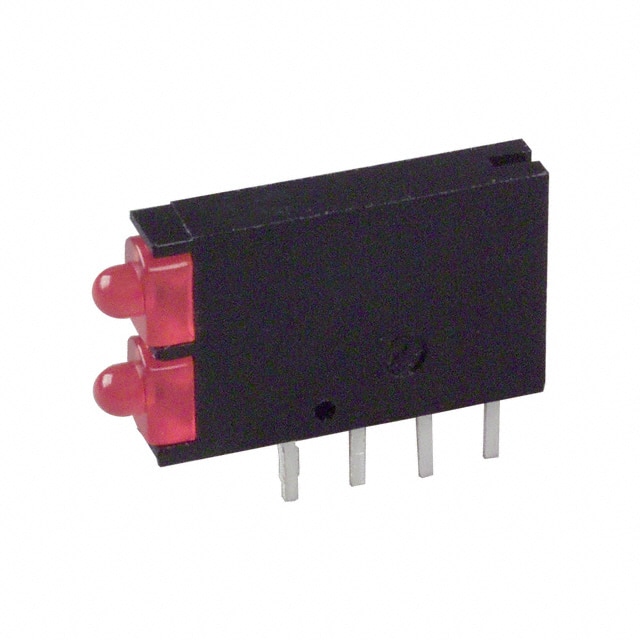

 5710111F Dialight | 1 $2.3800 | Datasheet | Red (x 2) | 635nm | 2 High | 20mA | 12.6mcd | 38° | Diffused, Tinted | Round with Domed Top | 2.00mm Dia | 2V | Through Hole, Right Angle | 2,078 Cart + RFQ |
