LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Products within this family are Light Emitting Diode (LED) devices that are mechanically packaged for convenient use as visual indicators in various formats, ranging from single LEDs that are commonly used for indicating the power-on status of a device, to multi-segment devices used to create simple bar graph displays that are useful for communicating information such as the level of fluid remaining in a tank, or amount of charge remaining in a battery.
Product List
Total Components: 132
| Product | Pricing | Datasheet | Color | Wavelength - Peak | Configuration | Current | Millicandela Rating | Viewing Angle | Lens Type | Lens Style | Lens Size | Voltage Rating | Mounting Type | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

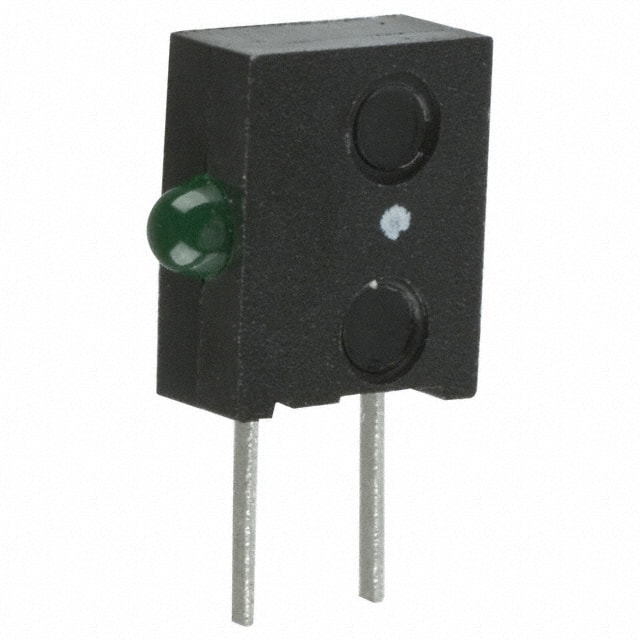

 HLMP-6820-F0010 Avago Technologies (Broadcom) | 1 $1.9000 | Datasheet | Green | 565nm | Single | 3.5mA | 2mcd | 90° | Diffused | Round with Domed Top | 1.91mm Dia | 5V | Through Hole, Right Angle | 4,736 Cart + RFQ |

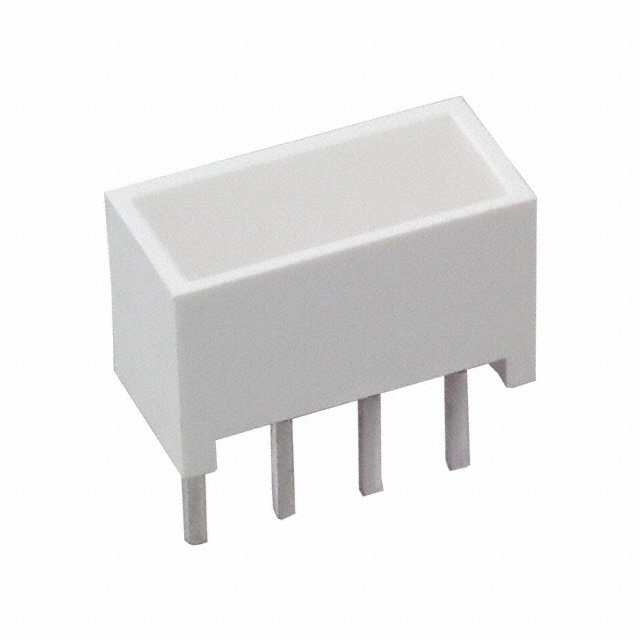

 HLMP-2300 Avago Technologies (Broadcom) | 1 $2.5700 | Datasheet | Red | 634nm | Bar - Single, SIP | 30mA | 23mcd | - | - | Rectangle with Flat Top | 8.89mm x 3.81mm | 2V | Through Hole | 5,703 Cart + RFQ |
HLMP-2400 Avago Technologies (Broadcom) | 1 $2.5700 | Datasheet | Yellow | 583nm | Bar - Single, SIP | 25mA | 20mcd | - | - | Rectangle with Flat Top | 8.89mm x 3.81mm | 2.1V | Through Hole | 9,178 Cart + RFQ |

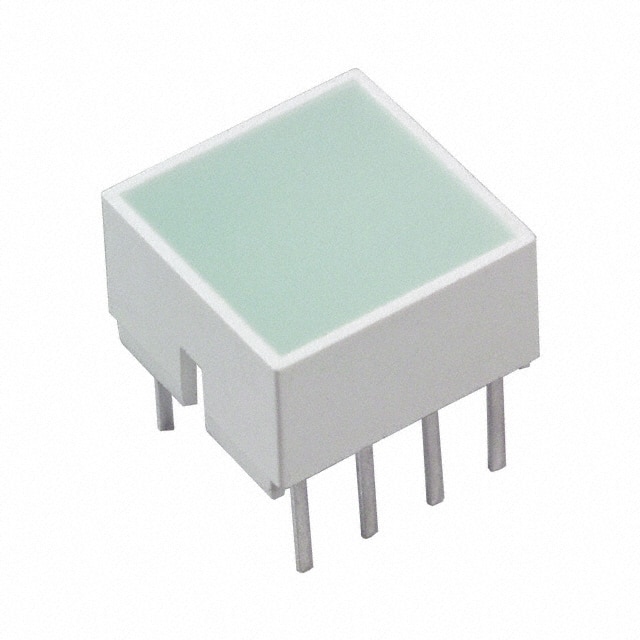

 HLMP-2855 Avago Technologies (Broadcom) | 1 $3.3600 | Datasheet | Green | 565nm | Bar - Single, DIP | 30mA | 50mcd | - | - | Square with Flat Top | 8.89mm | 2.2V | Through Hole | 1,919 Cart + RFQ |

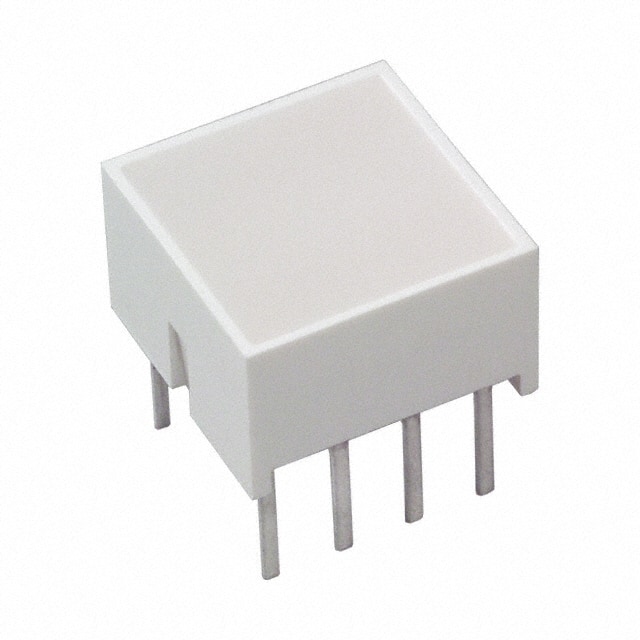

 HLMP-2655 Avago Technologies (Broadcom) | 1 $3.2500 | Datasheet | Red | 634nm | Bar - Single, DIP | 90mA | 45mcd | - | - | Square with Flat Top | 8.89mm | 2V | Through Hole | 1,511 Cart + RFQ |
HLMP-2755 Avago Technologies (Broadcom) | 1 $3.5400 | Datasheet | Yellow | 583nm | Bar - Single, DIP | 25mA | 70mcd | - | - | Square with Flat Top | 8.89mm | 2.1V | Through Hole | 6,164 Cart + RFQ |

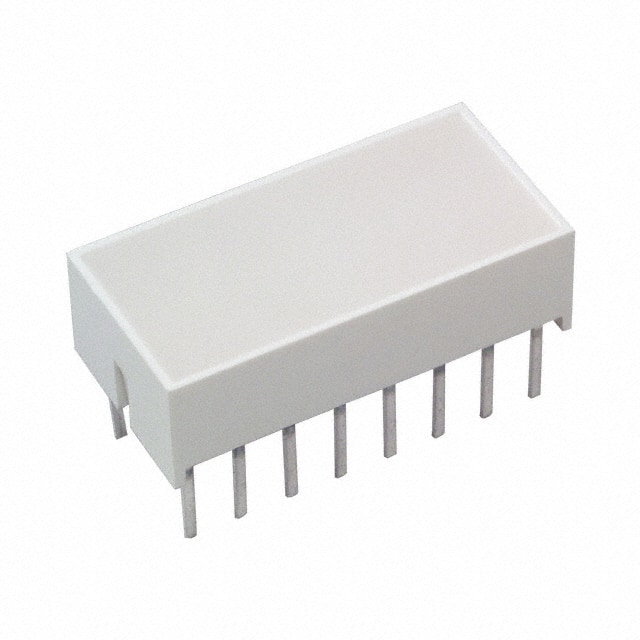

 HLMP-2685 Avago Technologies (Broadcom) | 1 $4.9100 | Datasheet | Red | 634nm | Bar - Single, DIP | 30mA | 80mcd | - | - | Rectangle with Flat Top | 19.05mm x 8.89mm | 2V | Through Hole | 3,687 Cart + RFQ |

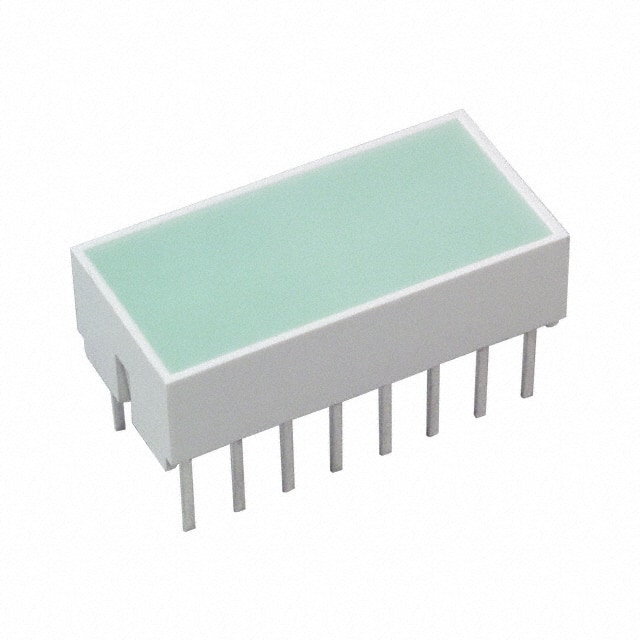

 HLMP-2885 Avago Technologies (Broadcom) | 1 $5.1900 | Datasheet | Green | 565nm | Bar - Single, DIP | 30mA | 100mcd | - | - | Rectangle with Flat Top | 19.05mm x 8.89mm | 2.2V | Through Hole | 2,906 Cart + RFQ |

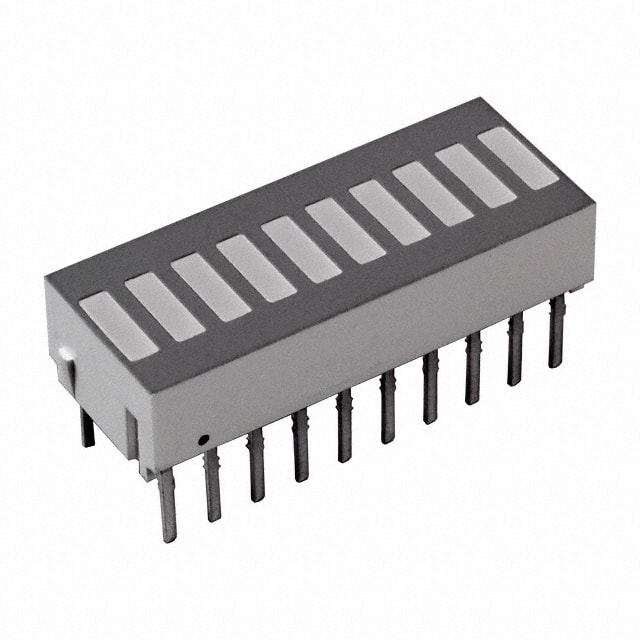

 HDSP-4830 Avago Technologies (Broadcom) | 1 $7.0400 | Datasheet | Red (x 10) | 635nm | Bar - 10 Wide, DIP | 30mA | 3.5mcd | - | - | - | - | 2.1V | Through Hole | 1,711 Cart + RFQ |
HLMP-2965 Avago Technologies (Broadcom) | 1 $6.9700 | Datasheet | Green, Red | 634nm | Bar - Single, DIP | 30mA | 45mcd | - | - | Square with Flat Top | 8.89mm | 2.2V Green, 2V Red | Through Hole | 9,451 Cart + RFQ |
HDSP-4832 Avago Technologies (Broadcom) | 1 $8.1000 | Datasheet | Green (x 3), Red (x 3), Yellow (x 4) | 566nm, 635nm, 583nm | Bar - 10 Wide, DIP | 30mA Green, 30mA Red, 20mA Yellow | 1.9mcd Green, 3.5mcd Red, 1.9mcd Yellow | - | - | Rectangle with Flat Top | 5.08mm x 1.52mm | 2.1V Green, 2.1V Red, 2.2V Yellow | Through Hole | 2,706 Cart + RFQ |
HLCP-J100 Avago Technologies (Broadcom) | 1 $7.3900 | Datasheet | Red (x 10) | 645nm | Bar - 10 Wide, DIP | 15mA | 1mcd | - | - | - | - | 1.6V | Through Hole | 2,177 Cart + RFQ |
HLMP-2400 Avago Technologies (Broadcom) | 1 $2.5700 | Datasheet | Yellow | 583nm | Bar - Single, SIP | 25mA | 20mcd | - | - | Rectangle with Flat Top | 8.89mm x 3.81mm | 2.1V | Through Hole | 6,995 Cart + RFQ |
HLMP-2350 Avago Technologies (Broadcom) | 1 $3.4800 | Datasheet | Red | 634nm | Bar - Single, SIP | 30mA | 45mcd | - | - | Rectangle with Flat Top | 19.05mm x 3.81mm | 2V | Through Hole | 3,696 Cart + RFQ |
HLMP-2785 Avago Technologies (Broadcom) | 1 $5.1900 | Datasheet | Yellow | 583nm | Bar - Single, DIP | 25mA | 70mcd | - | - | Rectangle with Flat Top | 19.05mm x 8.89mm | 2.1V | Through Hole | 6,573 Cart + RFQ |
HDSP-4850 Avago Technologies (Broadcom) | 1 $6.7700 | Datasheet | Green (x 10) | 566nm | Bar - 10 Wide, DIP | 30mA | 1.9mcd | - | - | - | - | 2.1V | Through Hole | 9,868 Cart + RFQ |
HDSP-4840 Avago Technologies (Broadcom) | 1 $7.3900 | Datasheet | Yellow (x 10) | 583nm | Bar - 10 Wide, DIP | 20mA | 1.9mcd | - | - | Rectangle with Flat Top | 5.08mm x 1.52mm | 2.2V | Through Hole | 1,623 Cart + RFQ |
HLMP-2350-EF000 Avago Technologies (Broadcom) | 1 $3.2700 | Datasheet | Red | 635nm | Bar - Single, SIP | 20mA | 45mcd | - | - | - | - | 2V | Through Hole | 7,492 Cart + RFQ |
HLMP-2450 Avago Technologies (Broadcom) | 1 $3.4800 | Datasheet | Yellow | 583nm | Bar - Single, SIP | 25mA | 38mcd | - | - | Rectangle with Flat Top | 19.05mm x 3.81mm | 2.1V | Through Hole | 7,146 Cart + RFQ |
HDSP-4836 Avago Technologies (Broadcom) | 1 $8.1000 | Datasheet | Green (x 2), Red (x 4), Yellow (x 4) | 566nm, 635nm, 583nm | Bar - 10 Wide, DIP | 30mA Green, 30mA Red, 20mA Yellow | 1.9mcd Green, 3.5mcd Red, 1.9mcd Yellow | - | - | Rectangle with Flat Top | 5.08mm x 1.52mm | 2.1V Green, 2.1V Red, 2.2V Yellow | Through Hole | 1,698 Cart + RFQ |
