LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Products within this family are Light Emitting Diode (LED) devices that are mechanically packaged for convenient use as visual indicators in various formats, ranging from single LEDs that are commonly used for indicating the power-on status of a device, to multi-segment devices used to create simple bar graph displays that are useful for communicating information such as the level of fluid remaining in a tank, or amount of charge remaining in a battery.
Product List
Total Components: 406
| Product | Pricing | Datasheet | Color | Wavelength - Peak | Configuration | Current | Millicandela Rating | Viewing Angle | Lens Type | Lens Style | Lens Size | Voltage Rating | Mounting Type | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SSF-LXH103LGD Lumex, Inc. | 1 $0.7000 | Datasheet | Green | 565nm | Single | 20mA | 15mcd | 80° | Diffused, Tinted | Round with Domed Top | 3mm, T-1 | 2.1V | Through Hole, Right Angle | 7,516 Cart + RFQ |
 SSF-LXH303GD Lumex, Inc. | 1 $0.6900 | Datasheet | Green | 565nm | Single | 20mA | 30mcd | 60° | Diffused, Tinted | Round with Domed Top | 3mm, T-1 | 2.2V | Through Hole, Right Angle | 1,052 Cart + RFQ |
 SSF-LXH103ID Lumex, Inc. | 1 $0.7100 | Datasheet | Red | 635nm | Single | 20mA | 30mcd | 60° | Diffused, Tinted | Round with Domed Top | 3.00mm Dia | 2.1V | Through Hole, Right Angle | 3,401 Cart + RFQ |
SSF-LXH103GD Lumex, Inc. | 1 $0.7200 | Datasheet | Green | 565nm | Single | 20mA | 30mcd | 60° | Diffused, Tinted | Round with Domed Top | 3mm, T-1 | 2.1V | Through Hole, Right Angle | 7,871 Cart + RFQ |
 SSF-LXH100GD-01 Lumex, Inc. | 1 $0.7800 | Datasheet | Green | 565nm | Single | 20mA | 30mcd | 60° | Diffused, Tinted | Round with Domed Top | 5mm, T-1 3/4 | 2.2V | Through Hole, Right Angle | 1,152 Cart + RFQ |
 SSF-LXH240GGD Lumex, Inc. | 1 $1.0900 | Datasheet | Green (x 2) | 565nm | 2 High | 20mA | 40mcd | 60° | Diffused, Tinted | Round with Domed Top | 2.90mm Dia | 2.2V | Through Hole, Right Angle | 9,286 Cart + RFQ |

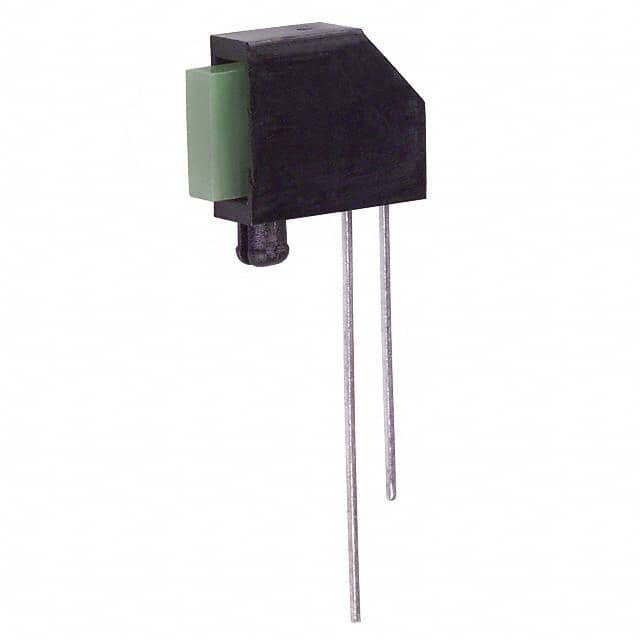

 SSF-LXH25780GD Lumex, Inc. | 1 $1.7200 | Datasheet | Green | 565nm | Bar - Single, SIP | 20mA | 9mcd | 110° | Diffused, Tinted | Rectangle with Flat Top | 7.00mm x 2.50mm | 2.2V | Through Hole, Right Angle | 2,066 Cart + RFQ |

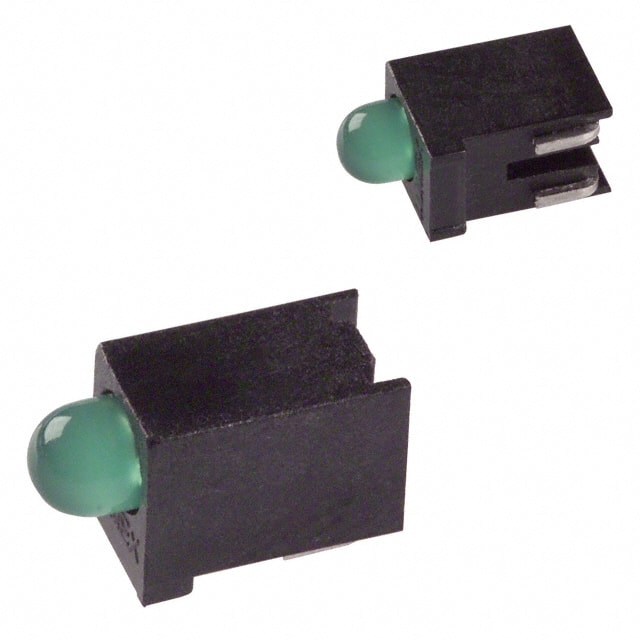

 SSF-LXH305SGD-TR Lumex, Inc. | 1 $1.4700 | Datasheet | Green | 565nm | Single | 20mA | 150mcd | 60° | Diffused, Tinted | Round with Domed Top | 3mm, T-1 | 2.2V | Surface Mount, Right Angle | 5,297 Cart + RFQ |

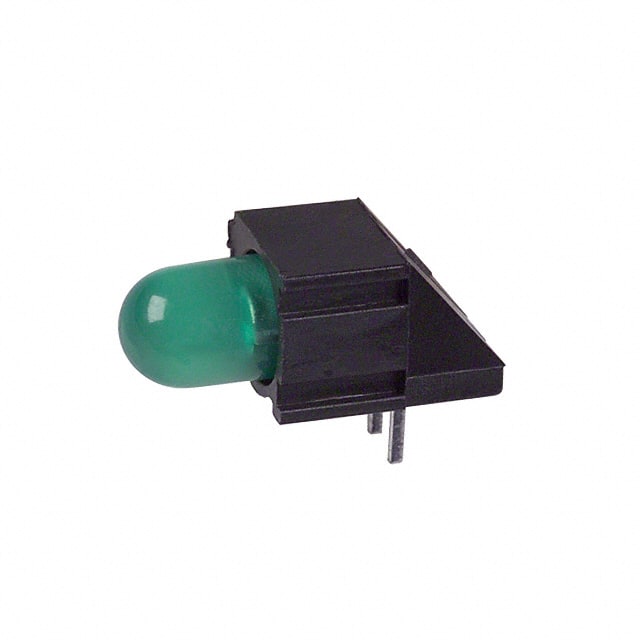

 SSF-LXH100MGD Lumex, Inc. | 1 $0.6200 | Datasheet | Green | 565nm | Single | 20mA | 20mcd | 60° | Diffused, Tinted | Round with Domed Top | 5mm, T-1 3/4 | 2.2V | Through Hole, Right Angle | 9,015 Cart + RFQ |

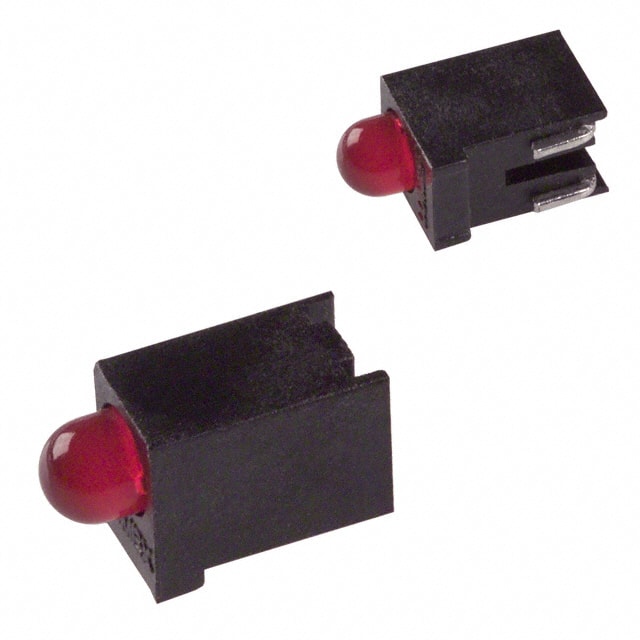

 SSF-LXH305SRD-TR Lumex, Inc. | 1 $1.5800 | Datasheet | Red | 660nm | Single | 20mA | 80mcd | 60° | Diffused, Tinted | Round with Domed Top | 3mm, T-1 | 1.7V | Surface Mount, Right Angle | 2,522 Cart + RFQ |
SSF-LXH103YD Lumex, Inc. | 1 $0.7000 | Datasheet | Yellow | 585nm | Single | 20mA | 30mcd | 60° | Diffused, Tinted | Round with Domed Top | 3mm, T-1 | 2.1V | Through Hole, Right Angle | 5,902 Cart + RFQ |
SSF-LXH103LID Lumex, Inc. | 1 $0.7300 | Datasheet | Red | 635nm | Single | 20mA | 40mcd | 60° | Diffused, Tinted | Round with Domed Top | 3mm, T-1 | 2V | Through Hole, Right Angle | 5,450 Cart + RFQ |
SSF-LXH100LGD-01 Lumex, Inc. | 1 $0.6700 | Datasheet | Green | 565nm | Single | 20mA | 30mcd | 60° | Diffused, Tinted | Round with Domed Top | 5mm, T-1 3/4 | 2.2V | Through Hole, Right Angle | 1,798 Cart + RFQ |
SSF-LXH100MID Lumex, Inc. | 1 $0.7500 | Datasheet | Red | 635nm | Single | 20mA | 30mcd | 60° | Diffused, Tinted | Round with Domed Top | 5mm, T-1 3/4 | 2V | Through Hole, Right Angle | 4,175 Cart + RFQ |
SSF-LXH104YD Lumex, Inc. | 1 $0.9400 | Datasheet | Yellow | 585nm | Single | 20mA | 30mcd | 60° | Diffused, Tinted | Round with Domed Top | 5mm, T-1 3/4 | 2.1V | Through Hole, Right Angle | 9,313 Cart + RFQ |
SSF-LXH2103IID/4 Lumex, Inc. | 1 $1.2600 | Datasheet | Red (x 2) | 635nm | 2 High | 20mA | 40mcd | 60° | Diffused, Tinted | Round with Domed Top | 3mm, T-1 | 2V | Through Hole, Right Angle | 8,449 Cart + RFQ |
SSF-LXHM250IID Lumex, Inc. | 1 $1.2900 | Datasheet | Red (x 2) | 635nm | 2 High | 20mA | 40mcd | 60° | Diffused, Tinted | Round with Domed Top | 5mm, T-1 3/4 | 2V | Through Hole, Right Angle | 4,100 Cart + RFQ |
SMF-2432GYC-TR Lumex, Inc. | 1 $0.5800 | Datasheet | Green, Yellow | 565nm, 585nm | Single | 20mA Green, 20mA Yellow | 4mcd Green, 3mcd Yellow | 90° | Clear | Round with Domed Top | 1.60mm Dia | 2.2V Green, 2.1V Yellow | Surface Mount, Right Angle | 6,706 Cart + RFQ |
SSF-LXH100MLID Lumex, Inc. | 1 $0.8000 | Datasheet | Red | 635nm | Single | 20mA | 30mcd | 60° | Diffused, Tinted | Round with Domed Top | 5mm, T-1 3/4 | 2V | Through Hole, Right Angle | 8,700 Cart + RFQ |
SSB-LX2965IGW Lumex, Inc. | 1 $7.5300 | Datasheet | Green, Red | 635nm, 565nm | Bar - Single, DIP | 25mA Green, 30mA Red | 25mcd | 160° | Diffused, White | Square with Flat Top | 8.89mm | 2.1V | Through Hole | 9,852 Cart + RFQ |
