LED Lighting - Color
Color LEDs used for illumination are characterized by fixed wavelength, wavelength range, and color group as well as 60 to 170 degree viewing angles. LEDS are available in surface mount packages such as SMD, CSDM, PLCC, J-lead, gull wing, exposed pad, and a wide variety of metric sizes as well as through-hole TO-252, DPak, SC-63, and radial lead configurations.
Product List
Total Components: 11
| Product | Pricing | Datasheet | Color | Wavelength | Current - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | Luminous Flux @ Current/Temperature | Temperature - Test | Viewing Angle | Mounting Type | Package / Case | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

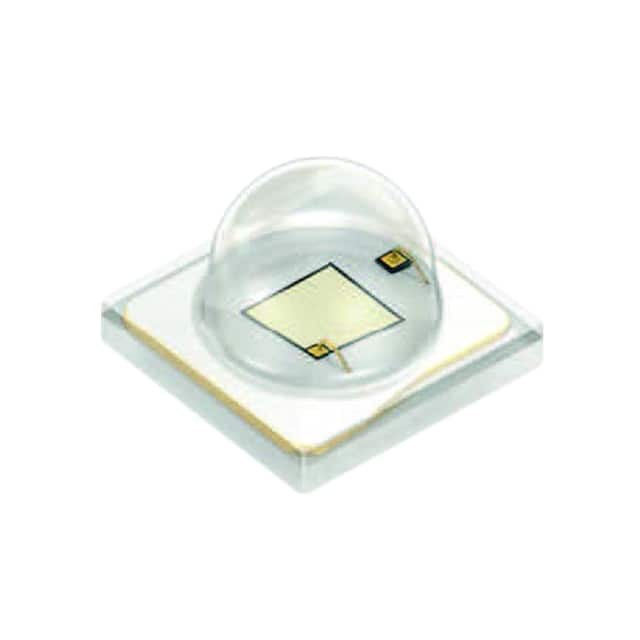

 GD CS8PM1.14-UOVJ-W4-1 ams OSRAM | 1 $1.6500 | Datasheet | Blue | 455nm (Typ) | 350mA | 2.85V | - | 1A | 711mW (658mW ~ 763mW) | 25°C | 80° | Surface Mount | 1212 (3030 Metric) | SMD | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.091" (2.31mm) | 1,419 Cart + RFQ |
 LE B Q8WP-8A7B-24 ams OSRAM | 1 $6.8300 | Datasheet | Blue | 459nm (Typ) | 1.4A | 3.05V | - | 5A | - | 25°C | 120° | Surface Mount | 2-SMD, No Lead Exposed Pad | SMD | 0.154" L x 0.144" W (3.90mm x 3.65mm) | 0.053" (1.35mm) | 1,513 Cart + RFQ |

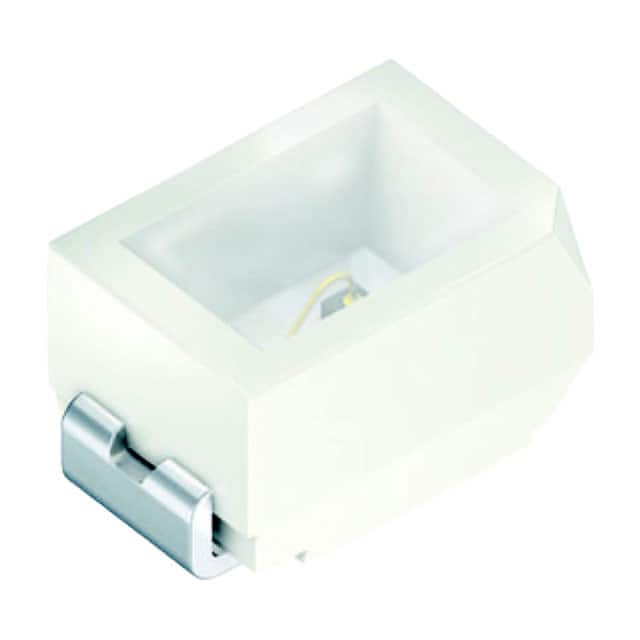

 LA M67F-V1AB-24-1-20-R18-Z ams OSRAM | 1 $0.4700 | Datasheet | Amber | 618nm (612nm ~ 624nm) | 20mA | 2.15V | 93 lm/W | 30mA | 4lm (2lm ~ 5lm) | 25°C | 120° | Surface Mount | 2-SMD, J-Lead | SMD | 0.079" L x 0.055" W (2.00mm x 1.40mm) | 0.055" (1.40mm) | 9,006 Cart + RFQ |

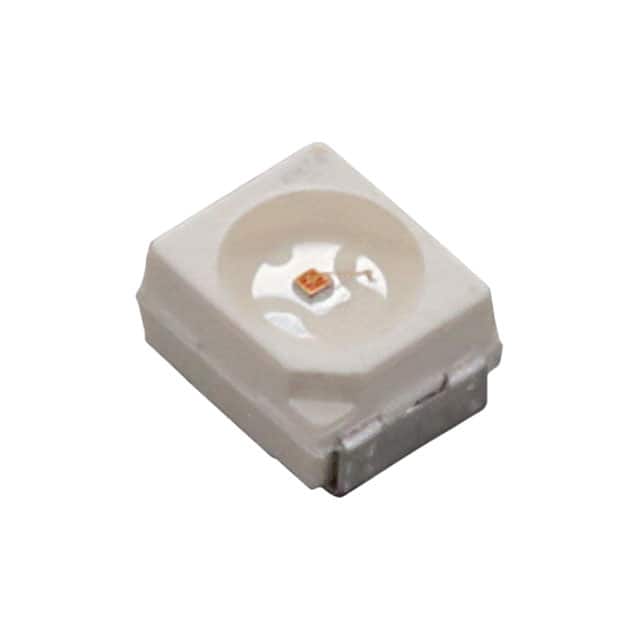

 LP T67F-P1R2-35-1-20-R18-Z ams OSRAM | 1 $0.4300 | Datasheet | Green | 562nm (557nm ~ 566nm) | 20mA | 2.1V | 7 lm/W | 50mA | 0.30lm (0.15lm ~ 0.48lm) | 25°C | 120° | Surface Mount | 2-PLCC | 2-PLCC | 0.126" L x 0.110" W (3.20mm x 2.80mm) | 0.083" (2.10mm) | 8,683 Cart + RFQ |

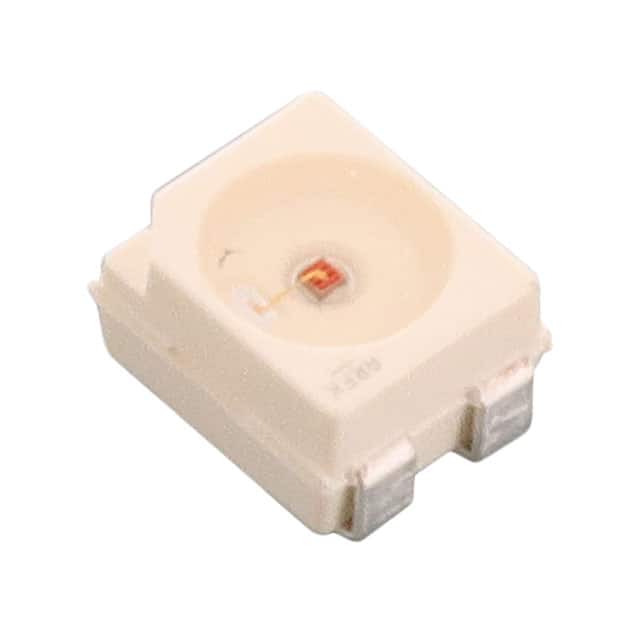

 LO E67F-BADA-24-1-50-R18-Z ams OSRAM | 1 $0.5600 | Datasheet | Orange | 605nm (600nm ~ 609nm) | 50mA | 2.15V | 102 lm/W | 70mA | 11lm (6lm ~ 15lm) | 25°C | 120° | Surface Mount | 4-PLCC | 4-PLCC | 0.126" L x 0.110" W (3.20mm x 2.80mm) | 0.083" (2.10mm) | 4,947 Cart + RFQ |

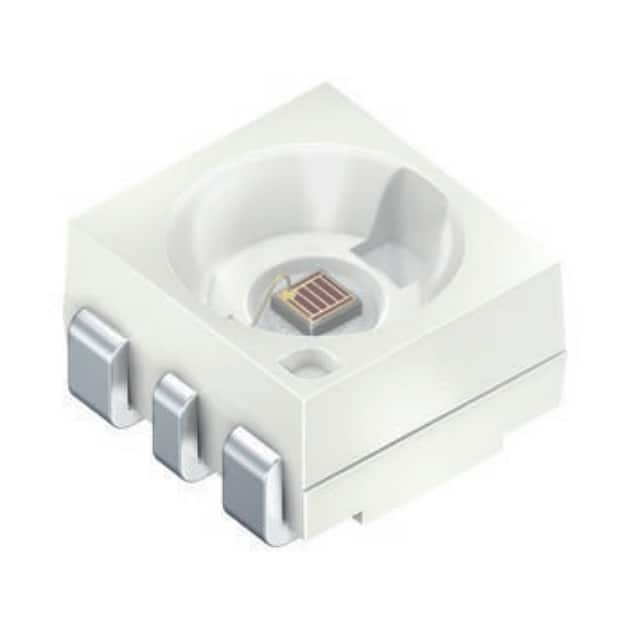

 LR G6SP.01-6D7E-46-G3R3 ams OSRAM | 1 $0.5200 | Datasheet | Red | 623nm (Typ) | 140mA | 2.2V | 75 lm/W | 200mA | 23lm (Typ) | 25°C | 120° | Surface Mount | 6-SMD | - | 0.130" L x 0.118" W (3.30mm x 3.00mm) | 0.083" (2.10mm) | 9,509 Cart + RFQ |
 KY DMLN31.23-GYJX-46-J3T3-Z ams OSRAM | 1 $0.6000 | Datasheet | Yellow | 589nm (583nm ~ 595nm) | 200mA | 2.35V | 79 lm/W | 250mA | 37lm (Typ) | 25°C | 120° | Surface Mount | 1108 (2720 Metric) | SMD | 0.108" L x 0.079" W (2.75mm x 2.00mm) | 0.028" (0.70mm) | 5,043 Cart + RFQ |

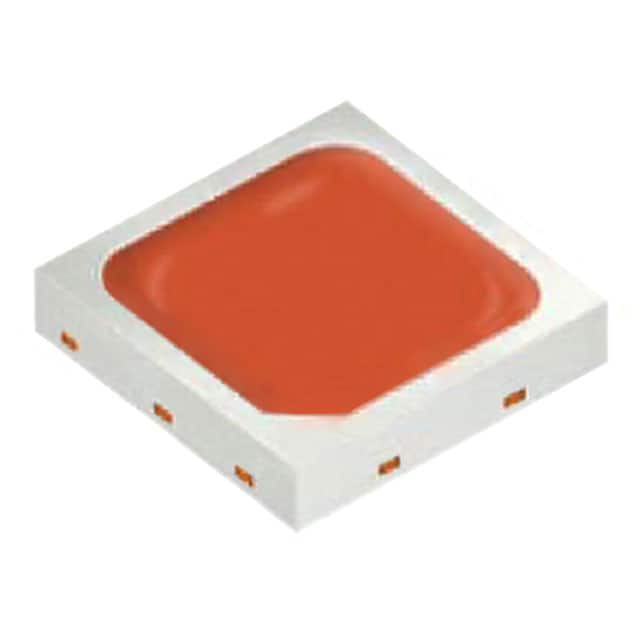

 GR PSLR31.13-GTHP-R1R2-1 ams OSRAM | 1 $0.6600 | Datasheet | Red | 620nm (Typ) | 150mA | 6.25V | 29 lm/W | 200mA | 27lm (Typ) | 25°C | 120° | Surface Mount | 1212 (3030 Metric) | SMD | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.028" (0.70mm) | 3,068 Cart + RFQ |

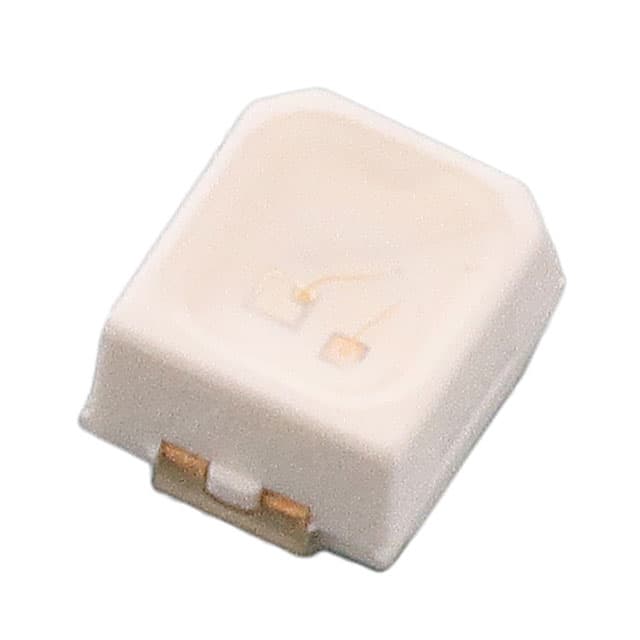

 LD MVSG-JGLH-46-1 ams OSRAM | 1 $0.7700 | Datasheet | Blue | 459nm (453nm ~ 465nm) | 20mA | 3.05V | - | 30mA | - | 25°C | 120° | Surface Mount | 2-SMD, J-Lead | SMD | 0.079" L x 0.071" W (2.00mm x 1.80mm) | 0.055" (1.40mm) | 3,911 Cart + RFQ |

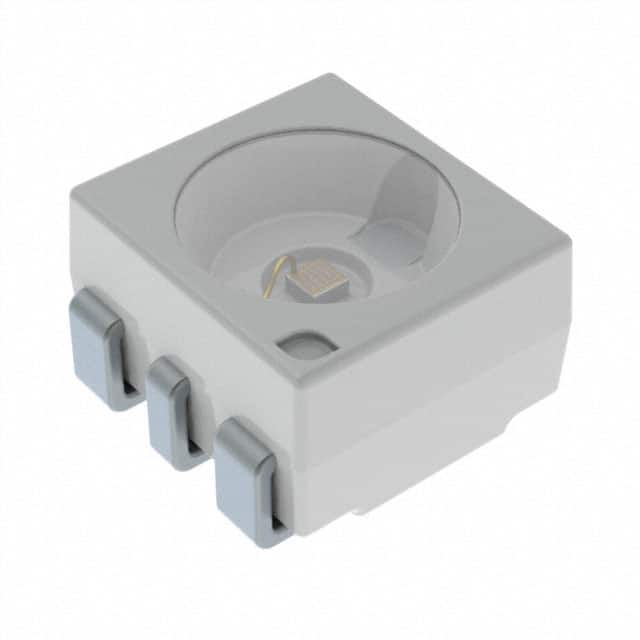

 LR G6SP-CBEA-1-1-Z ams OSRAM | 1 $0.7600 | Datasheet | Red | 625nm (620nm ~ 629nm) | 140mA | 2.1V | 61 lm/W | 200mA | 18lm (12lm ~ 24lm) | 25°C | 120° | Surface Mount | 6-SMD, J-Lead | 6-SMD | 0.130" L x 0.118" W (3.30mm x 3.00mm) | 0.083" (2.10mm) | 1,707 Cart + RFQ |
KR DMLQ31.23-HYKY-26-J3T3-350-R18-Z ams OSRAM | 1 $1.0500 | Datasheet | Red | 621nm (Typ) | 350mA | 2.32V | 80 lm/W | 500mA | 65lm (33lm ~ 97lm) | 25°C | 120° | Surface Mount | 1108 (2720 Metric) | 2-SMD | 0.108" L x 0.079" W (2.75mm x 2.00mm) | 0.028" (0.70mm) | 2,983 Cart + RFQ |
