LED Lighting - Color
Color LEDs used for illumination are characterized by fixed wavelength, wavelength range, and color group as well as 60 to 170 degree viewing angles. LEDS are available in surface mount packages such as SMD, CSDM, PLCC, J-lead, gull wing, exposed pad, and a wide variety of metric sizes as well as through-hole TO-252, DPak, SC-63, and radial lead configurations.
Product List
Total Components: 124
| Product | Pricing | Datasheet | Color | Wavelength | Current - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | Luminous Flux @ Current/Temperature | Temperature - Test | Viewing Angle | Mounting Type | Package / Case | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 L1SP-DRD0002800000 Lumileds | 1 $0.6500 | Datasheet | Red | 660nm (650nm ~ 670nm) | 120mA | 2.15V | - | 250mA | - | 25°C | 130° | Surface Mount | 1411 (3528 Metric) | 2835 | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.030" (0.75mm) | 4,456 Cart + RFQ |
L1SP-FRD0002800000 Lumileds | 1 $0.6400 | Datasheet | Red | 730nm (720nm ~ 740nm) | 120mA | 2.15V | - | 250mA | - | 25°C | 130° | Surface Mount | 1411 (3528 Metric) | 2835 | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.030" (0.75mm) | 3,097 Cart + RFQ |
 L135-A589003500000 Lumileds | 1 $0.7200 100 $0.5760 500 $0.4800 | Datasheet | Amber | - | 100mA | 3.05V | - | 200mA | - | 25°C | 115° | Surface Mount | 1414 (3535 Metric) | 3535 | 0.138" L x 0.134" W (3.50mm x 3.40mm) | 0.035" (0.90mm) | 250,000 Cart + RFQ |
 L1C1-BLU1000000000 Lumileds | 1 $2.2100 | Datasheet | Blue | 475nm (465nm ~ 485nm) | 350mA | 2.84V | 43 lm/W | 1.05A | 43lm (Typ) | 85°C | 170° | Surface Mount | 0707 (1919 Metric) | SMD | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.059" (1.50mm) | 6,048 Cart + RFQ |

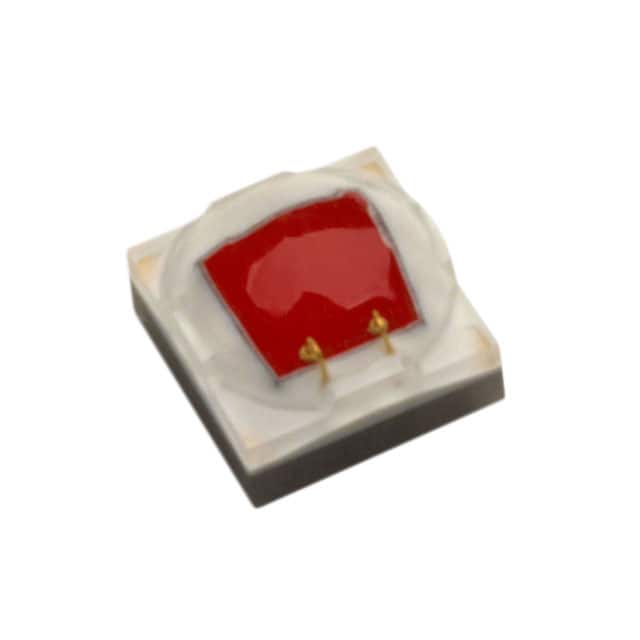

 L1C1-RED1000000000 Lumileds | 1 $2.2100 | Datasheet | Red | 629nm (624nm ~ 634nm) | 350mA | 2V | 53 lm/W | 1.05A | 37lm (35lm ~ 39lm) | 85°C | 162° | Surface Mount | 0707 (1919 Metric) | SMD | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.059" (1.50mm) | 1,020 Cart + RFQ |

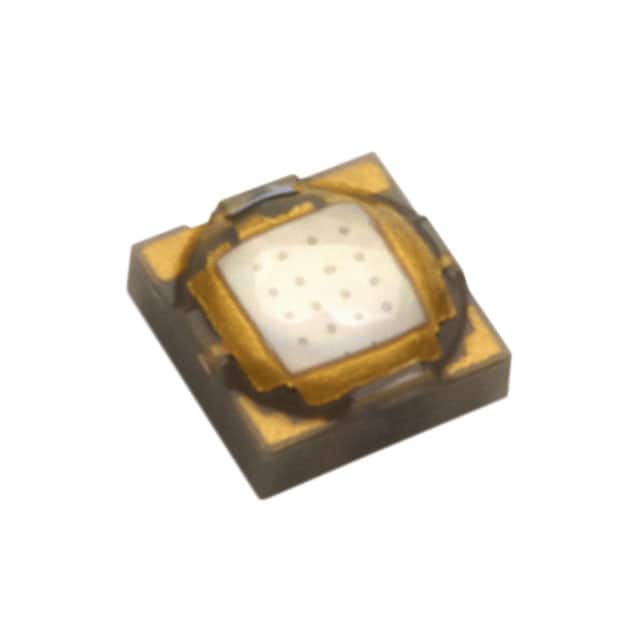

 L1C1-GRN1000000000 Lumileds | 1 $2.2100 | Datasheet | Green | 530nm (520nm ~ 540nm) | 350mA | 3.05V | 108 lm/W | 1.05A | 115lm (Typ) | 85°C | 170° | Surface Mount | 0707 (1919 Metric) | SMD | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.059" (1.50mm) | 3,957 Cart + RFQ |

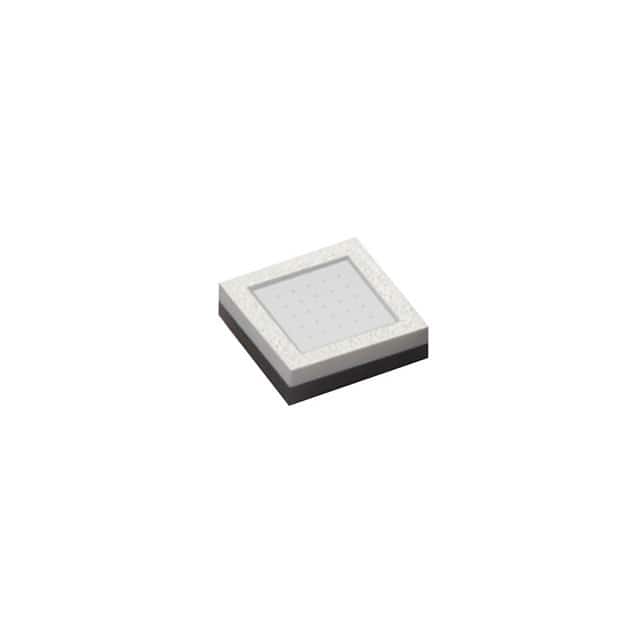

 L1RX-RED1000000000 Lumileds | 1 $2.4900 | Datasheet | Red | 625nm | 1.5A | 2.3V | 23 lm/W | 2.2A | 80lm (75lm ~ 85lm) | 85°C | 125° | Surface Mount | 0505 (1313 Metric) | 0505 | 0.055" L x 0.055" W (1.40mm x 1.40mm) | 0.037" (0.93mm) | 1,602 Cart + RFQ |
L1RX-BLU1000000000 Lumileds | 1 $2.4900 | Datasheet | Blue | 475nm | 1.5A | 3.67V | 17 lm/W | 3A | 96lm (80lm ~ 112 lm) | 85°C | 125° | Surface Mount | 0505 (1313 Metric) | 0505 | 0.055" L x 0.055" W (1.40mm x 1.40mm) | 0.037" (0.93mm) | 1,745 Cart + RFQ |

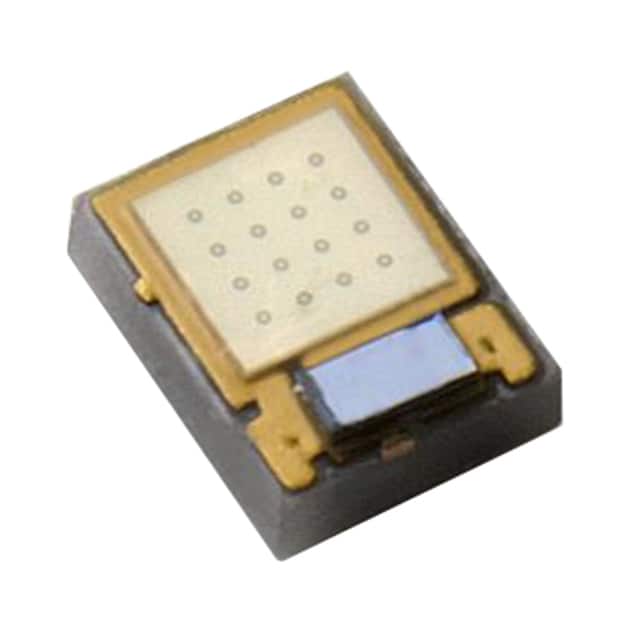

 LXZ1-PR01 Lumileds | 1 $2.8100 | Datasheet | Blue | 450nm (440nm ~ 460nm) | 500mA | 2.85V | - | 1A | 550mW (500mW ~ 600mW) | 25°C | 125° | Surface Mount | 0705 (1713 Metric) | SMD | 0.067" L x 0.051" W (1.70mm x 1.30mm) | 0.026" (0.66mm) | 5,183 Cart + RFQ |
LXZ1-PB01 Lumileds | 1 $2.9700 | Datasheet | Blue | 470nm (460nm ~ 480nm) | 500mA | 2.85V | 22 lm/W | 1A | 32lm (24lm ~ 40lm) | 25°C | 125° | Surface Mount | 0705 (1713 Metric) | SMD | 0.067" L x 0.051" W (1.70mm x 1.30mm) | 0.026" (0.66mm) | 9,547 Cart + RFQ |
LXZ1-PM01 Lumileds | 1 $2.9700 | Datasheet | Green | 530nm (520nm ~ 540nm) | 500mA | 2.85V | 62 lm/W | 1A | 88lm (80lm ~ 96lm) | 25°C | 125° | Surface Mount | 0705 (1713 Metric) | SMD | 0.067" L x 0.051" W (1.70mm x 1.30mm) | 0.026" (0.66mm) | 5,365 Cart + RFQ |

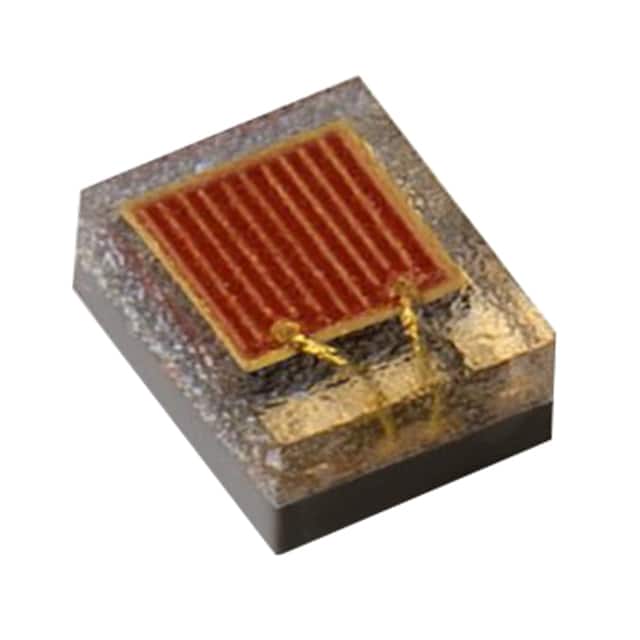

 LXZ1-PD01 Lumileds | 1 $2.9700 | Datasheet | Red | 633nm (620nm ~ 645nm) | 500mA | 2.2V | 44 lm/W | 700mA | 48lm (40lm ~ 56lm) | 25°C | 145° | Surface Mount | 0705 (1713 Metric) | SMD | 0.067" L x 0.051" W (1.70mm x 1.30mm) | 0.026" (0.66mm) | 6,184 Cart + RFQ |

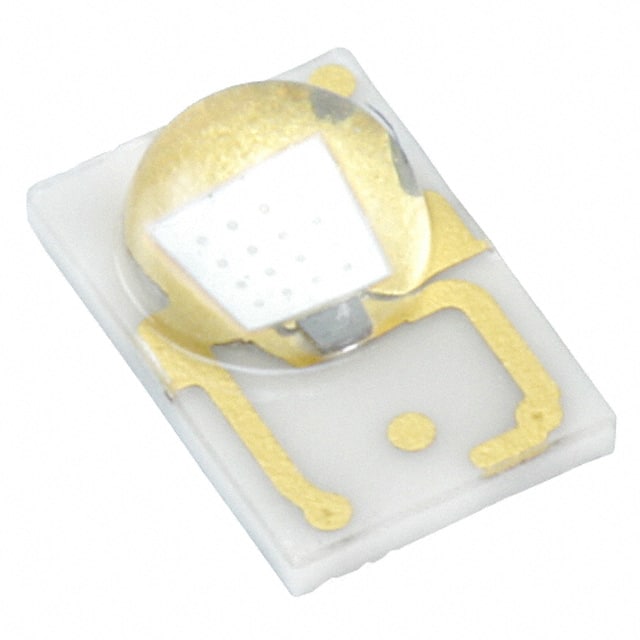

 LXML-PR01-0500 Lumileds | 1 $3.4100 | Datasheet | Blue | 448nm (Typ) | 350mA | 2.95V | - | 1A | 520mW (Typ) | 25°C | 125° | Surface Mount | 1812 (4532 Metric) | SMD | 0.177" L x 0.120" W (4.49mm x 3.05mm) | 0.083" (2.10mm) | 4,438 Cart + RFQ |

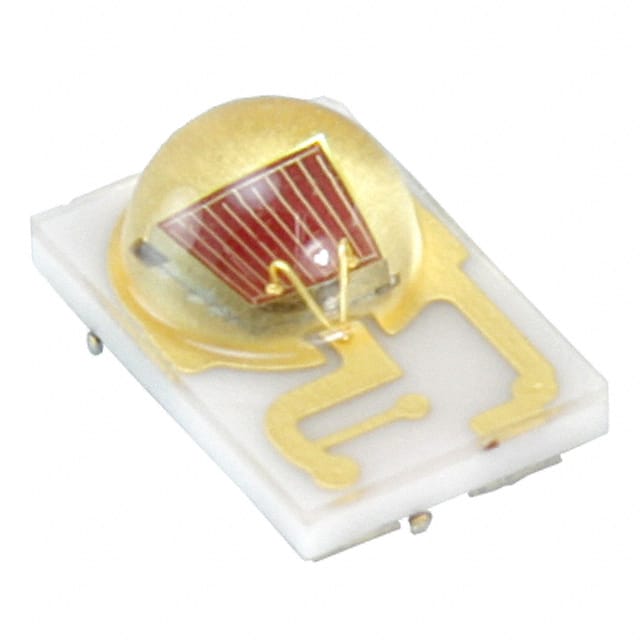

 LXM3-PD01 Lumileds | 1 $3.2800 | Datasheet | Red | 655nm (Typ) | 350mA | 2.1V | - | 700mA | 305mW (260mW ~ 350mW) | 25°C | 125° | Surface Mount | 1812 (4532 Metric) | SMD | 0.177" L x 0.120" W (4.49mm x 3.05mm) | 0.083" (2.10mm) | 3,123 Cart + RFQ |

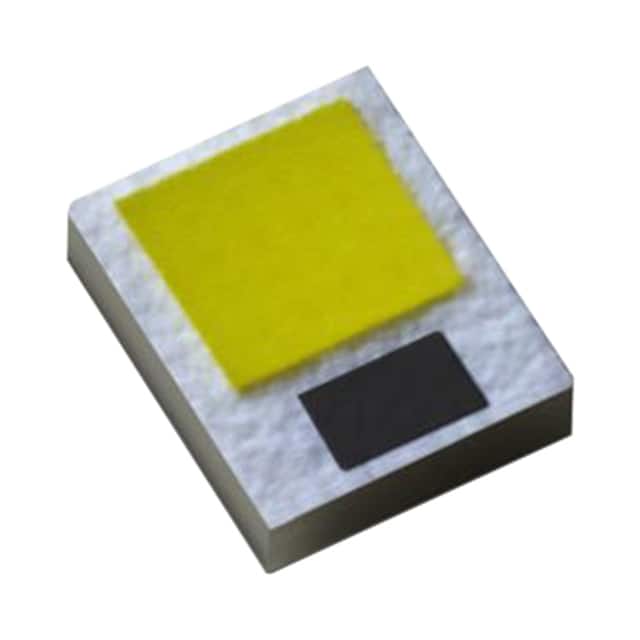

 LXZ1-PX01 Lumileds | 1 $3.8700 | Datasheet | Lime | 568nm (566nm ~ 569nm) | 500mA | 2.85V | 123 lm/W | 700mA | 175lm (Typ) | 85°C | 125° | Surface Mount | 0705 (1713 Metric) | SMD | 0.067" L x 0.051" W (1.70mm x 1.30mm) | 0.026" (0.66mm) | 6,510 Cart + RFQ |

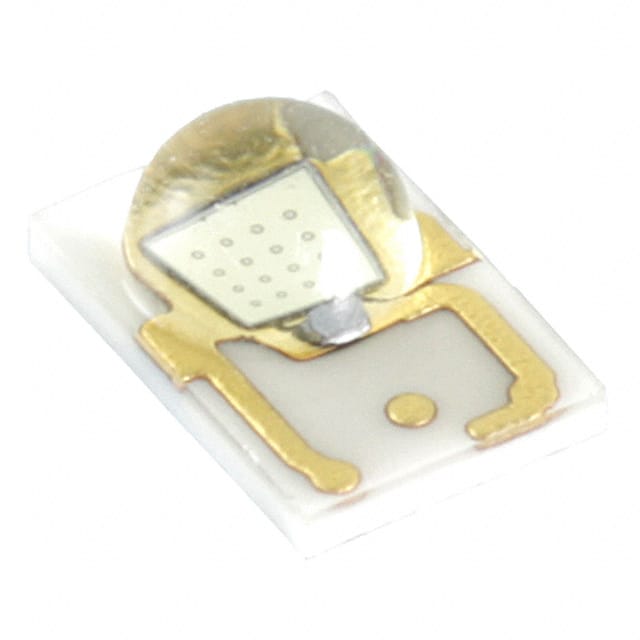

 LXML-PM01-0090 Lumileds | 1 $4.8000 | Datasheet | Green | 530nm (Typ) | 350mA | 2.9V | 94 lm/W | 1A | 95lm (Typ) | 25°C | 125° | Surface Mount | 1812 (4532 Metric) | SMD | 0.177" L x 0.120" W (4.49mm x 3.05mm) | 0.083" (2.10mm) | 3,770 Cart + RFQ |

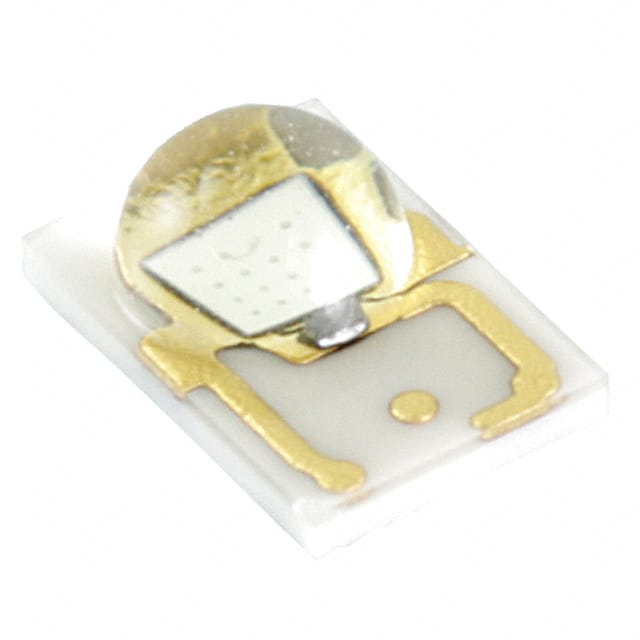

 LXML-PE01-0070 Lumileds | 1 $4.7600 | Datasheet | Cyan | 505nm (Typ) | 350mA | 2.9V | 75 lm/W | 1A | 76lm (Typ) | 25°C | 125° | Surface Mount | 1812 (4532 Metric) | SMD | 0.177" L x 0.120" W (4.49mm x 3.05mm) | 0.083" (2.10mm) | 5,068 Cart + RFQ |

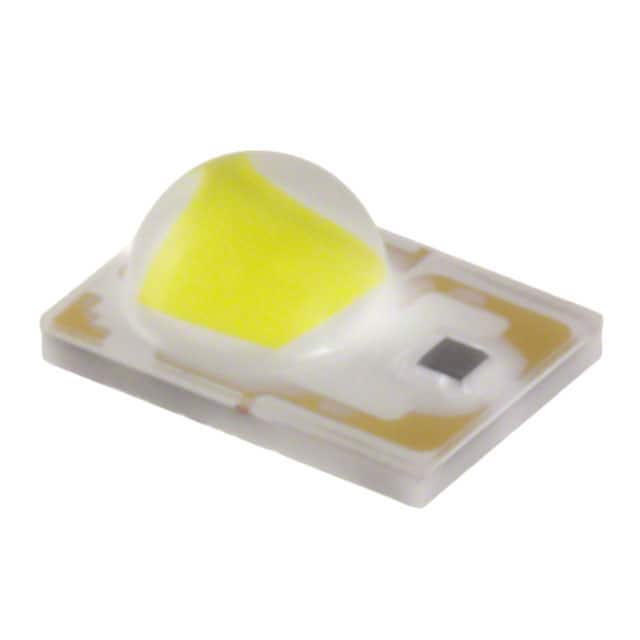

 LXML-PX02-0000 Lumileds | 1 $5.0400 | Datasheet | Lime | 568nm (566nm ~ 569nm) | 350mA | 2.75V | 191 lm/W | 1A | 184lm (Typ) | 85°C | 125° | Surface Mount | 1812 (4532 Metric) | SMD | 0.177" L x 0.120" W (4.49mm x 3.05mm) | 0.083" (2.10mm) | 4,034 Cart + RFQ |

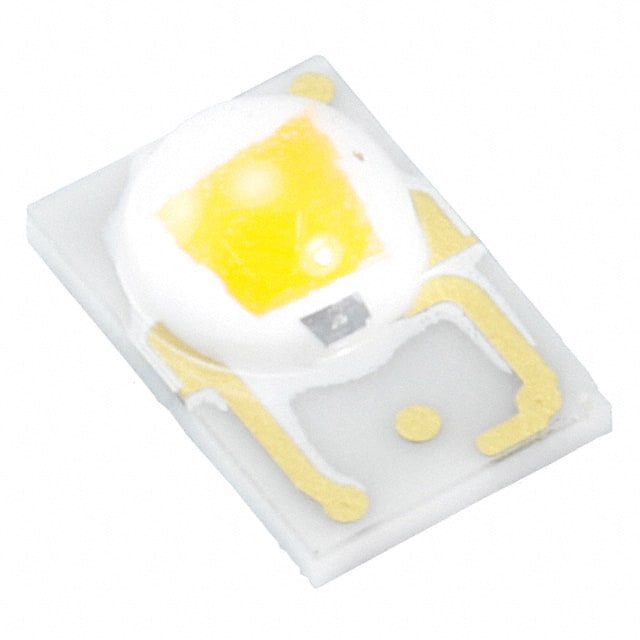

 LXM2-PL01-0000 Lumileds | 1 $4.8000 | Datasheet | Amber | 591nm (Typ) | 350mA | 3.05V | 103 lm/W | 700mA | 110lm (Typ) | 25°C | 120° | Surface Mount | 1812 (4532 Metric) | SMD | 0.177" L x 0.120" W (4.49mm x 3.05mm) | 0.083" (2.10mm) | 3,966 Cart + RFQ |
LXML-PM01-0100 Lumileds | 1 $4.8000 | Datasheet | Green | 530nm (Typ) | 350mA | 2.9V | 100 lm/W | 1A | 102lm (Typ) | 25°C | 125° | Surface Mount | 1812 (4532 Metric) | SMD | 0.177" L x 0.120" W (4.49mm x 3.05mm) | 0.083" (2.10mm) | 6,727 Cart + RFQ |
