LED Lighting - COBs, Engines, Modules, Strips
LED lighting in large scale often requires a COB (chip on board), Engine, Module, or Strip. COB lighting combines numerous LED die onto one substrate, taking up much less space than a traditional array of SMD LEDs. LED engines combine SMD LED's with resistors to create a ready to use light. LED modules use tiny LED's similar to a COB but they are still easily individually visible unlike with COB's. These are available in different color options, CCT values, lumens, current, and voltage options. They also come in an array of configurations such as strips, flexible strips, rectangles, discs, and starboards.
Product List
Total Components: 6,877
Product | Pricing | Datasheet | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

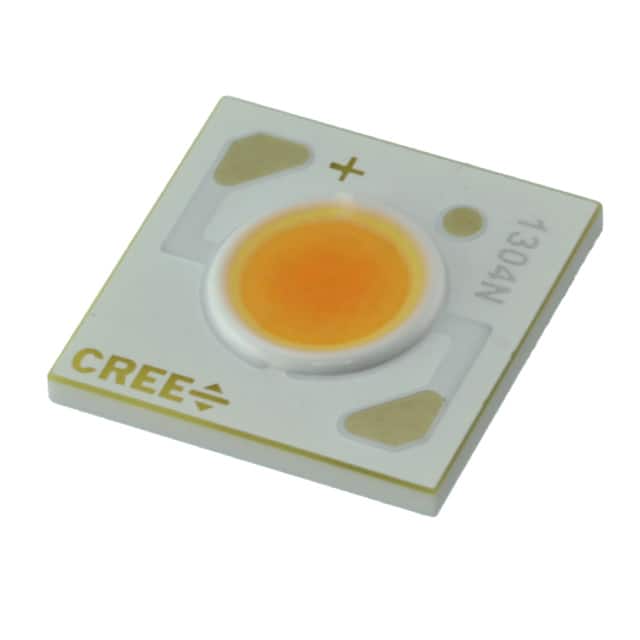

CXA1304-0000-000C00C250F Cree LED | 1 $1.2000 | Datasheet | 127 lm/W | 1A | 70 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia | Flat | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 458lm (440lm ~ 475lm) | 400mA | 85°C | 9V | 2,790 Cart + RFQ |

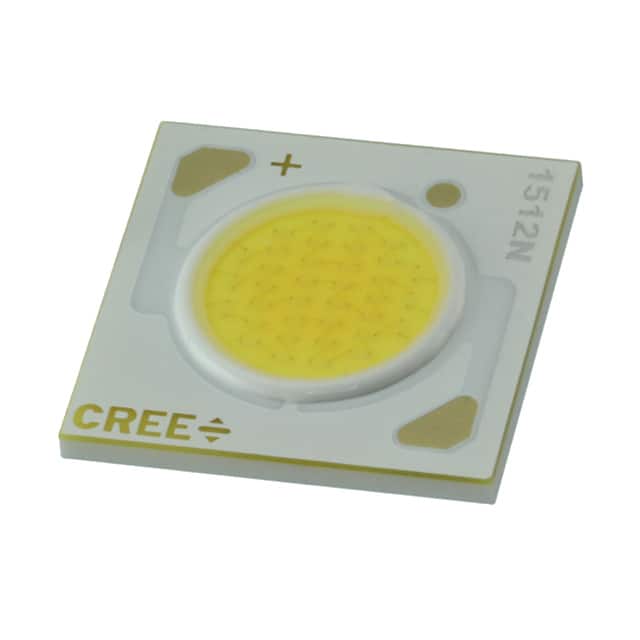

CXA1512-0000-000F00M40E3 Cree LED | 1 $2.1000 | Datasheet | 122 lm/W | 1.2A | 70 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat | Chip On Board (COB) | White, Cool | 5000K | - | Square | 1538lm (1485lm ~ 1590lm) | 700mA | 85°C | 18V | 4,664 Cart + RFQ |
CXA1304-0000-000C0Y9427F Cree LED | 1 $2.6000 | Datasheet | 86 lm/W | 1A | 93 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia | Flat | Chip On Board (COB) | White, Warm | 2700K 4-Step MacAdam Ellipse | - | Square | 310lm (290lm ~ 330lm) | 400mA | 85°C | 9V | 7,754 Cart + RFQ |

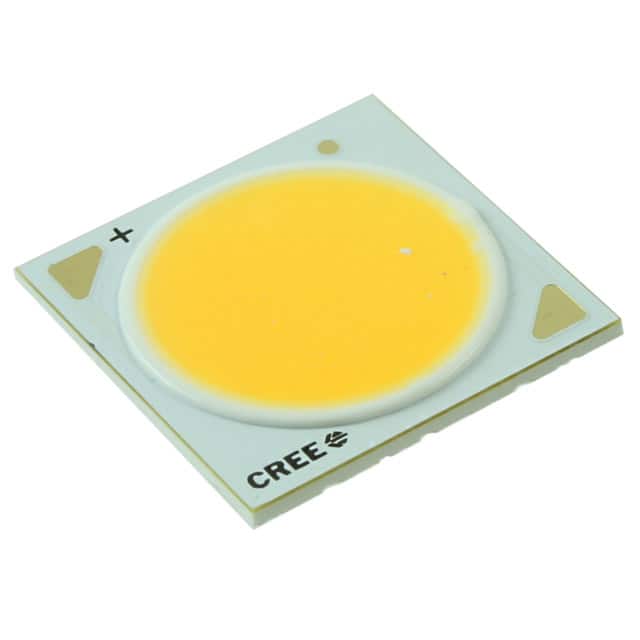

CXA2530-0000-000N00U20E3 Cree LED | 1 $4.5400 | Datasheet | 129 lm/W | 1.6A | 70 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat | Chip On Board (COB) | White, Cool | 5000K | - | Square | 3818lm (3680lm ~ 3955lm) | 800mA | 85°C | 37V | 4,649 Cart + RFQ |
CXB1512-0000-000F0UM430G Cree LED | 1 $5.9400 | Datasheet | 128 lm/W | 1.2A | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1538lm (1485lm ~ 1590lm) | 700mA | 85°C | 17.2V | 7,387 Cart + RFQ |
CXA1512-0000-000F0YJ430F Cree LED | 1 $5.6440 | Datasheet | 92 lm/W | 1.2A | 93 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat | Chip On Board (COB) | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Square | 1160lm (1120lm ~ 1200lm) | 700mA | 85°C | 18V | 3,393 Cart + RFQ |
CXA1512-0000-000N0UK240F Cree LED | 1 $5.6440 | Datasheet | 96 lm/W | 600mA | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat | Chip On Board (COB) | White, Neutral | 4000K 4-Step MacAdam Ellipse | - | Square | 1245lm (1200lm ~ 1290lm) | 350mA | 85°C | 37V | 6,432 Cart + RFQ |
CXA1512-0000-000N0UK450F Cree LED | 1 $5.6440 | Datasheet | 103 lm/W | 600mA | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 1335lm (1290lm ~ 1380lm) | 350mA | 85°C | 37V | 2,984 Cart + RFQ |
CXA1512-0000-000N0YJ227F Cree LED | 1 $5.6440 | Datasheet | 83 lm/W | 600mA | 93 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat | Chip On Board (COB) | White, Warm | 2700K 4-Step MacAdam Ellipse | - | Square | 1080lm (1040lm ~ 1120lm) | 350mA | 85°C | 37V | 3,625 Cart + RFQ |
CXA1512-0000-000N0YJ430F Cree LED | 1 $5.6440 | Datasheet | 90 lm/W | 600mA | 93 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat | Chip On Board (COB) | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Square | 1160lm (1120lm ~ 1200lm) | 350mA | 85°C | 37V | 8,172 Cart + RFQ |
CXA1512-0000-000N0UJ227F Cree LED | 1 $5.6440 | Datasheet | 86 lm/W | 600mA | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat | Chip On Board (COB) | White, Warm | 2700K 4-Step MacAdam Ellipse | - | Square | 1080lm (1040lm ~ 1120lm) | 350mA | 85°C | 36V | 1,987 Cart + RFQ |
CXA1512-0000-000N0UJ430F Cree LED | 1 $5.6440 | Datasheet | 92 lm/W | 600mA | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat | Chip On Board (COB) | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Square | 1160lm (1120lm ~ 1200lm) | 350mA | 85°C | 36V | 2,417 Cart + RFQ |
CXB1820-0000-000N0HR227H Cree LED | 1 $5.6610 | Datasheet | 127 lm/W | 1.05A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia | Flat | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 2510lm (2420lm ~ 2600lm) | 550mA | 85°C | 36V | 5,125 Cart + RFQ |
CXB1820-0000-000N0HR427G Cree LED | 1 $5.6610 | Datasheet | 136 lm/W | 1.05A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia | Flat | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 2690lm (2600lm ~ 2780lm) | 550mA | 85°C | 36V | 8,374 Cart + RFQ |
CXB1820-0000-000N0HR430H Cree LED | 1 $5.6610 | Datasheet | 136 lm/W | 1.05A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia | Flat | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 2690lm (2600lm ~ 2780lm) | 550mA | 85°C | 36V | 7,497 Cart + RFQ |
CXB1820-0000-000N0HR435H Cree LED | 1 $5.6610 | Datasheet | 136 lm/W | 1.05A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia | Flat | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 2690lm (2600lm ~ 2780lm) | 550mA | 85°C | 36V | 2,365 Cart + RFQ |
CXB1820-0000-000N0HS235G Cree LED | 1 $5.6610 | Datasheet | 146 lm/W | 1.05A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia | Flat | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 2885lm (2780lm ~ 2990lm) | 550mA | 85°C | 36V | 6,332 Cart + RFQ |
CXB1820-0000-000N0HS240H Cree LED | 1 $5.6610 | Datasheet | 146 lm/W | 1.05A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia | Flat | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 2885lm (2780lm ~ 2990lm) | 550mA | 85°C | 36V | 5,568 Cart + RFQ |
CXB1830-0000-000N0HU450G Cree LED | 1 $5.6610 | Datasheet | 142 lm/W | 1.4A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 14.00mm Dia | Flat | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 4093lm (3955lm ~ 4230lm) | 800mA | 85°C | 36V | 7,842 Cart + RFQ |
CXB1830-0000-000N0US227G Cree LED | 1 $5.6610 | Datasheet | 100 lm/W | 1.4A | 90 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 14.00mm Dia | Flat | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 2885lm (2780lm ~ 2990lm) | 800mA | 85°C | 36V | 3,507 Cart + RFQ |
