LED Lighting - COBs, Engines, Modules, Strips
LED lighting in large scale often requires a COB (chip on board), Engine, Module, or Strip. COB lighting combines numerous LED die onto one substrate, taking up much less space than a traditional array of SMD LEDs. LED engines combine SMD LED's with resistors to create a ready to use light. LED modules use tiny LED's similar to a COB but they are still easily individually visible unlike with COB's. These are available in different color options, CCT values, lumens, current, and voltage options. They also come in an array of configurations such as strips, flexible strips, rectangles, discs, and starboards.
Product List
Total Components: 2,763
Product | Pricing | Datasheet | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BXRC-30E1000-D-73 Bridgelux, Inc. | 1 $3.3600 | Datasheet | 155 lm/W | 700mA | 80 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia | Flat | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Starboard | 1406lm (Typ) | 350mA | 25°C | 26V | 2,846 Cart + RFQ |
BXRC-27G1000-D-73 Bridgelux, Inc. | 1 $3.3600 | Datasheet | 124 lm/W | 700mA | 90 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia | Flat | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Starboard | 1125lm (Typ) | 350mA | 25°C | 26V | 5,632 Cart + RFQ |
BXRC-30G1000-D-73 Bridgelux, Inc. | 1 $3.3600 | Datasheet | 129 lm/W | 700mA | 90 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia | Flat | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Starboard | 1172lm (Typ) | 350mA | 25°C | 26V | 9,624 Cart + RFQ |
BXRC-40E2000-D-73-SE Bridgelux, Inc. | 1 $4.5700 | Datasheet | 146 lm/W | 1A | 80 | 120° | - | 36.20mm Dia | 3.60mm | 13.40mm Dia | Flat | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 2260lm (Typ) | 500mA | 85°C | 30.9V | 3,223 Cart + RFQ |
BXRC-30E2000-D-73 Bridgelux, Inc. | 1 $5.5100 | Datasheet | 144 lm/W | 1A | 80 | - | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia | Flat | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 2232lm (Typ) | 500mA | 85°C | 30.9V | 1,557 Cart + RFQ |
BXRC-40E2000-D-73 Bridgelux, Inc. | 1 $5.5100 | Datasheet | 149 lm/W | 1A | 80 | - | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia | Flat | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 2306lm (Typ) | 500mA | 85°C | 30.9V | 3,051 Cart + RFQ |
BXRC-30E4000-D-73-SE Bridgelux, Inc. | 1 $7.6300 | Datasheet | 141 lm/W | 2.1A | 80 | 120° | - | 36.20mm Dia | 3.60mm | 18.40mm Dia | Flat | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 4193lm (Typ) | 1.05A | 85°C | 28.3V | 9,582 Cart + RFQ |
BXRC-35E4000-D-73-SE Bridgelux, Inc. | 1 $7.6300 | Datasheet | 145 lm/W | 2.1A | 80 | 120° | - | 36.20mm Dia | 3.60mm | 18.40mm Dia | Flat | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 4303lm (Typ) | 1.05A | 85°C | 28.3V | 1,759 Cart + RFQ |
BXRC-30G4000-D-73 Bridgelux, Inc. | 1 $9.2200 | Datasheet | 118 lm/W | 2.1A | 90 | - | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia | Flat | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 3513lm (Typ) | 1.05A | 85°C | 28.3V | 6,051 Cart + RFQ |
BXRC-27E4000-D-73 Bridgelux, Inc. | 1 $9.2200 | Datasheet | 137 lm/W | 2.1A | 80 | 120° | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia | Flat | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 4064lm (Typ) | 1.05A | 85°C | 28.3V | 5,976 Cart + RFQ |
BXRC-30E4000-D-73 Bridgelux, Inc. | 1 $9.2200 | Datasheet | 143 lm/W | 2.1A | 80 | - | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia | Flat | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 4248lm (Typ) | 1.05A | 85°C | 28.3V | 1,728 Cart + RFQ |
BXRC-40E4000-D-73 Bridgelux, Inc. | 1 $9.2200 | Datasheet | 148 lm/W | 2.1A | 80 | - | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia | Flat | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 4402lm (Typ) | 1.05A | 85°C | 28.3V | 7,714 Cart + RFQ |
BXRC-30E4000-C-73-SE Bridgelux, Inc. | 1 $9.8900 | Datasheet | 141 lm/W | 2.34A | 80 | 120° | - | 36.20mm Dia | 3.60mm | 18.40mm Dia | Flat | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 5638lm (Typ) | 1.17A | 85°C | 34.1V | 2,792 Cart + RFQ |
BXEB-L1120Z-35E8000-C-D3 Bridgelux, Inc. | 1 $17.4400 | Datasheet | 185 lm/W | 2.8A | 80 | 120° | - | 1120.00mm L x 24.00mm W | 6.10mm | - | Flat | LED Module | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Linear Light Strip | 9920lm | 1.4A | 25°C | 38.4V | 1,617 Cart + RFQ |
BXRC-30E10K0-D-73-SE Bridgelux, Inc. | 1 $19.5200 | Datasheet | 159 lm/W | 4.2A | 80 | 120° | - | 49.20mm Dia | 3.60mm | 29.20mm Dia | Flat | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 12555lm (Typ) | 2.1A | 25°C | 37.6V | 7,689 Cart + RFQ |
BXRC-40E10K0-D-73-SE Bridgelux, Inc. | 1 $19.5200 | Datasheet | 165 lm/W | 4.2A | 80 | 120° | - | 49.20mm Dia | 3.60mm | 29.20mm Dia | Flat | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 13028lm (Typ) | 2.1A | 25°C | 37.6V | 5,597 Cart + RFQ |
BXRC-40G10K0-D-73-SE Bridgelux, Inc. | 1 $19.5200 | Datasheet | 142 lm/W | 4.2A | 90 | 120° | - | 49.20mm Dia | 3.60mm | 29.20mm Dia | Flat | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 9633lm (Typ) | 2.1A | 25°C | 37.6V | 3,916 Cart + RFQ |
BXRC-35E10K0-D-73-SE Bridgelux, Inc. | 1 $19.5200 | Datasheet | 164 lm/W | 4.2A | 80 | 120° | - | 49.20mm Dia | 3.60mm | 29.20mm Dia | Flat | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 12949lm (Typ) | 2.1A | 25°C | 37.6V | 1,793 Cart + RFQ |

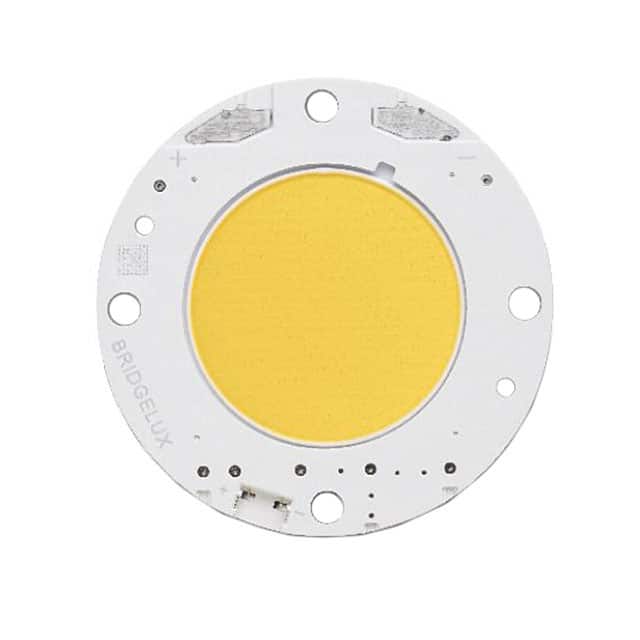

BXRC-35E10K0-D-73 Bridgelux, Inc. | 1 $23.5600 | Datasheet | 165 lm/W | 4.2A | 80 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 13013lm (Typ) | 2.1A | 25°C | 37.6V | 5,214 Cart + RFQ |
BXRC-30E10K0-D-73 Bridgelux, Inc. | 1 $23.5600 | Datasheet | 160 lm/W | 4.2A | 80 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 12606lm (Typ) | 2.1A | 25°C | 37.6V | 1,693 Cart + RFQ |
