LED Lighting - COBs, Engines, Modules, Strips
LED lighting in large scale often requires a COB (chip on board), Engine, Module, or Strip. COB lighting combines numerous LED die onto one substrate, taking up much less space than a traditional array of SMD LEDs. LED engines combine SMD LED's with resistors to create a ready to use light. LED modules use tiny LED's similar to a COB but they are still easily individually visible unlike with COB's. These are available in different color options, CCT values, lumens, current, and voltage options. They also come in an array of configurations such as strips, flexible strips, rectangles, discs, and starboards.
Product List
Total Components: 4,277
Product | Pricing | Datasheet | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

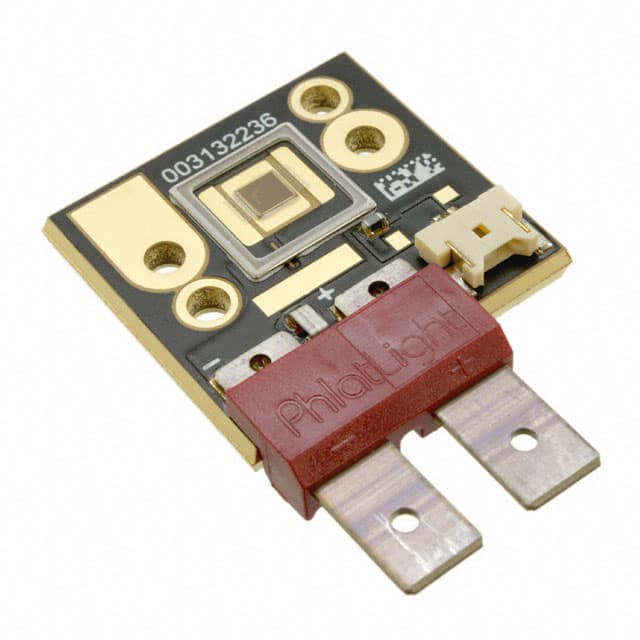

CBT-90-RX-L15-BN101 Luminus Devices | 1 $85.0200 | Datasheet | 28 lm/W | 27A | - | - | With Connector | 28.00mm L x 26.75mm W | 4.08mm | 3.00mm L x 3.00mm W | Flat | LED Module | Red | - | 621nm (615nm ~ 627nm) | Rectangle | 1060lm (970lm ~ 1150lm) | 13.5A | 40°C | 2.8V | 3,117 Cart + RFQ |

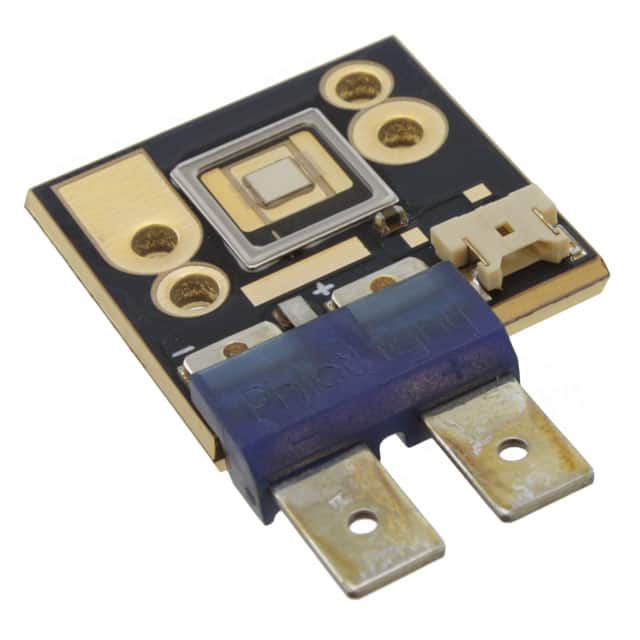

CBT-90-B-L11-J101 Luminus Devices | 1 $93.2600 | Datasheet | - | 27A | - | - | With Connector | 28.00mm L x 26.75mm W | 4.08mm | 3.00mm L x 3.00mm W | Flat | LED Module | Blue | - | 455nm (450nm ~ 460nm) | Rectangle | - | 13.5A | 40°C | 3.5V | 9,495 Cart + RFQ |

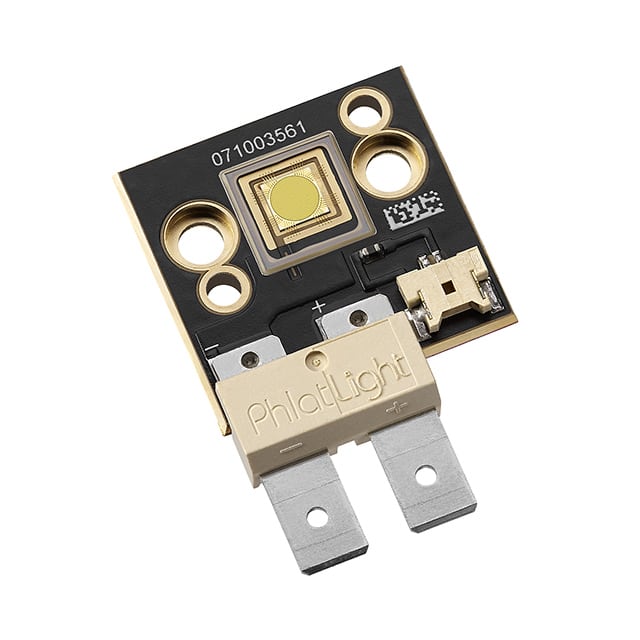

CBT-140-WCS-L16-UA120 Luminus Devices | 1 $98.4500 | Datasheet | 50 lm/W | 28A | 75 (Typ) | - | With Connector | 28.00mm L x 42.00mm W | 5.70mm | 4.25mm Dia | Flat | LED Module | White, Cool | 6020K ~ 8500K | - | Rectangle | 3818lm (3680lm ~ 3955lm) | 21A | 85°C | 3.6V | 1,123 Cart + RFQ |

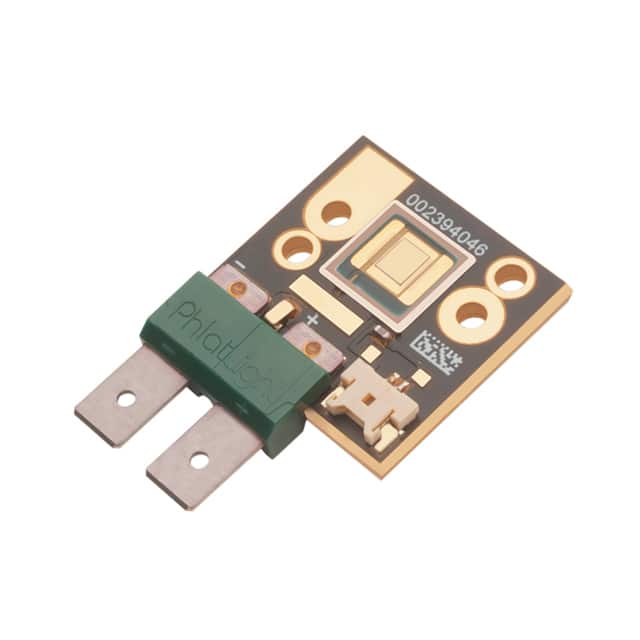

PT-121-G-L11-MPK Luminus Devices | 1 $112.2800 | Datasheet | 56 lm/W | 27A | - | - | With Connector | 28.00mm L x 42.00mm W | 5.61mm | 3.00mm L x 4.00mm W | Flat | LED Module | Green | - | 525nm | Rectangle | 5200lm (Typ) | 18A | 40°C | 5.2V | 3,129 Cart + RFQ |
CBT-140-WDH-L16-RA220 Luminus Devices | 1 $122.3700 | Datasheet | 33 lm/W | 28A | 92 (Typ) | - | With Connector | 28.00mm L x 42.00mm W | 5.70mm | 4.25mm Dia | Flat | LED Module | White, Cool | 5310K ~ 6020K | - | Rectangle | 2510lm (2420lm ~ 2600lm) | 21A | 85°C | 3.6V | 2,279 Cart + RFQ |
CFT-90-WSS-X11-VB700 Luminus Devices | 1 $122.1700 | Datasheet | 60 lm/W | 27A | 70 (Typ) | 120° | With Connector | 28.00mm L x 26.75mm W | 3.93mm | 3.00mm L x 3.00mm W | Flat | LED Module | White, Cool | 7800K | - | Rectangle | 4703lm (4545lm ~ 4860lm) | 22.5A | 90°C | 3.5V | 4,175 Cart + RFQ |
CVM-45-56-95-60-BA42-F5-2 Luminus Devices | 1 $141.8000 | Datasheet | 109 lm/W | 10A | 95 | 120° | - | 55.00mm L x 55.00mm W | 1.70mm | 44.80mm Dia | Flat | Chip On Board (COB) | White, Cool | 5600K 2-Step MacAdam Ellipse | - | Square | 32200lm (Typ) | 5A | 85°C | 59V | 1,748 Cart + RFQ |
CFT-90-CG-L11-G100 Luminus Devices | 1 $246.6800 | Datasheet | - | 22.5A | - | 120° | - | 42.00mm L x 28.00mm W | 5.70mm | 3.00mm L x 3.00mm W | Flat | LED Module | Green | - | 579nm | Rectangle | - | 22.5A | 40°C | 3.8V | 5,047 Cart + RFQ |
CXM-18-27-95-36-AA00-F2-3 Luminus Devices | 1 $5.8886 | Datasheet | - | 1.6A | 95 | 120° | - | 21.50mm L x 21.50mm W | 1.37mm | 17.50mm Dia | Flat | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | - | 800mA | - | 35V | 2,883 Cart + RFQ |
CXM-18-30-95-36-AA00-F2-3 Luminus Devices | 1 $5.8886 | Datasheet | - | 1.6A | 95 | 120° | - | 21.50mm L x 21.50mm W | 1.37mm | 17.50mm Dia | Flat | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | - | 800mA | - | 35V | 5,455 Cart + RFQ |
CXM-18-50-80-36-AA00-F2-3 Luminus Devices | 1 $5.8886 | Datasheet | 129 lm/W | 1.6A | 80 | 120° | - | 21.50mm L x 21.50mm W | 1.37mm | 17.50mm Dia | Flat | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 3598lm (3505lm ~ 3690lm) | 800mA | 85°C | 35V | 8,626 Cart + RFQ |
CXM-18-30-80-36-AA02-F2-3 Luminus Devices | 1 $5.8886 | Datasheet | 115 lm/W | 1.8A | 80 | 120° | - | 21.50mm L x 21.50mm W | 1.37mm | 17.50mm Dia | Flat | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 3210lm (Typ) | 800mA | 85°C | 35V | 7,763 Cart + RFQ |
CXM-18-65-80-36-AA00-F2-3 Luminus Devices | 1 $5.8886 | Datasheet | 132 lm/W | 1.6A | 80 | 120° | - | 21.50mm L x 21.50mm W | 1.37mm | 17.50mm Dia | Flat | Chip On Board (COB) | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Square | 3690lm (Typ) | 800mA | 85°C | 35V | 2,941 Cart + RFQ |
CXM-18-40-95-36-AA00-F2-3 Luminus Devices | 1 $5.8886 | Datasheet | 101 lm/W | 1.6A | 95 | 120° | - | 21.50mm L x 21.50mm W | 1.37mm | 17.50mm Dia | Flat | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 2820lm (Typ) | 800mA | 85°C | 35V | 8,415 Cart + RFQ |
CXM-18-30-90-36-AA02-F2-3 Luminus Devices | 1 $5.8886 | Datasheet | 98 lm/W | 1.8A | 90 | 120° | - | 21.50mm L x 21.50mm W | 1.37mm | 17.50mm Dia | Flat | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2735lm (Typ) | 800mA | 85°C | 35V | 5,252 Cart + RFQ |
CXM-18-35-95-36-AA00-F2-3 Luminus Devices | 1 $5.8886 | Datasheet | 98 lm/W | 1.6A | 95 | 120° | - | 21.50mm L x 21.50mm W | 1.37mm | 17.50mm Dia | Flat | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 2730lm (Typ) | 800mA | 85°C | 35V | 9,014 Cart + RFQ |
CXM-18-50-90-36-AA00-F2-3 Luminus Devices | 1 $5.8886 | Datasheet | 114 lm/W | 1.6A | 90 | 120° | - | 21.50mm L x 21.50mm W | 1.37mm | 17.50mm Dia | Flat | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 3190lm (Typ) | 800mA | 85°C | 35V | 1,315 Cart + RFQ |
CXM-18-27-80-36-AA30-F4-3 Luminus Devices | 1 $5.9498 | Datasheet | 142 lm/W | 2A | 80 | 120° | - | 21.50mm L x 21.50mm W | 1.37mm | 17.50mm Dia | Flat | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 4360lm (Typ) | 900mA | 85°C | 34V | 4,084 Cart + RFQ |
CXM-18-30-90-36-AA30-F4-3 Luminus Devices | 1 $5.9498 | Datasheet | 127 lm/W | 2A | 90 | 120° | - | 21.50mm L x 21.50mm W | 1.37mm | 17.50mm Dia | Flat | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 3875lm (Typ) | 900mA | 85°C | 34V | 3,535 Cart + RFQ |
CXM-18-35-80-36-AA30-F4-3 Luminus Devices | 1 $5.9498 | Datasheet | 155 lm/W | 2A | 80 | 120° | - | 21.50mm L x 21.50mm W | 1.37mm | 17.50mm Dia | Flat | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 4740lm (Typ) | 900mA | 85°C | 34V | 4,420 Cart + RFQ |
