Display Modules - Vacuum Fluorescent (VFD)
Vacuum Fluorescent Display Modules (VFD) are devices that use heated filaments to cause phosphor coated plates to emit light within a vacuum. The viewing area ranges in sizes from 46.54 mm x 7.65 mm to 306.95 mm x 25.35 mm. The available display types are character, graphic, 7 and 14 segment. These display modules can have interfaces of I2C, parallel, RS-422, serial, SPI, TTL/CMOS, and USB.
Product List
Total Components: 76
| Product | Pricing | Datasheet | Outline L x W x H | Viewing Area | Display Format | Display Type | Format | Voltage - Supply | Character Size | Number of Dots | Interface | Controller Type | Operating Temperature | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 M0216SD-162SDAR2-1 Newhaven Display, Intl. | 1 $47.3600 | Datasheet | 80.00mm x 36.00mm x 18.00mm | 51.80mm L x 11.50mm W | 16 x 2 | Character | 5 x 8 Dots | 5V | 5.34mm H x 2.10mm W | - | Parallel/Serial | PT6314 | -40°C ~ 85°C | 2,529 Cart + RFQ |
 M0220SD-202SDAR1 Newhaven Display, Intl. | 1 $48.1700 | Datasheet | 116.00mm x 37.00mm x 17.50mm | 70.80mm L x 11.50mm W | 20 x 2 | Character | 5 x 8 Dots | 5V | 5.34mm H x 2.35mm W | - | Parallel/Serial | PT6314 | -40°C ~ 85°C | 2,773 Cart + RFQ |
 M0220MD-202MDAR1-3 Newhaven Display, Intl. | 1 $53.4300 | Datasheet | 146.00mm x 43.00mm x 16.60mm | 101.75mm L x 18.50mm W | 20 x 2 | Character | 5 x 8 Dots | 4.5V ~ 5.5V | 8.78mm H x 3.68mm W | - | Parallel/Serial | PT6314 | -40°C ~ 85°C | 5,278 Cart + RFQ |

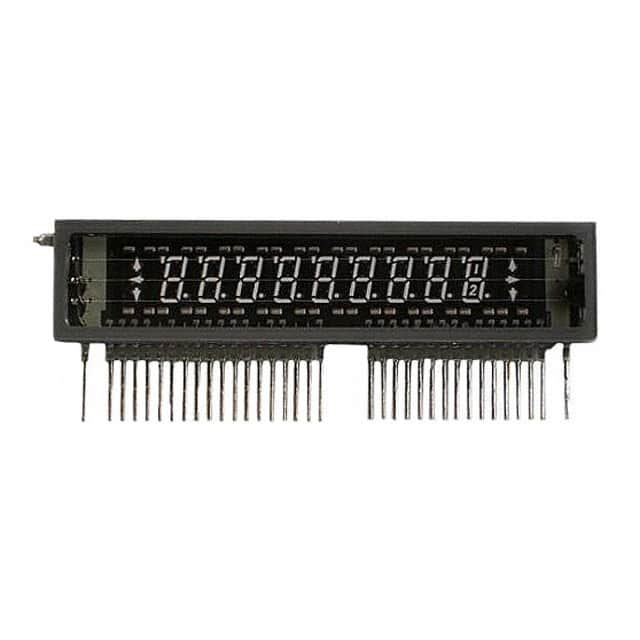

 D0109MT-25-1101 Newhaven Display, Intl. | 1 $11.7000 | Datasheet | 112.00mm x 25.00mm x 6.80mm | 81.00mm L x 9.70mm W | 9 x 1 | Character | - | - | - | - | - | - | -40°C ~ 85°C | 4,941 Cart + RFQ |

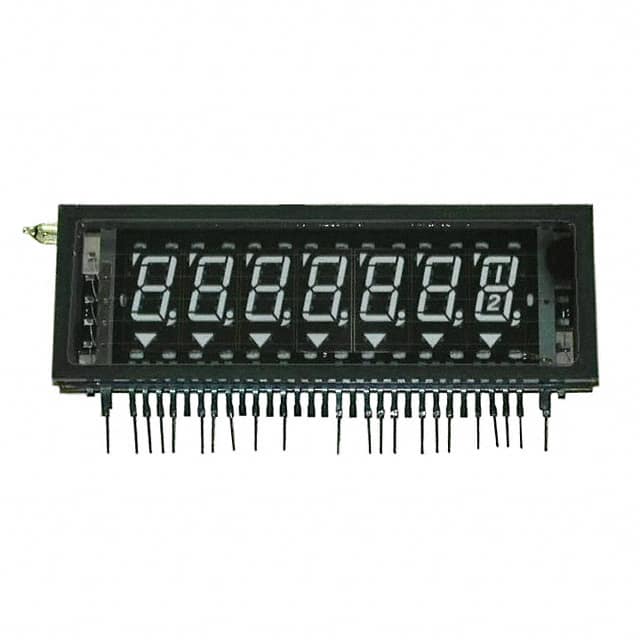

 D0107LT-33-0701A Newhaven Display, Intl. | 1 $13.1280 | Datasheet | 98.00mm x 33.00mm x 8.00mm | - | 7 x 1 | Character | - | - | 12.40mm H x 6.00mm W | - | - | - | -40°C ~ 85°C | 5,395 Cart + RFQ |
 D0220SD-35-4002FN Newhaven Display, Intl. | 1 $18.0980 | Datasheet | 125.00mm x 35.00mm x 7.80mm | - | 20 x 2 | Character | 5 x 7 Dots | - | 5.00mm H x 3.50mm W | - | - | - | -40°C ~ 85°C | 2,152 Cart + RFQ |

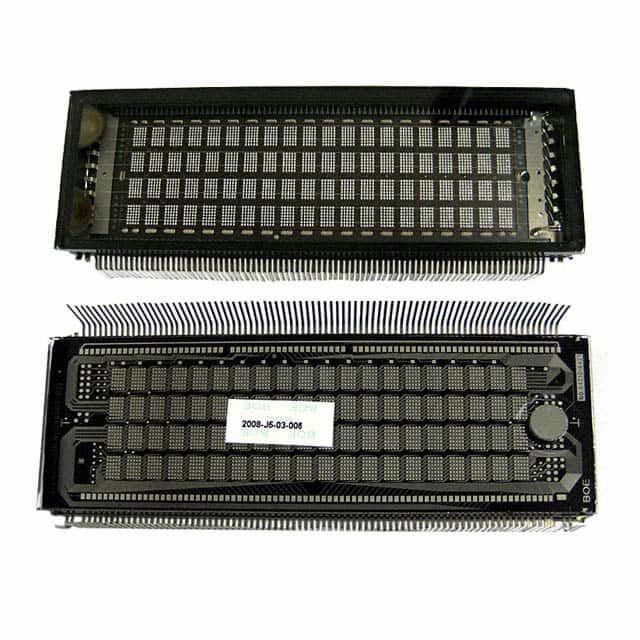

 D0420SD-42-2001FN Newhaven Display, Intl. | 1 $21.7297 | Datasheet | 120.00mm x 42.00mm x 9.00mm | - | 20 x 4 | Character | 5 x 7 Dots | +5V, -7V | 5.00mm H x 3.00mm W | - | - | - | -40°C ~ 85°C | 2,573 Cart + RFQ |

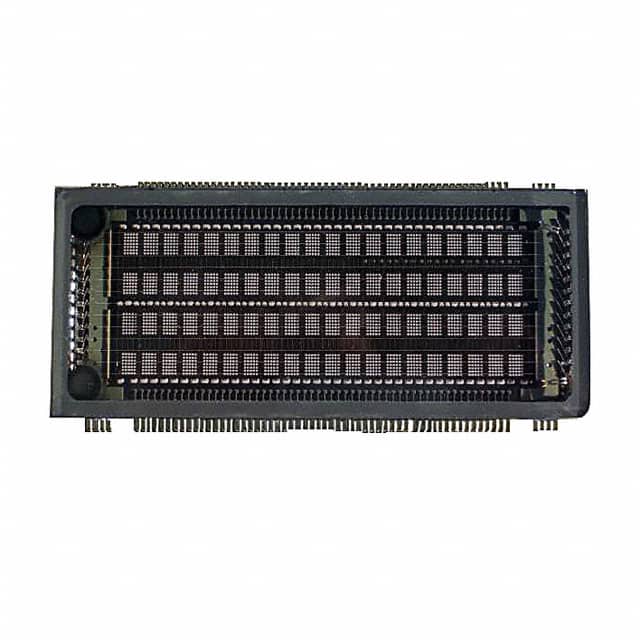

 D0420SD-53-4001FN Newhaven Display, Intl. | 1 $25.1251 | Datasheet | 125.00mm x 53.50mm x 10.50mm | - | 20 x 4 | Character | 5 x 7 Dots | - | 5.00mm H x 3.30mm W | - | - | - | -40°C ~ 85°C | 5,412 Cart + RFQ |
 M0216SD-162SDAR8 Newhaven Display, Intl. | 1 $30.2760 | Datasheet | 84.00mm x 44.00mm x 16.60mm | - | 16 x 2 | Character | 5 x 8 Dots | 5V | 5.34mm H x 2.10mm W | - | Parallel/Serial | PT6314 | -40°C ~ 85°C | 9,339 Cart + RFQ |

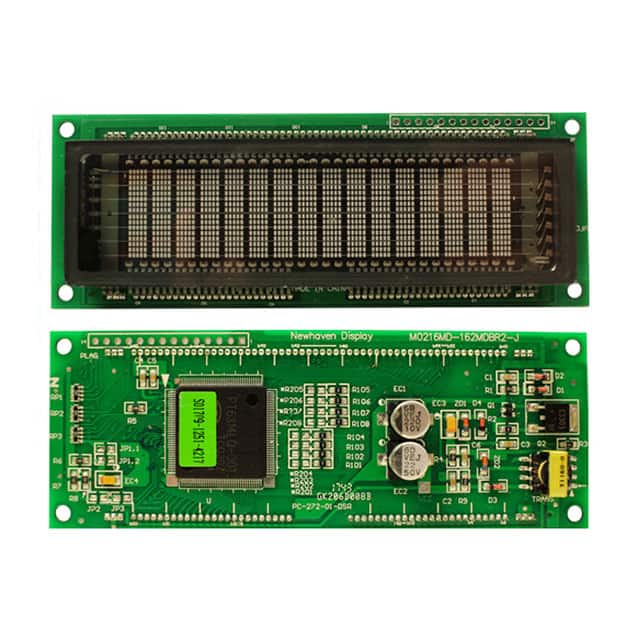

 M0216MD-162MDBR2-J Newhaven Display, Intl. | 1 $45.9720 | Datasheet | 122.00mm x 44.00mm x 20.00mm | - | 16 x 2 | Character | 5 x 7 CURS | 5V | 9.22mm H x 3.85mm W | - | Parallel/Serial | PT6314 | -40°C ~ 85°C | 2,459 Cart + RFQ |

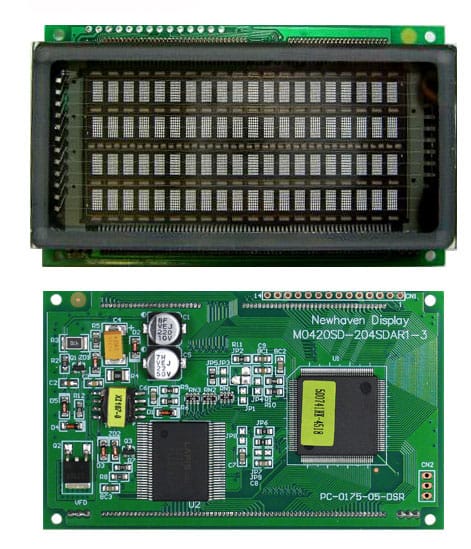

 M0420SD-204SDAR1-3 Newhaven Display, Intl. | 1 $69.6480 | Datasheet | 100.00mm x 60.00mm x 20.60mm | 73.60mm L x 30.96mm W | 20 x 4 | Character | 5 x 8 Dots | 5V | 4.84mm H x 2.35mm W | - | Parallel/Serial | PT6314 | -40°C ~ 85°C | 1,280 Cart + RFQ |
D0109MT-20-0901 Newhaven Display, Intl. | Datasheet | 100.00mm x 20.50mm x 6.50mm | - | 8 x 1 | Character | - | - | - | - | - | - | -20°C ~ 70°C | 4,837 Cart + RFQ | |
D0120SD-20-2004F Newhaven Display, Intl. | Datasheet | 115.70mm x 20.50mm x 6.50mm | - | 20 x 1 | Character | 5 x 7 Dots | - | 4.90mm H x 3.40mm W | - | - | - | -40°C ~ 85°C | 6,060 Cart + RFQ | |
D0220MD-48-4001F Newhaven Display, Intl. | Datasheet | 175.00mm x 48.30mm x 10.50mm | - | 20 x 2 | Character | 5 x 7 Dots | - | 10.50mm H x 5.50mm W | - | - | - | -20°C ~ 70°C | 5,789 Cart + RFQ | |
D0220LD-48-4002F Newhaven Display, Intl. | Datasheet | 225.00mm x 48.30mm x 11.50mm | - | 20 x 2 | Character | 5 x 7 Dots | - | 11.20mm H x 6.10mm W | - | - | - | -40°C ~ 85°C | 9,765 Cart + RFQ | |
C-33-0801N Newhaven Display, Intl. | Datasheet | 144.20mm x 33.50mm x 8.00mm | - | 7 x 1 | Character | - | - | 6.50mm H x 3.00mm W | - | - | - | -20°C ~ 70°C | 3,457 Cart + RFQ | |
C-25-0104 Newhaven Display, Intl. | Datasheet | 100.00mm x 25.00mm x 6.10mm | - | 2 x 1 | Character | - | - | 9.98mm H x 5.28mm W | - | - | - | -40°C ~ 80°C | 4,993 Cart + RFQ | |
C-58-0601 Newhaven Display, Intl. | Datasheet | 110.00mm x 58.00mm x 10.50mm | - | 6 x 1 | Character | - | - | 7.60mm H x 4.30mm W | - | - | - | -30°C ~ 85°C | 4,595 Cart + RFQ | |
C-29-1002FN Newhaven Display, Intl. | Datasheet | 100.00mm x 29.00mm x 8.00mm | - | 8 x 1 | Character | - | - | 10.50mm H x 5.00mm W | - | - | - | -40°C ~ 80°C | 6,994 Cart + RFQ | |
C-22-0501NA Newhaven Display, Intl. | Datasheet | 106.20mm x 22.00mm x 6.50mm | - | - | Character | - | - | - | - | - | - | -20°C ~ 70°C | 2,188 Cart + RFQ |
