Display Modules - LED Dot Matrix and Cluster
Display Modules - LED Dot Matrix and Cluster units are Devices that use a light emitting diodes arranged in a matrix layout to provide visual graphics. Typically arranged in grid pattern with either the positive or negative terminal of the light emitting diode tied together as a common circuit node. Available in a variety of sizes and colors, these units can accept a wide range of interfaces from I2C, 8-bit parallel, serial and ASCII inputs.
Product List
Total Components: 114
| Product | Pricing | Datasheet | Millicandela Rating | Internal Connection | Size / Dimension | Color | Configuration | Voltage - Forward (Vf) (Typ) | Interface | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|

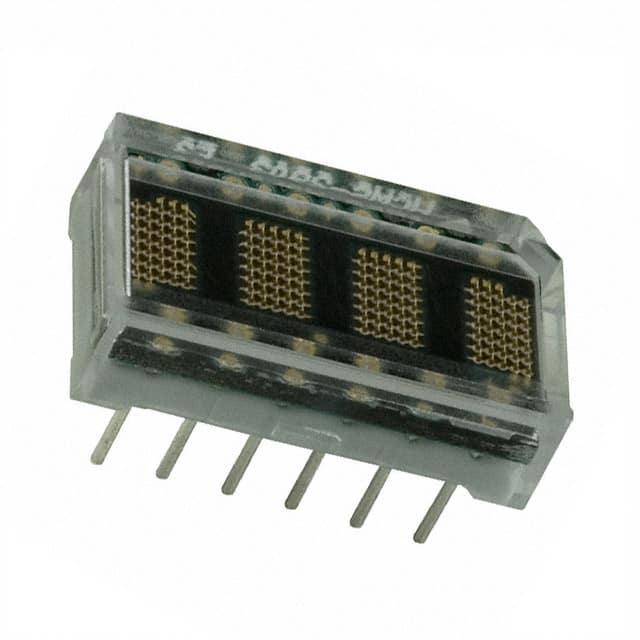

 HCMS-2903 Avago Technologies (Broadcom) | 1 $60.0000 100 $48.0000 500 $40.0000 | Datasheet | 114µcd | - | 0.70" L x 0.40" W x 0.20" H (17.80mm x 10.20mm x 5.10mm) | Green | 5 x 7 | - | Serial | 200 Cart + RFQ |

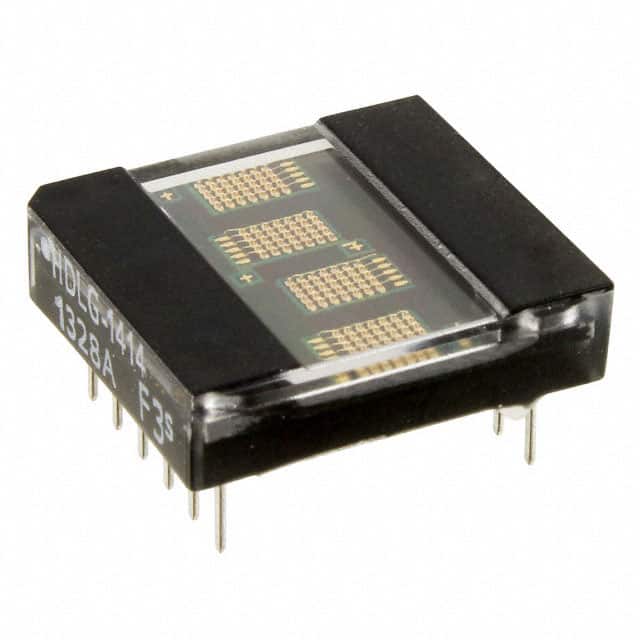

 HDLG-1414 Avago Technologies (Broadcom) | 1 $37.6300 | Datasheet | 5.6mcd | - | 0.70" L x 0.79" W x 0.24" H (17.66mm x 20.12mm x 6.10mm) | Green | 5 x 7 | - | 7-Bit ASCII | 8,414 Cart + RFQ |
 HDLO-2416 Avago Technologies (Broadcom) | 1 $38.7900 | Datasheet | 3.5mcd | - | 0.99" L x 0.79" W x 0.26" H (25.15mm x 20.07mm x 6.60mm) | Red | 5 x 7 | - | 7-Bit ASCII | 3,527 Cart + RFQ |

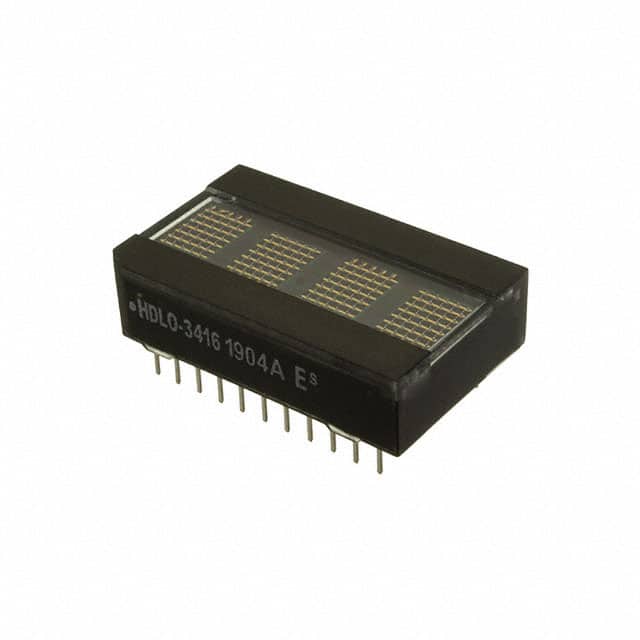

 HDLO-3416 Avago Technologies (Broadcom) | 1 $41.4700 | Datasheet | 1.20mcd ~ 13.30mcd | - | 1.29" L x 0.79" W x 0.34" H (32.77mm x 20.07mm x 8.64mm) | Red | 5 x 7 | - | 7-Bit ASCII | 9,394 Cart + RFQ |
 HCMS-2972 Avago Technologies (Broadcom) | 1 $43.1400 | Datasheet | 64µcd | - | 1.69" L x 0.45" W x 0.21" H (42.93mm x 11.43mm x 5.33mm) | Red | 5 x 7 | - | Serial | 8,387 Cart + RFQ |
 HCMS-2913 Avago Technologies (Broadcom) | 1 $46.3800 | Datasheet | 114µcd | - | 1.40" L x 0.40" W x 0.20" H (35.56mm x 10.16mm x 5.08mm) | Green | 5 x 7 | - | Serial | 3,757 Cart + RFQ |

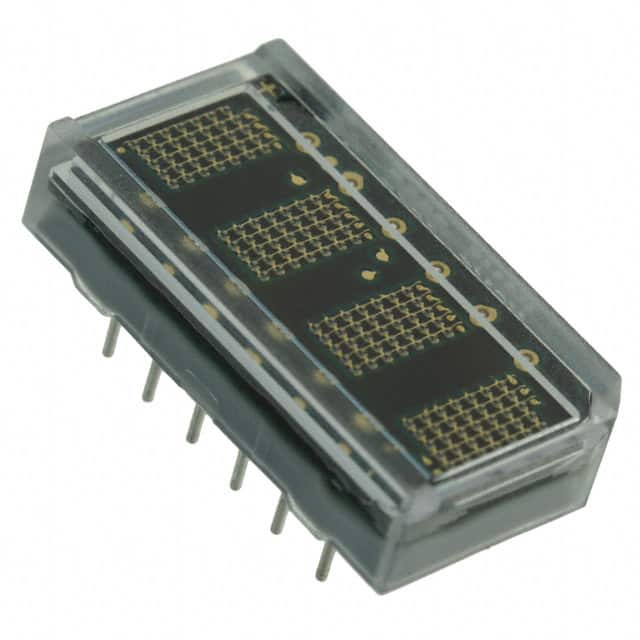

 HCMS-3967 Avago Technologies (Broadcom) | 1 $46.7700 | Datasheet | 1mcd | - | 0.85" L x 0.45" W x 0.21" H (21.46mm x 11.43mm x 5.31mm) | Green | 5 x 7 | - | Serial | 1,623 Cart + RFQ |

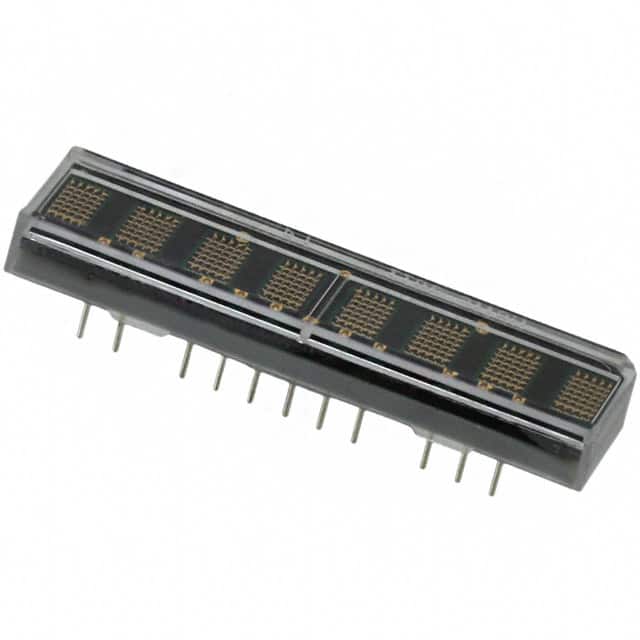

 HCMS-3977 Avago Technologies (Broadcom) | 1 $52.5300 | Datasheet | 1mcd | - | 1.69" L x 0.45" W x 0.21" H (42.93mm x 11.43mm x 5.31mm) | Green | 5 x 7 | - | Serial | 4,844 Cart + RFQ |

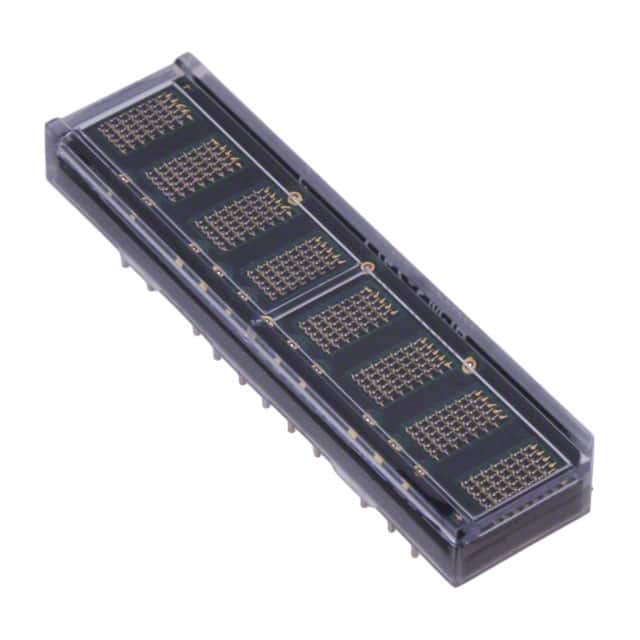

 HCMS-2975 Avago Technologies (Broadcom) | 1 $53.6000 | Datasheet | 230µcd | - | 1.69" L x 0.45" W x 0.21" H (42.93mm x 11.43mm x 5.33mm) | Red | 5 x 7 | - | Serial | 9,351 Cart + RFQ |

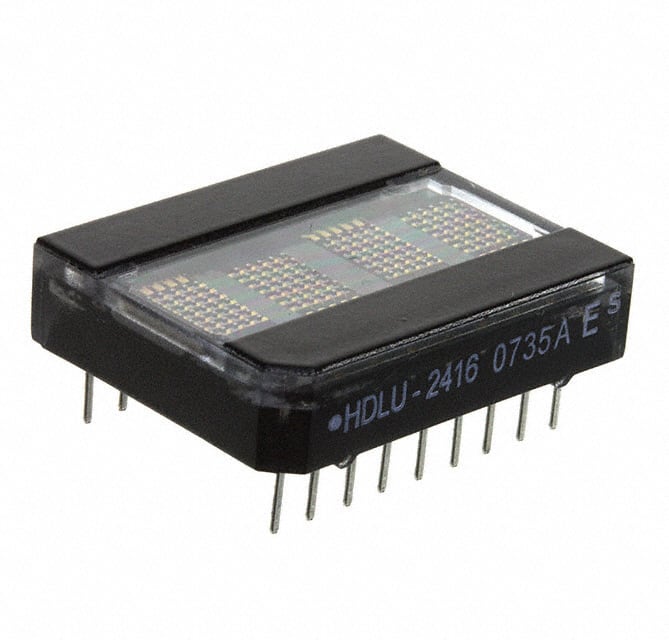

 HDLU-2416 Avago Technologies (Broadcom) | 1 $42.2700 | Datasheet | 1.20mcd ~ 13.30mcd | - | 0.99" L x 0.79" W x 0.26" H (25.15mm x 20.07mm x 6.60mm) | Red | 5 x 7 | - | 7-Bit ASCII | 4,225 Cart + RFQ |
 HDSP-2534 Avago Technologies (Broadcom) | 1 $123.0578 100 $98.4462 500 $82.0385 | Datasheet | 25mcd | - | 1.69" L x 0.45" W x 0.21" H (42.93mm x 11.43mm x 5.31mm) | Red | 5 x 7 | - | Parallel, 8-Bit | 80 Cart + RFQ |
HCMS-2902 Avago Technologies (Broadcom) | 1 $35.7700 | Datasheet | 64µcd | - | 0.70" L x 0.40" W x 0.20" H (17.80mm x 10.20mm x 5.10mm) | Red | 5 x 7 | - | Serial | 8,241 Cart + RFQ |
 HCMS-3962 Avago Technologies (Broadcom) | 1 $43.2600 | Datasheet | 128µcd | - | 0.85" L x 0.45" W x 0.21" H (21.46mm x 11.43mm x 5.31mm) | Red | 5 x 7 | - | Serial | 2,131 Cart + RFQ |
HCMS-3906 Avago Technologies (Broadcom) | 1 $39.8900 | Datasheet | 2.3mcd | - | 0.70" L x 0.40" W x 0.20" H (17.80mm x 10.20mm x 5.10mm) | Red | 5 x 7 | - | Serial | 2,930 Cart + RFQ |
 HDSP-2111 Avago Technologies (Broadcom) | 1 $55.3100 | Datasheet | 7.5mcd | - | 1.68" L x 0.77" W x 0.21" H (42.59mm x 19.58mm x 5.31mm) | Yellow | 5 x 7 | - | Parallel, 8-Bit | 7,256 Cart + RFQ |
HDSP-2531 Avago Technologies (Broadcom) | 1 $56.5300 | Datasheet | 7.5mcd | - | 1.69" L x 0.45" W x 0.21" H (42.93mm x 11.43mm x 5.31mm) | Yellow | 5 x 7 | - | Parallel, 8-Bit | 8,493 Cart + RFQ |
 HCMS-3973 Avago Technologies (Broadcom) | 1 $48.5200 | Datasheet | 252µcd | - | 1.69" L x 0.45" W x 0.21" H (42.93mm x 11.43mm x 5.31mm) | Green | 5 x 7 | - | Serial | 2,902 Cart + RFQ |
HCMS-3966 Avago Technologies (Broadcom) | 1 $42.1000 | Datasheet | 2.3mcd | - | 0.85" L x 0.45" W x 0.21" H (21.46mm x 11.43mm x 5.31mm) | Red | 5 x 7 | - | Serial | 9,553 Cart + RFQ |
 HDLO-1414 Avago Technologies (Broadcom) | 1 $37.5400 | Datasheet | 1.20mcd ~ 13.30mcd | - | 0.70" L x 0.79" W x 0.24" H (17.66mm x 20.12mm x 6.10mm) | Red | 5 x 7 | - | 7-Bit ASCII | 2,057 Cart + RFQ |
HCMS-2912 Avago Technologies (Broadcom) | 1 $43.0900 | Datasheet | 64µcd | - | 1.40" L x 0.40" W x 0.20" H (35.56mm x 10.16mm x 5.08mm) | Red | 5 x 7 | - | Serial | 6,717 Cart + RFQ |
